LANCOOL 205M MICRO-ATX CASE – BLACK WINDOW
An update to the Lancool II Midi-Tower case, the Lancool 205M from Lian Li has a smaller form factor but retains the same impressive design.
THE LANCOOL 205M AT A GLANCE:
- Premium materials
- Tempered glass side panel
- Side vents and magnetic dust filters for airflow
- micro-ATX / mini-ATX compatible
THE LANCOOL 205M IN DETAIL:
The new Lancool 205M combines premium design with excellent cooling properties. Lian Li have crafted a particularly stylish miro-ATX case with the Lanccool 205M. It includes a tempered glass side panels to let users display any components they have installed. RGB LED illumination is particularly effective as mesh inlets on the front panel create an eye catching effect when they are illuminated.
PERFECT FOR PC MODDERS – EASY ACCESS TO COMPONENTS
In addition to its great design, the Lancool 205M has plenty of room for your components. Air cooling support is excellent with space to install up to a total of fivefans. With the front capable of holding up to two 120 or two 140mm fans, a further two 120 or two 140mm fans can be fitted to the top and final one 120mm fan at the back of the case. Two PWM 120mm fans are included.
In addition to supporting multiple fans the Lancool 205M has air inlets integrated into the front panel. There are also several on the the back, top and bottom of the case, which combine inline magnetic dust filters.
Alternatively if you prefer water cooling two 120 or 240mm AIO radiators can be fitted in the front, 120mm AIO radiator on top and one 120mm radiator on top.
.
ROOM FOR MULTIPLE COMPONENTS AND DRIVES
The Lancool 205’s interior offers plenty of space for all the hardware you need to make a powerful build. It is compatible with up to micro-ATX / mini-ATX motherboards and up to three 2.5″ and one 3.5″ drive can be installed or two 2.5″ and two 3.5″ drive can be installed . The I/O panel has two 3.0 USB connectors, a power button, and audio and mic jack as well as an LED controller button and HDD LED.
SPECIFICATION:
- Dimensions:Â 210 mm (W) x 415 mm (D) x 400mm (H)
- Weight:Â approx. 6kg
- Material:Â Steel (chassis), Tempered Glass (sides)
- Colour:Â Black
- Motherboards supported M-ATX/Mini-ITX
- Max fan possible:
Front: 120mm x2 or 140mm x2
Top: 120mm x2
Rear: 120mm x1 - Pre-installed:
2 PWM 12cm Fanx (Placement: 1 Front & 1 Rear ) - Radiator compatibility:Top: 120mm x2
Front: 120mm x2 or 240mm x2
Rear: 120mm x1 - Dust Filters:Â front, bottom, top
- Drive bays:
2.5? x3 + 3.5? x1 or 2.5? x2 + 3.5? x2 - Extension slots: 4

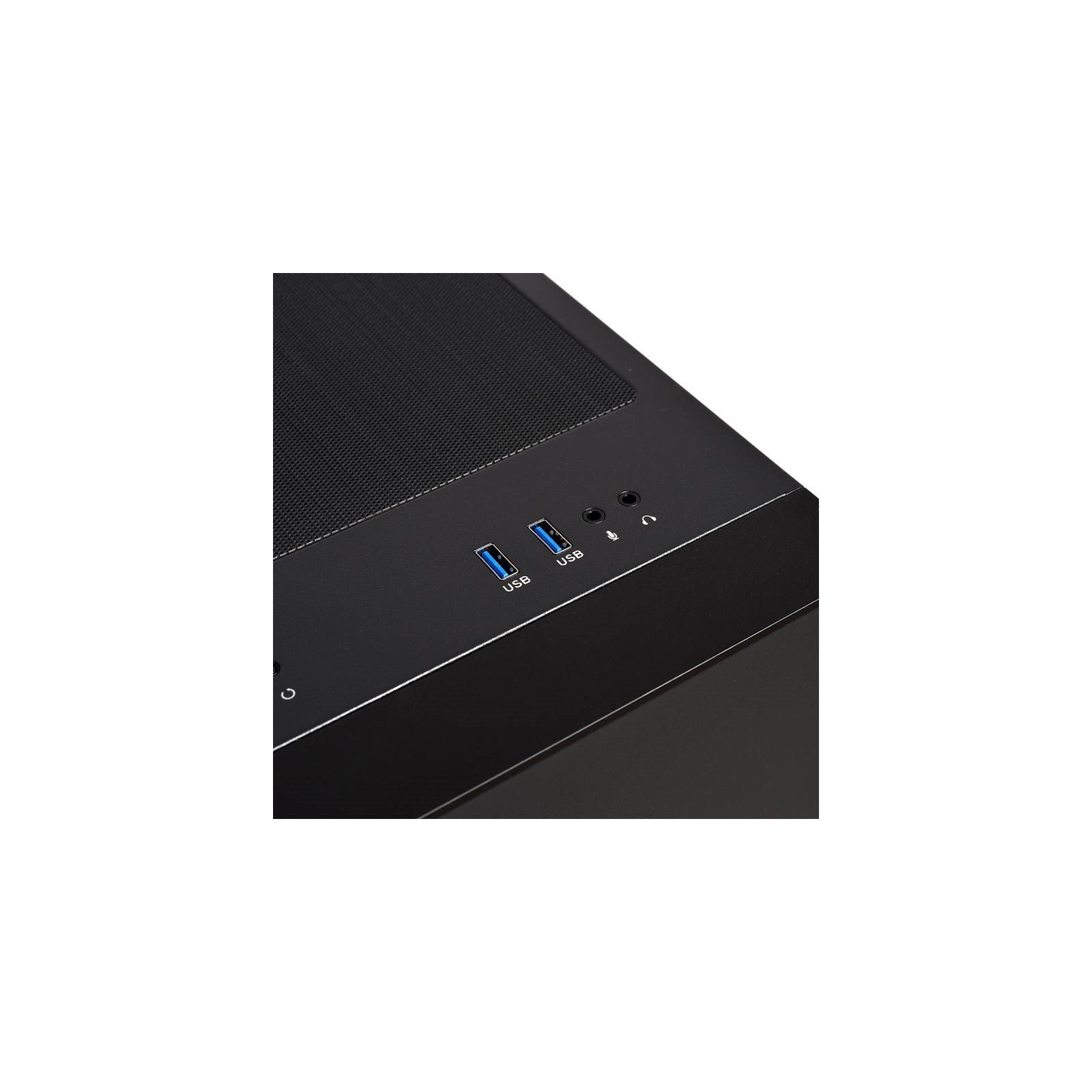

- I/O Panel:
2x USB 3.0
1x 3.5 mm jack (4-pole, TRRS, audio in/out)
1x RGB control button
1 x HDD LED
1x Power switch - Maximum graphics card length: 375mm
- Maximum CPU cooler height:160mm
