CG530 THE ULTIMATE ?SHOW? CASE

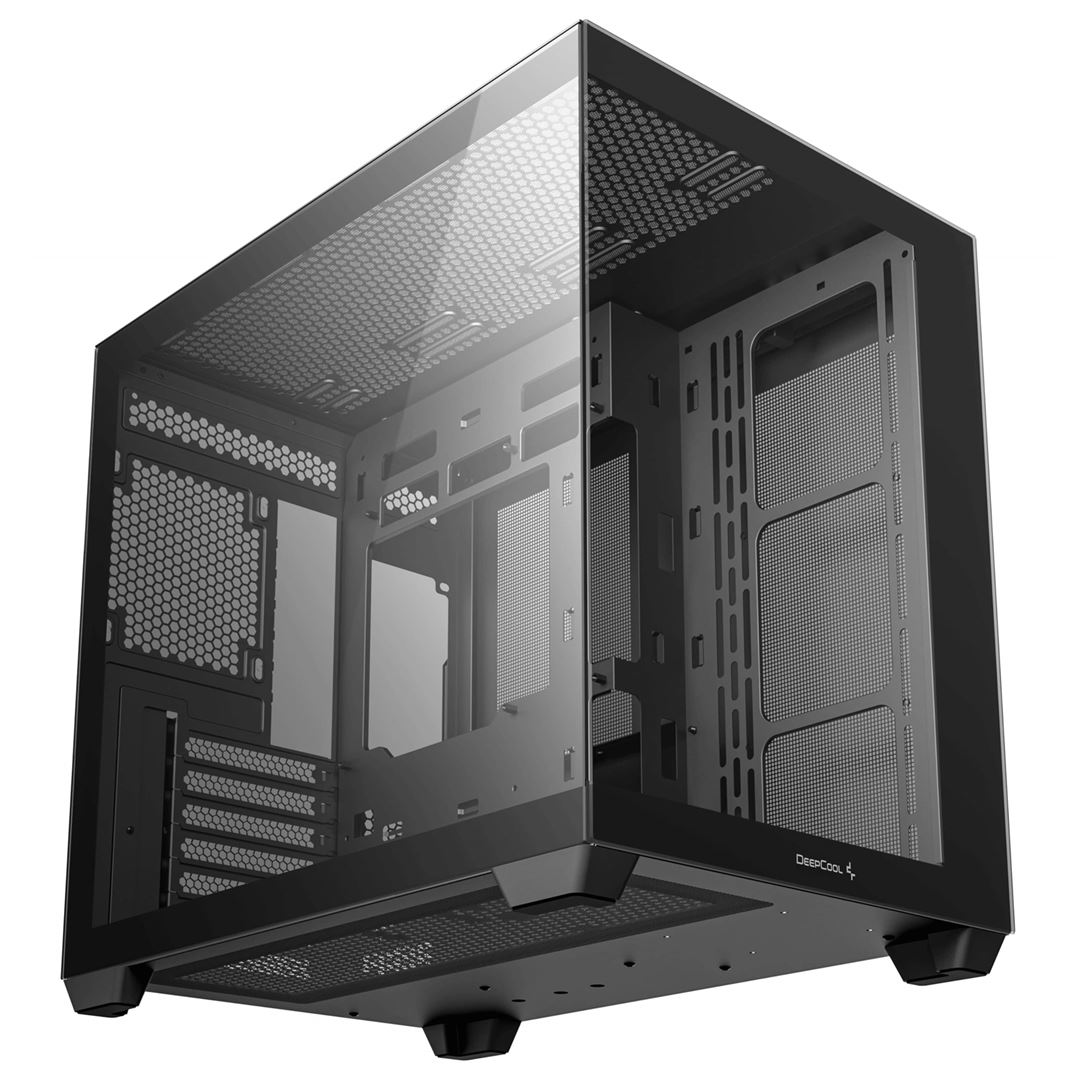

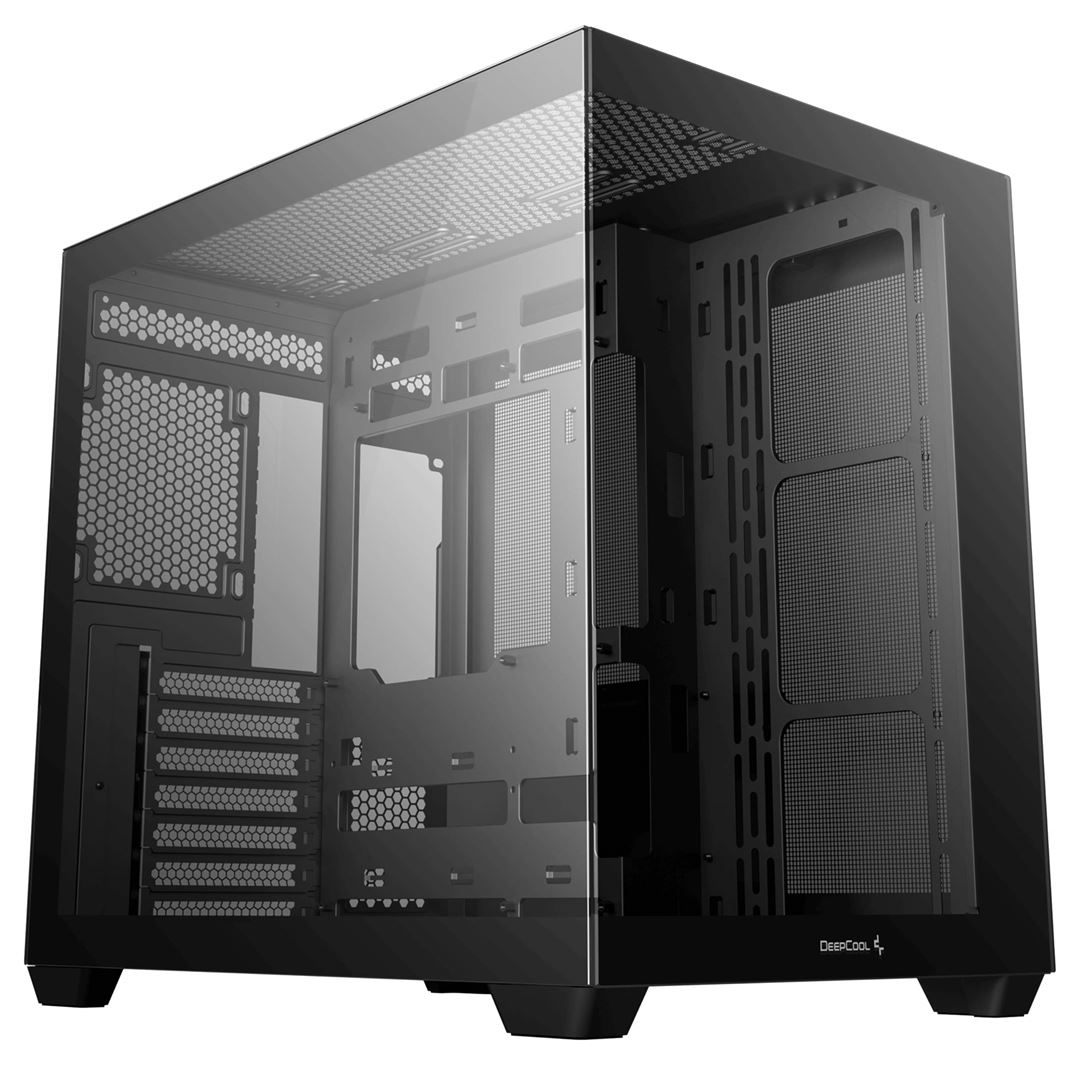

A BREATH OF FRESH AIR Experience the ultimate showcase build with its pillarless design. Featuring a seamless, non A-pillar construction, the CG530 boasts both a tempered glass side panel and a glass front panel, providing a crystal-clear view of components into full display, turning it into a true work of art.

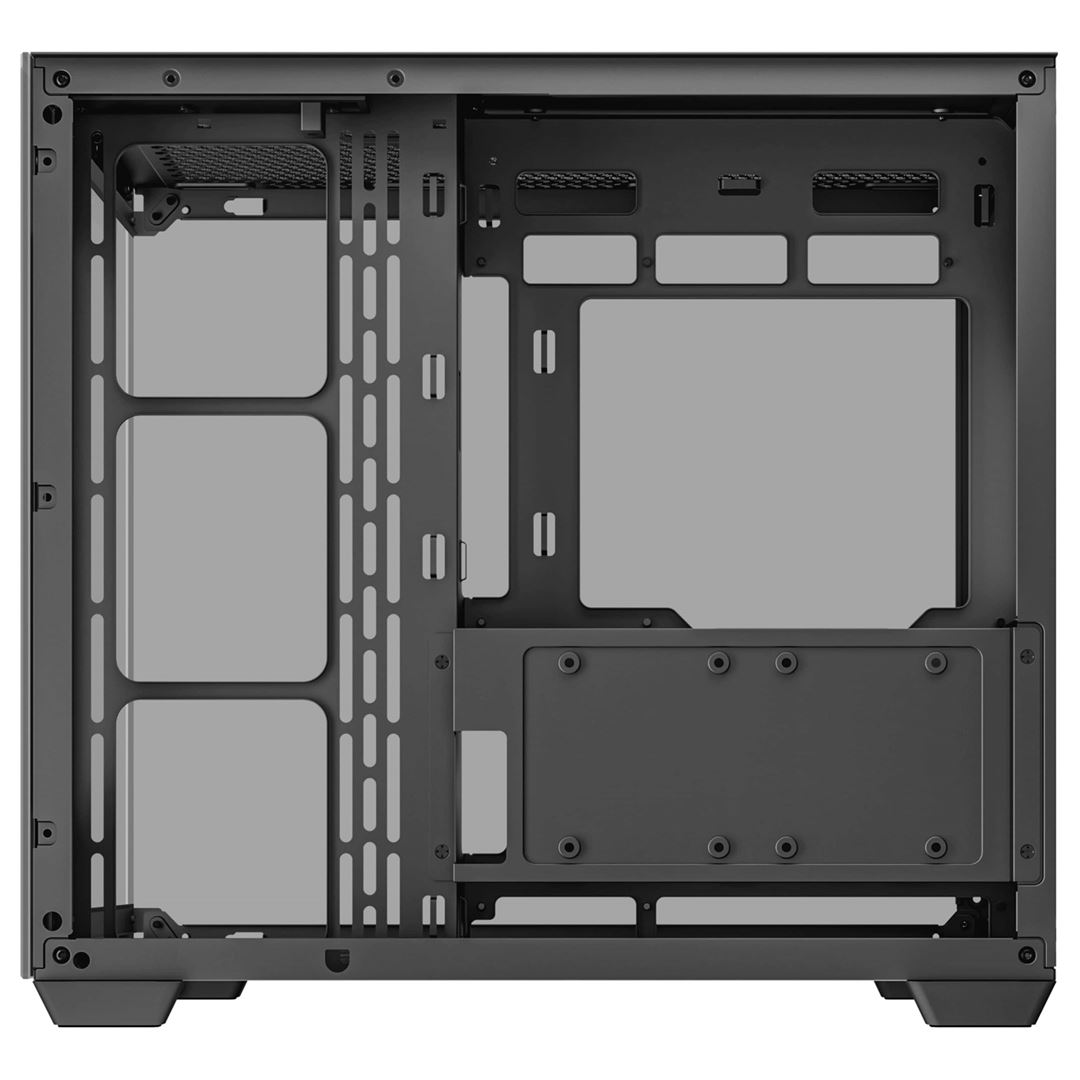

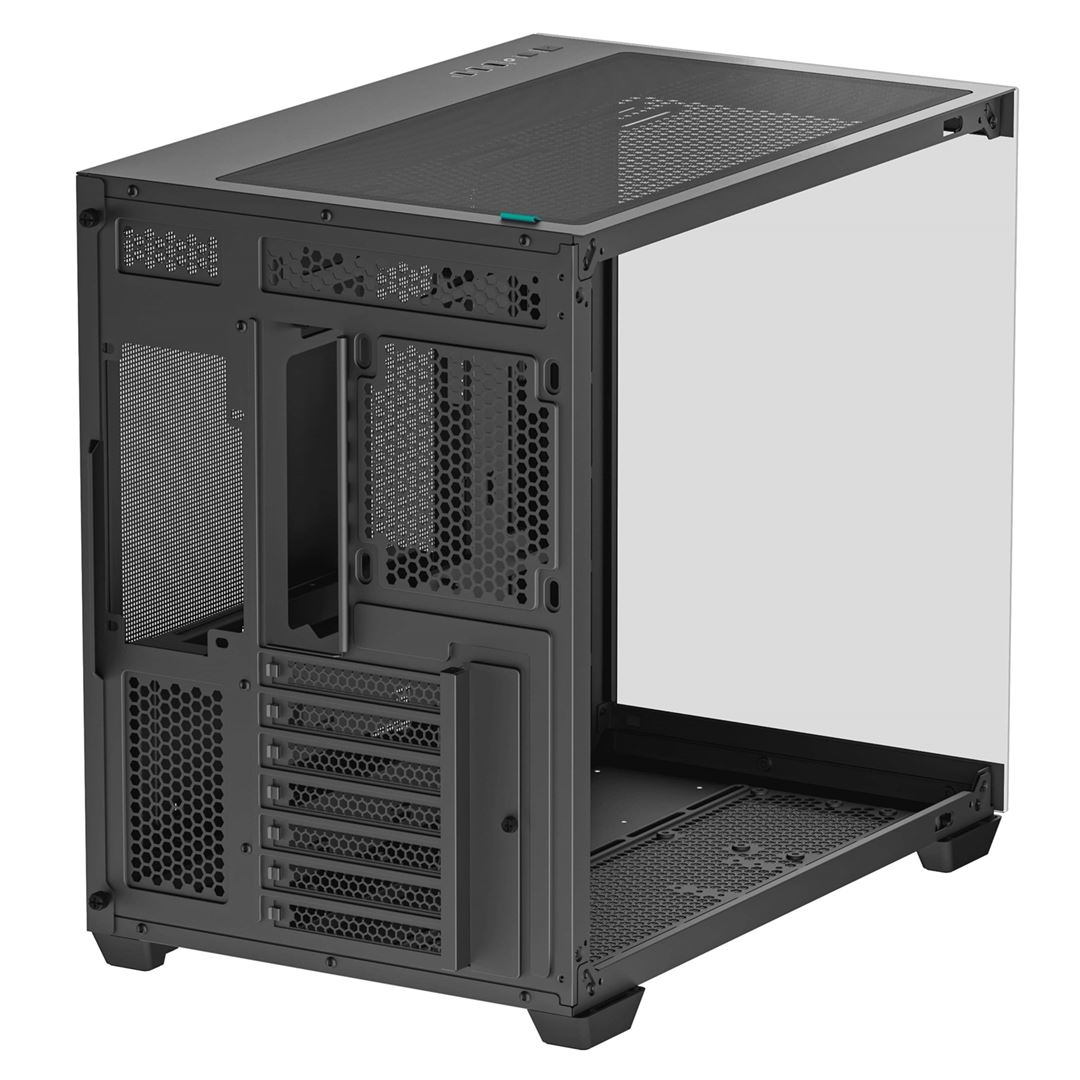

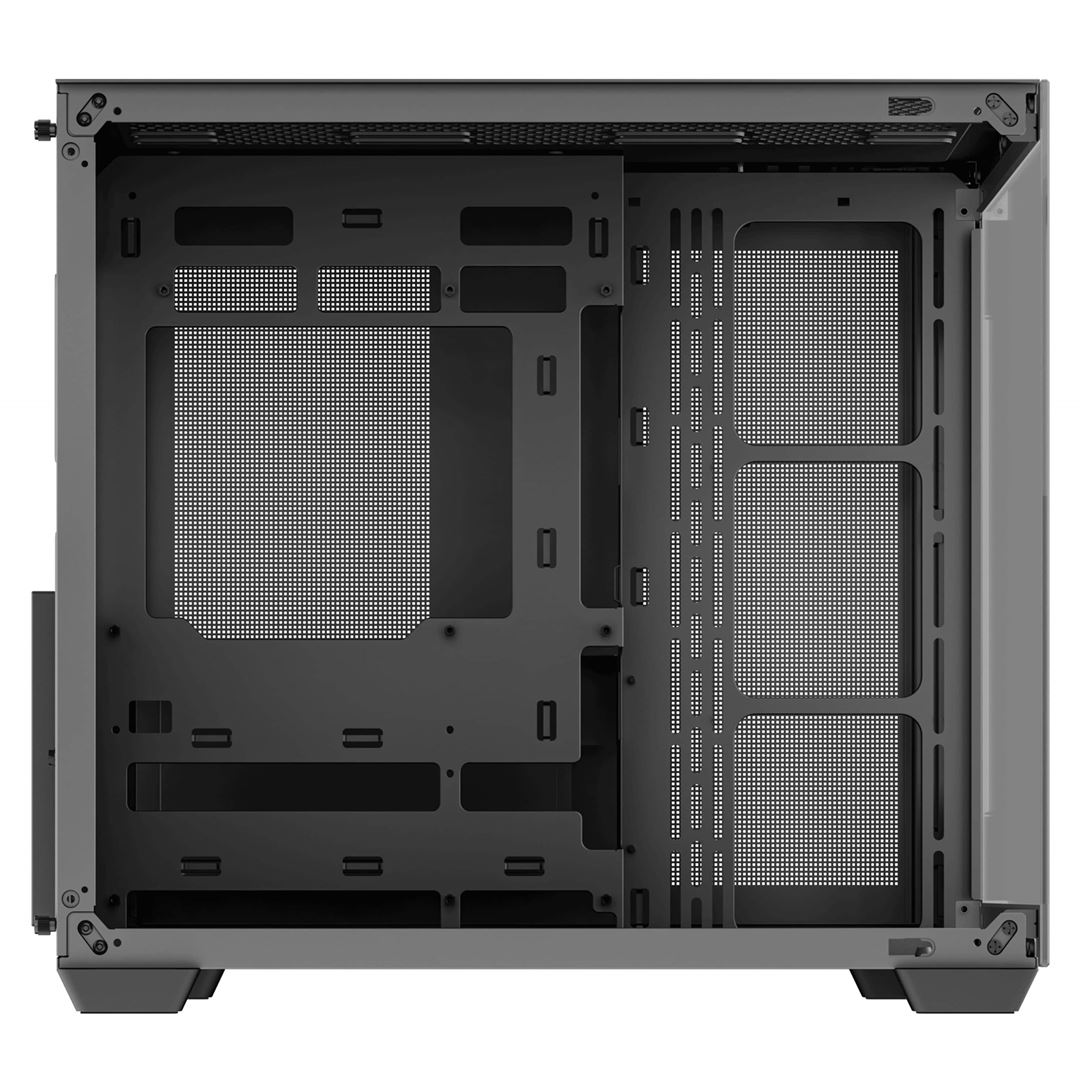

ADVANCED DUAL-CHAMBER DESIGN Featuring a wide case structure with a sophisticated dual-chamber layout, this case ensures excellent compatibility and optimal airflow. The PSU and hard disks benefit from separate air channels, while support for rear connector motherboards keeps the internal layout impeccably neat and organized.
VERSATILITY AND COMPATIBILITY The CG530 accommodates components ranging from a 210mm PSU to a 410mm GPU, ensuring installation of the most powerful components without compromise. Supports ATX motherboards and offers 7 expansion slots, providing ample room for multiple GPUs, high-end sound cards, and other peripherals. Additionally, the CG530 features versatile storage options with 2 x 3.5″ drive bays and 2+1 x 2.5″ drive bays, allowing a mixture of storage solutions for optimal performance and capacity.
MAXIMUM COOLING CAPABILITIES Never fear the heat with CG530’s exceptional cooling support. Designed to house a variety of cooling components, it offers wide compatibility for radiators and fans to keep your system running cool under any load.
CPU Air Cooler: Supports coolers up to 160mm in height.

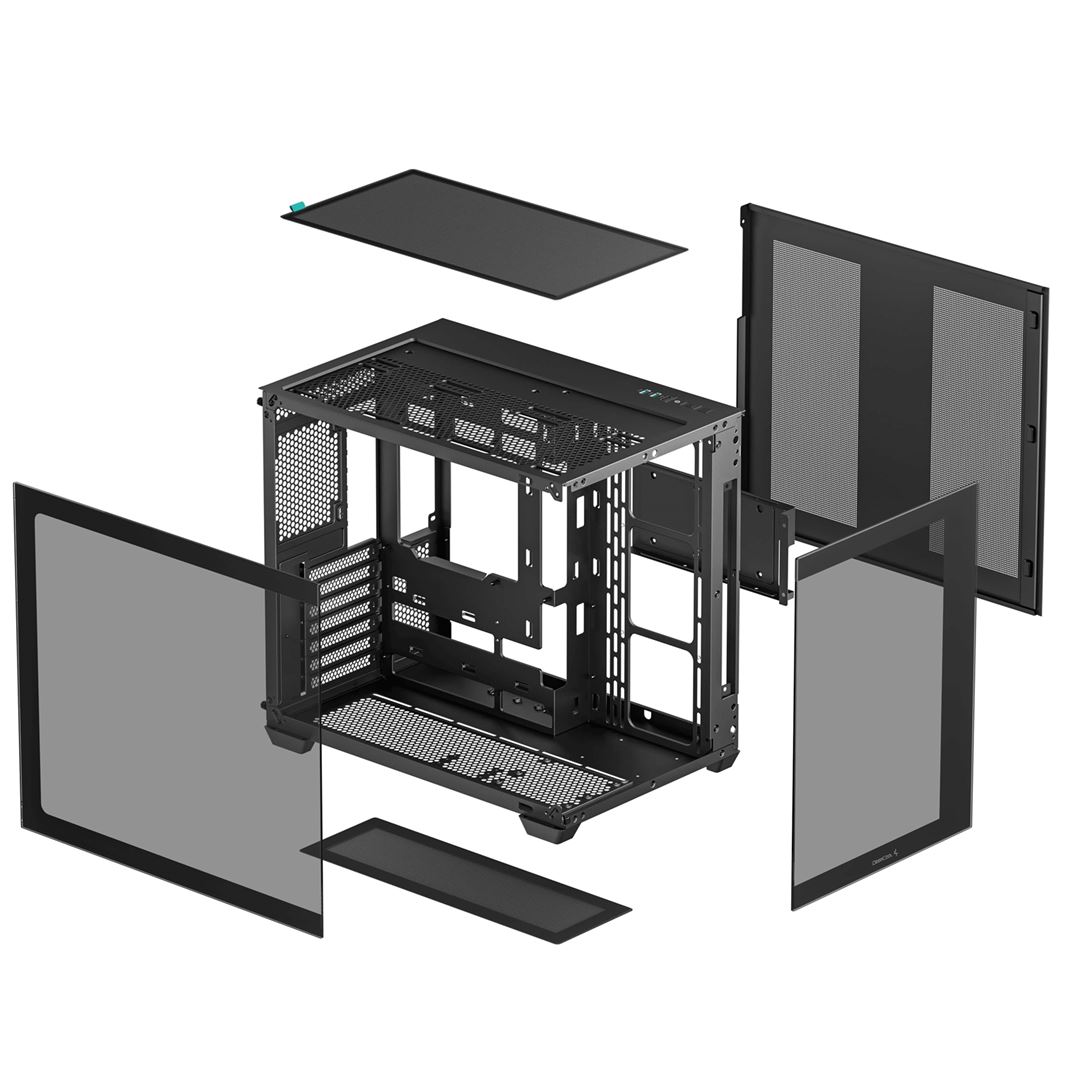

EASY MAINTENANCE AND CABLE MANAGEMENT Keep your build pristine and your components dust-free. The top and bottom panels are equipped with magnetic air filters, making cleaning a breeze and providing robust dust prevention. Additionally, the backplane offers an impressive 45mm of wiring space, ensuring that cable management is straightforward and hassle-free. Enjoy a clean, organized interior that enhances airflow and simplifies maintenance.

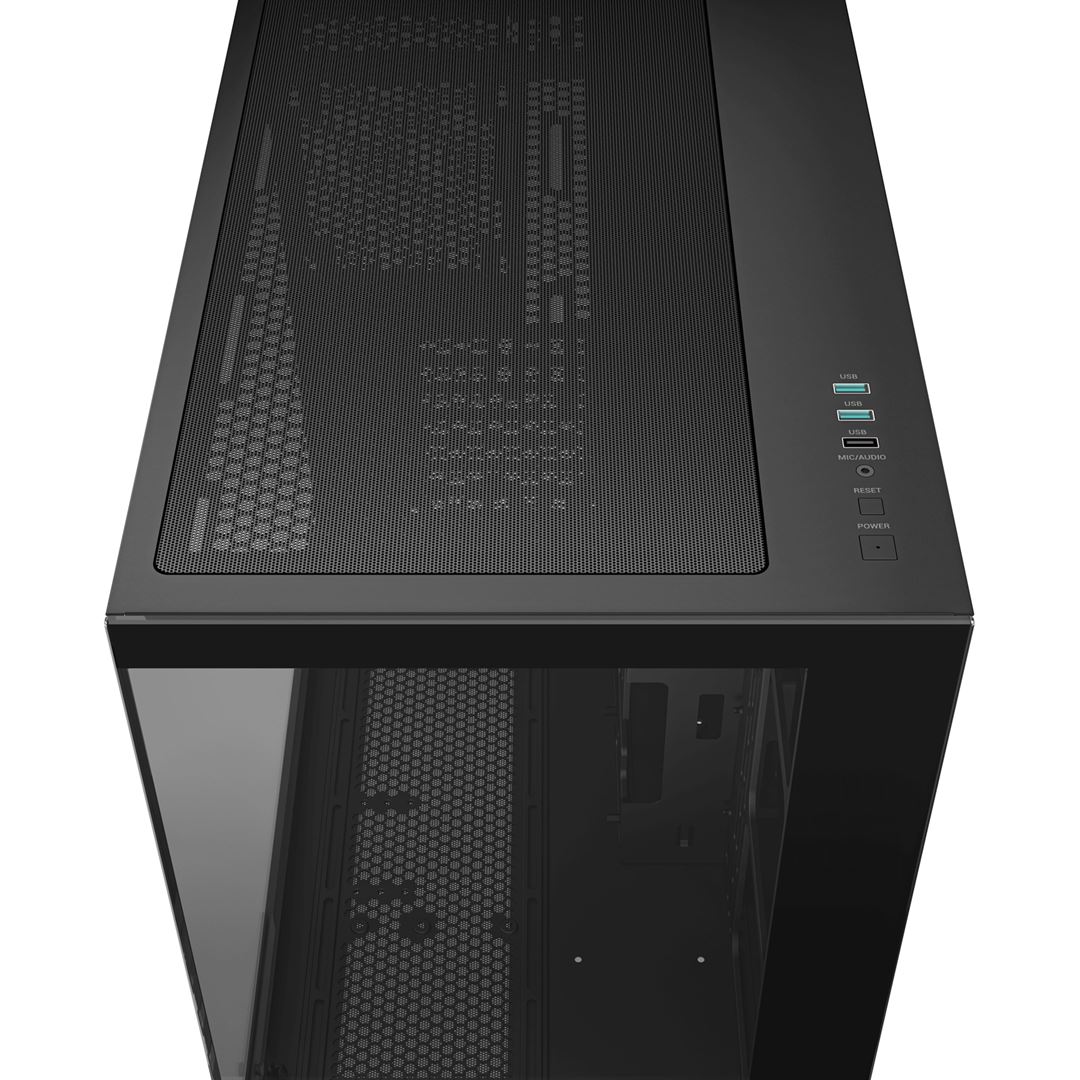

WELL CONNECTED Additional I/O ports, featuring dual USB 3.0, USB 2.0, and 2-in-1 audio port, offer seamless connectivity for multiple devices, enhancing user versatility and system integration.
Product Specifications
Dimensions
440x285x399mm (LxWxH)
Net Weight
6.4 Kg
Materials
ABS, SPCC, Tempered Glass
Motherboard Support
ITX/Micro-ATX/ATX
Front I/O Ports
USB3.0 x2
USB2.0 x1
Audio/Mic x1
3.5″ Drive Bays
2
2.5″ Drive Bays
2+1

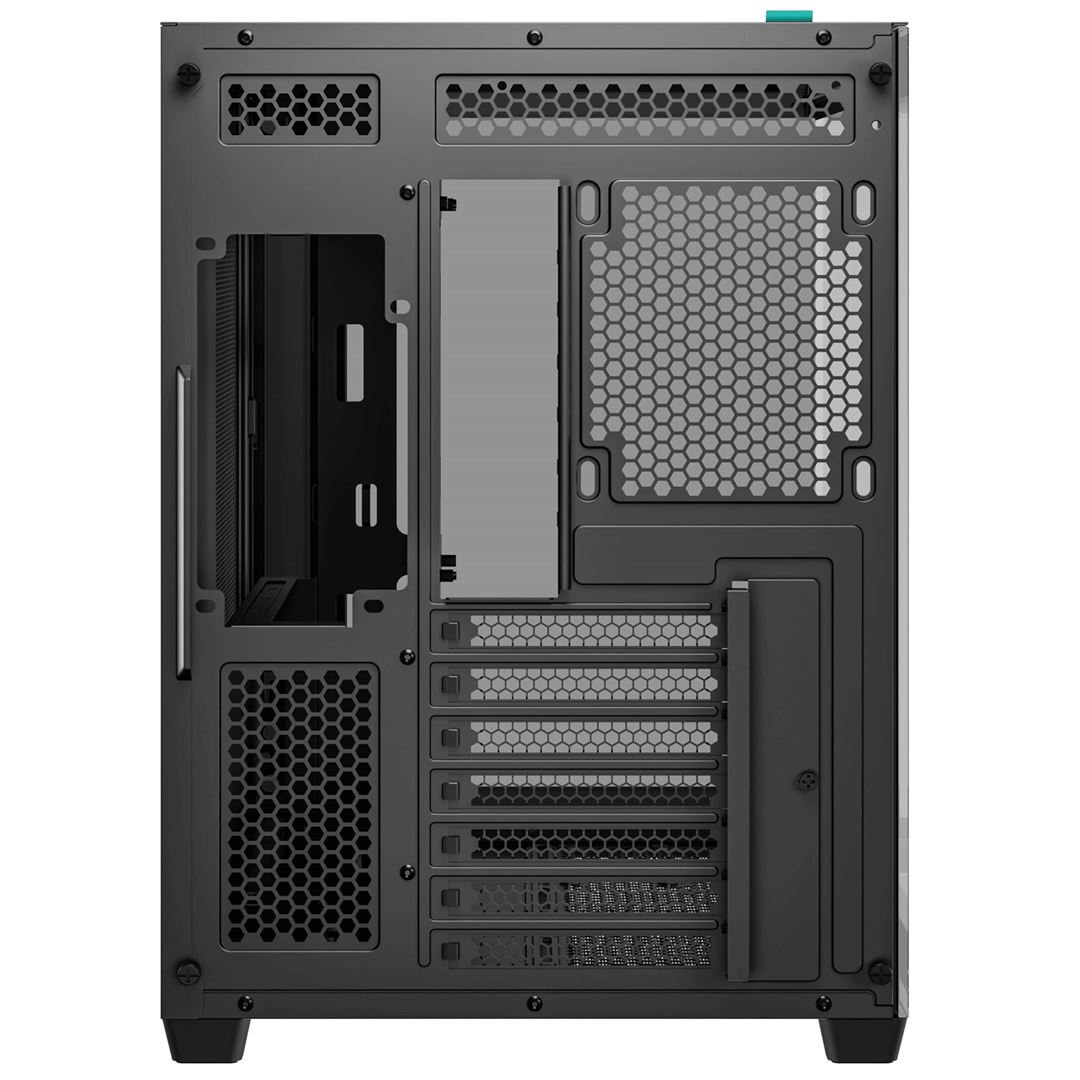

Expansion Slots
7 Slots
Pre-Installed Fans
None
Fan Support
Top
3x120mm / 2x140mm
Side
3x120mm / 2x140mm
Rear
1x120mm
Bottom
3x120mm
Radiator Support
Top
120/140/240/280/360mm
Side
120/140/240/280mm
Bottom
120/240/360mm
CPU Cooler Height Limit
160mm
GPU Length Limit
410mm
Power Supply Type
ATX PS2 (maximum length: 210mm)
EAN
6933412765134
