General
|
| Motherboard – ATX |
| Intel Z490 |
| LGA1200 Socket |
| 1 |
| Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
Supported RAM
|
| 128 GB |
| DDR4 |
| 2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4800 MHz (O.C.) |
| Non-ECC |
| Unbuffered |
| Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Audio
|
| HD Audio (8-channel) |
| Realtek ALC1200-VD1 |
| High Definition Audio |
LAN
|
| Realtek RTL8125B-CG / Intel AX201 |
| 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
Expansion / Connectivity
|
| 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe x1 ¦ 1 x PCIe 3.0 x16 (x4 mode) |
| SATA-600 -connectors: 6 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 – RAID 0 / RAID 1 |

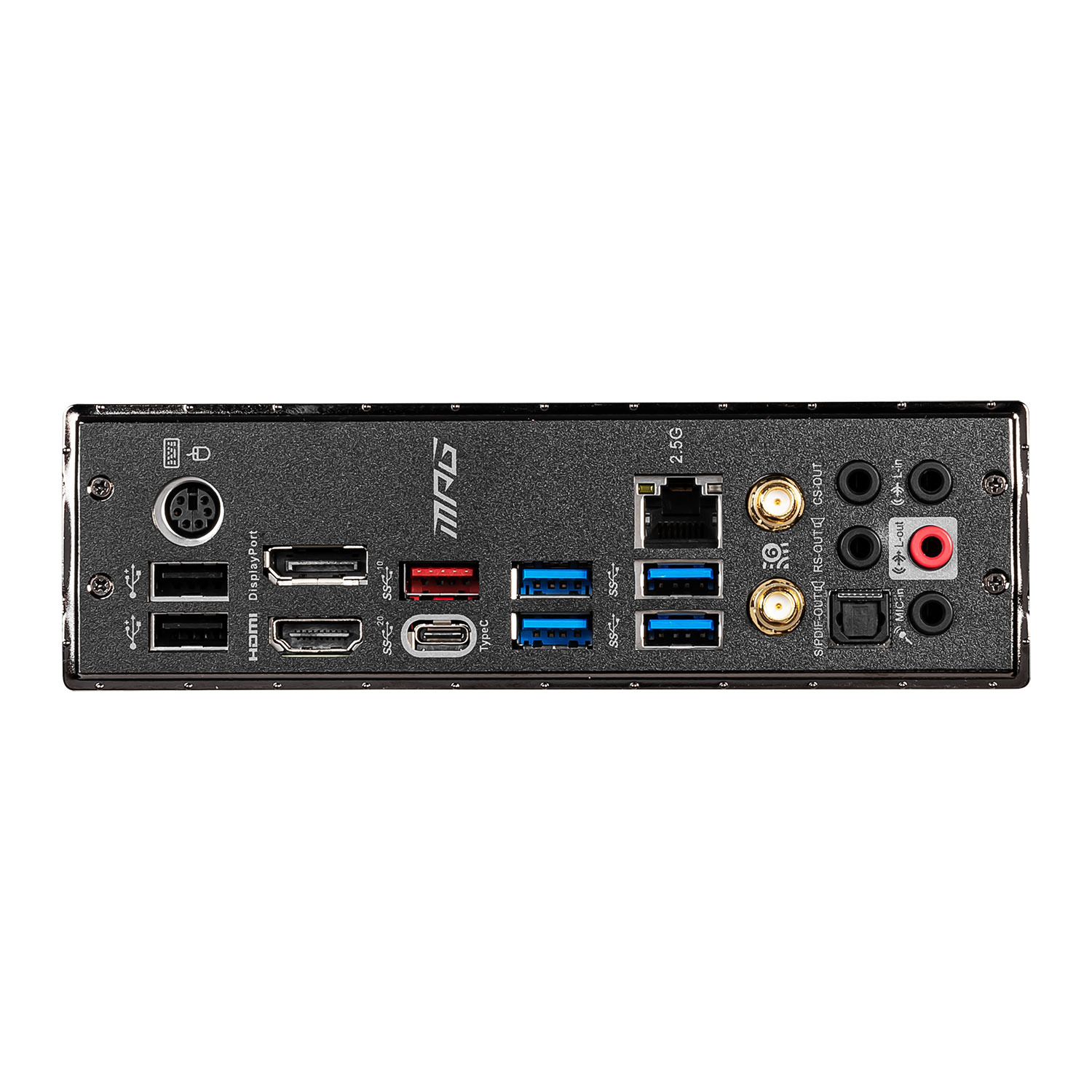

| 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2x2 ¦ 1 x audio line-out – mini-jack ¦ 1 x microphone – mini-jack ¦ 1 x audio line-out (center/subwoofer) – mini-jack ¦ 1 x audio line-out (rear) – mini-jack ¦ 1 x audio line-in – mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 4 x USB 3.1 Gen 1 |
| 4 x USB 2.0 – header ¦ 2 x USB 3.2 Gen 1 – header ¦ 1 x audio – header ¦ 1 x USB-C Gen 1 – header |
| 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
Features
|
| MSI ClickBIOS 5 |
| AMD CrossFireX technology support, MSI Audio Boost, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, Game Boost, Double ESD Protection, Intel Optane Memory Ready, M.2 Shield FROZR, 12+1+1 Phase Power Design, pre-mounted I/O shield, MSI Core Boost |
Miscellaneous
|
| Case badge |
| 2 x Serial ATA cable |
| Drivers & Utilities |
| 30.5 cm |
| 24.4 cm |
