Description

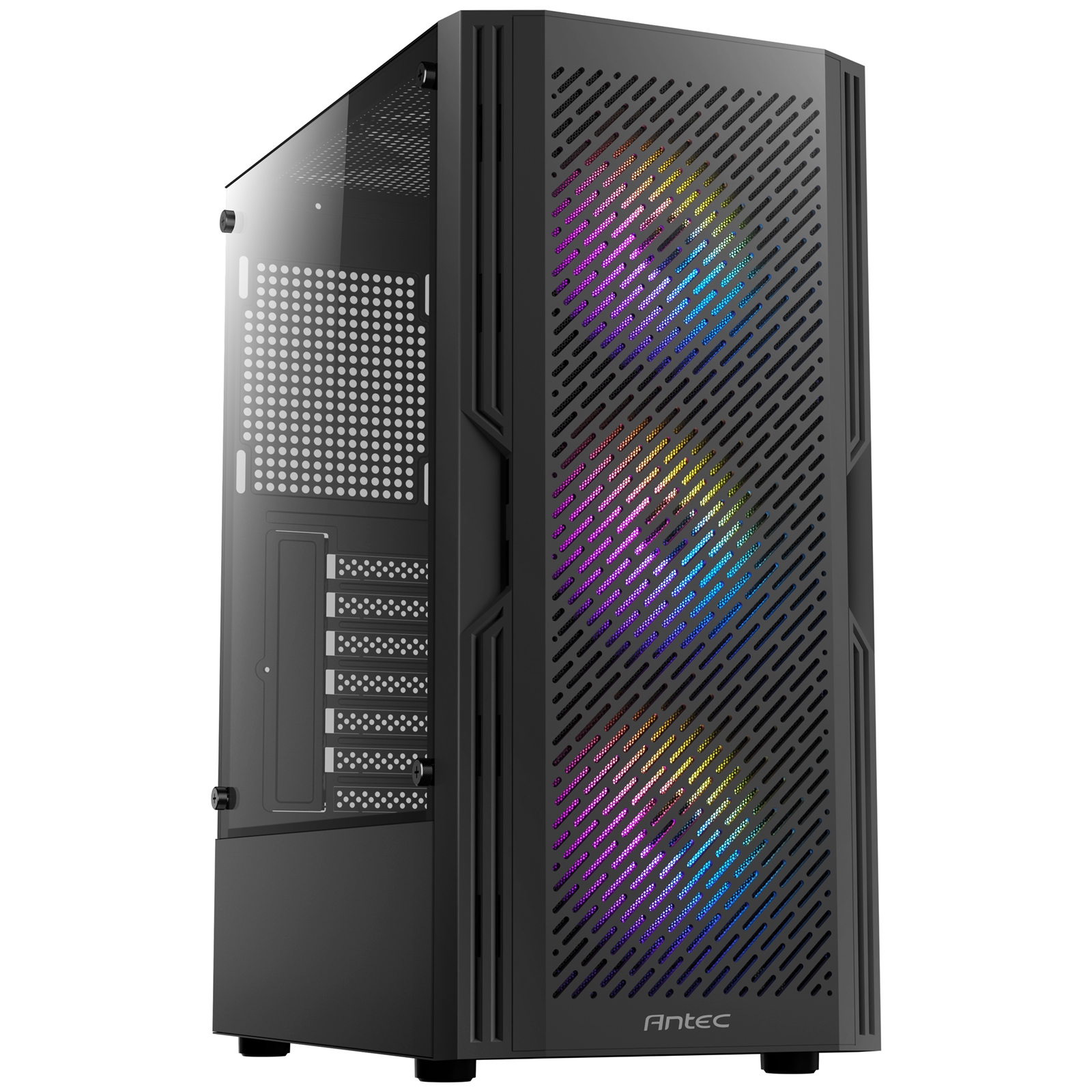

Mid-Tower Gaming CaseUnique Design & Powerful Heat Dissipation
AX20 features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.Slanted Bar Air Intake Design
Featuring dense mesh for massive airflow and efficient dust prevention.

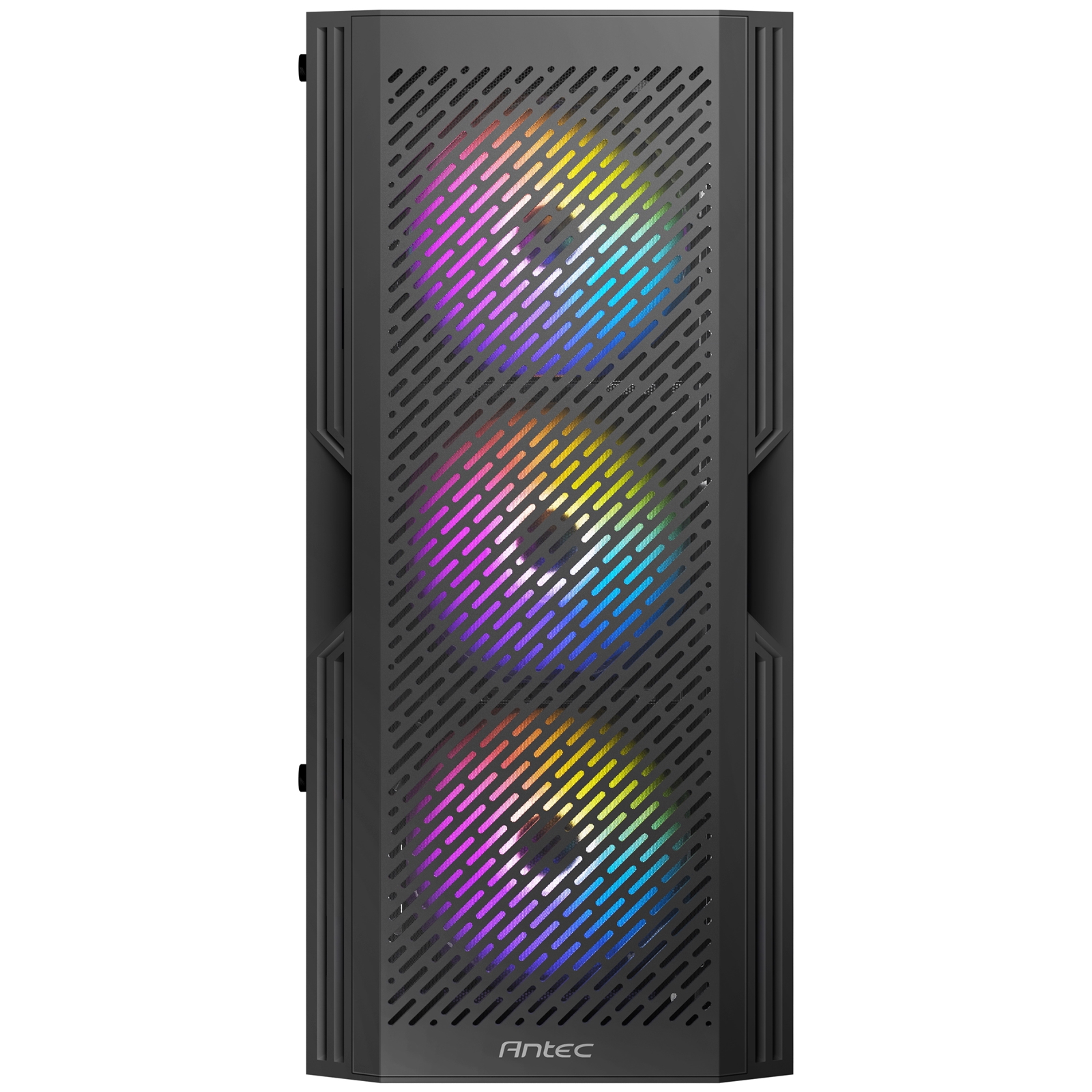

High-Airflow Front Panel
Massive air intake at the front, top, and bottom. Creating multiple airflow paths.
Pre-Installed
3 x 120mm RGB Fixed Model Fans
Form Factor
Mid Tower
Materials
Steel
Plastic
Mainboard Support
ATX
Micro ATX
Mini-ITX

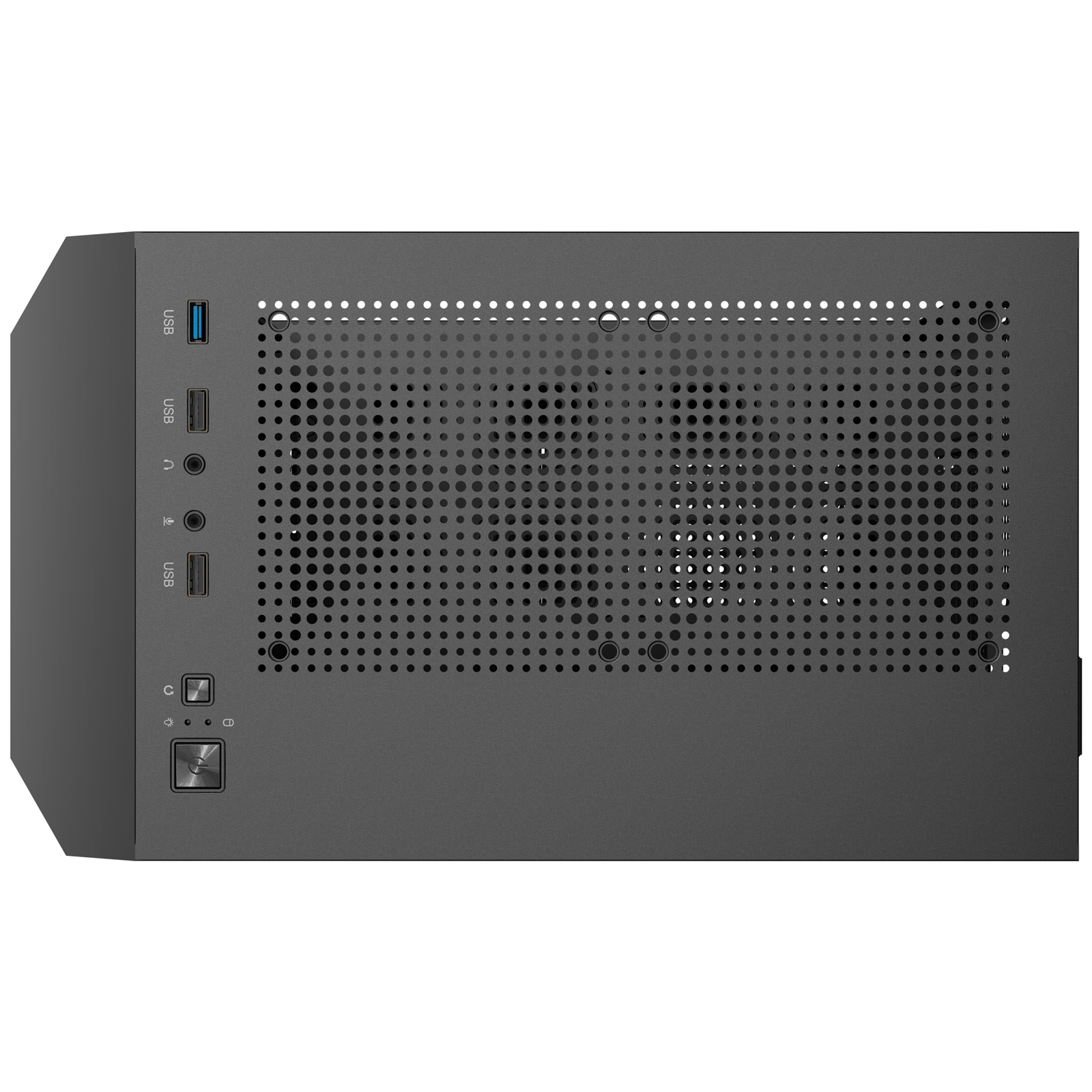

I/O Panel
Power
Reset
2 x USB 2.0
1 x USB 3.0
MIC / HD-AUDIO
Side Panel
Tempered glass
Drive Bays
3.5″ / 2.5″: 2 / 1
2.5″: 2
Expansion
Slots: 7
Fan Support
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm
Power Supply Shroud: 2 x 120mm
Rear: 1 x 120mm
Included Fans
3 x 120 RGB fixed model fans in front
Radiator Support
Front: 120 / 140 / 240 / 280mm
Clearance
Max GPU Length: = 270mm
Max CPU Cooler Height: = 155mm
Max PSU Length: = 170mm (with HDD) / = 295mm (without HDD)
Dust Filter
Front
Weight
Net: 4 Kgs
Gross: 4.71 Kgs
Dimensions ( D x W x H )
358 x 207 x 451mm
