Description
Fill Your Home in Wi-Fi

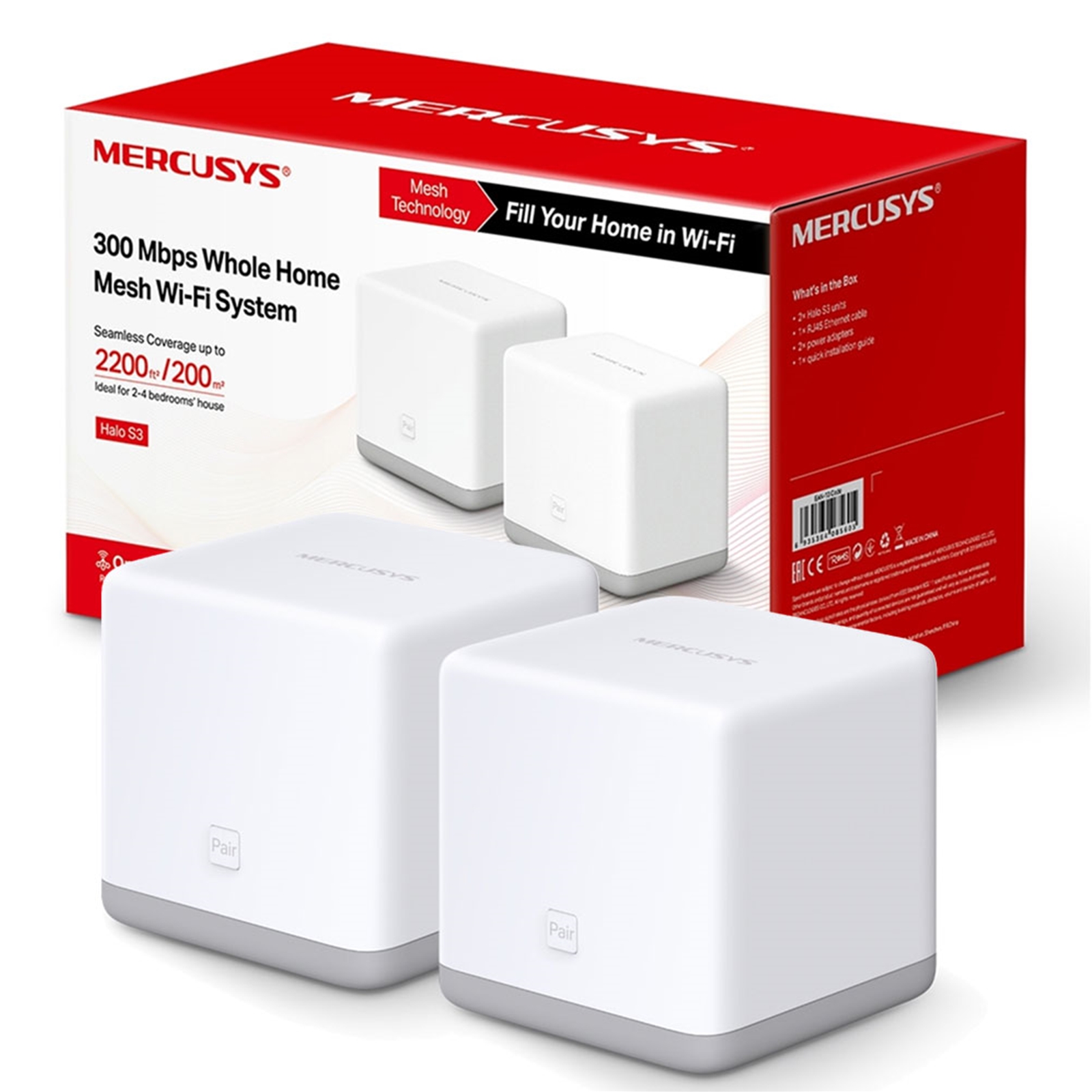

300 Mbps Whole Home Mesh Wi-Fi System

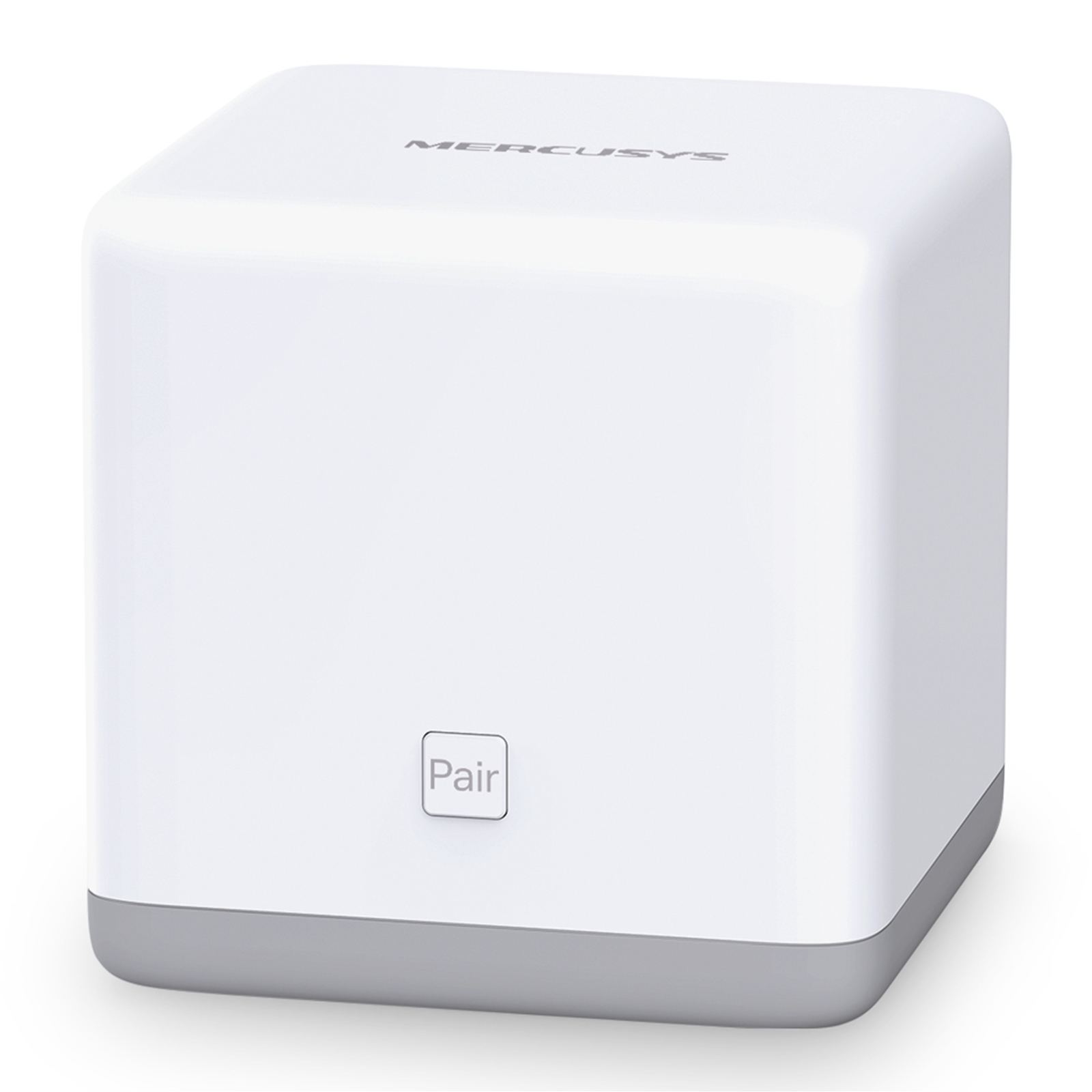

Halo S3

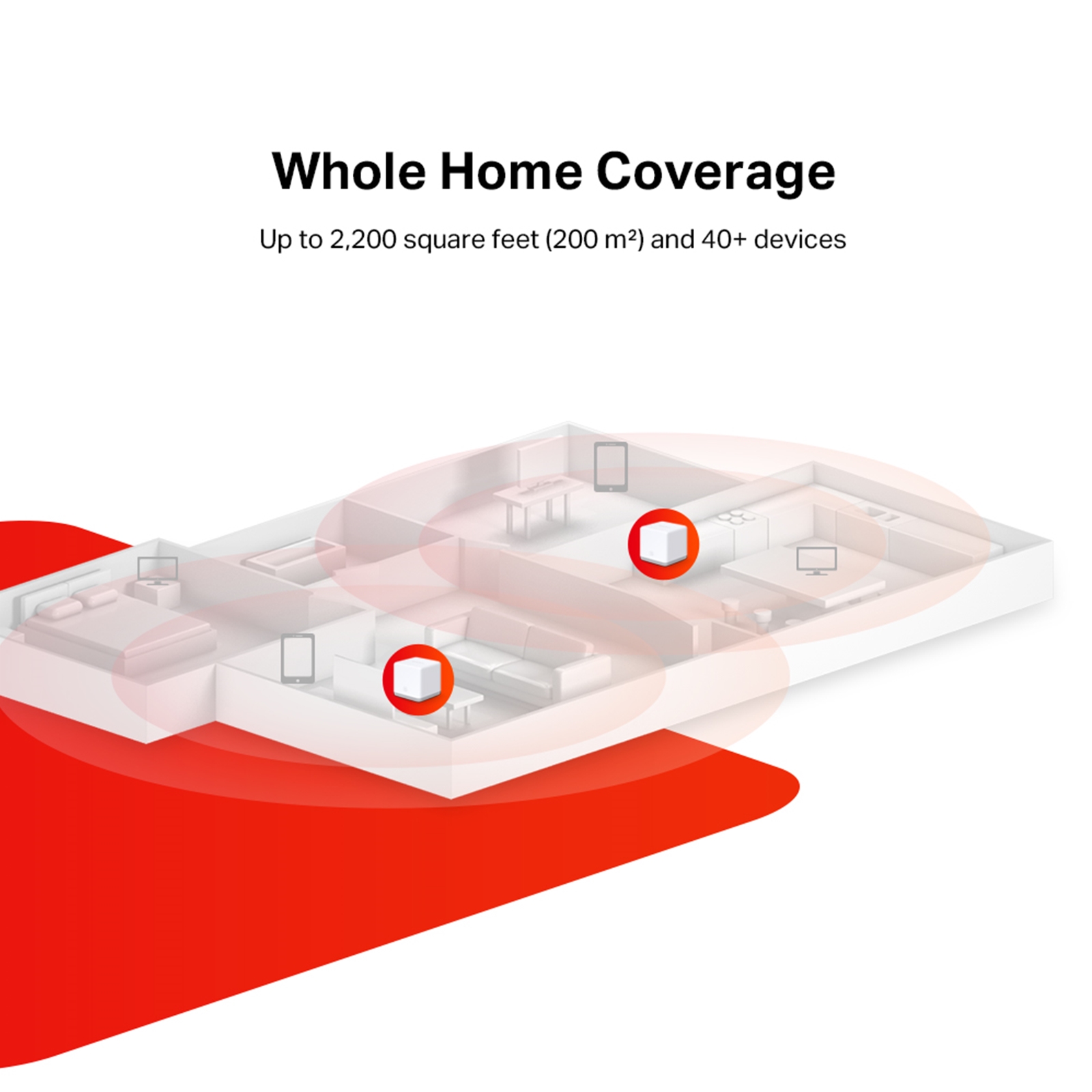

Whole Home Coverage
With Mercusys Mesh Technology, Halo S3 works as a unified system to guarantee a strong Wi-Fi signal in every corner of your home, covering up to 2,200 square feet.

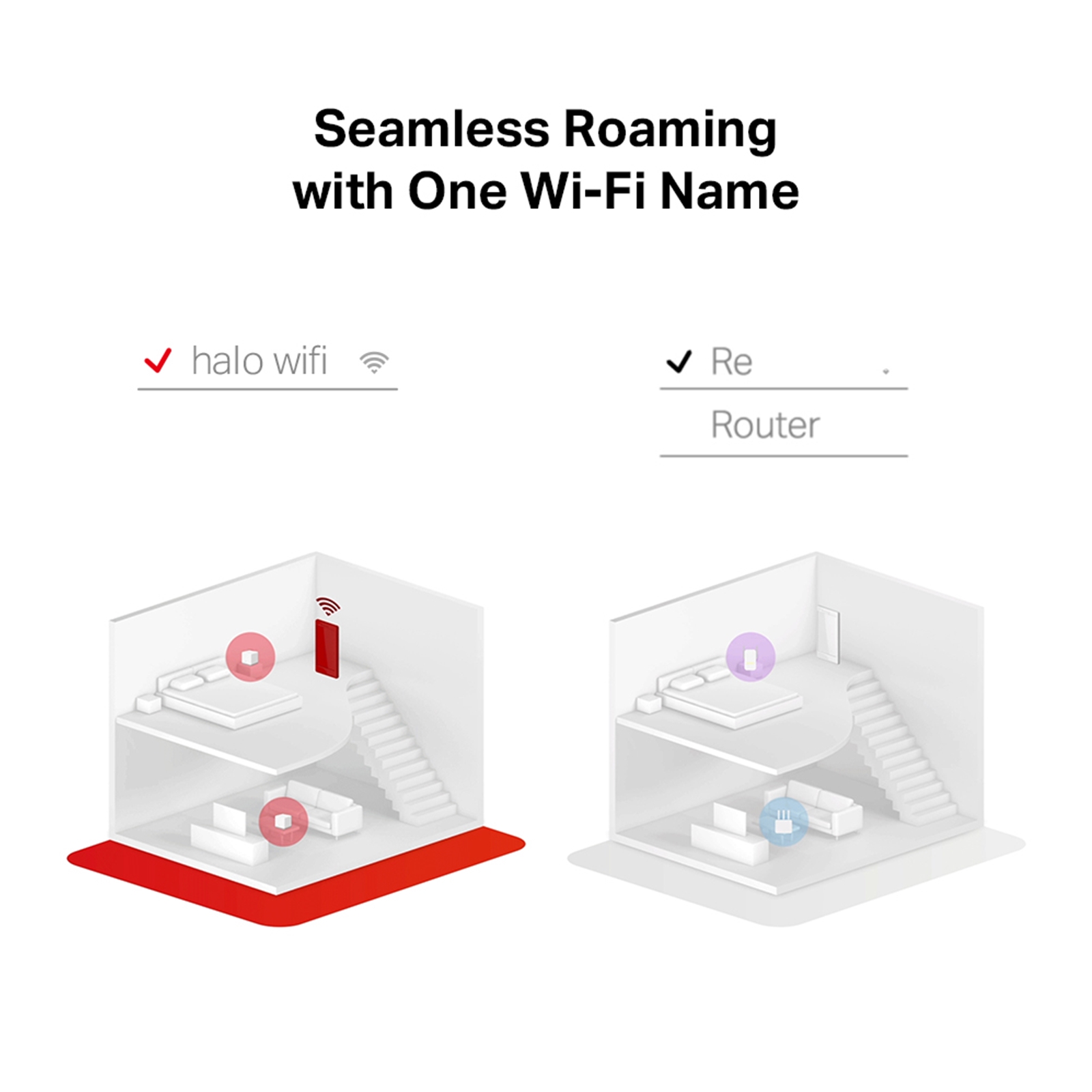

Seamless Roaming
Devices are intelligently connected to the Halo with the strongest signal and highest capacity. No more sudden signal drops or lagging Wi-Fi when you’re walking around the house.
Non-Stop Entertainment on All Your Devices
Halo S3 provides fast connections for over 40 devices at the same time. Keep phones, computers, tablets, and smart home and other IoT devices connected and operating at peak performance.
Expand Anytime
Halo S3 is compatible with every other Halo model to form a Mesh network. Expand Mesh Wi-Fi coverage anytime by simply adding more Halos.
Simply press the “Pair”button,
Then just enjoy the expand Wi-Fi.
-
Parental Control
Supervise children and staff by limiting access. Manage when and how connected devices can access the internet.
-
Guest Network
Allow guests to join your Wi-Fi network, while protecting your privacy. Making sharing easy and maintaining security.
-
Hassle-Free Installation
Easy step-by-step instructions on the intuitive webpage allow you to complete installation in minutes.
- Wireless
- Wireless Standards – IEEE 802.11b/g/n
- Frequency – 2.4 – 2.5 GHz
- Signal Rate – 300 Mbps on 2.4 GHz
- Reception Sensitivity:
- 11g 6M: -95dBm
11g 54M: -77dBm
11n 20M MCS7: -75dBm
11n 40M MCS7: -72dBm - Transmission Power – <20dBm (EIRP)
- Wireless Security – WPA2-PSK + AES
- Wireless Functions – Enable/Disable Wireless Radio, Wireless Statistics
Mesh protocol – 802.11k/v
- WAN Type – Dynamic IP/Static IP/PPPoE/PPTP/L2TP
- Management:
- Access Control
Local Management
Remote Management - DHCP – Server, Address Reservation, DHCP Client List
- Port Forwarding – Virtual Server, UPnP, DMZ, Port Triggering
- Protocols – IPv4, IPv6
- Guest Network -2.4 GHz Guest Network
- Dimensions (W X D X H) – 3.5 × 3.5 × 3.5 in (88 × 88 × 88 mm)

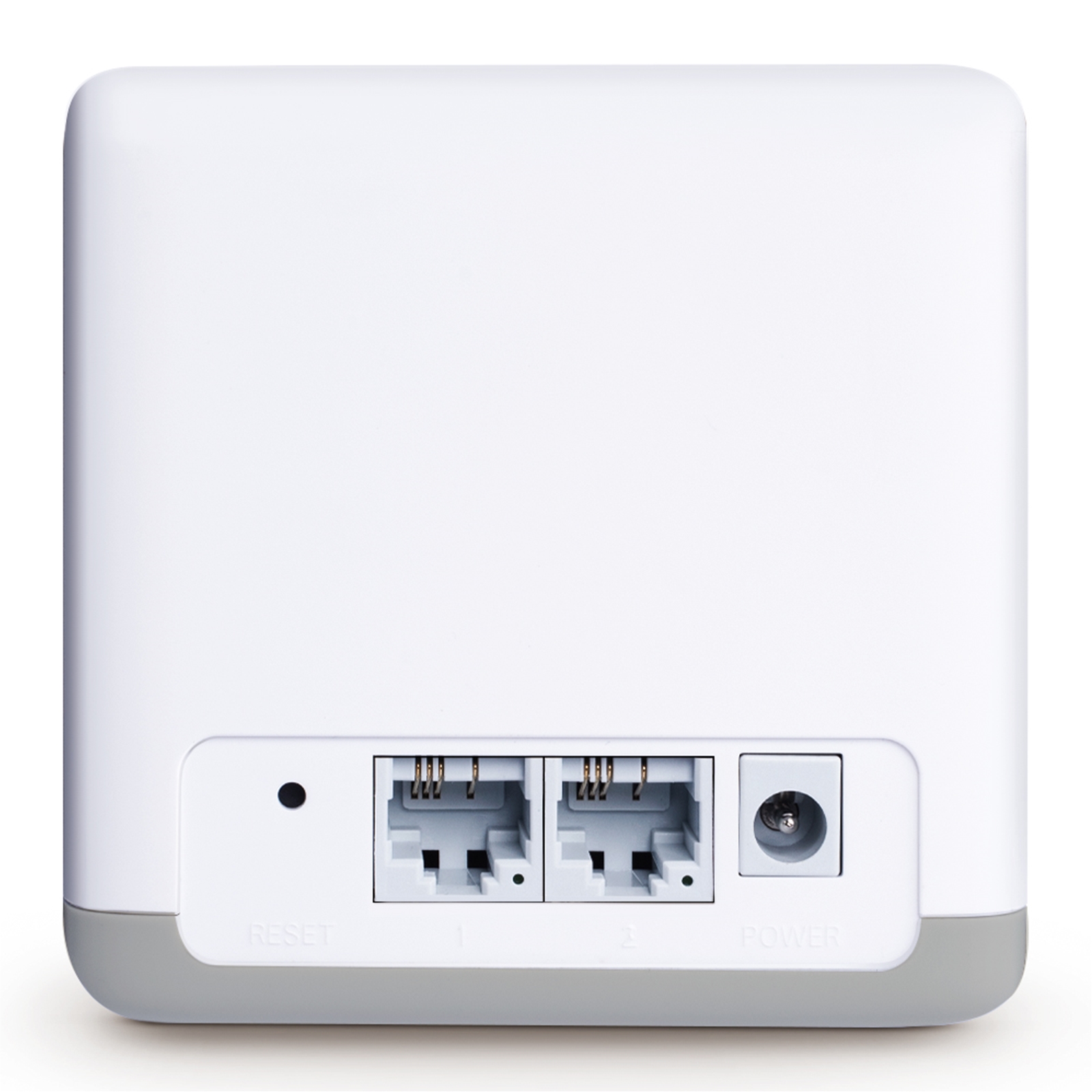

- Interfaces:
- 2 10/100 Mbps ports per Halo unit
(WAN/LAN auto-sensing) - Button – Pair button, Reset button
- External Power Supply – 9V/0.6A
- Package Contents:
- 2× Halo S3 Unit
1× RJ45 Ethernet Cable
2× Power Adapter
1× Quick Installation Guide - Environment:
- Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
