Description
Hardware

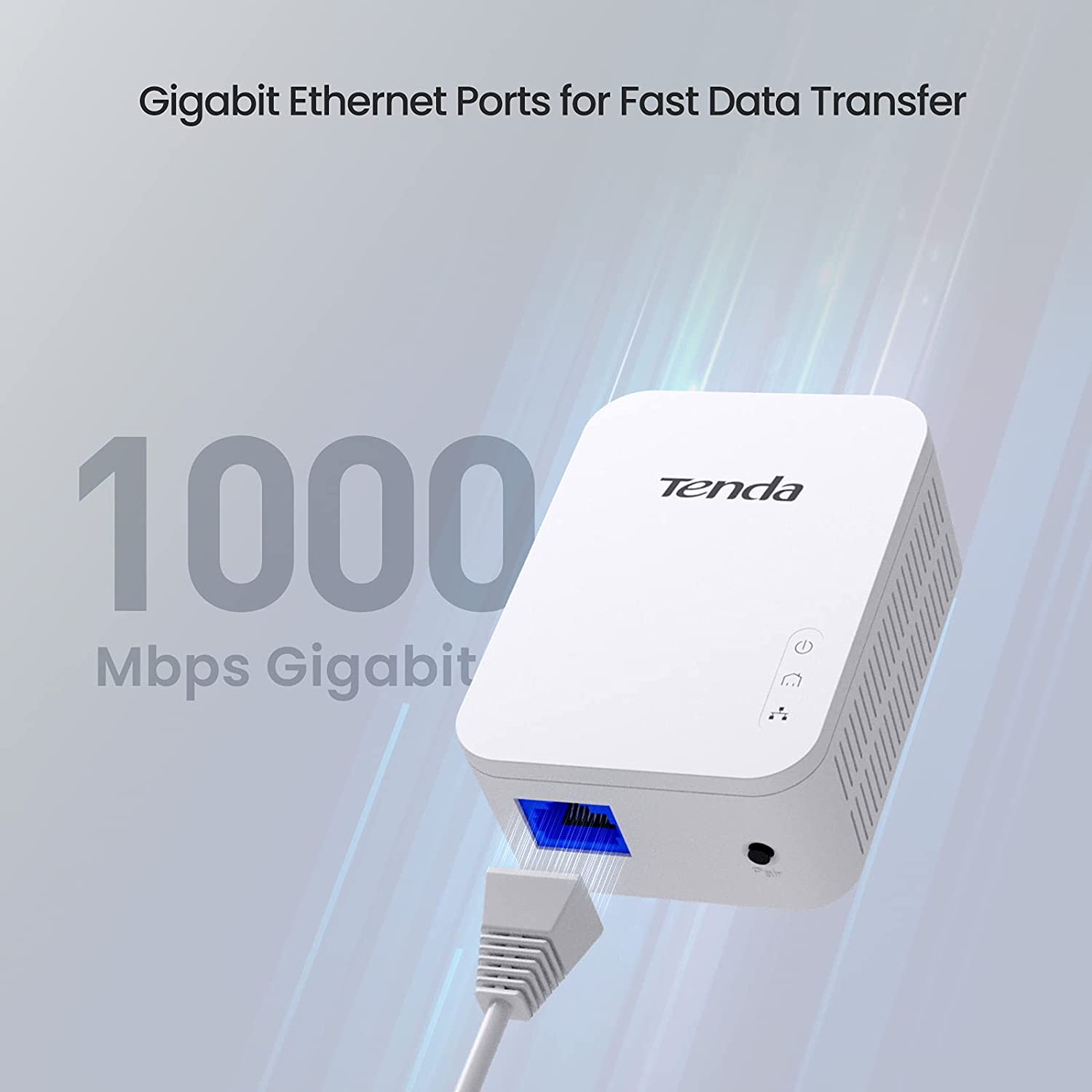

Interfaces – 2 * 10/100/1000 Mbps RJ45
Button – 1 * Pair/Reset
LED Indicator – 1 * Power, 1 * Powerline, 1 * Ethernet
Power Input – AC100～240V 50/60Hz 0.1A
Power Consumption – 3.2W(220V/50Hz) Maximum
Dimension – 82mm*60mm*32mm(L x W x H)
Data Rate – 1000Mbps
Others
Certification – CE, FCC、RoHS
Plug Type – US、EU、UK
Package Contents:

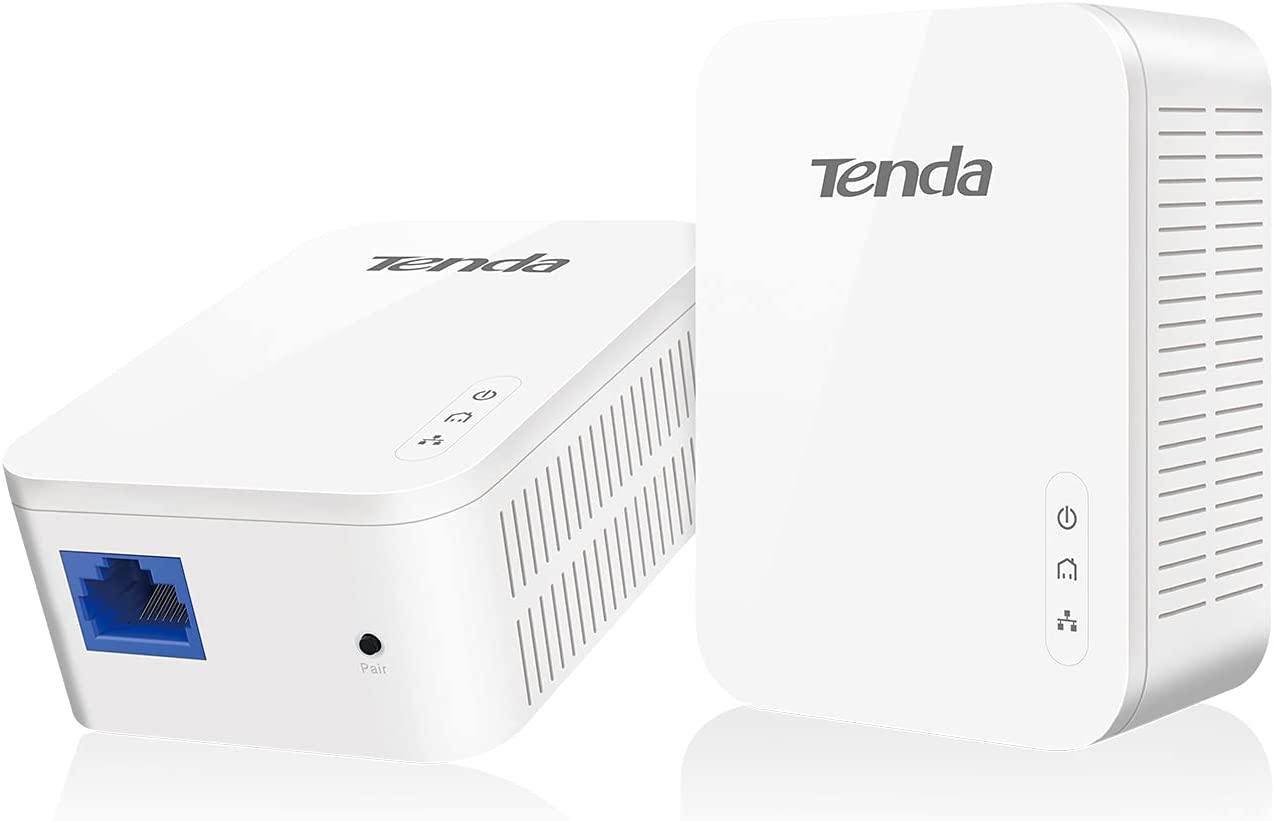

– 2 * AV1000 Gigabit Powerline Adapter
– 1 * Quick Installation Guide
– 2* Cat5e Ethernet Cable
– 1 * Quick Installation Guide
– 2* Cat5e Ethernet Cable
Environment:
– Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
– Storage Temperature: -40°F ~ 158°F (-40°C ~ 70°C )
– Operating Humidity: 10% ~ 90% RH non-condensing
– Storage Humidity: 5% ~ 90%RH non-condensing
– Storage Temperature: -40°F ~ 158°F (-40°C ~ 70°C )
– Operating Humidity: 10% ~ 90% RH non-condensing
– Storage Humidity: 5% ~ 90%RH non-condensing
