Description
AC1900 Dual Band Speeds – Enjoy home entertainment without any lag, reaching speeds up to 1900 Mbps (1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band)
Far-Reaching Coverage – 6� high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
Full Gigabit Ports – Make full use of your internet access and transfer data at dizzying speeds for peak performance
Higher Network Efficiency – MU-MIMO technology allows MR50G to communicate with multiple devices at the same time, increasing the overall network throughput
Smart Connect– Intelligently chooses the best available band for each device
Specifications
Interfaces

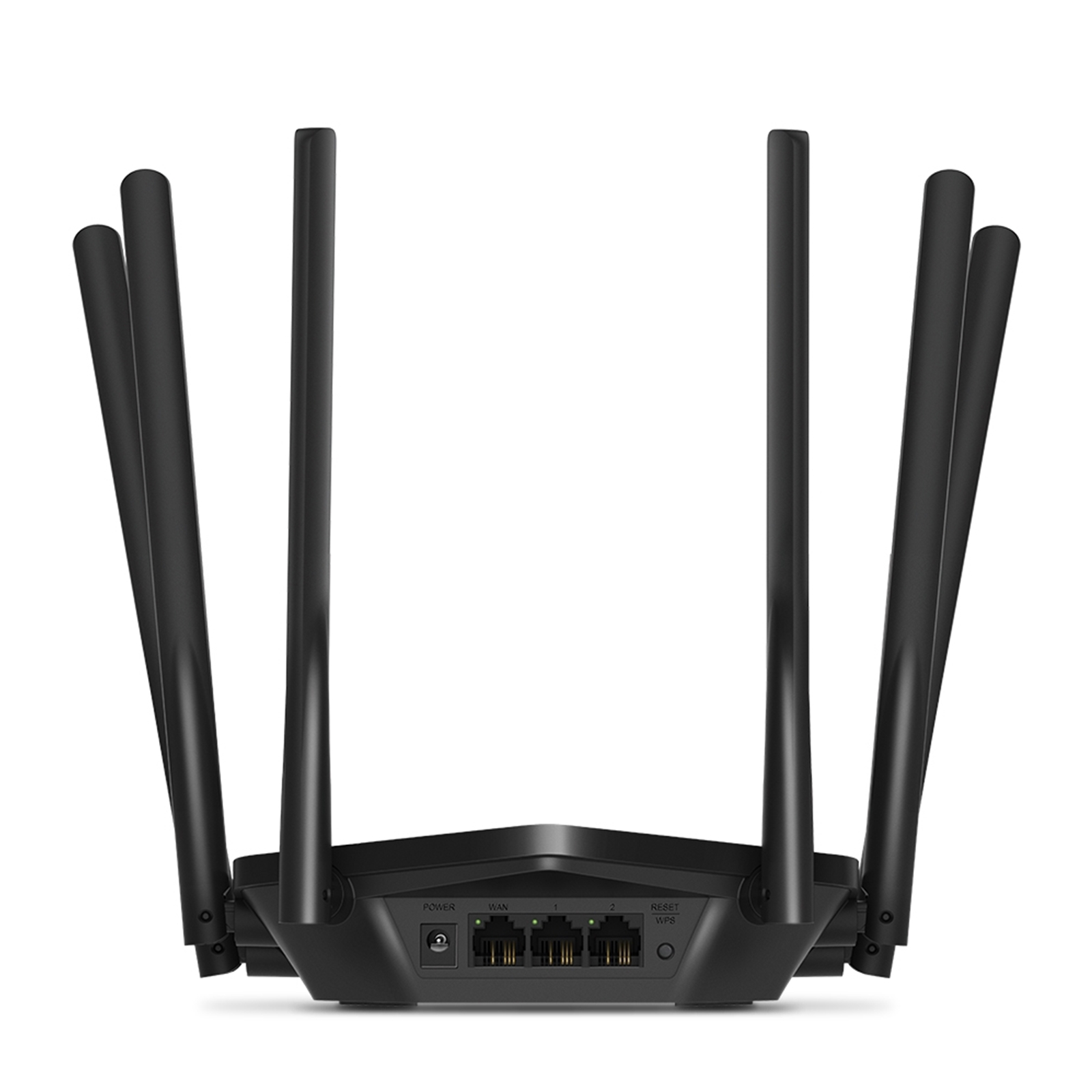

1� Gigabit WAN Port
2� Gigabit LAN Ports
Button
WPS/Reset Button
External Power Supply
12V/1A
Dimensions W X D X H
175.6 x 157.2 x 45 mm
Antenna Type
AC1900 Wireless Dual Band Gigabit Router (MR50G)
Power Adapter
Ethernet Cable
Quick Installation Guide
Wireless Standards
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n/ac 2.4 GHz
Frequency
2.4 – 2.5GHz, 5.15 – 5.25GHz
Signal Rate
600 Mbps at 2.4 GHz, 1300 Mbps at 5 GHz
Transmission Power
CE:<20dBm (2.4GHz), <23dBm (5.15 – 5.25GHz)
FCC:<30dBm(2.4 GHz & 5GHz)
Reception Sensitivity
5GHz:
11a 6Mbps: -98dBm, 11a 54M: -78dBm
11ac VHT20_MCS0: -98dBm, 11ac VHT20_MCS8: -72dBm
11ac VHT40_MCS0: -92dBm, 11ac VHT40_MCS9: -68dBm
11ac VHT80_MCS0: -89dBm, 11ac VHT80_MCS9: -64dBm
2.4GHz:
11g 6Mbps: -97dBm, 11a 54M: -77dBm
11n VHT20_MCS0: -97dBm, 11n VHT20_MCS8: -72dBm
11n VHT40_MCS0: -92dBm, 11n VHT40_MCS9: -67dBm
Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security
WPA-PSK / WPA2-PSK
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP/L2TP
DHCP
Server
Port Forwarding
Virtual Server, UPnP, DMZ
Management
Access Control
Local Management
Remote Management
Firewall Security
IP and MAC Address Binding
Protocols
IPv4, IPv6
Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network
