• Fast 11ac speed ups to 1167Mbps, delivering both 867Mbps at 5GHz and 300Mbps at 2.4 GHz concurrently.
• Broadcom Chip with 900MHz CPU and 3x processing speed provide better compatibility and superior stability.
• High powered amplifiers and external antennas for whole-home coverage.
• Beamforming+ technology boosts range for the 802.11ac WiFi devices.
• Smart managements of WiFi schedule, LED indicator and power saving all are for your healthy E-life.
• 30-second easy setup.
Standards & Protocol
IEEE802.3, IEEE802.3u
Interface
1 x 10/100Mbps WAN port
3 x 10/100Mbps LAN ports
Antennas
4 x 5dBi external antennas
Buttons
1 x WiFi on/off
1 x Reset/WPS button
LED
1 x System
1 x WAN
1 x LAN
1 x 2.4G
1 x 5G
1 x WPS
Power Consumption
Input： 100-240V—50/60Hz, 0.2A
Output： DC 12V==1A
Wireless Standards
IEEE 802.11ac/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
Data/Signal Rate
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Frequency
Simultaneous dual band 2.4 & 5GHz
Transmit Power
CE: <20dBm(2.4G), <23dBm(5G)
FCC: <30dBm
Wireless Security
WPA-PSK/WPA2-PSK
WPA/WPA2
Wireless Security: Enable/Disable
WPS (WiFi Protected Set-up)
Fast encryption
Internet Connection Type
PPPoE
Dynamic IP
Static IP
PPPoE (Russia)
PPTP (Russia)
L2TP (Russia)
Operating Mode
Wireless Router Mode
Universal Repeater Mode
WISP Mode
DHCP Server
DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server
Port Forwarding
DMZ Host
UPnP
Security
Client Filter
Parental Control (support black list and white list)
Remote Web Management
Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet
DDNS
Support DynDNS
No-ip
3322.org
Oray.com
88ip
VPN
IPsec pass through
PPTP pass through
L2TP pass through
PPTP server
PPTP client
L2TP client
Package Contents

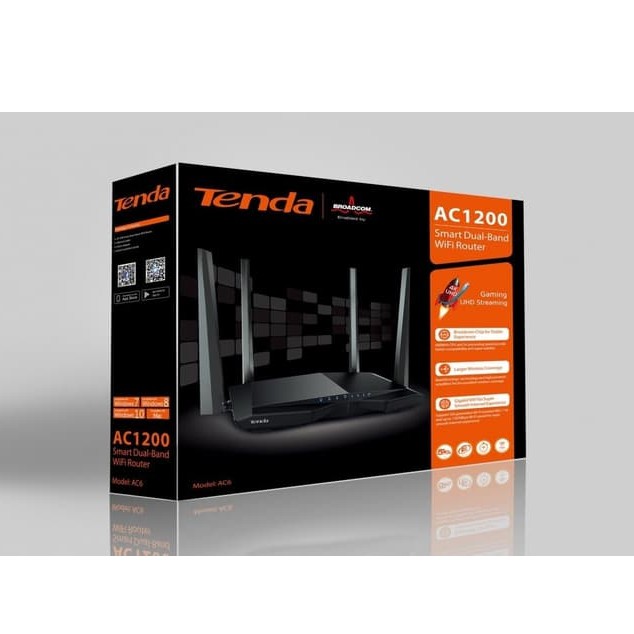

AC1200 Smart Dual-Band WiFi Router
Power Adapter
Install Guide
Ethernet Cable
Regulations/Certifications
N/A
Dimension (W x H x D)
220 x 141.5 x 49 mm
Weight
N/A
Additional Features
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App
Bandwidth Control
Guest Network
IPTV
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
Operating Temperature: 0℃ – 40℃
Storage Temperature: -40℃ – 70℃.
Operating Humidity: 10% – 90% RH non-condensing
Storage Humidity: 5% – 90% RH non-condensing
Default Access: tendawifi.com
