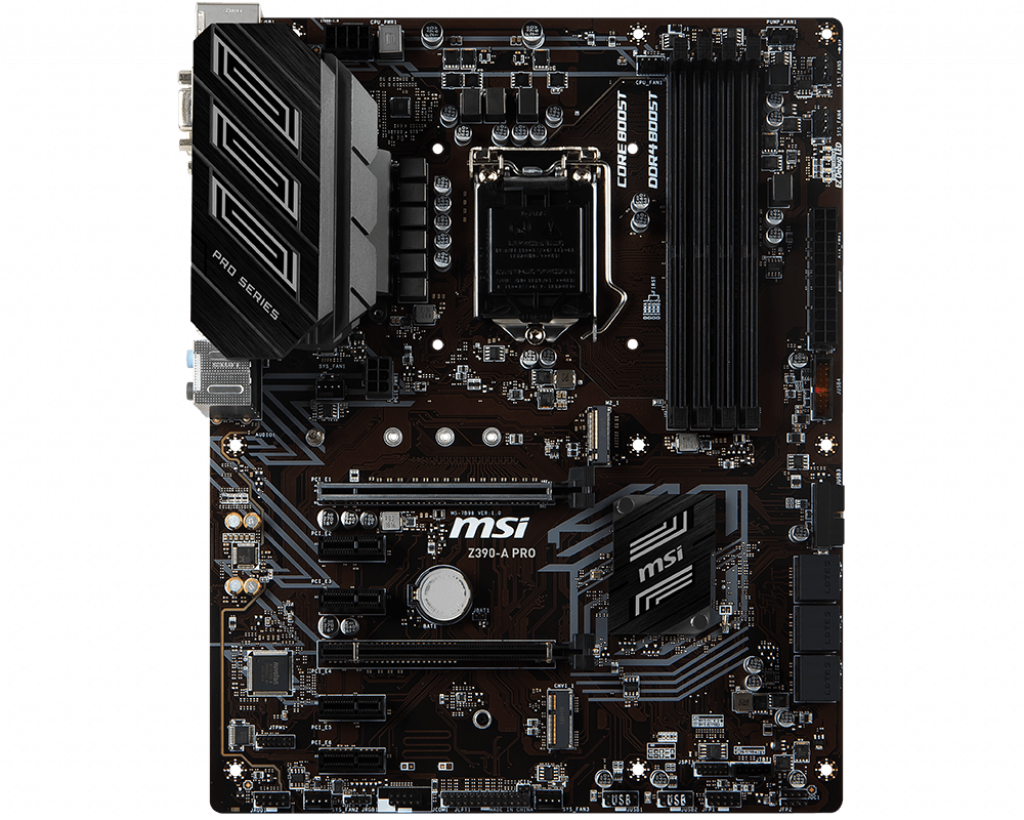

Description
CPU
| CPU Socket | Socket 1151 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors |
| 64-bit Support | Yes |
| Socket | LGA1151 |

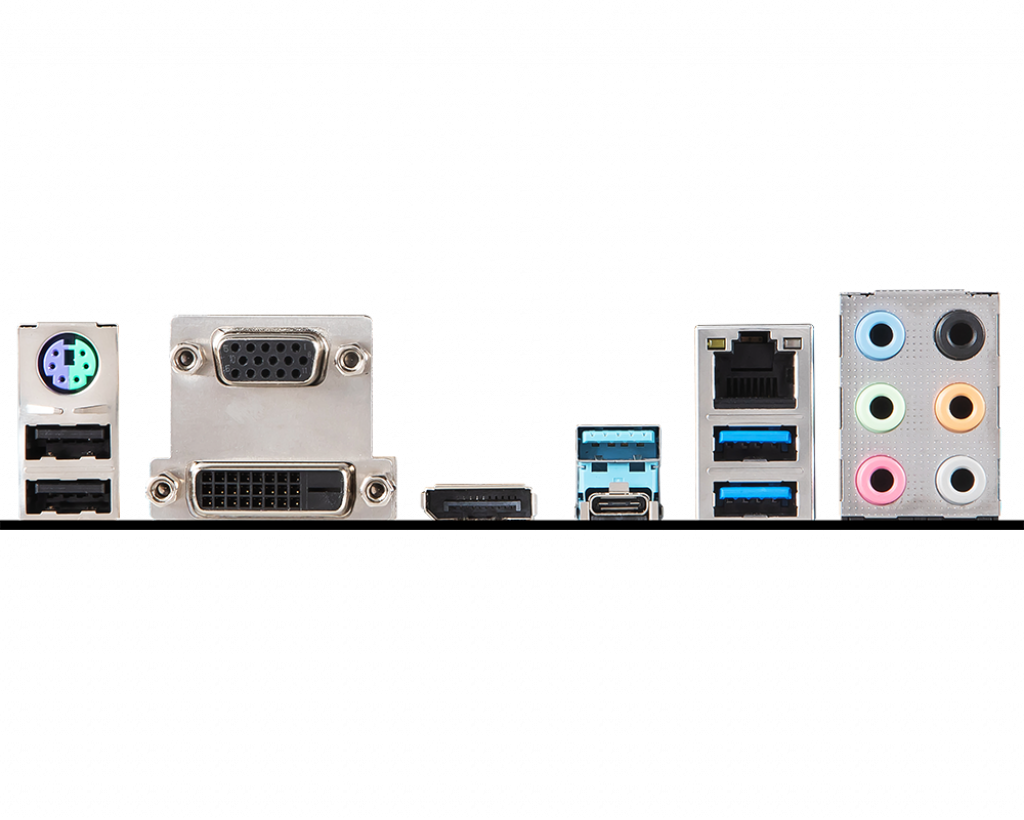

Rear Panel I/O Ports
| USB Ports | 1 x USB 3.1 Type-C 1 x USB 3.1 Type-A 2 x USB 3.0 2 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort |
| VGA Port | 1 x D-Sub |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Digital Port | 1 x DVI-D |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 4 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 2 x USB 3.0 2 x USB 2.0 |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan 1 x Water Pump 5 x System fans |
| Thunderbolt Port(s) | 1 x Thunderbolt™ AIC connector |
| Parallel Connectors | 1 x Parallel |
| Serial Connectors | 1 x COM |
| Chassis Intrusion Connector | 1 x Chassis Intrusion |
| TPM Header | 1 x TPM |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 4+4-pin EPS 1 x 6-pin PCIe |
| Other Connectors | 1 x M.2, Key M (Type 2242/2260/2280/22110) 1 x M.2, Key E (Type 2230) for Wi-Fi Module 1 x RGB LED header |
Memory
| Memory Bus Speed | 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 64 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | Z390 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 2 x PCI Express 3.0 x16 4 x PCI Express 3.0 x1 |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek® ALC892 |
Network
| Integrated Network | Intel® I219-V |
| Network Speeds Supported | 10/100/1000 Mbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft® Windows® 10 64-bit |
System
| Jumpers | 1 x Clear CMOS |
| Drivers | Included |
| SLi/Crossfire Features | Supports 2-Way AMD® CrossFire™ Technology |
Physical
| Form Factor | ATX Motherboard |
| In The Box | MSI Z390-A PRO Motherboard Quick Installation Guide Warranty Card 2 x SATA Cables Support DVD I/O Shield |
| Width | 305 mm |
| Length | 244 mm |
Key Features
| M.2 Support | Yes |
| On-board RGB Control | None |
| Memory Speed | 4400 MHz |
| Skip Audio Test | No |
| RGB Header Type | None |
| Addressable RGB | No |
| Firewire | No |
| Wireless Network | No |
| Main Colour | Black |
| Socket(s) | LGA 1151 |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | ATi CrossFire |
| VGA Connection | Yes |
| DVI Connection | Yes |
| HDMI Connection | No |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 4 + 4-Pin |
| Motherboard Chipset | Intel Z390 |
| Thunderbolt | No |

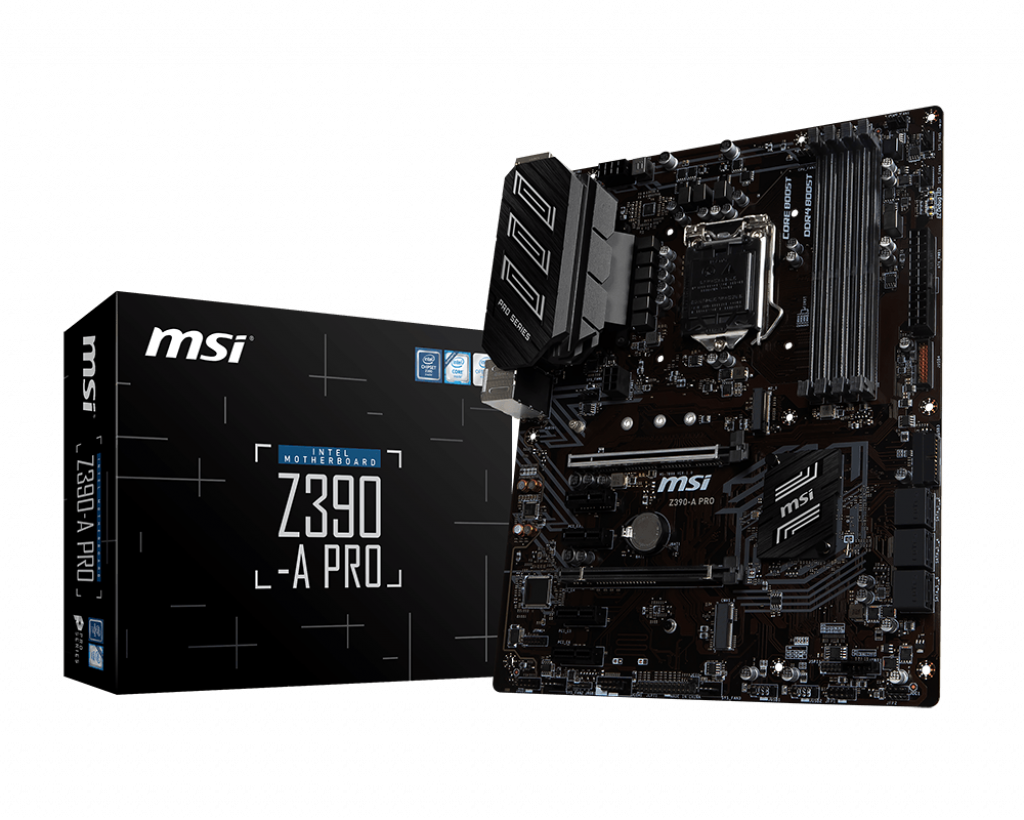

| Motherboard Model | MSI Z390-A PRO |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
Warranty
| Warranty | 1 Year |
