Description
Description
The Jupiter is a Micro-ATX chassis designed with a compact and sleek style while occupying minimal desk space with its smaller footprint.
The Jupiter has a precise structural layout that enables you to install all the latest and greatest hardware. The stylish and slick chassis makes this case effortlessly blend into any aesthetic and with an awesome 8 Inch LCD screen which can be integrated on the side or the front of the chassis completes the look. A tempered glass side panel adds a premium look with one pre-installed fan and with the possibility to mount additional fans and radiators, this is a high quality Micro-ATX where not an inch of space goes to waste.
There is huge cooling support throughout the Jupiter, the top panel is made using ventilation holes facilitating superior exhaust performance and the internal structure sports plenty of ventilation to enhance the airflow throughout the case.
One 120mm ARGB Infinity fan catches the eye with stunning colour modes and have access to 16.8 million colours using a compatible addressable RGB Motherboard.
The I/O panel situated on the front panel provides a USB3.0 and USB-Type C connections. Measuring 35.7 centimetres in height, the interior is painted in all black and space to install a M-ATX or Mini-ITX motherboard. For a small surface area there is still has plenty of space to install powerful hardware. It can fit a graphics card up to 41.5 centimetres in length and the bottom of the Jupiter can accommodate a single 3.5 drive and at the back of the Motherboard tray there is room to mount a single 2.5 drive.
The Jupiter is a small stylish Micro with an outstanding cooling performance that carries some serious power, creating a stunning gaming PC.
Key Features
- Micro-ATX Gaming Case – The CiT Pro Jupiter LCD display screen PC Case has a Micro-ATX form factor with an overall small footprint but has a spacious 32.6L volume. Finished in all black and the metal panels are smooth with distinct lines for a crisp and clean finish. Three Quarters of the front panel is designed with ventilation holes allows air to flow into the case easily without obstruction combining a super airflow performance.

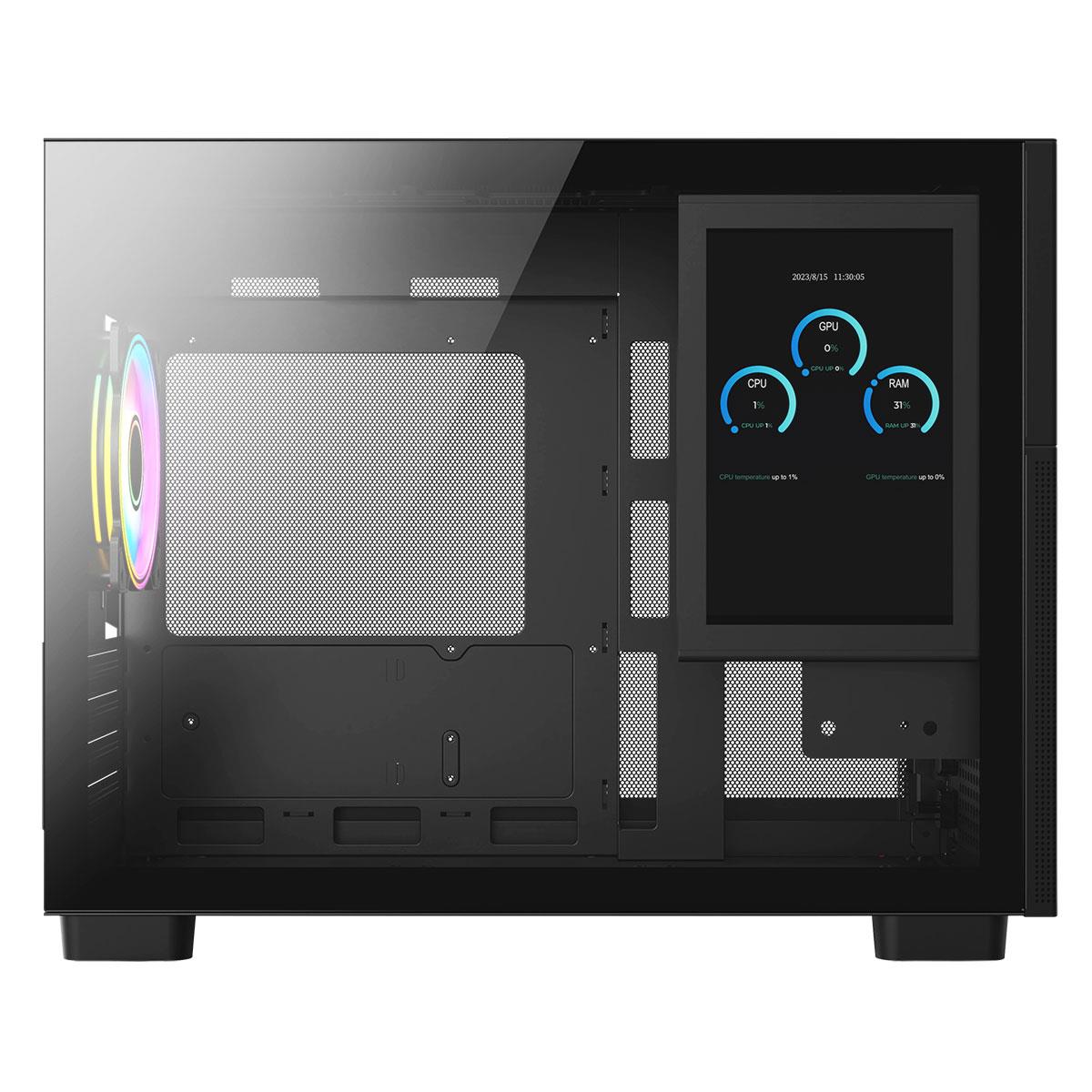

- LCD Screen – The stand-out feature of the Jupiter is the 8 Inch LCD screen which is fitted to the side of the chassis occupying a third of the internal the display has a 1280 x 800 resolution, 60Hz refresh rate and 16:10 aspect ratio. This LCD panel can be used to display hardware statuses or your favourite wallpaper.
- ARGB Infinity Fan Included – 1 x 120mm ARGB Infinity fan are included with a nine-fin blade fan design and equipped with 21 LEDs (Inner Ring: 9pcs – Outer Ring: 12pcs) adds a stunning finish. The rear fan generating 21.0dBA for a quieter cooling performance.
- Stunning Aesthetics – Stand out thanks to mesmerising infinity mirror LED ring effect on the fans you will not be able to take your eyes off it.
- Air Cooling – Cool your system effectively with one fan included and the Jupiter offers enough space to house eight fans in total Front: 1 x 120mm, Top: 3 x 120mm or 2 x 140mm Fans, Bottom: 3 x 120mm Fans (Please note only 2 x 120mm fans can be installed on the bottom if a 3.5 inch hard drive is installed) & Rear: 1 x 120mm Fan. The Micro-ATX casing can also house a 280mm radiator at the top or a 120mm radiator at the rear.
- Motherboard Software – The ARGB lighting effects are powered through the Motherboard which supports ARGB function, 5V 3-Pin Addressable RGB header, including ASUS AURA, MSI Mystic Light, Gigabyte Fusion 2.0 & ASRock. Customise the look with endless possibilities with 16.7 million static modes and 12 pre-set lighting effects.
- Tempered Glass Panel – The solid tempered glass side panel offers an excellent view of the interior specifically of the 8″ LCD Screen, Micro-ATX Motherboard and Graphics Card.
- USB Type-C Port – For the first time on a CiT chassis we have included a USB Type-C connection and have up to 10Gbps transfer speeds.
- Micro-ATX Housing – Mini-ITX and Micro-ATX Motherboards are compatible and graphics cards up to 415mm in length and CPU cooler up to 175mm in height, there is adequate space for mainstream hardware to build a high-powered PC Gaming case.
Specifications
| Chassis Dimensions (Excluding Fascia / Panels): | (W) 205 x (H) 337 x (D) 446mm |
| Water Cooling Support: | |
| Top Supported Radiator(s): | 120mm, 240mm and 280mm |
| Rear Supported Radiator(s): | 120mm |
| 1 x ARGB Infinity Fan Included: | |
| Fan Powered Via: | Molex |
| Fan LEDs Powered Via: | 3pin Aura |
| Additional Chassis Specifications: | |
| Internal Hard Drives: | |
| 3.5 HDD: | x 1 (1 x 3.5 Inch HDD can be installed to the bottom of the chassis but please note only 2 x 120mm fans can be installed) |
| Cooling Fan Support: | |
| Bottom: | Space for 2 x 120mm or 3 x 120mm Fans (3 x 120mm Fans can be installed to the bottom of the chassis but please note the 3.5 inch cannot be installed) |
| PSU Max. Length (mm): | 260mm |
| Digital 8 Inch LCD Screen Specifications: | |
| Screen Size: | 8 Inches |
| Screen Type: | LCD Modules, IPS TFT-LCD |
| Display Resolution: | 1280 (RGB) x 800 (WXGA) |
| Refresh Rate: | 60Hz |
| Refresh Frequency: | 60Hz |
| Aspect Ratio: | 16/10 |
| Display Size: | 107.64 (H) x 172.224 (V) |
| Pixel Pitch: | 0.04485 (H) x 0.13455 (V) |
| Colour: | 16.7m |
| Interface: | MIPI |
| Voltage: | 3.3V |
| Brightness: | 500 CD/M2 |
| Contrast Ratio: | 7001 |
| Maximum Power Output: | 0.45A |
| Operation Temperature: | Minus 20 – Plus 65 Degree Celsius |
| Storage Temperature: | Minus 25 – Plus 70 Degree Celsius |
Case Specifications
| Form Factor: | Micro ATX |
| Motherboard Support: | Micro ATX, Mini ITX |
| PSU Support: | Standard ATX |
| PSU Location: | Front |
| Gaming Case: | Yes |
| Water Cooling: | Water Cooling Ready! Supported Radiator Size: 280mm Supported Radiator Positions: Top |
| Body Material: | 0.9mmSPCC |
| Front Bezel Material: | Metal |
| Side Panel: | Tempered Glass |
| Internal Cable Management Depth: | 30mm |
| External Bays: | |
| Internal Bays: | 1 x 3.5” Internal 1 x 2.5” Internal |
| Drive Bay Notes: | 3.5″ HDD can only be installed when 2 x 120mm fans fitted on the bottom |
| Expansion Slots: | 4 x Full Size |
| Cooling Front: | Space For 1 x 120mm Fan |
| Cooling Top: | Space For 3 x 120mm or 2 x 140mm Fans |
| Cooling Rear: | Space For 1 x 120mm Fan (1 x 120mm Infinity ARGB Fan Included) |
| Cooling Side: | None |
| Cooling Bottom: | Space For 3 x 120mm Fans |
| Fan Controllers: | 0 Fan Controllers, controlling up to 0 fans in total |
| IO Ports: | 1 x USB 3.1 Type C 1 x USB 3.0 1 x HD Audio 1 x Microphone |
| GPU Max Length: | 415mm |
| CPU Cooler Maximum Height: | 175mm |
| Front Bezel Colour: | Black |
| Body Colour: | Black |
| System Cabinet Features: | |
| PSU Included: | No |
General Specifications
| Manufacturer Part Number: | CIT-PRO-JUP-B |
| EAN Number: | 5055492414076 |
| Has Mains Plug: | No |
| Colour: | Black |
| What’s In The Box: | Case Velcro Ties Screws PCI Plate USB-A-USB-C Cable HDMI to Mini HDMI Cable Manual |
| Unit (Product) Dimensions (mm): | 205mm x 357mm x 446mm (W x H x D) |
| Packaging Dimensions (mm): | 275mm x 510mm x 410mm (W x H x D) |
| Net Weight (KGs): | 6.2 KGs |
| Gross Weight (KGs): | 7.7 KGs |
