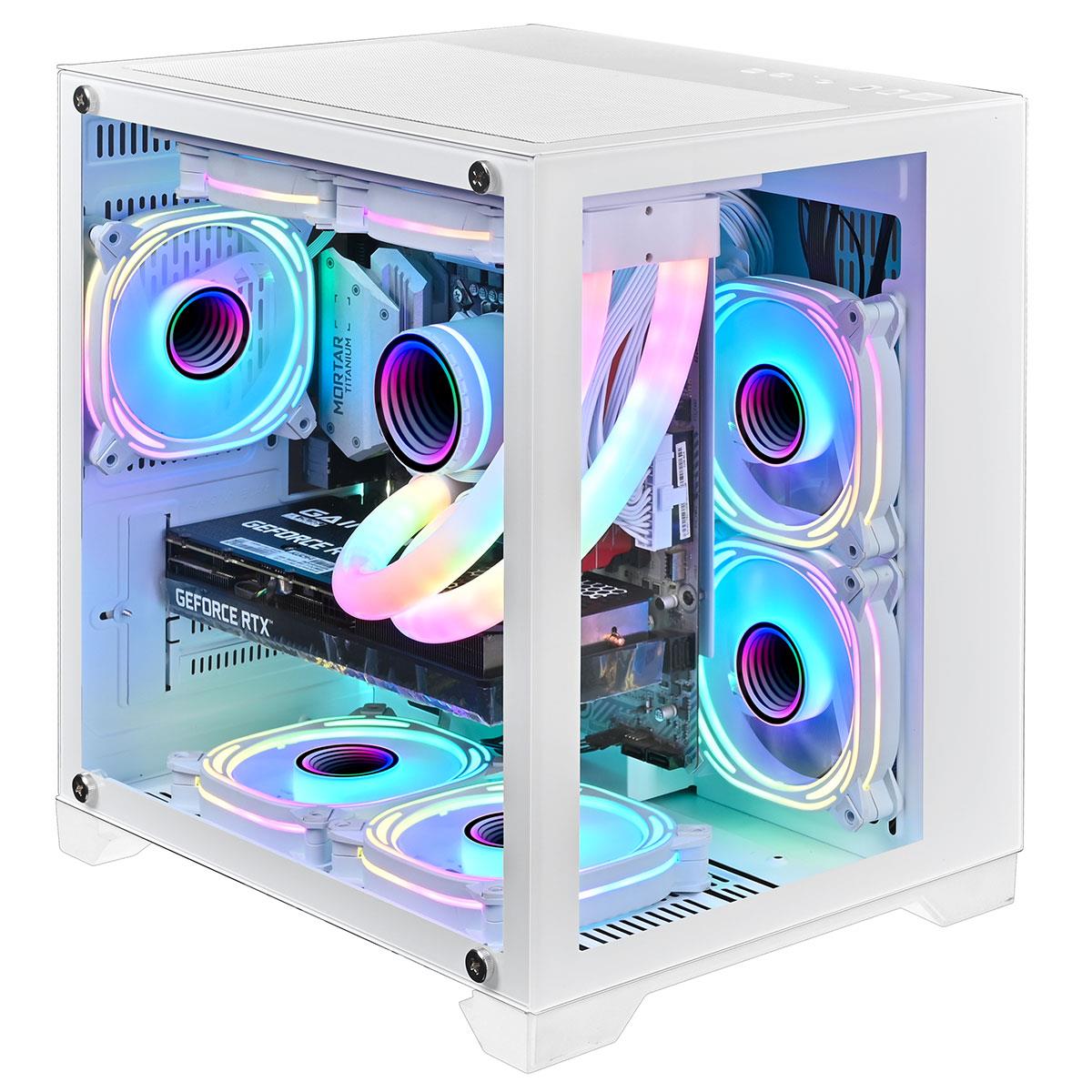

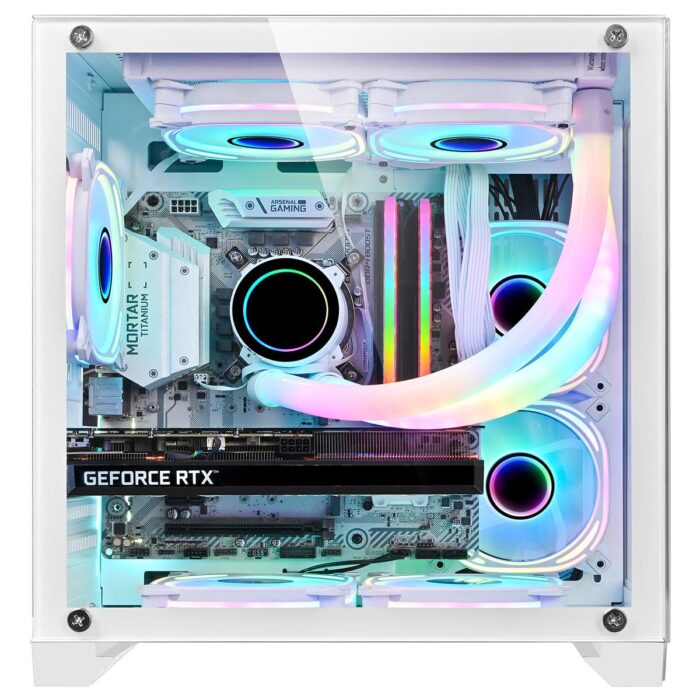

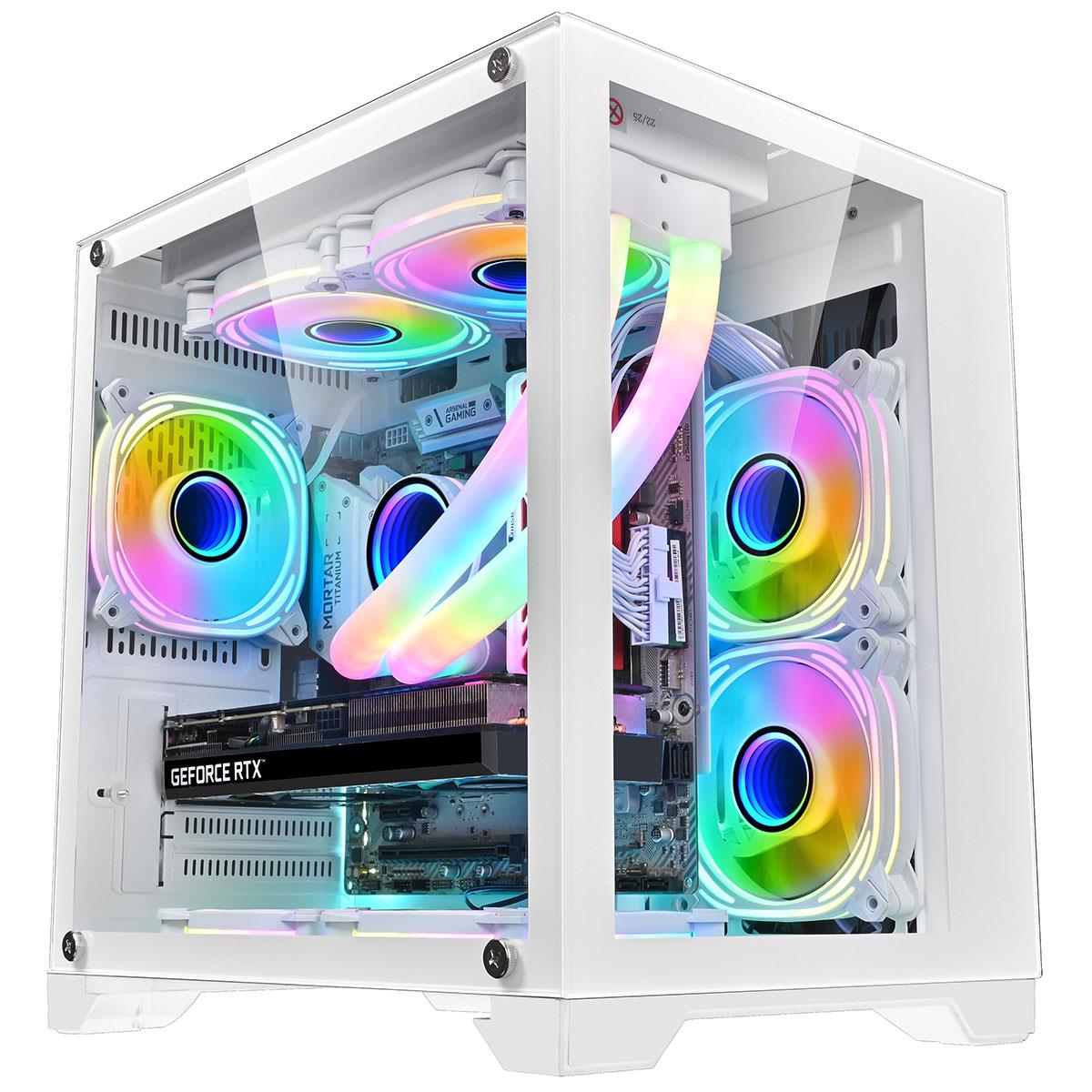

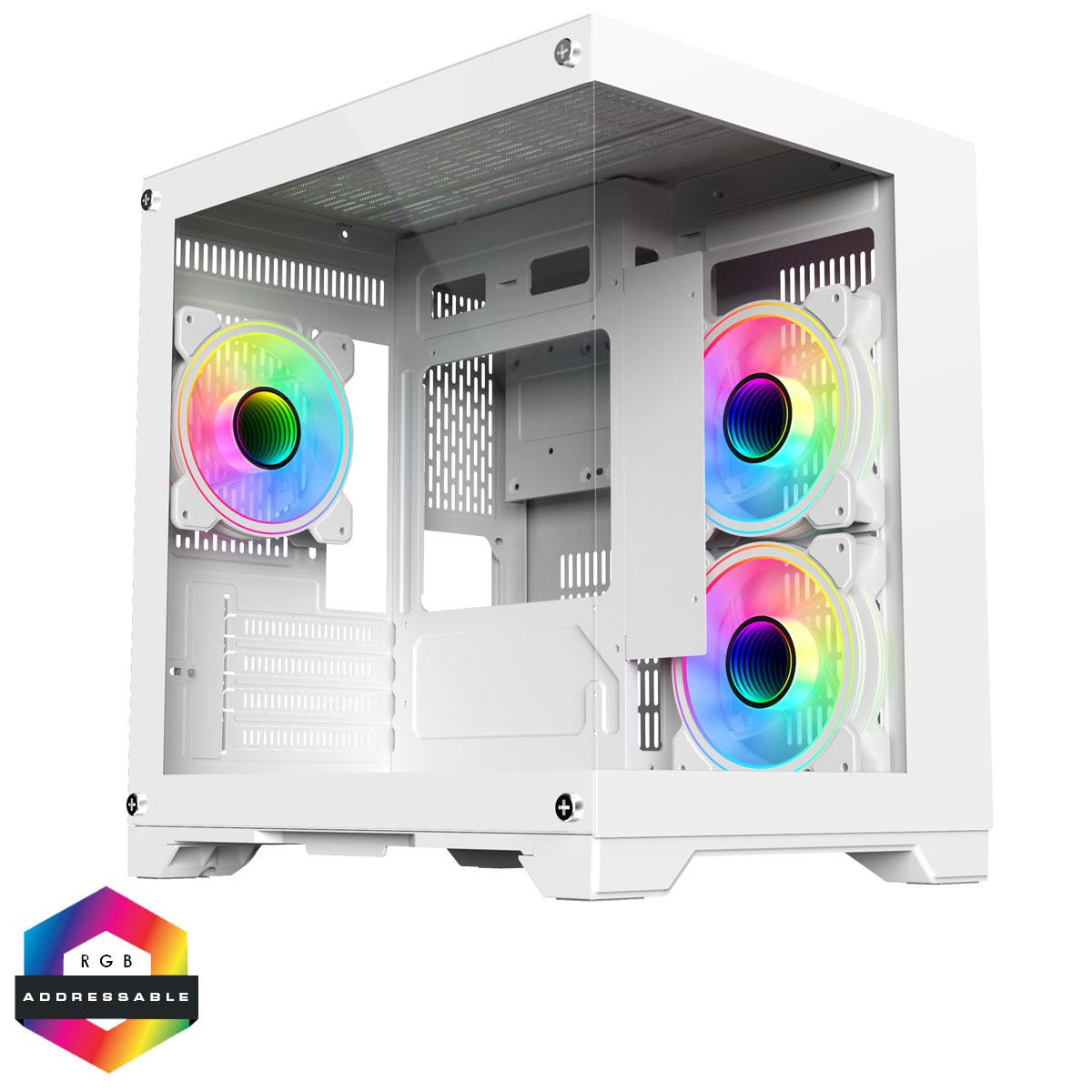

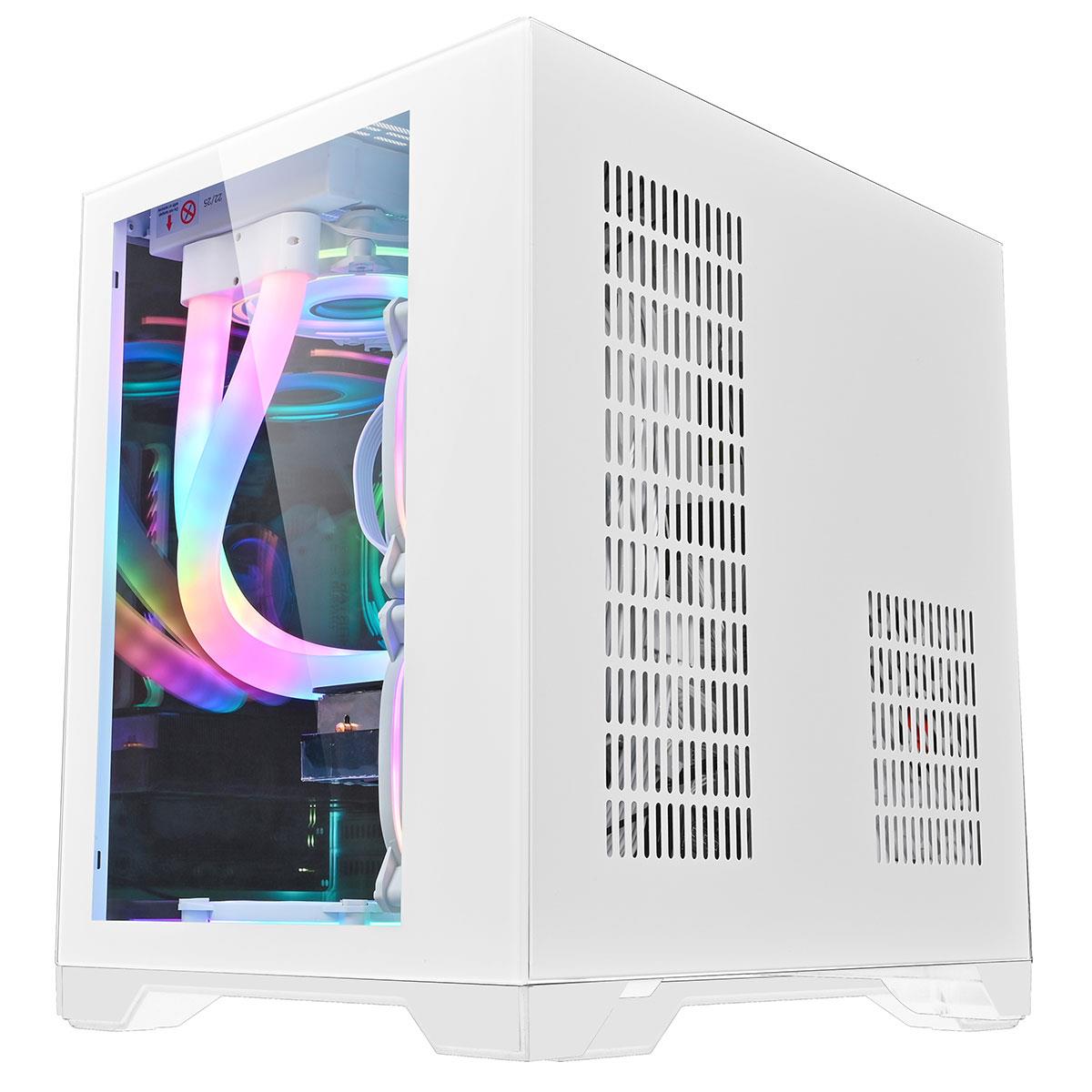

Elevate your set up with the CiT Overseer Micro-ATX gaming case. This unique MATX chassis is a high-performance product with a sleek design and exceptional functionality. Utilising two full tempered glass panels to provide a perfectly clear view of your interior, show off your gaming hardware.
Designed to focus on elegant and stylish aesthetics, customisable RGB lighting, extremely efficient cooling and easy cable management. Creating a perfect picture frame for your Motherboard and GPU and surround them from all angles with high-performance fans. Install up to a huge seven 120mm fans, together with up to four water cooling locations.
Moving onto the top of the case the I/O panel provides USB3.0 and USB2.0 connections and inside the Overseer we have included a PWM ARGB fan hub with controls for your LED lighting and have access to approximately 365 LED modes or have access to 16.8 million colours using a compatible addressable RGB Motherboard.
This completely white interior has massive build potential with a spacious open interior and plenty of cable management to build a powerful compelling gaming PC. It can fit a graphics card up to 33 centimetres in length, CPU Cooler up to 15.7 centimetres in height and can hold 2 x 2,5 and 1 x 3,5 drives. An ATX power supply unit measuring up to 160mm will fit inside.
Build a charismatic aggressive gaming chassis with the Overseer and create a flawless gamers case with its elegant design this chassis is a perfect choice for gamers seeking both style and functionality.
Specifications
Chassis Dimensions (Excluding Fascia / Panels): | (W) 278 x (H) 351 x (D) 345mm |
Water Cooling Support: | |
Top Supported Radiator(s): | 120mm, 240mm and 280mm |
Rear Supported Radiator(s): | 120mm |
Other Supported Radiator(s): | |
Bottom: | 120mm, 240mm and 280mm |
MB Plate: | 120mm and 240mm |
Fan Controller Support: | |
Fan Controller Included: | Yes |
Fan Controller Power Via: | SATA Connector |
LED Controller: | Yes |
Fan Power Connector: | 4pin Fan Connector |
LED Power Connector: | 3pin Aura |
Fan Control Via: | LED Button / MB Sync |
Supported Qty Of Fans (Max.): | 6 |
Supported Qty Of LEDs (Max.): | 6 |
Additional Chassis Specifications: | |
Audio Support: | HD (Combo) |
PSU Max. Length: | 160mm |
CiT Celsius ARGB Dual-Ring Infinity Fan Specification: | |
Dimensions: | 120 x 120 x 25mm |
Fan Frame Colour: | White |
Fan Blades / Colour : | 9 / Semi-Transparent White |
LED Qty / Type: | 21 / ARGB |
Bearing Type: | Hydraulic Bearing |
Fan Speed: | PWM 800 – 1500 RPM |
Max. Airflow: | 30.46 CFM |
Max. Static Air Pressure: | 0.99mm-H2O |
Noise Level (Max.): | 15.98 dBA |
Cable Length: | 550mm |
Accessories: | Screws |
Connectors: | SATA, 4pin Male Fan connector, 4pin female fan connector (passthrough), 3pin male AURA 3pin female AURA (passthrough) |
Rated Voltage: | 12V |
Rated Current (Max.): | 0.1A |
Rated Input Power: | 1.2W |
Test Voltage: | 12V |
Start Voltage: | 3.5V |
M.T.B.F: | 30,000 Hours |
Case Specifications
Form Factor: | Micro ATX |
Motherboard Support: | Micro ATX, Mini ITX |
PSU Support: | Standard ATX |
PSU Location: | Bottom |
Gaming Case: | Yes |
Water Cooling: | Water Cooling Ready! Supported Radiator Size: 280mm Supported Radiator Positions: Top |
Body Material: | 0.65mmSPCC |
Front Bezel Material: | Tempered Glass |
Side Panel: | Tempered Glass |
Internal Cable Management Depth: | 55mm |
External Bays: | |
Internal Bays: | 1 x 3.5” Internal 2 x 2.5” Internal |
Drive Bay Notes: | 2 x 2.5″ share 3.5″ bay |
Expansion Slots: | 4 x Full Size |
Cooling Front: | None |
Cooling Top: | Space For 2 x 120mm or 2 x 140mm Fans |
Cooling Rear: | Space For 1 x 120mm Fan (Bundled To Fit) |
Cooling Side: | Space For 2 x 120mm Fans (On Motherboard Plate – Bundled To Fit) |
Cooling Bottom: | Space For 2 x 120mm or 2 x 140mm Fans |
Fan Controllers: | 1 Fan Controllers, controlling up to 6 fans in total |
IO Ports: | 1 x USB 3.0 1 x USB 2.0 1 x HD Audio 1 x Microphone |
GPU Max Length: | 330mm |
CPU Cooler Maximum Height: | 157mm |
Front Bezel Colour: | White / Glass |
Body Colour: | White |
System Cabinet Features: | |
PSU Included: | No |
General Specifications
Manufacturer Part Number: | CIT-OVERSEER-W |
EAN Number: | 5055492414342 |
Has Mains Plug: | No |
Colour: | White |
What’s In The Box: | Case Accessories 3 x CiT Celsius Infinity 120mm ARGB Dual-Ring White Fans |
Unit (Product) Dimensions (mm): | 278mm x 377mm x 349mm (W x H x D) |
Packaging Dimensions (mm): | 340mm x 435mm x 425mm (W x H x D) |
Net Weight (KGs): | 4.6 KGs |
Gross Weight (KGs): | 5.8 KGs |
