Description

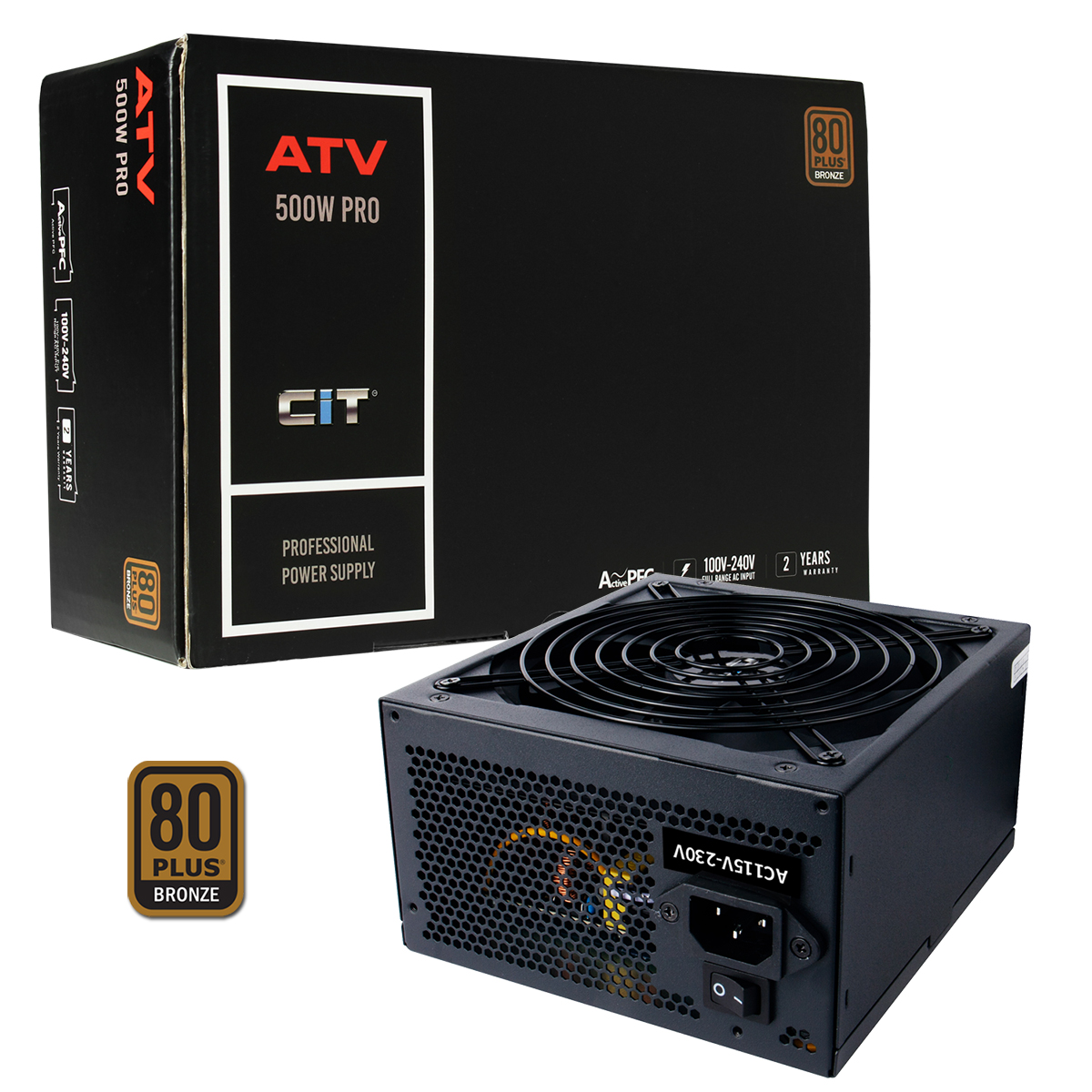

The all new CiT 500W ATV Pro is an upgrade from the 500W ATVR, it is an excellent choice for both first time builders and experienced builders. Our Pro power supply is an 80 plus bronze certified, with 85% efficiency or higher under typical loads, ideal for system integrators. A non-modular PSU with flat back cables included, this PSU is great for those who like the correct balance between cable management and build flexibility, combining 500W of excellent power with great performance, optimised rail structure allows you to realise a more powerful performance from your power supply.
PSU Specifications

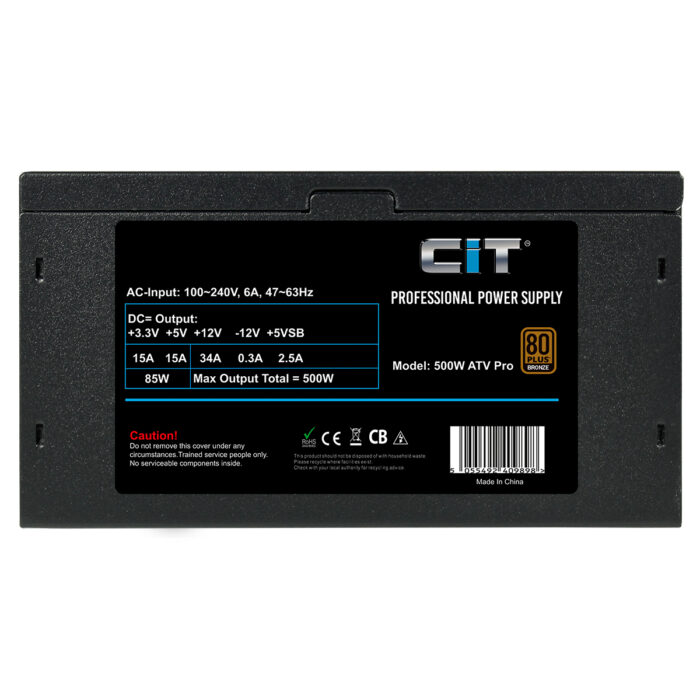

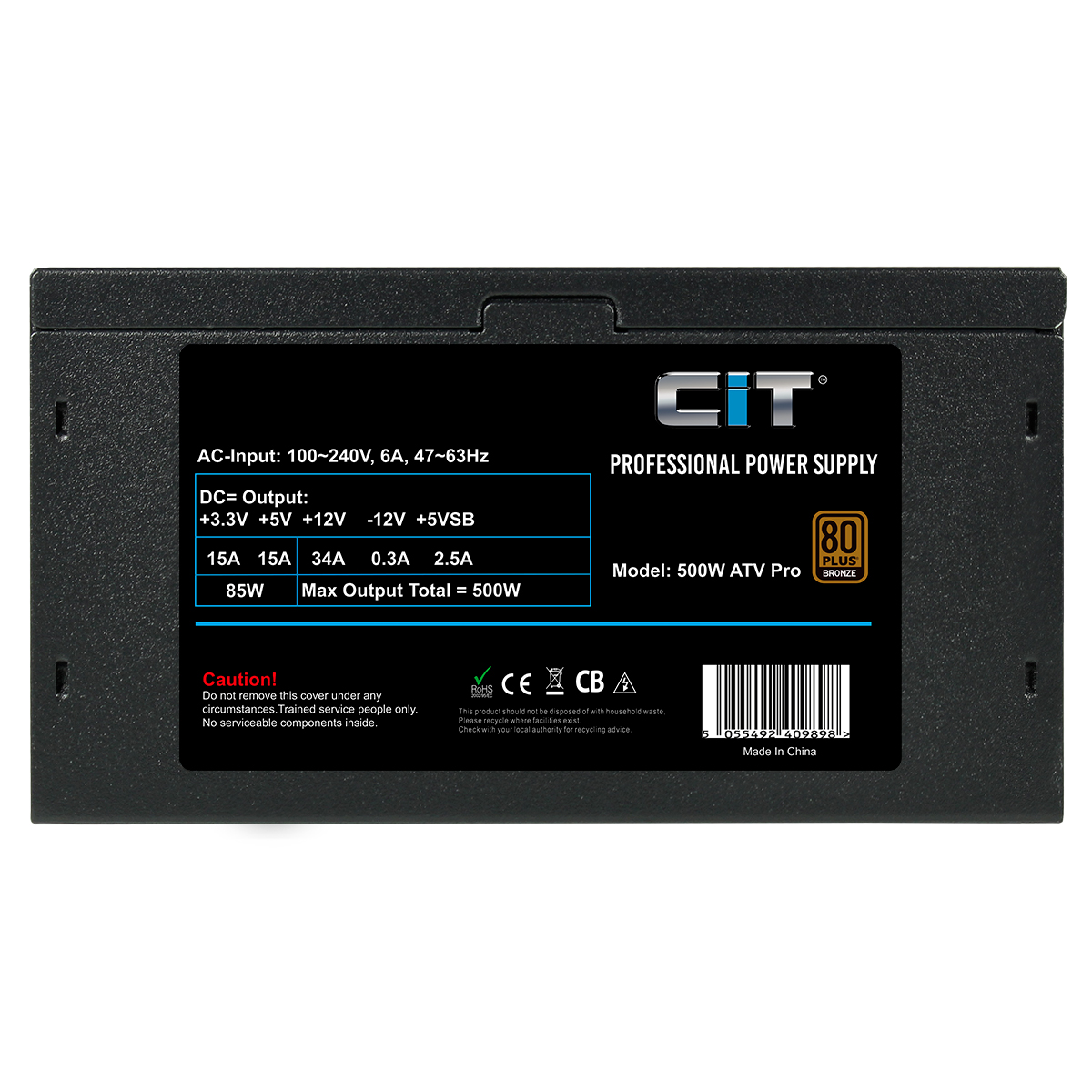

| AC INPUT: 100-240 VAC 6A 47-63HZ | |||||
| DC Output Max |
+3.3V | +5V | +12V1 | -12V | +5VSB |
| 15A | 15A | 34A | 0.3A | 2.5A | |
| 500W | |||||
Connectors
 |
20+4 Pin Main Connectors:
1 |
 |
4+4 Pin 12V Connectors:
1 |
 |
SATA Connectors:
6 |
 |
4-Pin Molex Connectors:
2 |
 |
6+2 Pin PCI-e Connectors:
2 |
Detailed Specifications
| Dimensions: | 150mm x 85mm x 160mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 6A |
| Input Frequency Range: | 47-63HZ |
| PFC: | Active PFC |
| Power Good Signal: | 300ms |
| Hold Up Time: | 10ms |
| Efficiency: | 85% |
| MTBF: | 50,000 Hours |
| Protection: | OVP / UVP / OLP / OPP / SCP |
| Power: | 500W |
| Operation Temperature: | 0-40°C |
| Safety: | CE / CCC |

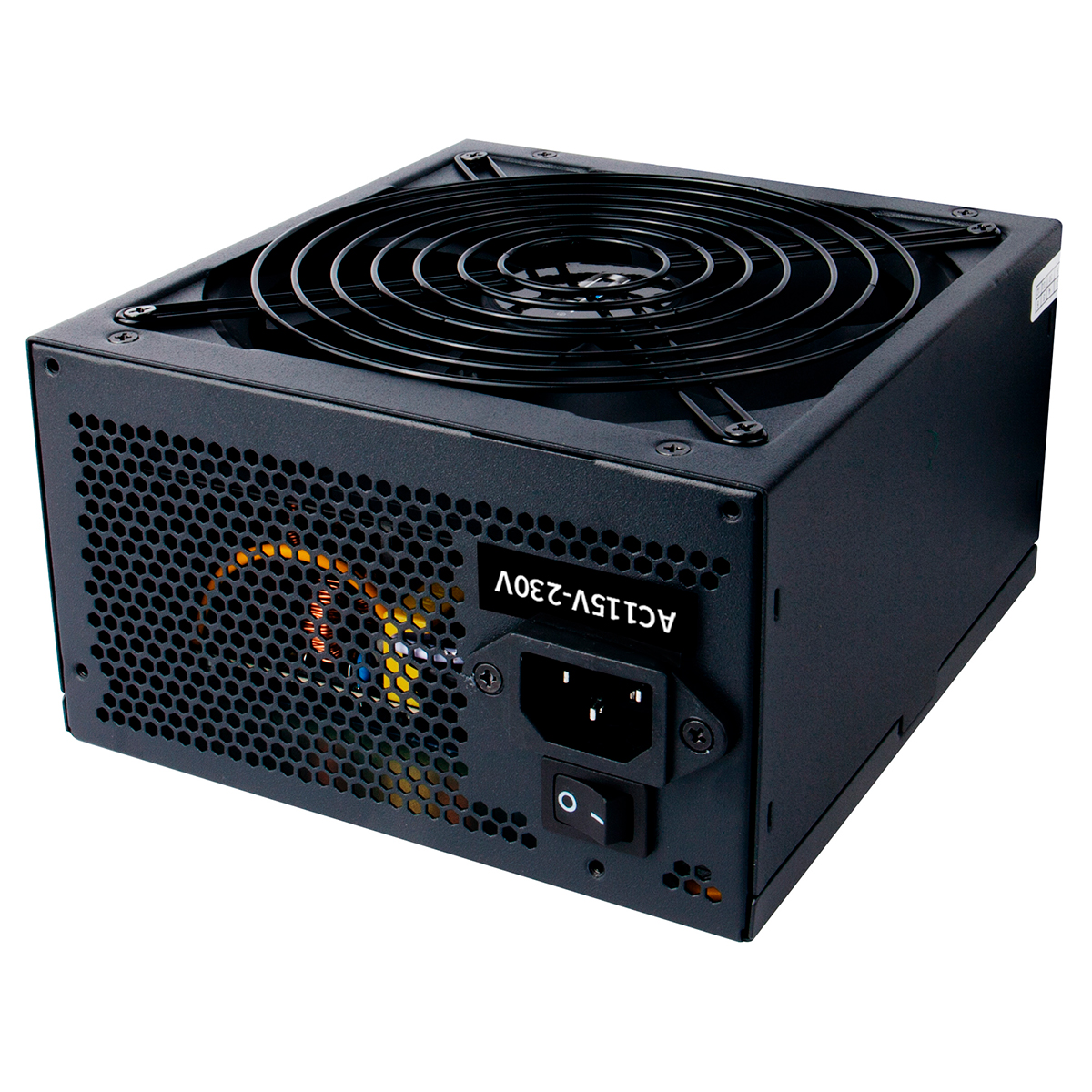

| Cooling: | 14cm Cooling Fan |
| Noise: | 40dBA |
| 80 Plus Certified: | Yes – 80 Plus Bronze |
General Specifications
| Manufacturer Part Number: | ATV Pro 500W |
| EAN Number: | 5055492409898 |
| Has Mains Plug: | No |
| Colour: | Black |
| What’s In The Box: | PSU Manual Cable Ties Screws |
| Unit (Product) Dimensions (mm): | 150mm x 85mm x 160mm (W x H x D) |
| Packaging Dimensions (mm): | 257mm x 100mm x 180mm (W x H x D) |
| Net Weight (KGs): | 1.5 KGs |
| Gross Weight (KGs): | 1.67 KGs |
