PURE ROCK LP
EXTREMELY COMPACT, QUIET COOLING
Pure Rock LP fits into the tightest systems and is your CPU cooler of choice for ultra-compact Mini-ITX builds that require reliable cooling.

– Extremely compact design for small form factor systems
– With a height of mere 45mm Pure Rock LP fits in nearly any case
– be quiet! 92mm high-quality fan offers quiet and reliable cooling with max. 30.6dB(A)
– 3 high-performance 6mm heat pipes
– User-friendly mounting kit for Intel and AMD
– 3-year manufacturer’s warranty
With its remarkably small dimensions and yet high enough cooling power, Pure Rock LP is the silent air cooler to go with for HTPCs and small multimedia or gaming systems.

EXTREMELY COMPACT DESIGN
Fits into virtually all PC builds
Pure Rock LP has the smallest dimensions of all be quiet! air coolers. With this ultra-compact design and just 45mm height it fits even into the tightest PC builds like Mini-ITX motherboards and small form factor cases.

SOLID COOLING EFFICIENCY
A good choice for compact dimensions
With 100W TDP Pure Rock LP reliably cools HTPCs and small multimedia or gaming systems. 3 high-performance heatpipes take care for no PC build at all to overheat.

QUIET COOLING
Only 30.6dB(A) at maximum fan speed
The 15mm thin be quiet! 92mm PWM fan with high-quality rifle bearing facilitates the best balance between cooling performance and silent operation while keeping the cooler as low as possible.

PERFECT CHOICE FOR SMALL FORM FACTOR
Highly convenient design

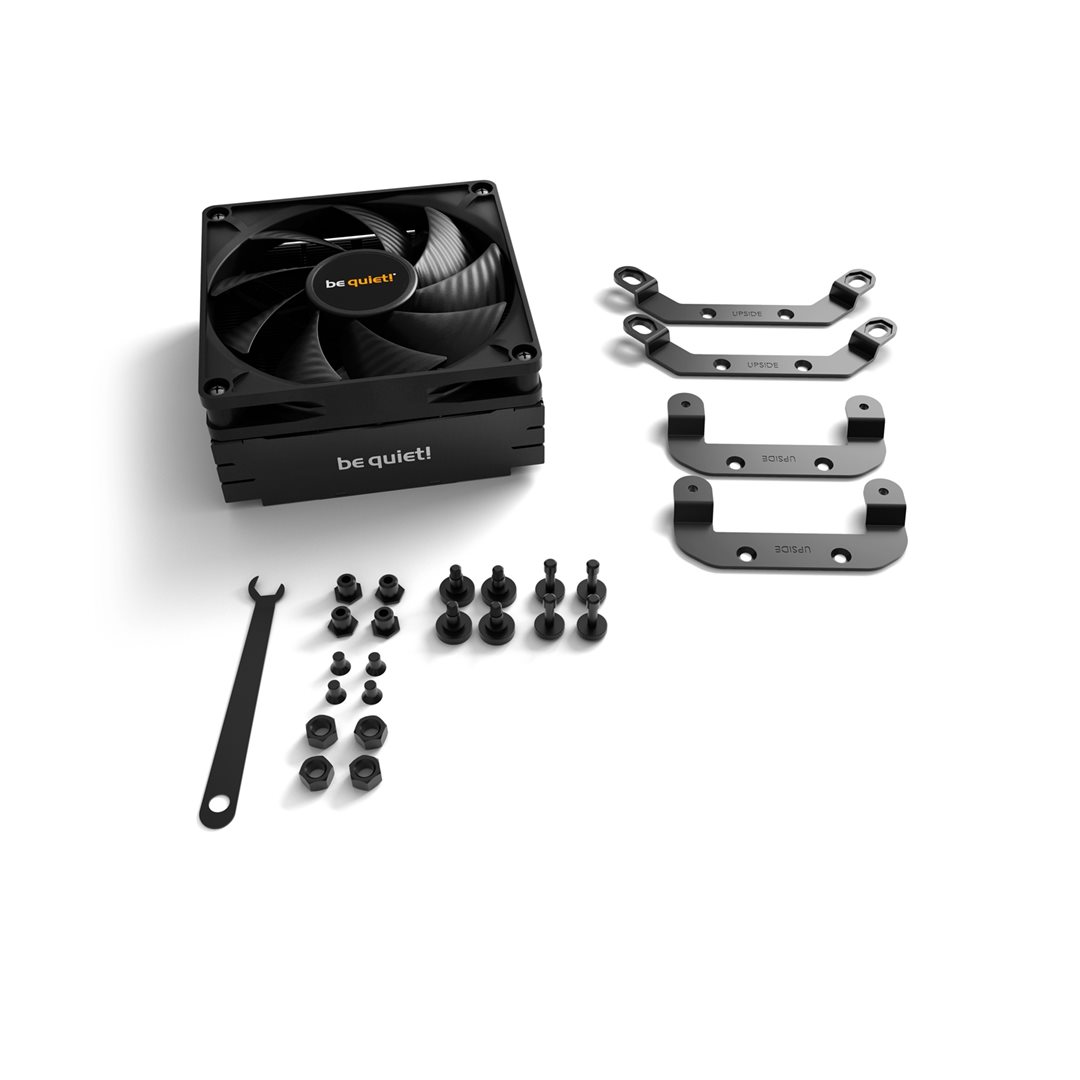

The space-saving design that allows you easy access to components even in the very tight confines of compact PCs. Pure Rock LP comes out of the box with the full set of installation kits for Intel and AMD consumer chipsets.

General Data
Model: Pure Rock LP
TDP (W): 100
Color option: –

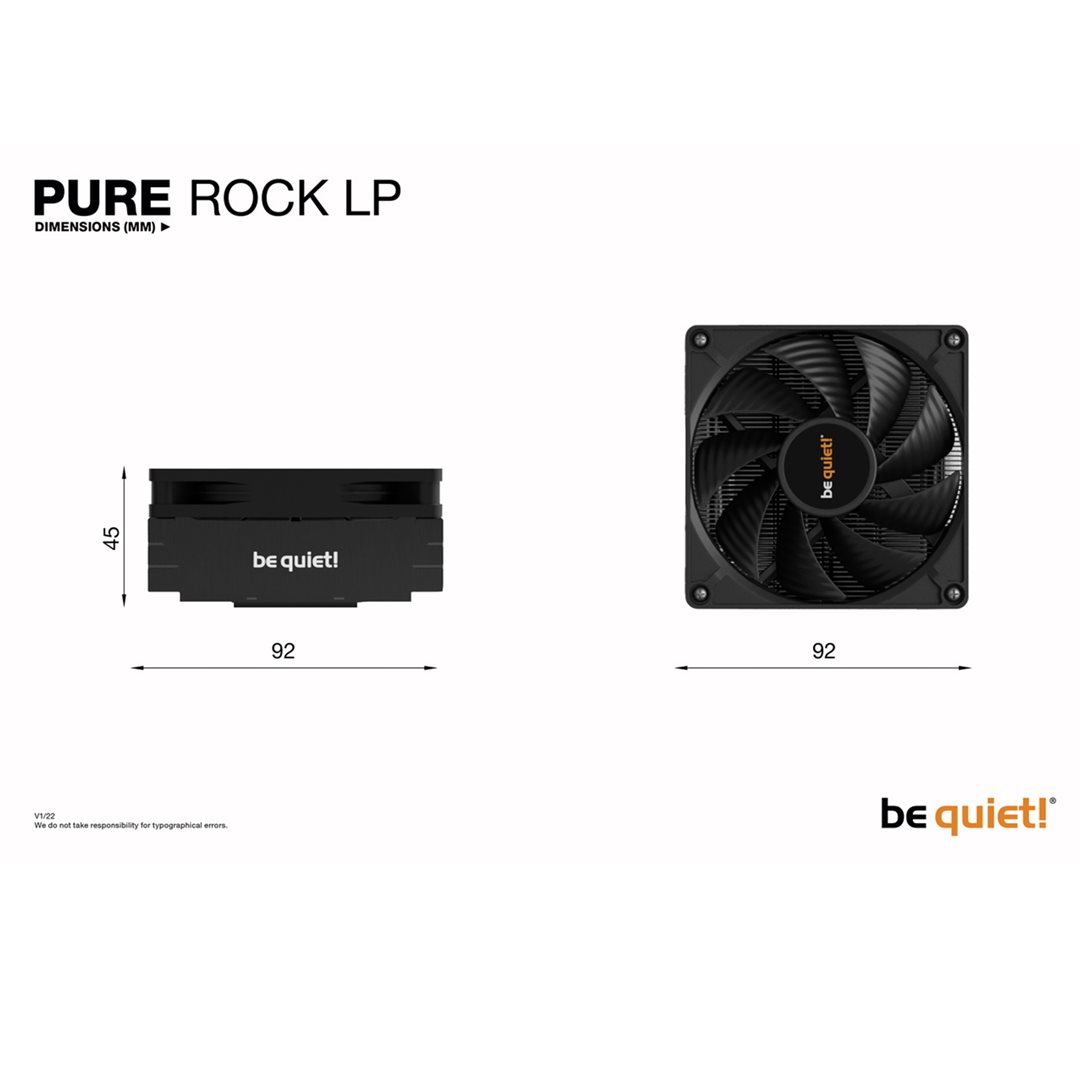

Overall dimensions without mounting material (L x W x H), (mm): 92 x 92 x 45
Total weight (kg): 0.358
Socket compatibility Intel: 1851 / 1700 / 1200 / 1150 / 1151 / 1155
Socket compatibility AMD: AM5 / AM4
Overall noise level (dB(A)) @ 50/75/100% (rpm): 13.3 / 23.8 / 30.6
Number of fans: 1
Decoupled fan mounting: –

Heatsink Specifications
Dimensions (L x W x H), (mm): 92 x 92 x 30
Fin material: Aluminum
Surface treatment: Electrophoresis
Base material: Copper
CPU contact surface: CNC machined
Heatpipe number / Diameter (mm): 3 / 6

Fan Specifications
Fan model: 92mm PWM high-quality fan
Fan dimensions (mm): 92 x 92 x 15
Speed @ 100% PWM /12V (rpm): 2500
Bearing technology: Rifle
Motor technology: 4-pole fan mtor
Rated Voltage (V): 12
Input current (A): 0.35
Input power (W): 4.2
Connector: 4-pin PWM
Lighting connector: –
Cable length (mm): 260
Lifespan (h / 25°C): 80,000

Accessories
Thermal grease (Type): Applied
Mounting set: Intel & AMD
Y-Cable: –
User manual languages: EN, DE, FR, JP, PL, ES, RU, TW, CN

Safety certification
Approvals: –

Environmental directives
RoHs: –
Triman: –

Logistics Data
Article number: BK034
Dimensions, package (L x W x H), (mm): 127 x 131 x 87
Gross weight, package (kg): 0.52
