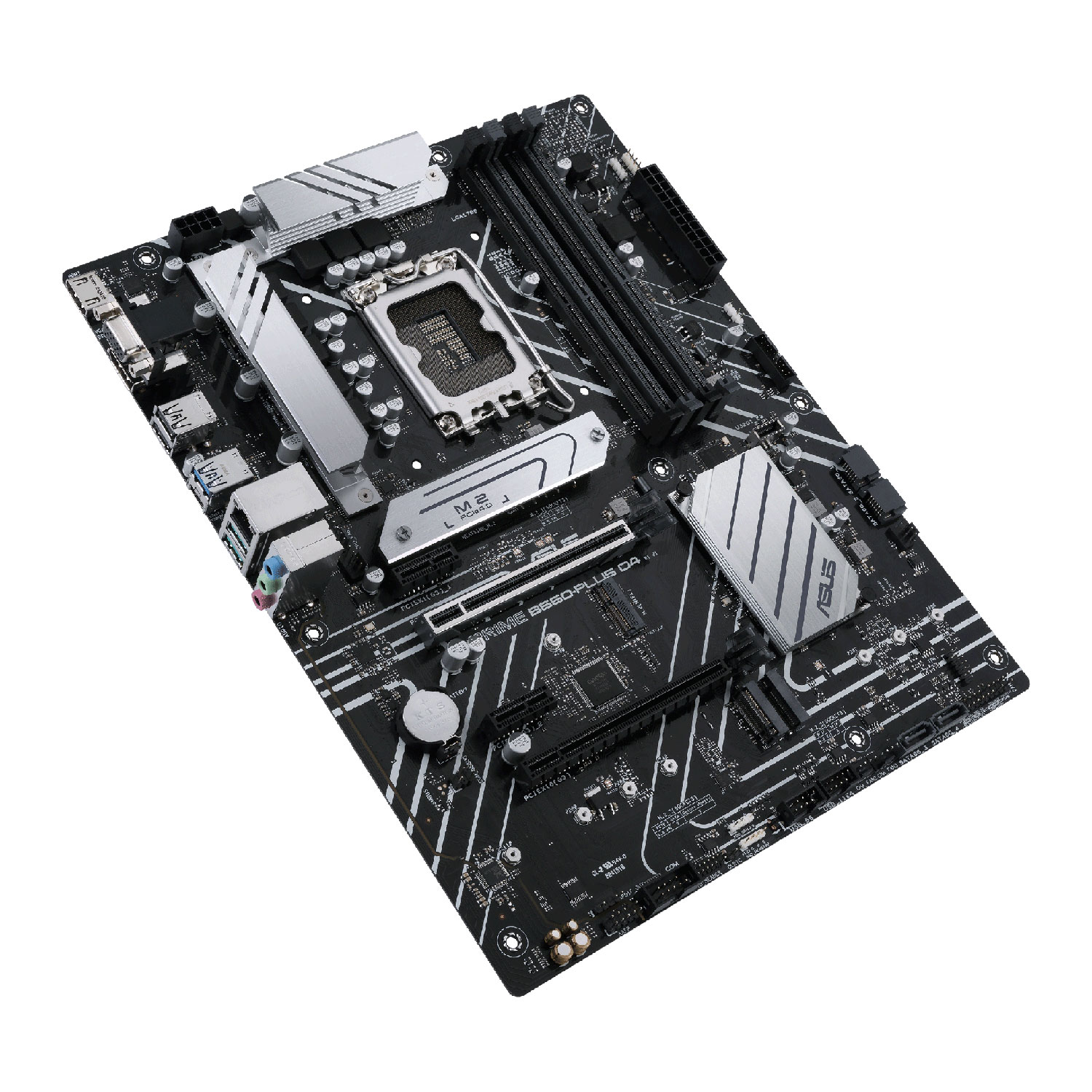

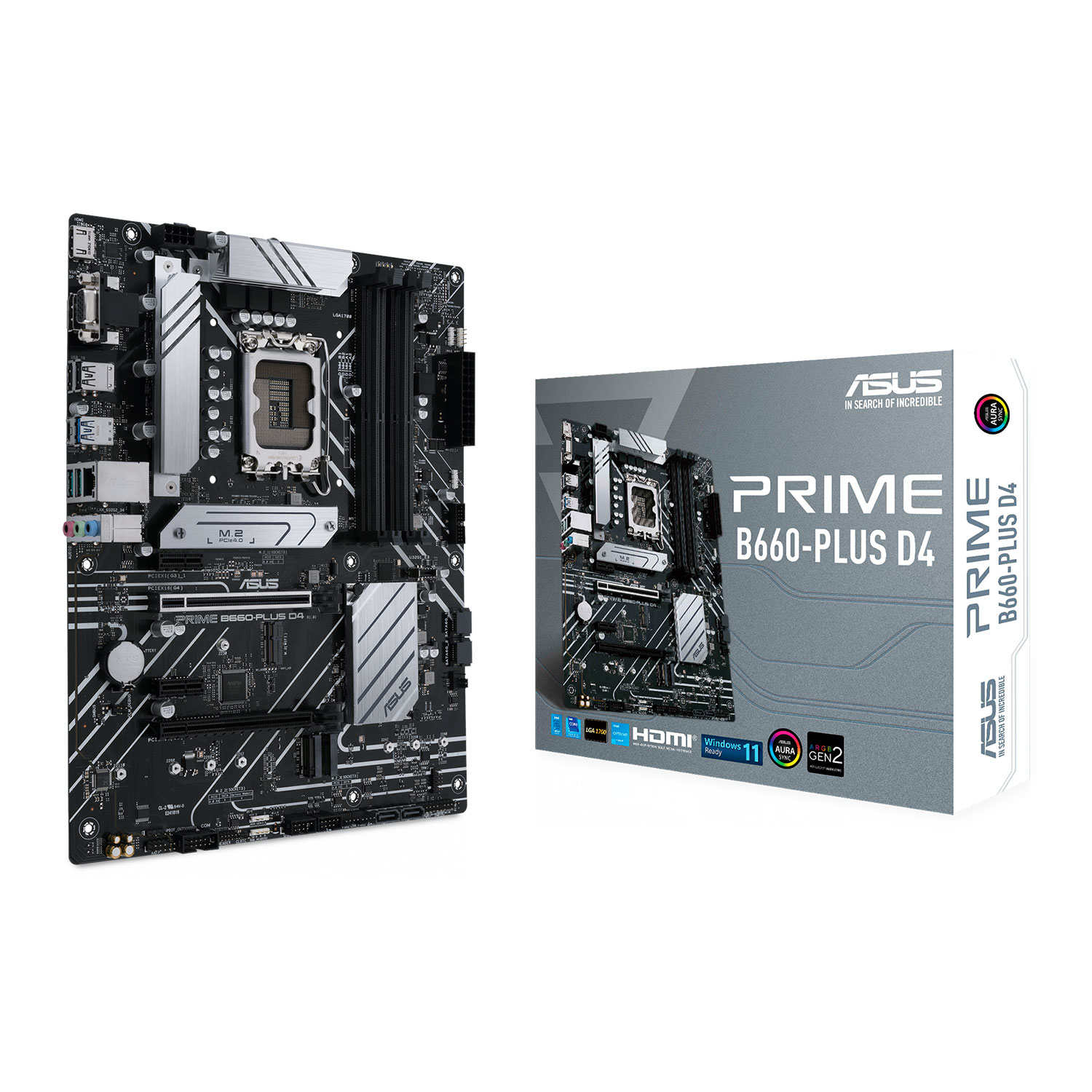

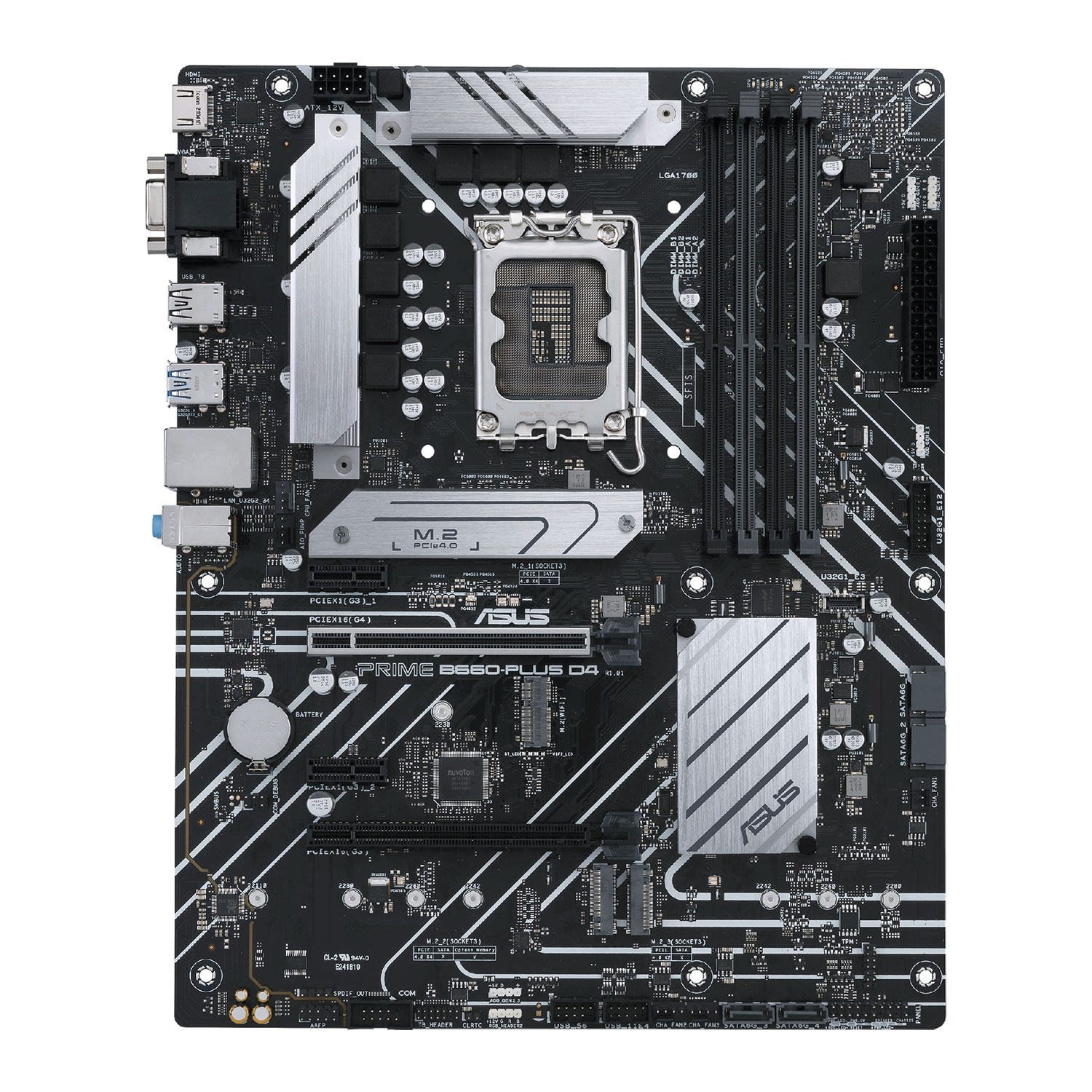

Name: ASUS Intel B660 PRIME B660-PLUS D4 DDR4 ATX Motherboard
SKU: 4711081523017
Availability: OutOfStock

ASUS Intel B660 PRIME B660-PLUS D4 DDR4 ATX Motherboard

£139.00

Intel^® LGA 1700 socket: Ready for 13^th & 12^th Gen Intel^® processors
Ultrafast connectivity: PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2×2 Type-C^®, front USB 3.2 Gen 1 Type-C^®, Realtek 2.5Gb Ethernet and Thunderbolt™ 4 header support
Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability

Out of stock

RAM Memory Support
Memory Type	DDR4
Memory Channel	Dual (2)
Memory Type (ECC)	Non-ECC
Memory Type (R/U)	UDIMM (Unbuffered)
Memory Speed (Mhz)	DDR4 – 2133 DDR4 – 2400 DDR4 – 2666 DDR4 – 2800 DDR4 – 2933 DDR4 – 3000 DDR4 – 3200 DDR4 – 3333(OC) DDR4 – 3400(OC) DDR4 – 3466(OC) DDR4 – 3600(OC) DDR4 – 3733(OC) DDR4 – 4000(OC) DDR4 – 4266(OC) DDR4 – 4400(OC) DDR4 – 4600(OC) DDR4 – 4800(OC) DDR4 – 5000(OC)
Max. Memory Capacity	128GB

Audio
Audio	7.1 Channel HD Audio

Graphics Support
Primary GPU Interface	PCIe 4.0 (x16)
NVIDIA SLI Support	N/A
AMD CrossFire Support	N/A
Integrated Graphics
On-Board Graphics Connectors	None

Internal Connectivity
Expansion Slots	1 x M.2, 22-42/60/80, PCIe Gen4x2 1 x M.2, 22-42/60/80, PCIe Gen4x4 1 x M.2, 22-42/60/80/110, PCIe Gen4x4 2 x PCIe 3.0 x1 1 x PCIe 3.0 x16 (x4 Bandwidth) 1 x PCIe 4.0 x16
SATA Support	N/A
RAID Support via	Intel® SATA RAID 0/1/10/5
Storage Mode Support
Internal I/O	1 x 24-pin (Power) 1 x 4-pin AIO_PUMP Connector 3 x 4-pin CHA_FAN connector 1 x 4-pin CPU Fan Connector 1 x 8-pin (Power) 3 x Addressable Gen 2 Header 2 x Aura RGB Header 1 x Clear CMOS Header 1 x Front Panel Audio Header 1 x S/PDIF-Out Header 4 x SATA III – 6Gb/s 1 x Serial (COM) Header 1 x System Panel Connector with Chassis Intrusion 1 x Thunderbolt header 1 x TPM (SPI_TPM) header 2 x USB 2.0 Header 2 x USB 3.2 Gen1 Header

External Connectivity
Network Interface Type	Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules	1 x Realtek (2.5GbE LAN)
Rear I/O Connectors	1 x 10/100/1000/2500 (LAN) 3 x Audio I/O 1 x D-Sub (VGA) 1 x DisplayPort 1 x HDMI 2 x USB 2.0 1 x USB 3.2 Gen1 Type-A 2 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2x2 Type-C

Additional Information

ASUS Intel B660 PRIME B660-PLUS D4 DDR4 ATX Motherboard
