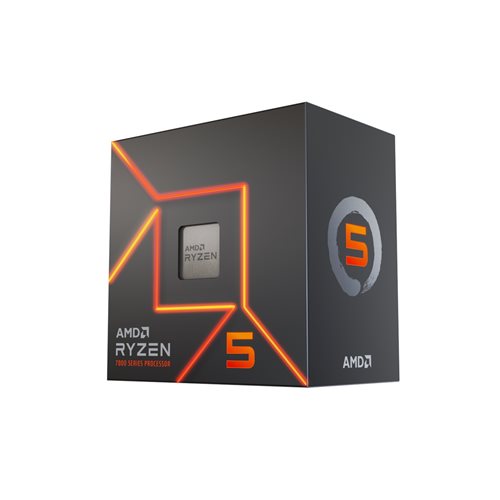

AMD Ryzen 5 7500X3D Desktop Processor

General Specifications

Name
AMD Ryzen 5 7500X3D

Family
Ryzen

Series
Ryzen 7000 Series

Form Factor
Desktops, Boxed Processor

Market Segment
Enthusiast Desktop

AMD PRO Technologies
No

Regional Availability
NA , EMEA

Former Codename
Raphael AM5

Processor Architecture
Zen 4

# of CPU Cores
6

Multithreading (SMT)
Yes

# of Threads
12

Max. Boost Clock
Up to 4.5 GHz

4 GHz

L1 Cache
384 KB

L2 Cache
6 MB

3 Cache
96 MB

Default TDP
65W

Processor Technology for CPU Cores
TSMC 5nm FinFET

Processor Technology for I/O Die
TSMC 6nm FinFET

CPU Compute Die (CCD) Size
71mm²

I/O Die (IOD) Size
122mm²

Package Die Count
2

AMD EXPO Memory Overclocking Technology
Yes

Precision Boost Overdrive
Yes

Yes

Yes

CPU Socket
AM5

Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)
Not Included

Recommended Cooler
Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)
89C

*OS Support
Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps)
4

Native USB 3.2 Gen 1 (5Gbps)
0

Native USB 2.0 (480Mbps)
1

PCI Express Version
PCIe 5.0

Native PCIe Lanes (Total/Usable)
28 , 24

NVMe Support
Boot , RAID0 , RAID1 , RAID10

System Memory Type
DDR5

Memory Channels
2

Max. Memory
128 GB

System Memory Subtype
UDIMM

Max Memory Speed
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600

ECC Support
Yes (Requires mobo support)

Graphics Capabilities

Graphics Model
AMD Radeon Graphics

Graphics Core Count
2

Graphics Frequency
2200 MHz

USB Type-C DisplayPort Alternate Mode
Yes

Key Features

Supported Technologies
AMD EXPO Technology , AMD Ryzen Technologies
