Min PSU: 500W
GPU
AMD Radeon™ RX 6600 Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
- Boost Clock: Up to 2593 MHz
- Game Clock: Up to 2382 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
2048
Infinity Cache
32MB
Ray Accelerators
32
Memory Size/Bus
8GB GDDR6
Memory Clock
16 Gbps Effective
Displays
Maximum 4 Displays
Resolution
- HDMI™: 7680×4320
- DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0

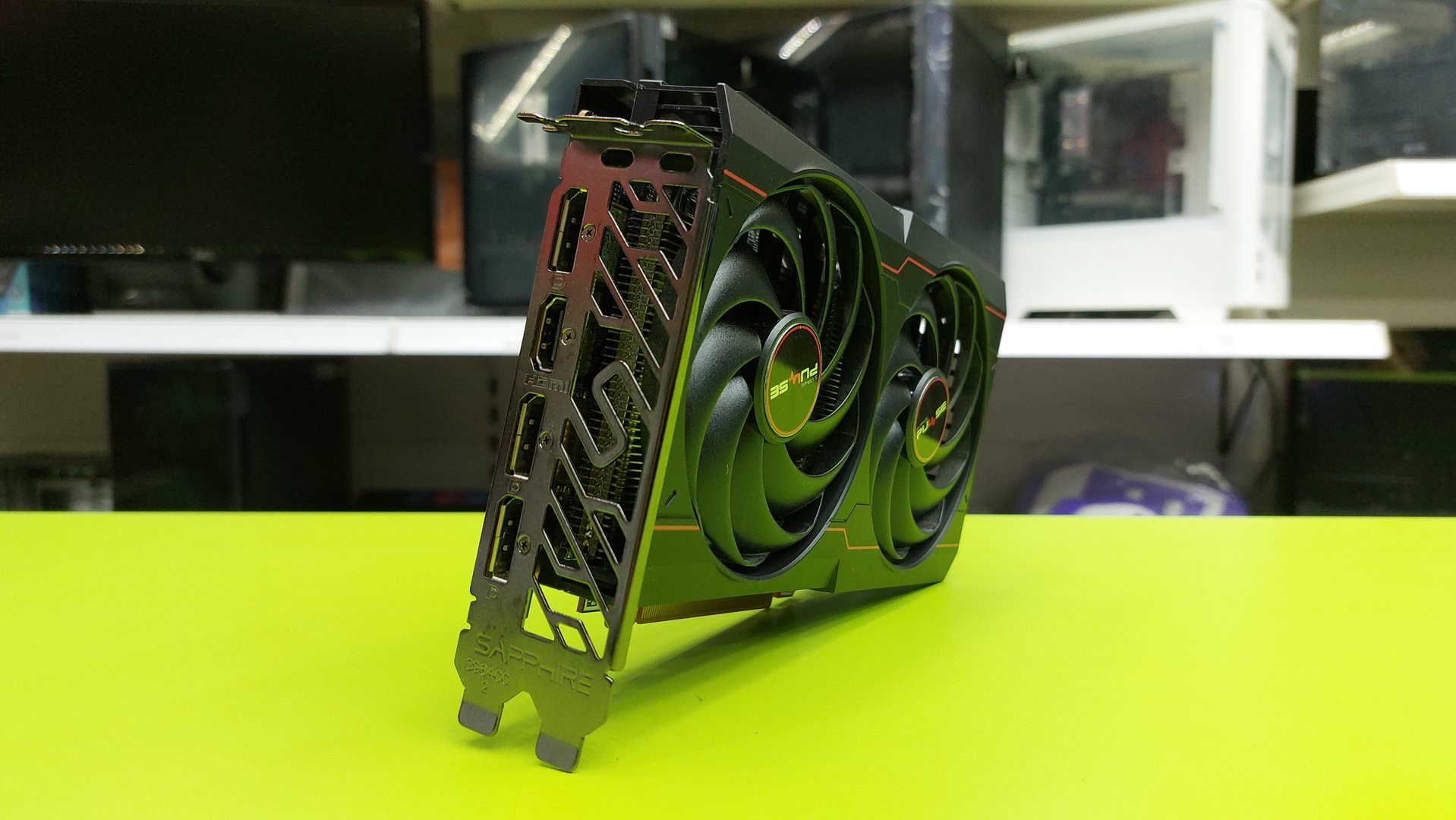

Output
- 1x HDMI
- 3x DisplayPort
BIOS Support
- UEFI
Game Index
1080P
Sapphire Features
- Premium Digital Power Design
- Fuse Protection
- Dual-X Cooling Technology
- Intelligent Fan Control
- Precision Fan Control

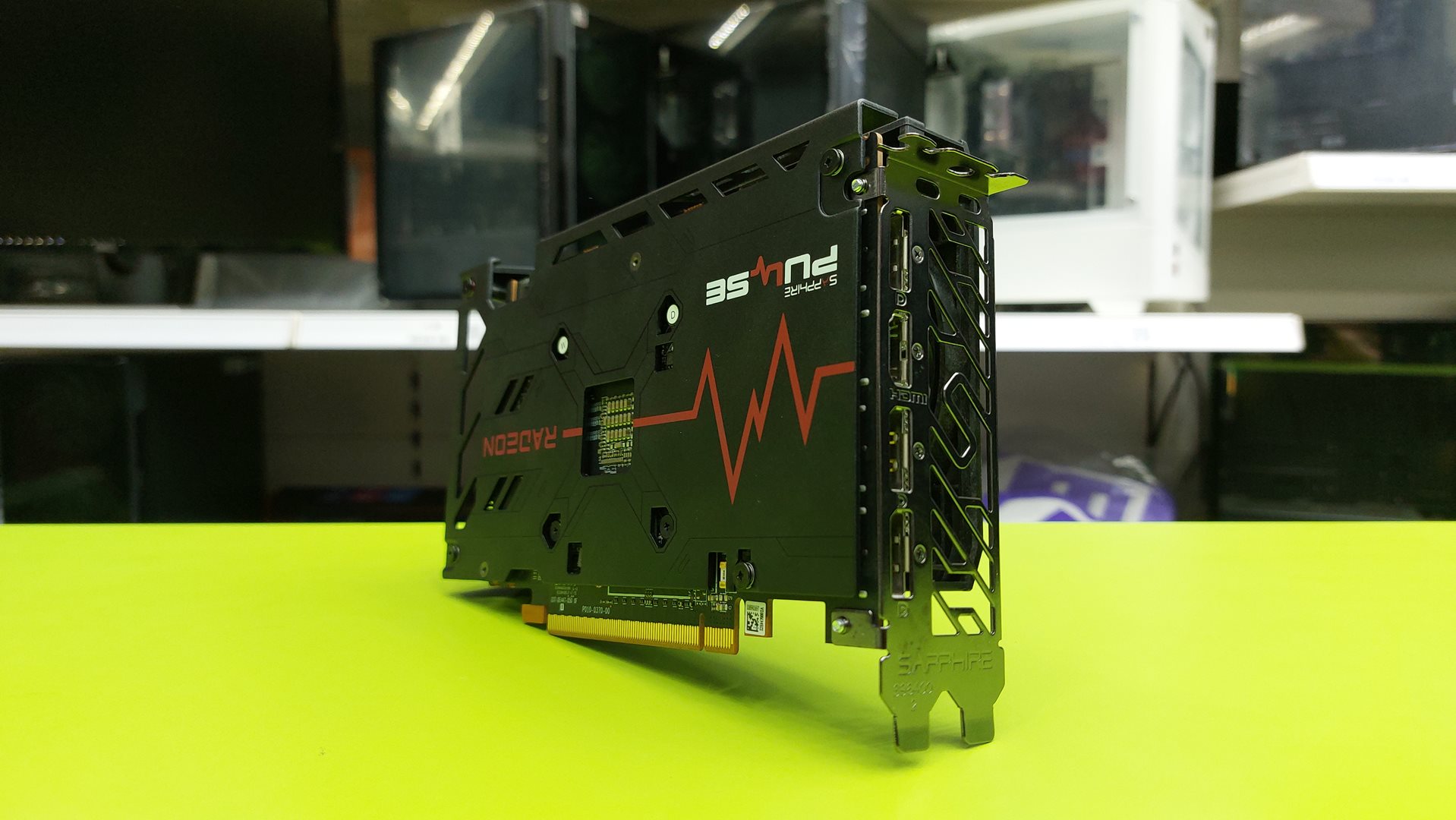

- Metal Backplate
- Two-Ball Bearing Fans
- TriXX Supported
- TriXX Boost
AMD Features
- AMD RDNA™ 2 Gaming Architecture
- DirectX® 12 Ultimate
- Hardware Raytracing
- Smart Access Memory
- Infinity Cache
- 7nm GPU
- PCI® Express 4.0 Support
- AMD FreeSync™ Technology
- DisplayPort™ 1.4 with DSC
- HDMI™
- Video Streaming up to 8K
- Radeon™ VR Ready Premium
- AMD FidelityFX
- Radeon™ Image Sharpening
- Radeon™ Anti-Lag
- Radeon™ Software
- Game Driver Optimizations
Cooling

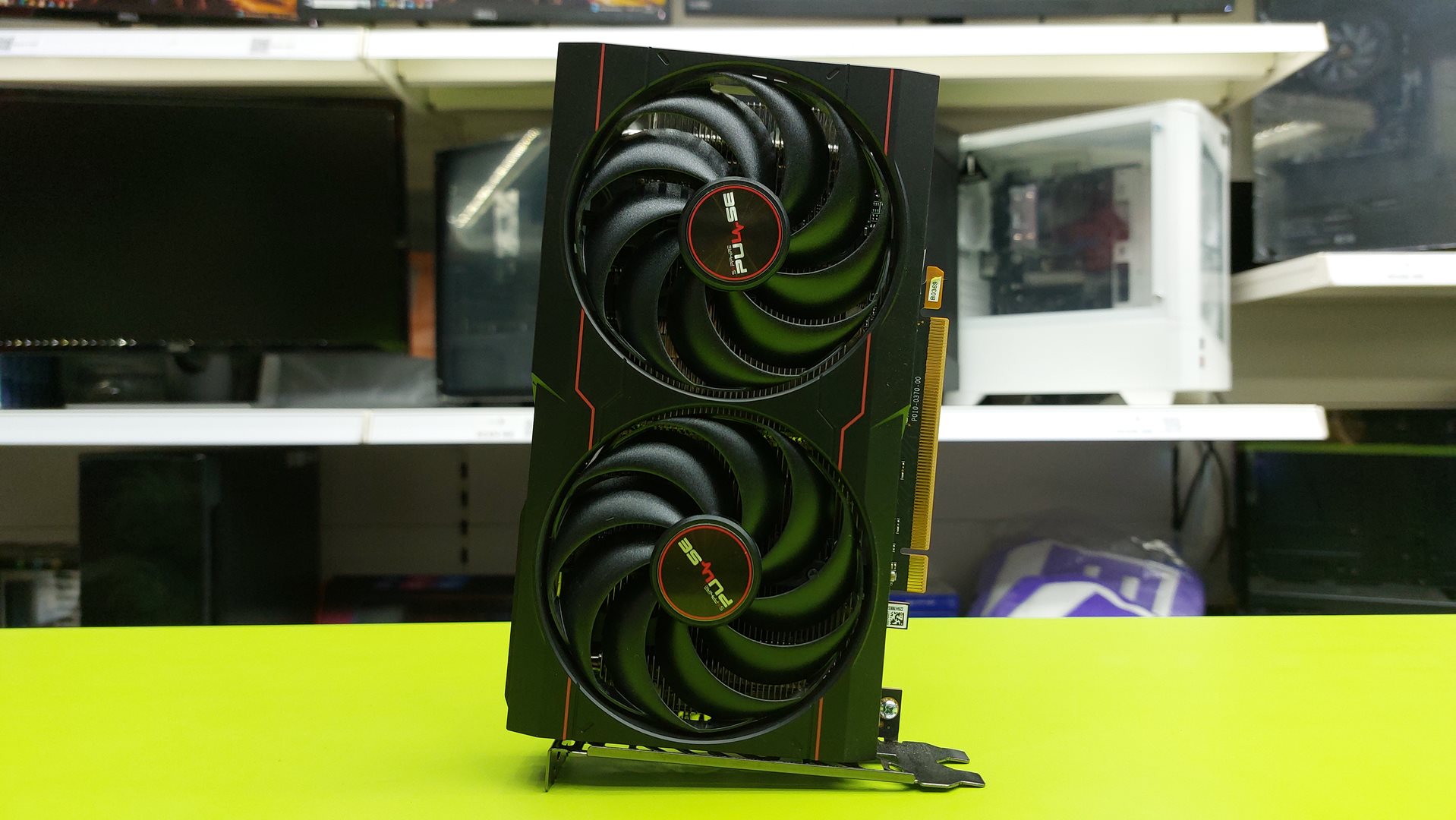

Dual Fans
Form Factor
2.2 slot, ATX
Dimension: 240(L)X 119.85(W)X 44.75(H)mm
Dimension: 240(L)X 119.85(W)X 44.75(H)mm
Power Consumption
- 170W (Board Power)
OS
Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
- Minimum 500 Watt Power Supply

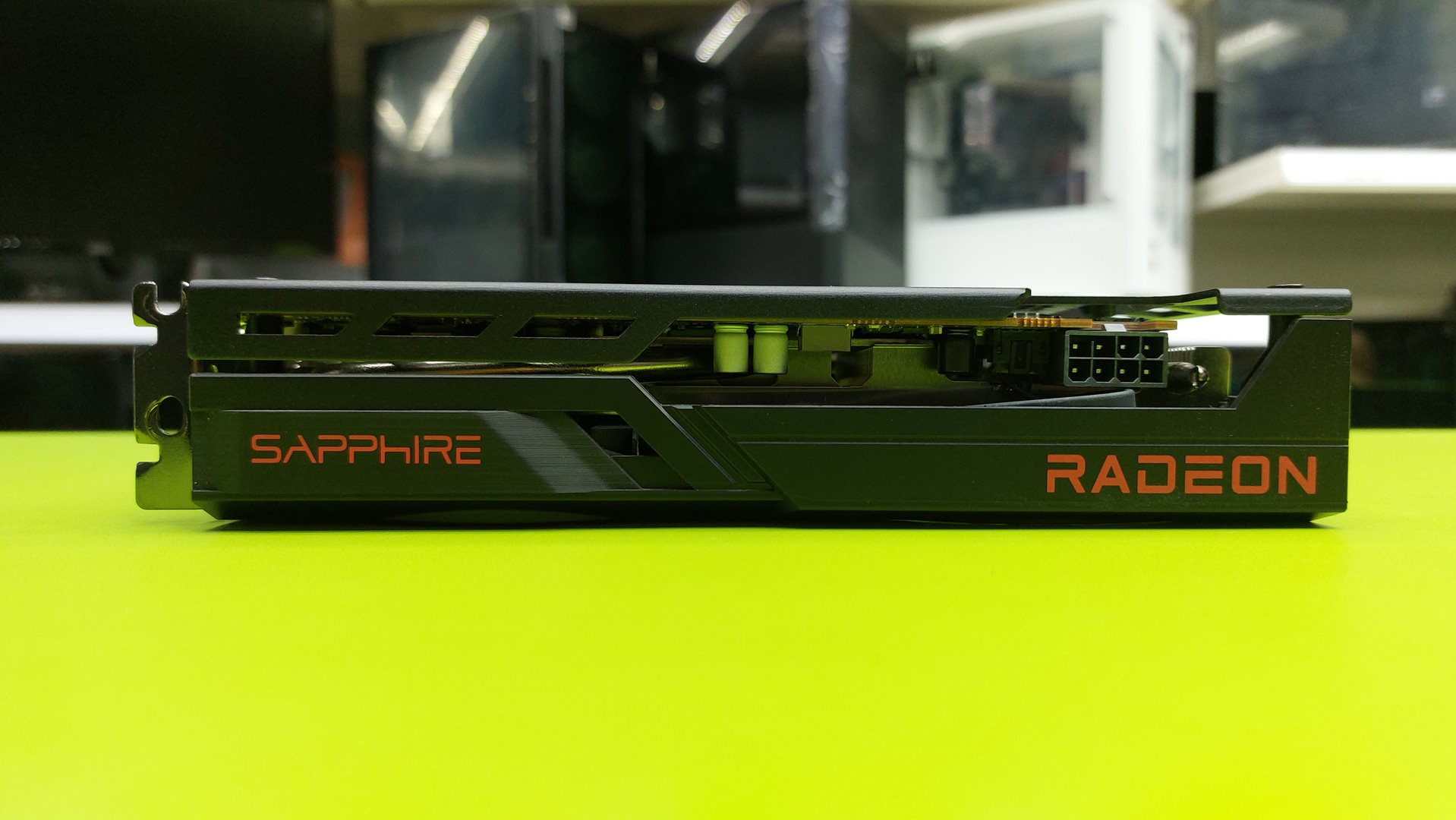

- 1 x 8-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
