Description

WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

ALTERNATE SPINNING
The GIGABYTE patent ?Alternate Spinning? is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.

COMPOSITE HEAT-PIPES
The composite heat-pipes combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.

EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 4+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

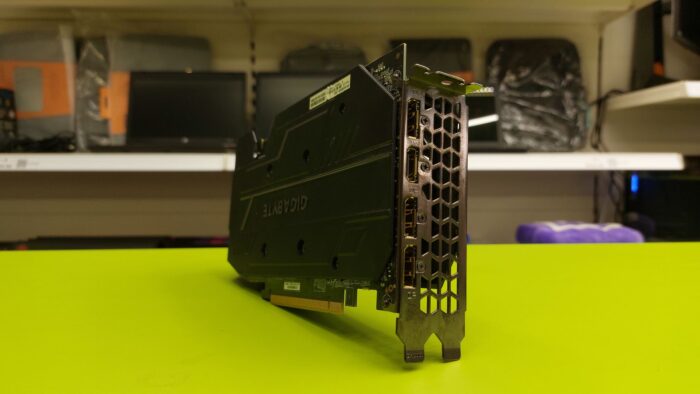

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

Specifications

Graphics Processing
GeForce RTX™ 2060

Core Clock
1755 MHz (Reference card: 1680 MHz)

RTX-OPS
38

CUDA Cores
1920

Memory Clock
14000 MHz

Memory Size
6 GB

Memory Type
GDDR6

Memory Bus
192 bit

Memory Bandwidth (GB/sec)
336 GB/s

Card Bus
PCI-E 3.0 x 16

Digital Max Resolution
7680×4320@60Hz

Multi-View
4

Card Size
L=225.65 W=122.02 H=40.5 mm

PCB Form
ATX

DirectX
12

OpenGL
4.5

Recommended PSU
500W

Power Connectors
8 Pin*1

Output
DisplayPort 1.4 *3
HDMI 2.0b *1

SLI Support
No
