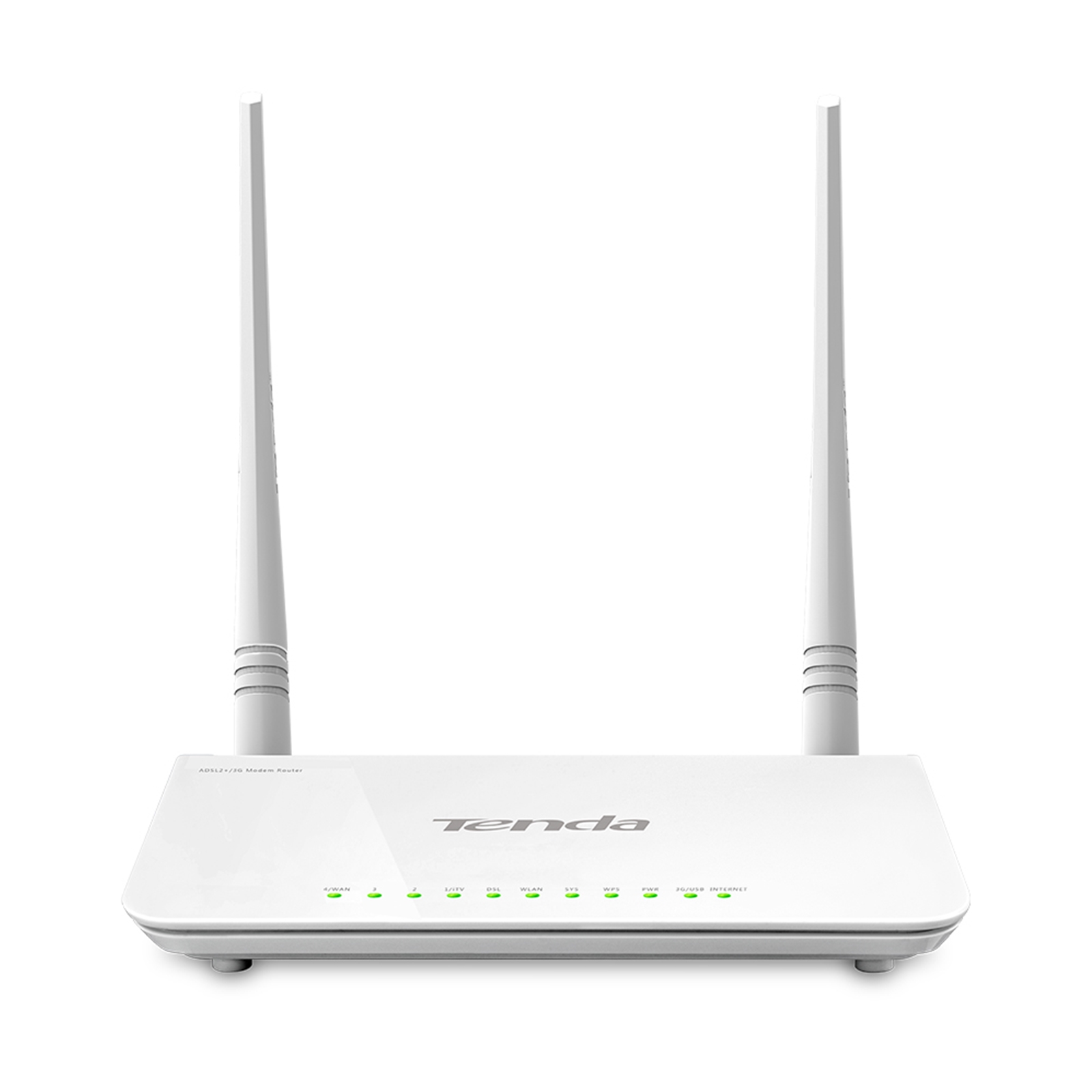

Description

Always-On Connectivity
Provides ADSL, 3G, and Ethernet WAN for broadband connection, ensuring an uninterrupted connection

IPTV Ready
Easily enjoy lag-free streaming IPTV service over your home phone line by connecting the device to set-top box

Key features

Standard&Protocol
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
IEEE 802.3
IEEE 802.3u
ANSI T1.413
ITU G.992.1
ITU G.992.2
ITU G.992.3
ITU G.992.5
CDMA2000
WCDMA

Interface
3* 10/100Mbps auto-negotiation (Auto MDI/MDIX) LAN ports
1* 10/100Mbps auto-negotiation WAN/LAN Interchangeable port (Auto MDI/MDIX)
1* RJ11 port
1* USB V2.0

Antenna
2* external omni-directional antennas

Button
1*Reset/WPS
1*Power

Power
Input: 100-240V 50/60MHz
Output: 9V DC-1A

Dimension
171.61mm*111.16mm*34.47mm

LED
Power/SYS/Internet/DSL/WLAN/LAN/WPS/USB

Transmission Media
Cat.5
Cat.5e
Cat.6
Phone Cable

Frequency
2.4GHZ

Internet Connection Type
Dynamic IP
Static IP
PPPoE
IpoA
Bridge

Wireless Speed
300Mbps

TR-069
Yes

Basic Features
Wireless Radio: On/Off;
SSID Broadcast: On/Off;
WDS: On/Off;
SSID setup;
Channel: Auto, 1-13;
Network Mode: 11b only 11g only 11n only 11bg mixed 11bgn mixed;
Channel Bandwidth: Auto, 20MHz, 40MHz

Security
Wireless Access Control (Wireless MAC filter)
Wireless Security: Enable/Disable
64-/128-bit WEP
WPA-PSK/WPA2-PSK

Operating Mode
Wireless ADSL/ADSL2+ Modem Router
WDS

DHCP Server
Yes

Virtual Server
Yes

Security
Port/URL/MAC Filter

3G Access
Yes

VPN Pass-through
PPPTP, L2TP, Ipsec

Bandwidth Control
Yes

VLAN
802.1Q VLAN

Default Settings
Login IP Address: 192.168.1.1
Internet Connection Types: Bridge\PPPoE\PPPoA\IPoA\Static IP\Dynamic IP
SSID: Tenda_xxxxxx (where “xxxxxx” represents the last six characters of device MAC address)
Channel 6
IP Address Pool: 192.168.1.2 – 192.168.1.254

Temperature
Operating Temperature: 0c ~ 40c
Storage Temperature: -40c ~ 70c

Humidity
Operating Humidity: 10% ~ 90% RH Non-condensing Storage
Storage Humidity: 5% ~ 90% RH Non-condensing Storage

Static Routing
Yes

Logs
Yes

Other
TR-069
IPV6
IPTV

Package Content
D303
Power Adapter
Quick Install Guide
1* Ethernet Cable
ADSL Splitter
2* Phone Cords
