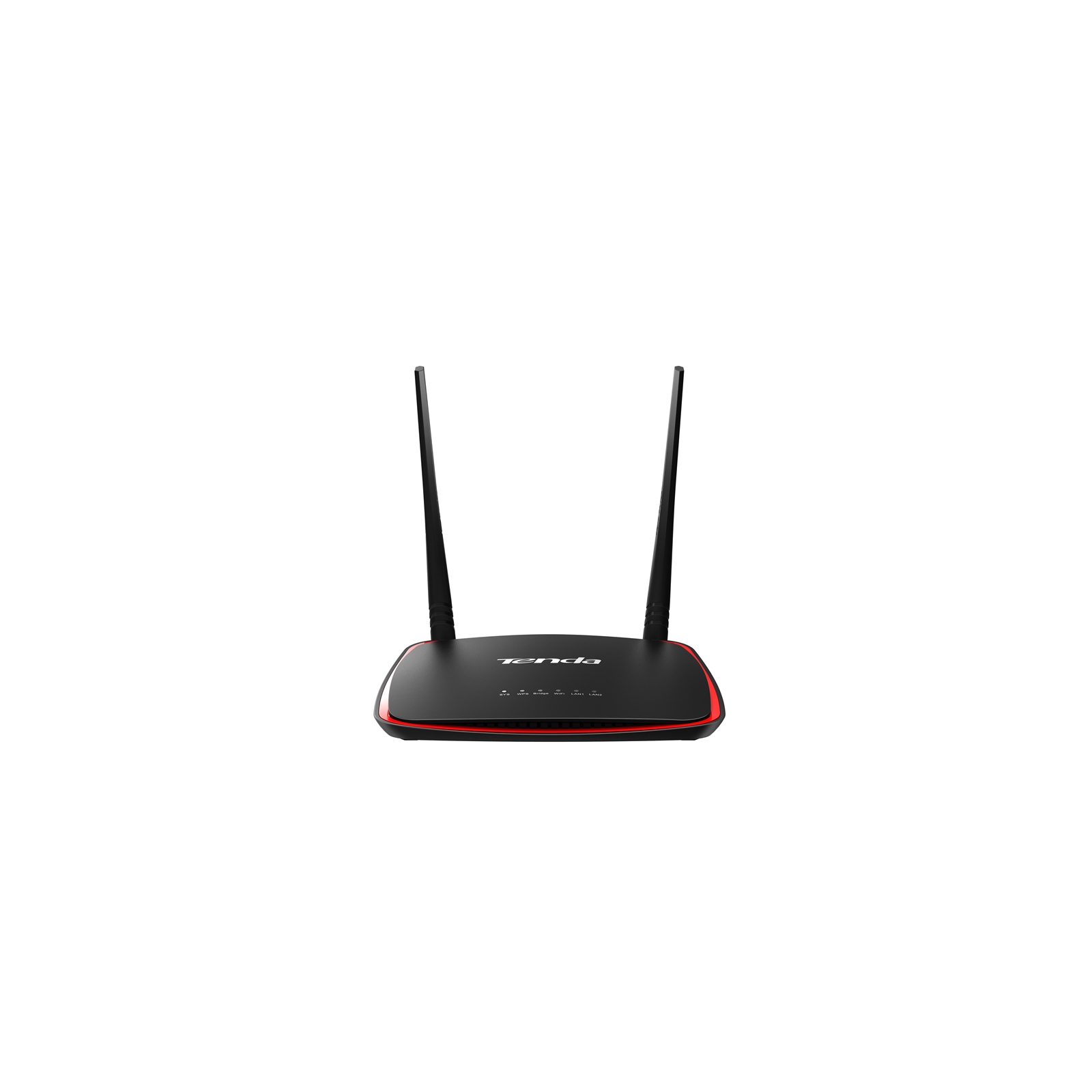

One Button to boost Wi-Fi coverage of ADSL modem or router.
300Mbps wireless transmission rate brings smooth wireless experience.
Multiple operating modes include AP/Universal Repeater/WISP/Client/Client+AP.
Power over Ethernet with included Injector make it flexible to deploy

Key features

Passive PoE power supply
Up to 40 meters Passive PoE is supported(cat5e or up)

Hardware Deployment
Desktop/Wall Mount

LED
SYS,WPS,Bridge,WiFi,LAN1,LAN2

Frequency
2.4GHz-2.483GHz

Button
1*Reset 1*Range Extender

Antenna
2*5dBi Detachable Omni Directional (RP-SMA)

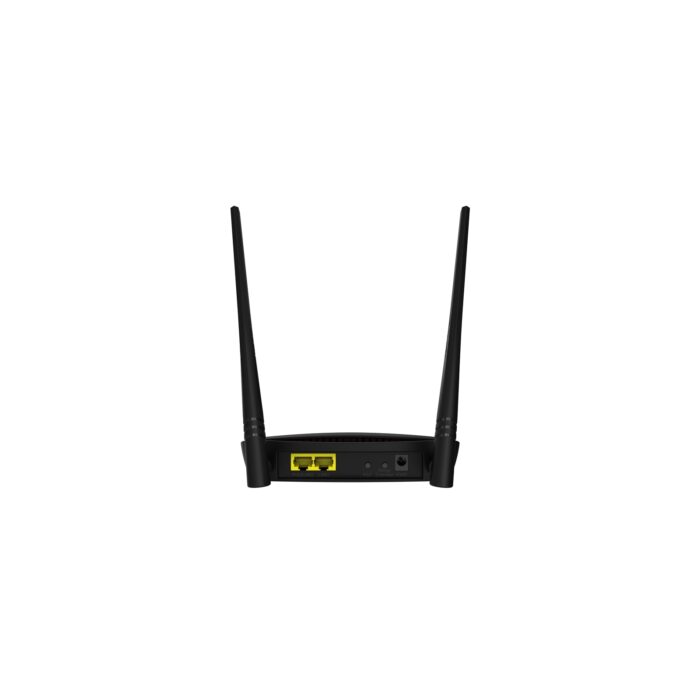

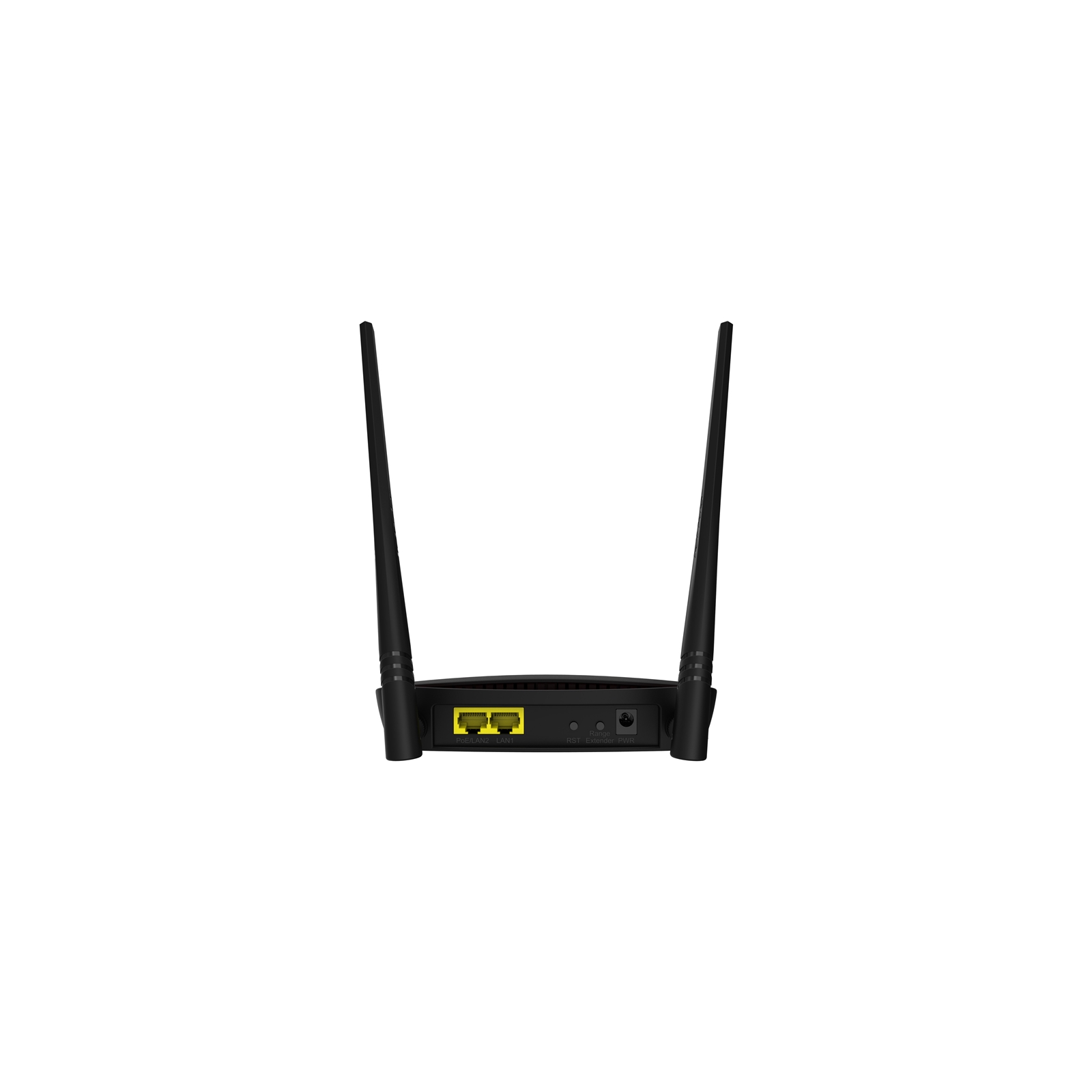

Interface
2 * 10/100M Ethernet Port (RJ45)

Standard&Protocol
IEEE 802.11n/g/b

Dimension
148*146.2*31.5mm

Maximum Transmit Power
20dbm

Wireless Rate
11n: Up to 300Mbps(dynamic);
11g: Up to 54Mbps(dynamic);
11b: Up to 11Mbps(dynamic)

Wireless Functions
8 SSID; Enable/Disable Wireless Radio;
Broadcast SSID;
SSID Hidden automatically when exceed client limit;
Client limit for SSID;
Transmission output power;
AP isolation; RSSI threshold for wireless clients;
WMM capable;
APSD capable;
Access control based mac address;
Wireless Client list;
VLAN for multi SSID

Video user capacity
5

wireless users capacity
20+

Diagnostic Tool
Wireless site survey;
Ping;
Traceroute

Network Service
Schedule Reboot ;
Http/Https

Access Point Controller compatible model
AC500

LAN Settings
Static IP;
Dynamic IP

DHCP Server
DHCP Server ;
Clients list

Operating Mode
Access Point;
Universal Repeater;
Station(Client) ;
WISP (Client+Router);
Client+AP

Wireless Security
64/128 WEP
WPA-PSK
WPA2-PSK
WPA&WPA2-PSK
WPA
WPA2

VPN Pass-through
PPTP
L2TP

Management Tool
Reboot;
Restore to factory default;
System Log;
Firmware update;
Time&Date Setting;
Backup/Restore Configuration;
Username Management

Default Settings
IP Address: 192.168.0.254
Login Username: admin
Login Password: admin

Power Method
DC 9V-0.6A ;
Passive PoE

Reception Sensitivity
b mode�F
1M -89dBm@8% ;
11M -87dBm@8% PER;

g mode�F
54M -74dBm@8% PER;

n mode�F
72.2M -72dBm@8% PER;
150M -70dBm@8% PER

Package Content
300Mbps Wireless N Access Point AP4;
1*PoE Injector;
1*Quick Installation Guide;
1*Ethernet cable;
1*Power Adapter;
2*Screws;
2*Plastic Bolt

Temperature
Operating Temperature:-10c~45c ;
Storage Temperature:-30c~70c

Humidity
Storage Humidity:5%~90% non-condensing;
Operating Humidity:10%~90% non-condensing

Certification
FCC/CE/Rohs/VoC
