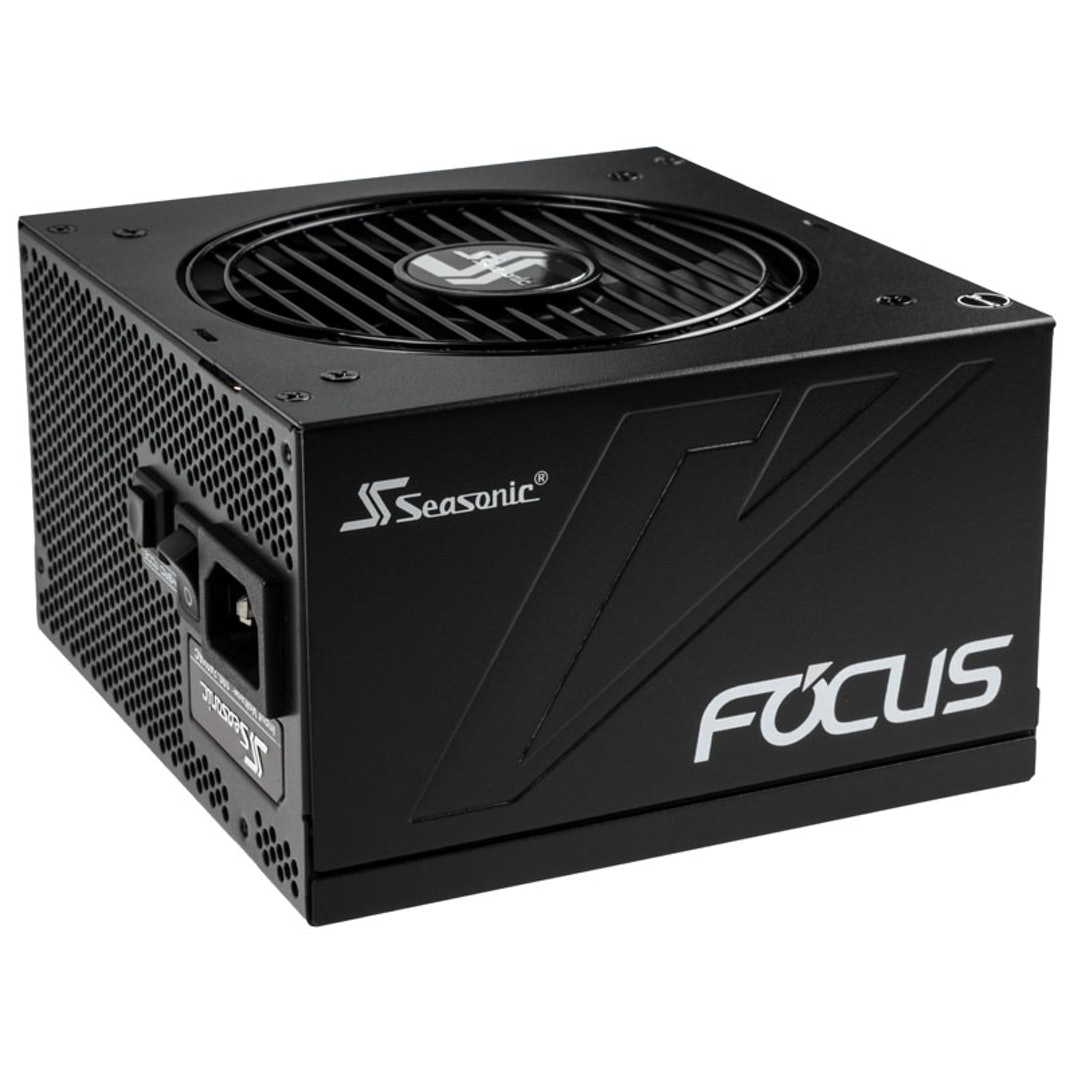

The Focus series from Seasonic represents a long-awaited re-entry into the power supply market and includes compact 80 PLUS Gold-rated models with fully modular cable management that also looks stylish while operating quietly thanks to the quiet and reliable semi-passive 120 mm fan. The smart choice of components, included so as to complement one another during operation, as well as the materials used all meet the high standards of Seasonic and the end result is a premium product with a 10 year guarantee that demonstrates Seasonic’s confidence in their power supplies.

THE SEASONIC FOCUS GX GOLD POWER SUPPLY AT A GLANCE:

• 750 Watt power supply with powerful 62A single rail
• High efficiency with 80 PLUS Gold certification
• Quiet 120 mm fan with semi-passive mode
• Fully modular cable management with flat cables
• Four 6+2-pin PCIe connectors for graphics cards

POWER SUPPLY WITH 80 PLUS GOLD EFFICIENCY AND POWERFUL 62A SINGLE RAIL

The Seasonic Focus GX Gold supplies up to 750 Watt in total output, meaning that even high-end PCs will be powered with ease. The powerful 12 Volt rail delivers a full 62A. In spite of these impressive specs, the Seasonic Focus GX Gold remains remarkably efficient, something that results from Seasonic’s smart choice of high-quality components – such as the capacitors. Consequently, the power supply received an 80 PLUS Gold certification, meaning that it is capable of 90% efficiency under a 50% load.

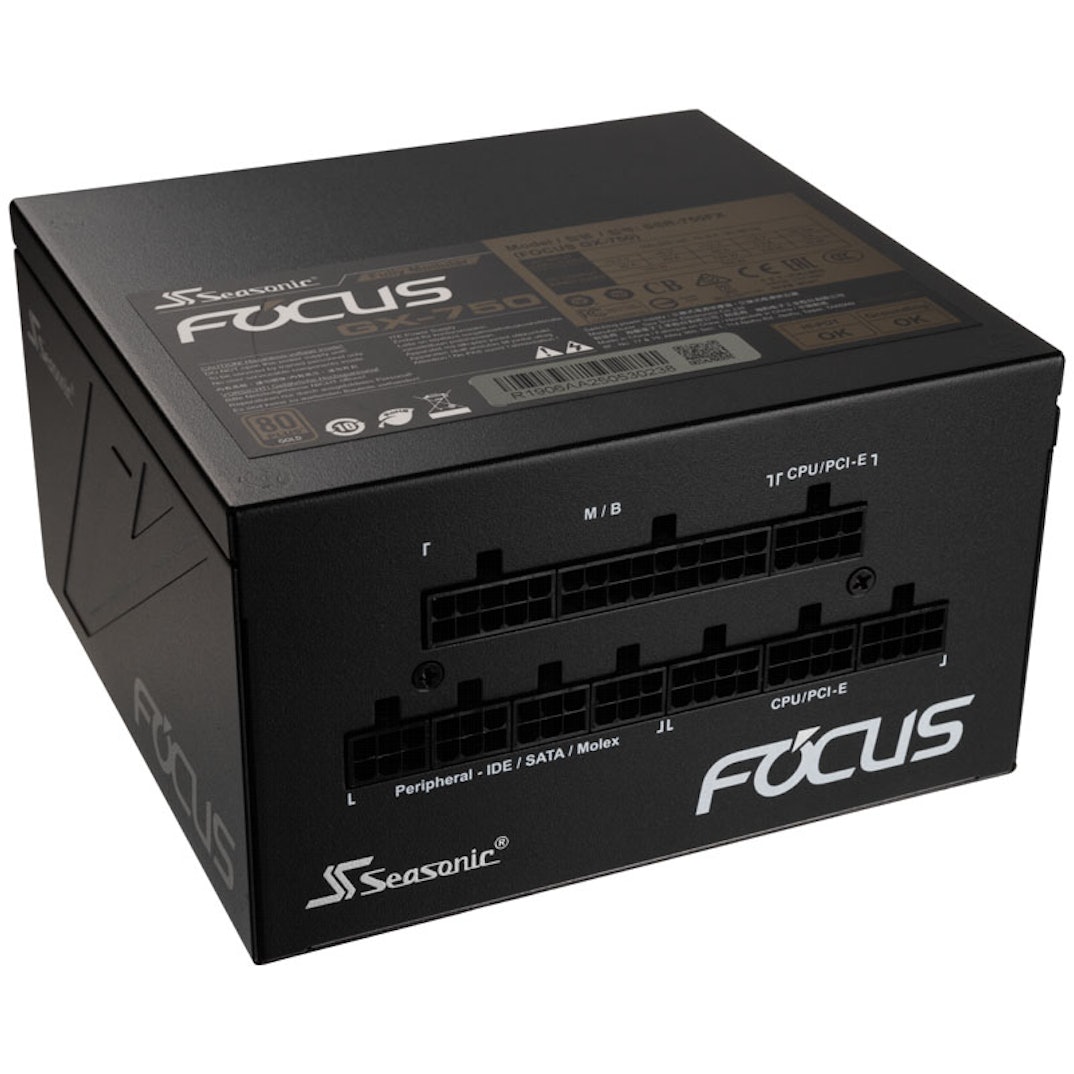

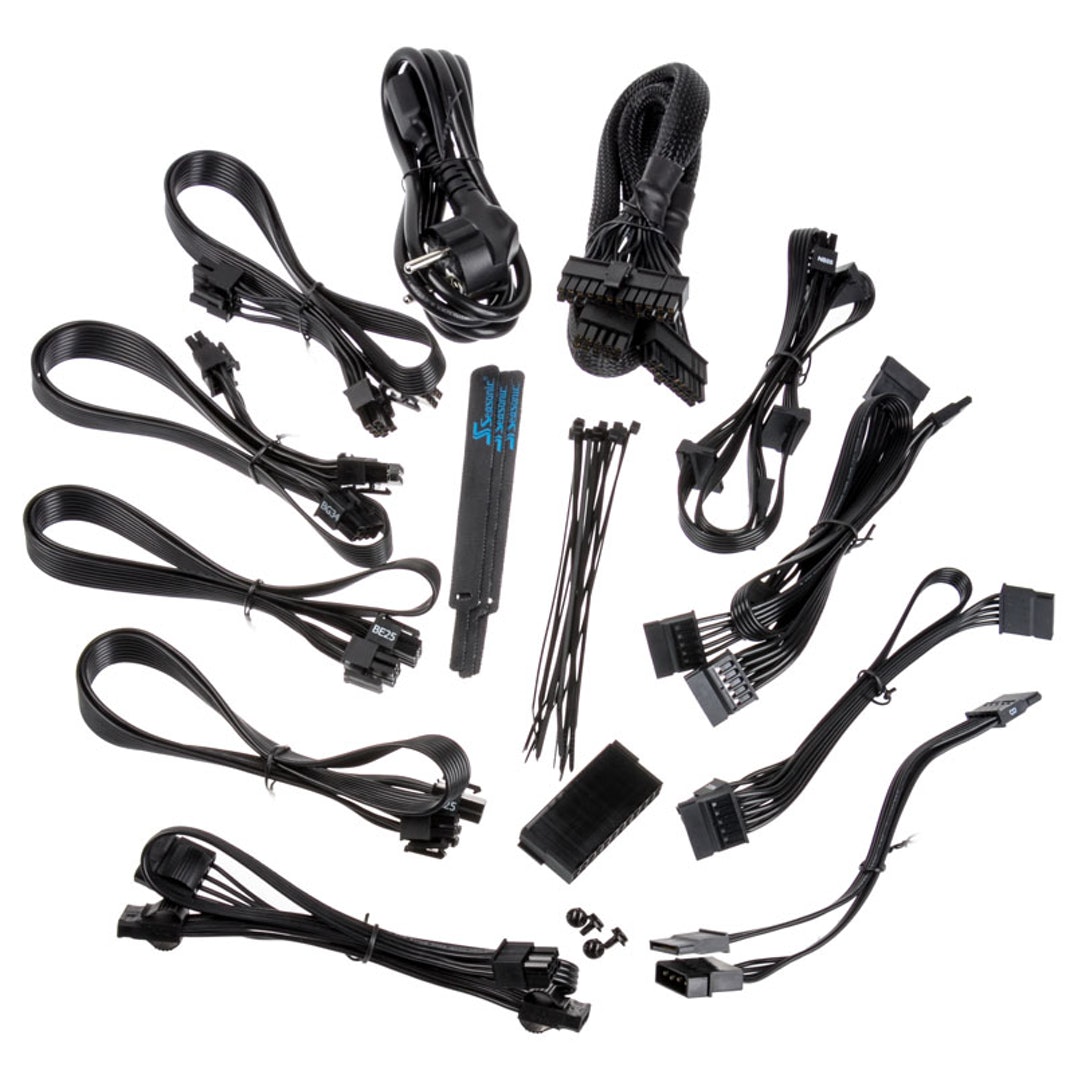

In terms of tidiness, Seasonic smartly opted to make their power supply cables fully modular – arguably a must with the amount of connectivity options on offer! Besides a 24-Pin- and two 4+4-pin cables, the PSU includes (among other things), four 6+2-pin PCIe connectors as well as ten SATA- and three 4-pin Molex connectors. The cables are very flat and easy to cable manage.

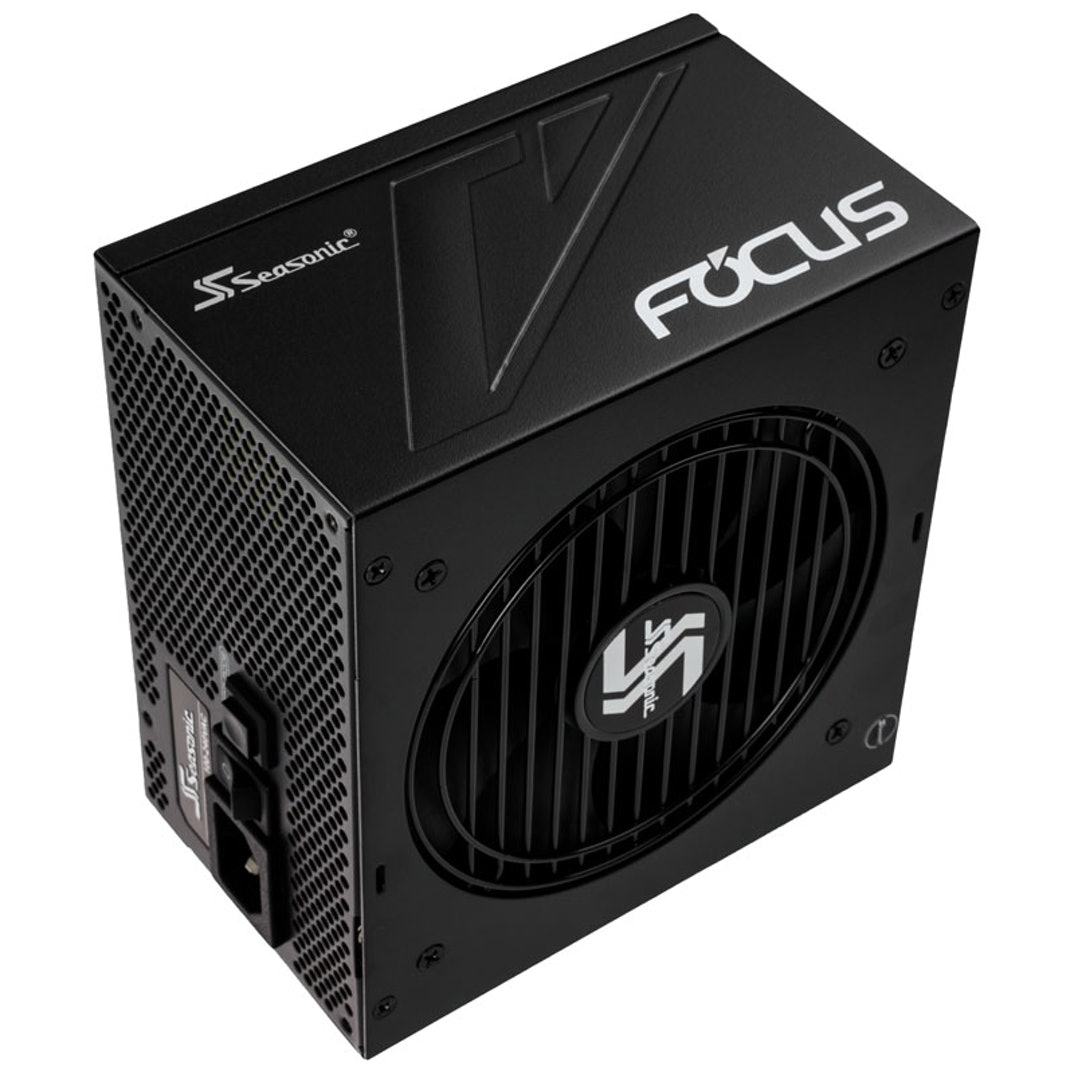

The included 120 mm fan provides, thanks in large part to its quiet-running Fluid Dynamic Bearings, very low noise during operation. The added benefit of FDB is the fact that they also happen to be incredibly robust and durable. A switch on the back of the power supply allows users to choose between automatic fan regulation either with or without a passive mode. Depending on how hard the power supply is being pushed, users will benefit from reduced noise levels or maximised cooling performance respectively.

It almost goes without saying that the Seasonic Focus GX Gold naturally includes all the safety features we have come to expect from modern power supplies. Should the PSU fail unexpectedly, not to worry – Seasonic stands behind this exceptional product with a full ten-year manufacturer’s guarantee!

Technical Details:

• Dimensions: 150 x 86 x 140 mm (W x H x D)
• Fan: 120 mm (Fluid Dynamic Bearing, automatic control with semi-passive mode)
• Efficiency: ~ 87/90/87% @ 20/50/100% Load, 80 PLUS Gold certification
• Active PFC
• Form factor: ATX12V
• Output: 750 W
  +3,3V: 20 A
  +5V: 20 A
  +3,3V & +5V: 100 W
  +12V: 62 A / 744 W
  -12V: 0,3 A / 3,6 W
  +5Vsb: 3 A / 15 W
• Connections (removable):
  1x 24-Pin
  2x 4+4-Pin
  4x 6+2-Pin-PCIe
  10x SATA
  3x 4-Pol-Molex
• Manufacturer’s Guarantee: 10 Years
