Description

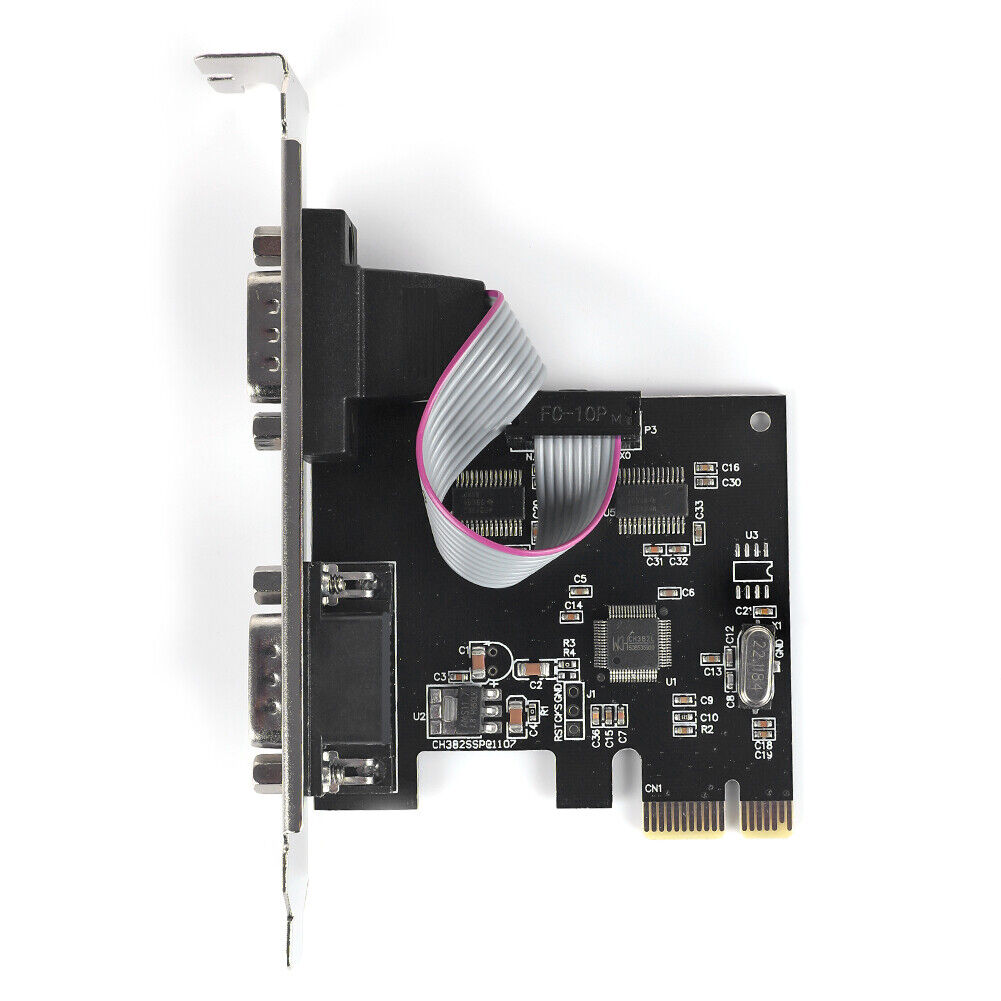

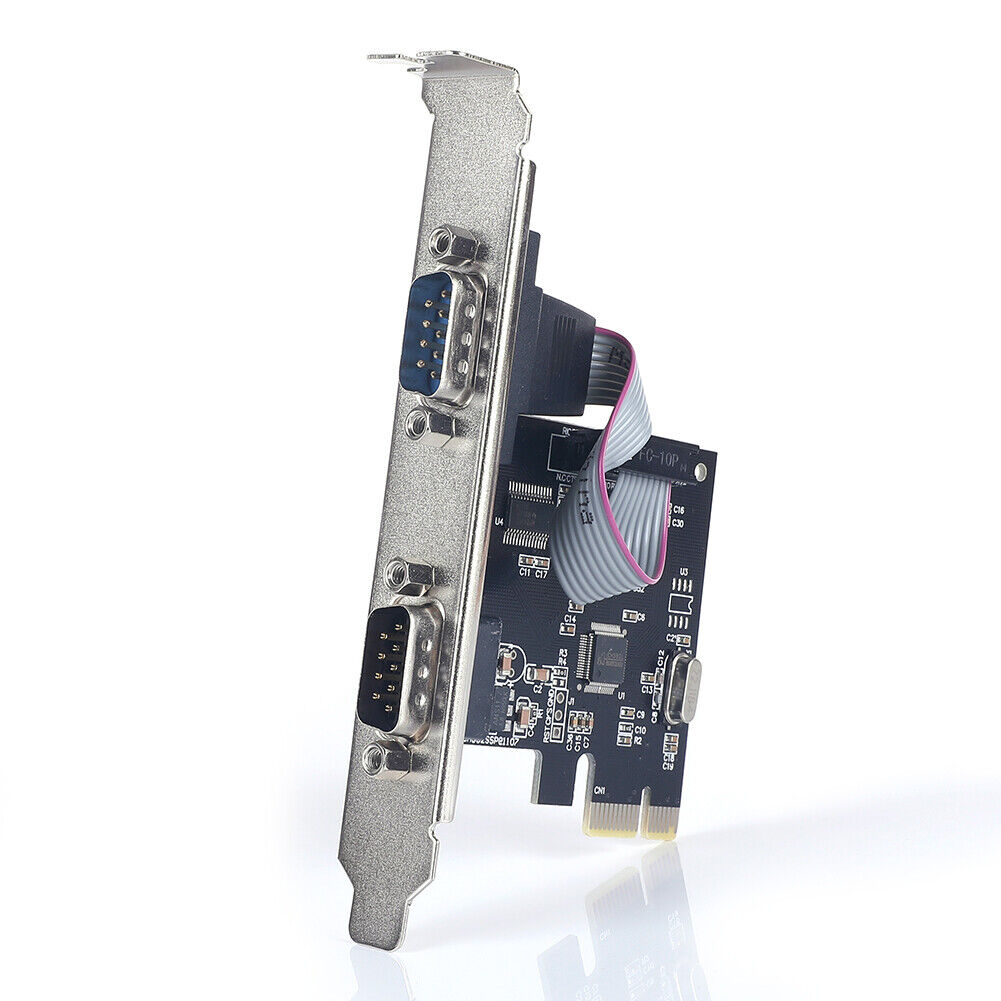

PCI-E Serial Card PCI-Express to Dual Serial Ports COM RS232 Interface Desktop Industrial Control Computer Expansion Card for Windows Linux

Feature:
1. Comply with PCI-Express 1.0 a standard
2. The rate of PCI-Express is 2.5Gb/s full duplex channel support plug and play
3. Serial interface RS232
4. Compatible with 16c550 UART standard and 256-byte sending and receiving FIFO, high-speed data transfer rate up to 250k/sec. Support RS-232 hardware flow control. Data bit length: 5, 6, 7, 8
5. Support MODEM modem signal CTS, DSR, RI, DCD, DTR, RTS, RS232 level conversion
6. Support remote wake-up and power management functions

Specification:
– Product name: PCI-E to 2 serial port expansion card
– Product model: IO-PCE382-2S
– Chip model: WCH382L
– Product weight: 80g
– Product size: 150x120x30mm/5.91×4.72×1.18in
– System support: for Windows98/98SE/ME/2000/xp/server 2003/xp 64bit/ Vista/ win7/2008, for Linux, for MAC
– Equipment requirements: an available PCI-Express card slot

Application areas:
– Industrial computer, communication, medical equipment, LED control, POS machine guest display.
– Engraving machine (such as: pickup, map king, etc.), punch card machine, telephone program control machine.
– Telephone billing device, serial mouse, flashing machine Use, POS serial printer, access control and attendance.
– Single-chip microcomputer, serial connection equipment, serial network/monitoring equipment, data acquisition system.
– POS terminal and industrial PC, parallel port/print port application, additional I/O card-Serial/Parallel /USB, embedded system-I/O expansion, PLC design and simulation, etc. 99% of other 9-pin serial universal devices are supported
