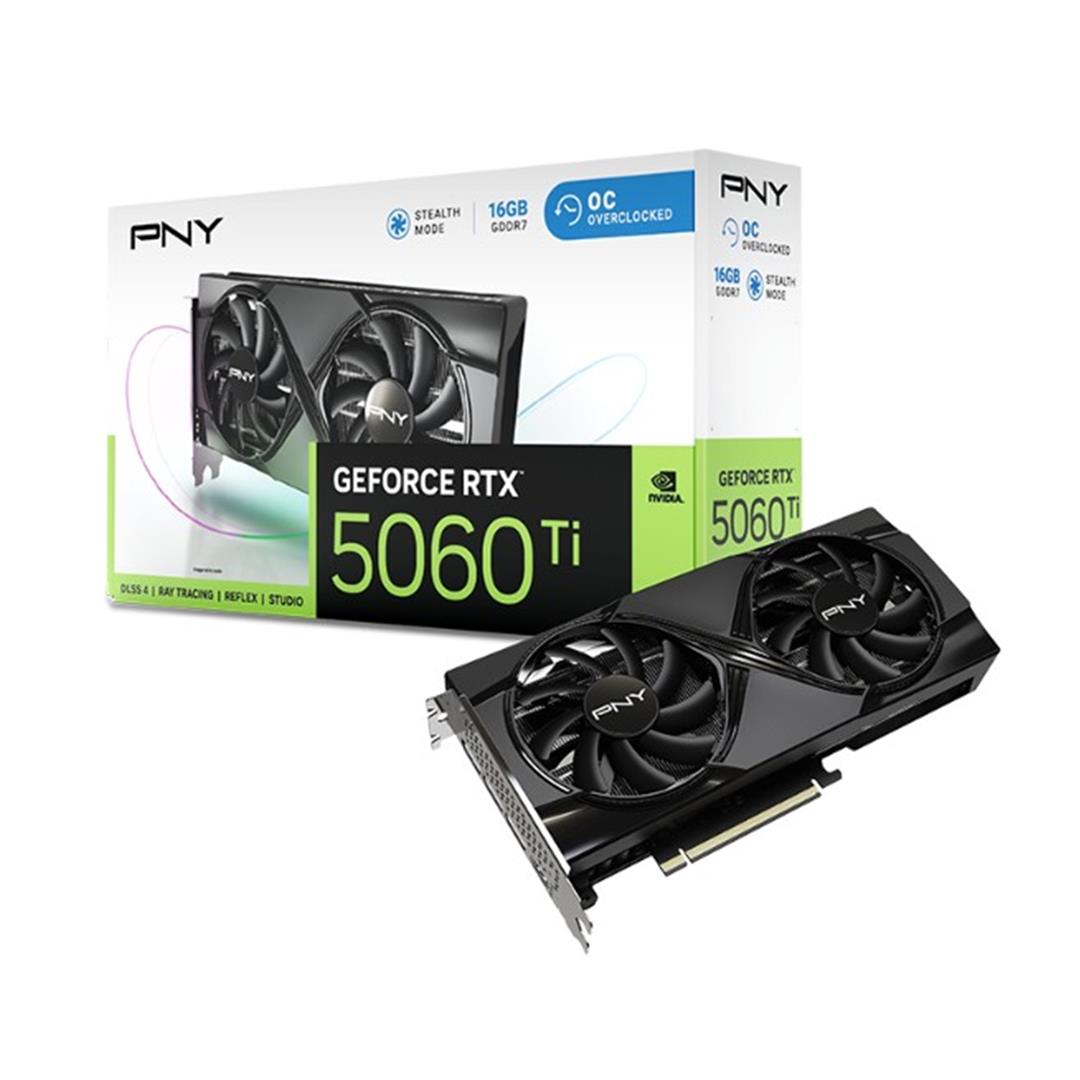

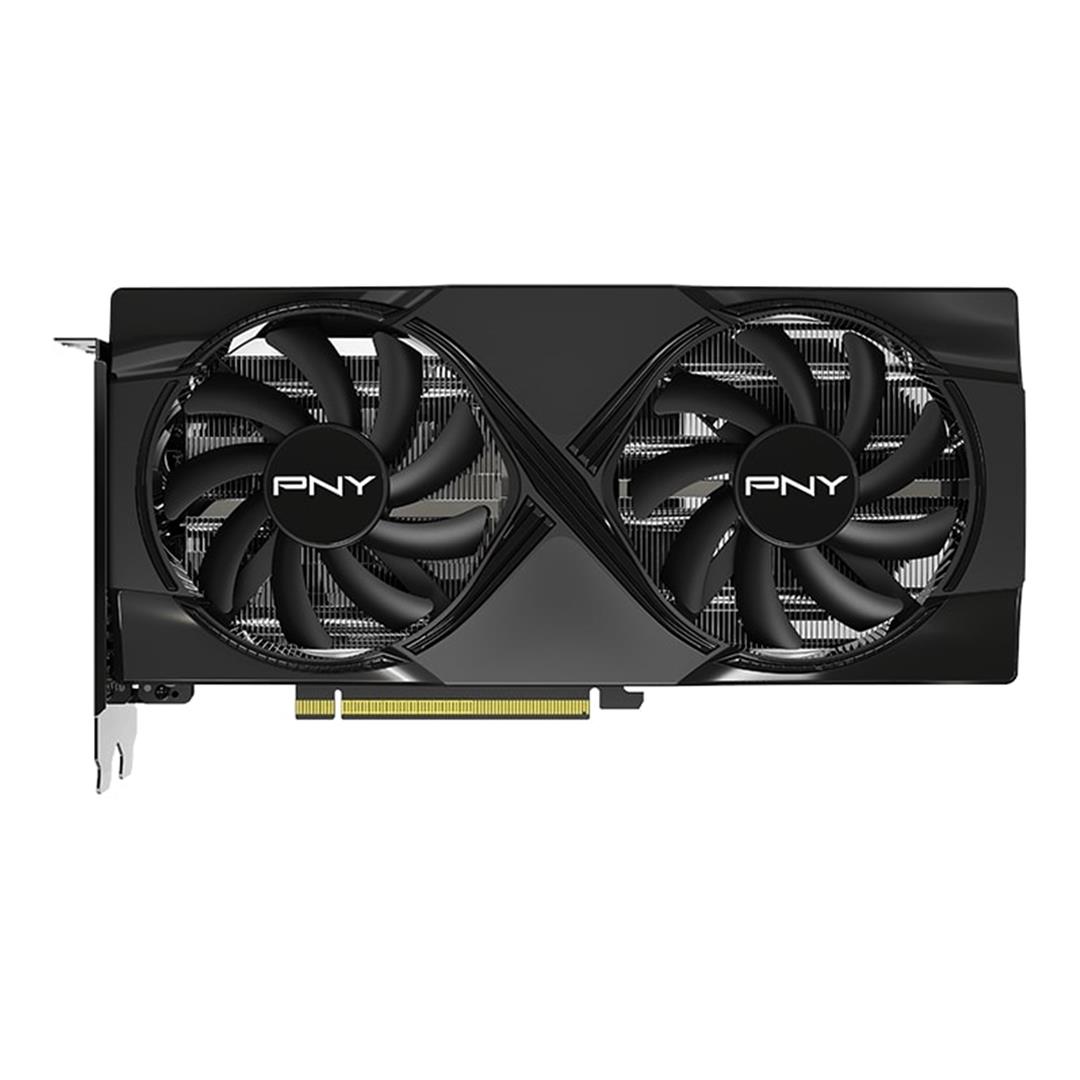

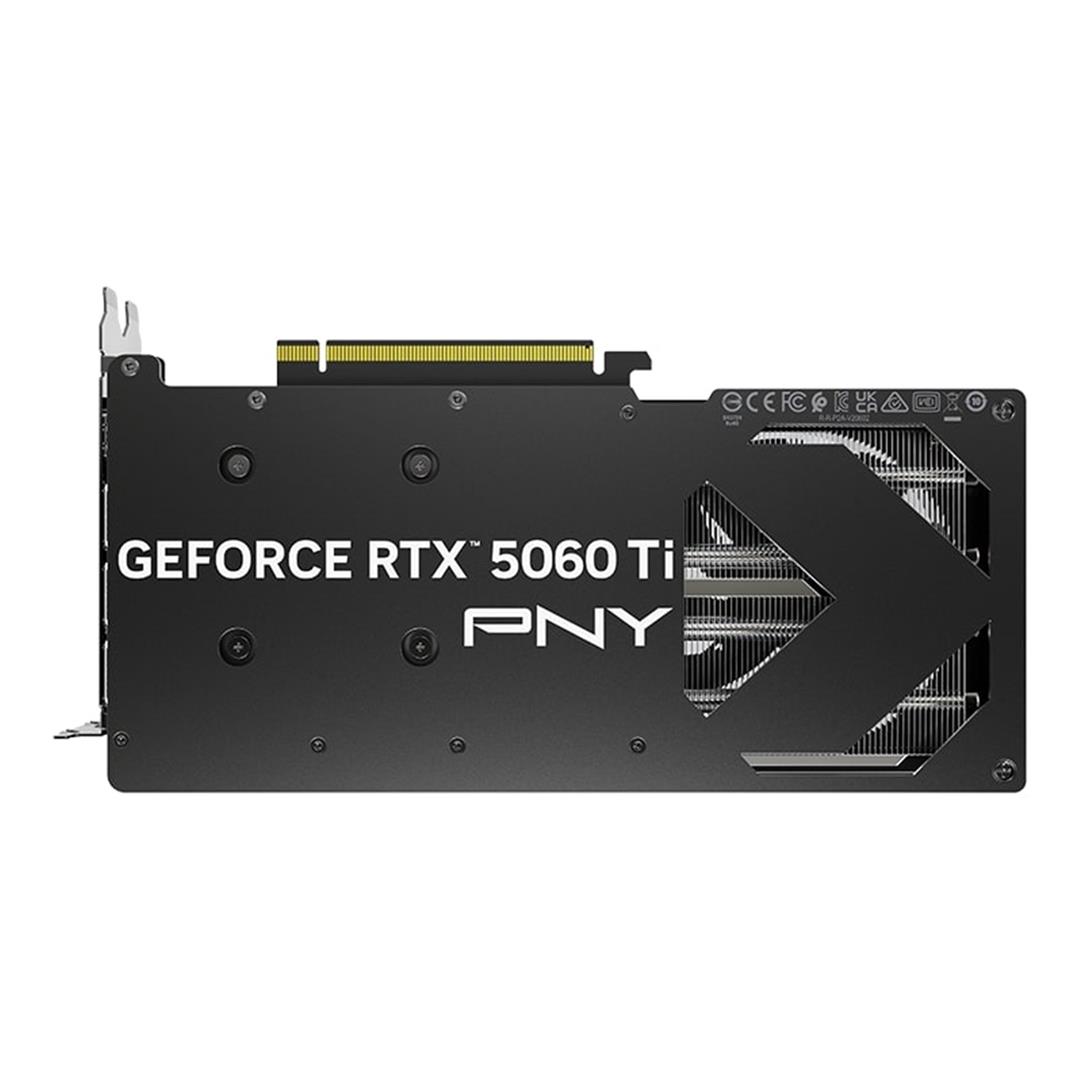

PNY GeForce RTX 5060 Ti 16GB Overclocked Dual Fan GPU

Get game-changing performance with the PNY GeForce RTX 5060 Ti, powered by NVIDIA Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.

Features
NVIDIA Blackwell Architecture
16GB GDDR7 Memory
3x Display Port 1x HDMI

Specifications

Architecture
Blackwell

CUDA Cores
4608

Clock Speed
2407 MHz

Boost Speed
2692 MHz

Memory Speed (Gbps)
28

Memory Size
16 GB GDDR7

Memory Interface
128-bit

Memory Bandwidth (GB/sec)
448

TDP
180W

NVLink
Not Supported

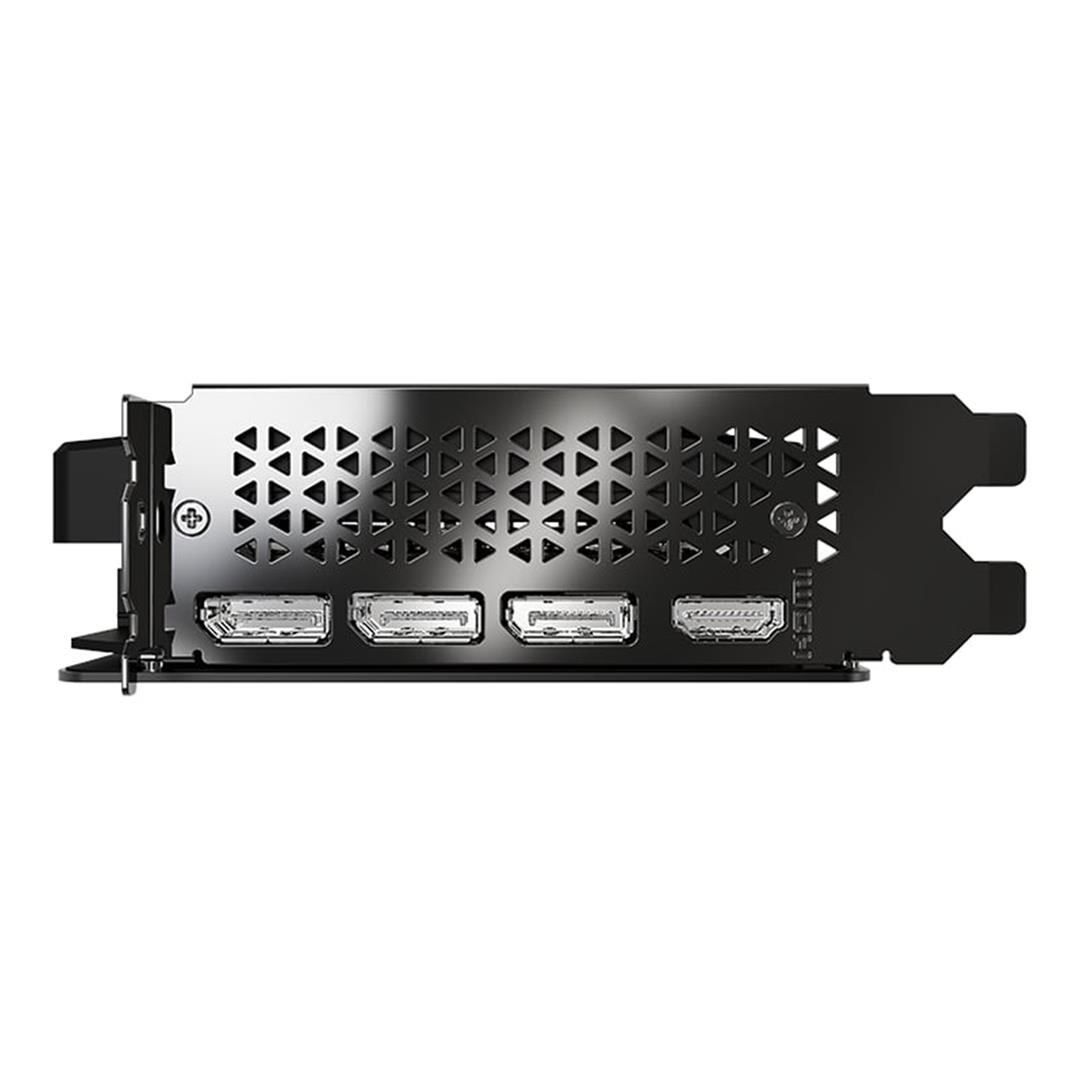

Outputs
DisplayPort 2.1b (x3), HDMI 2.1b

Multi-Screen
4

Resolution
4K at 480Hz or 8K at 165Hz with DSC3

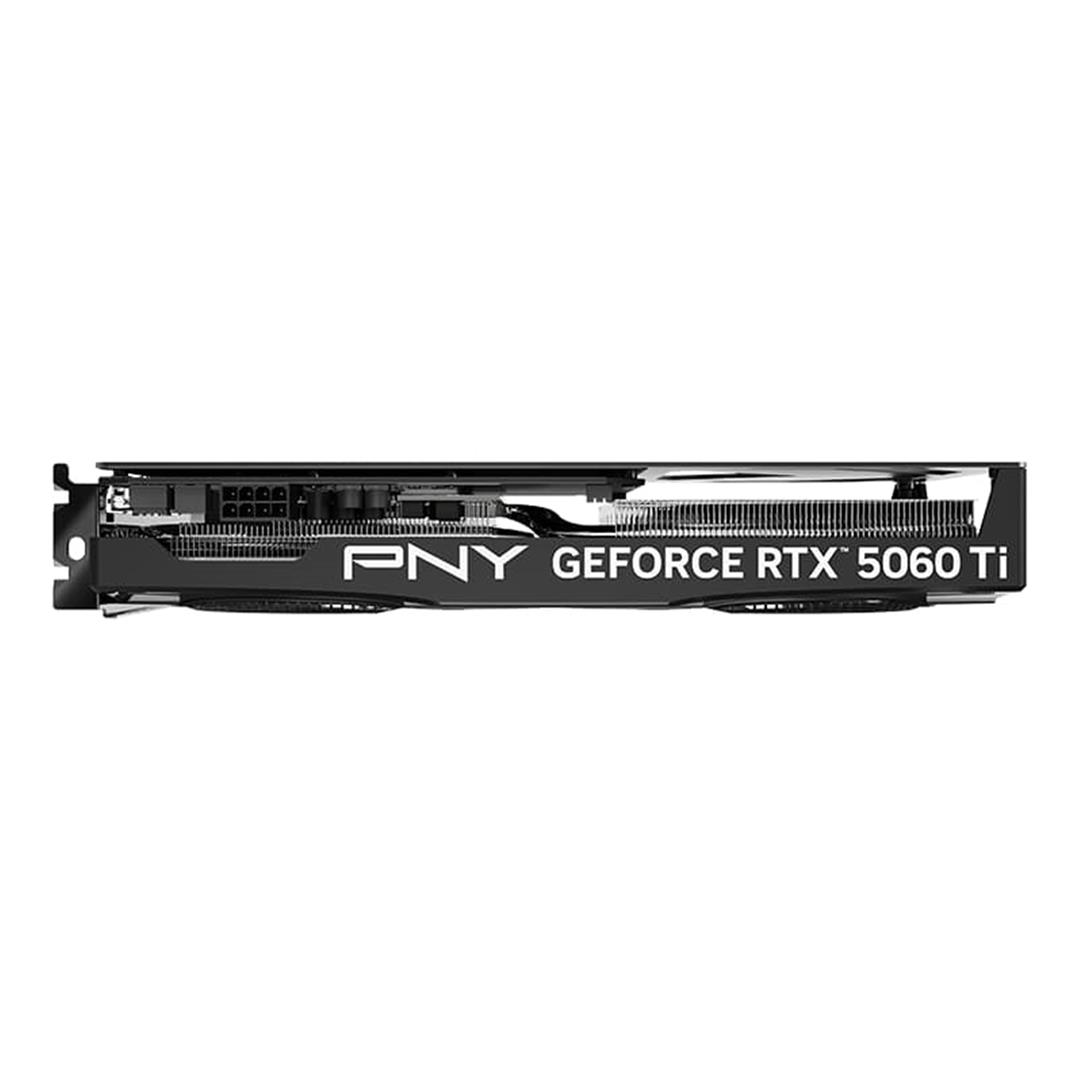

Power Input
1×8-pin

Bus Type
PCI-Express 5.0 x8

Card Dimensions
9.65″ x 4.72″ x 1.57″; 2 Slot

Box Dimensions
12.68″ x 7.05″ x 2.76″ / 322x179x70mm

System Requirements

PCI Express-compliant motherboard with one 2-width x8 graphics slot
One 8-pin supplementary power connector
Total graphics power 180 W
Required system power 600W2
Microsoft Windows?11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
Internet connection

Package Contains
PNY GeForce RTX™ 5060 Ti OC
