NZXT H6 Flow Dual Chamber Mid Tower Case
£109.00
In stock
Description
Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow’s panoramic glass showcases the interior while freeing up space for improved airflow.
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
- Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.

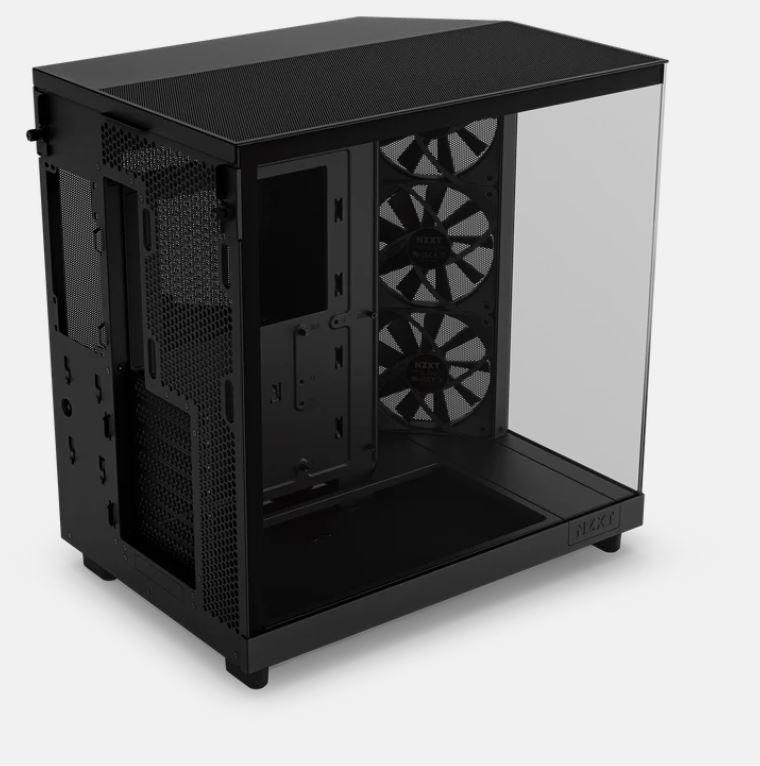

- Includes three pre-installed 120mm fans (Case Version) positioned at an ideal angle for superb out-of-the-box cooling.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
- An intuitive cable management system simplifies the build process by using wide channels and straps.

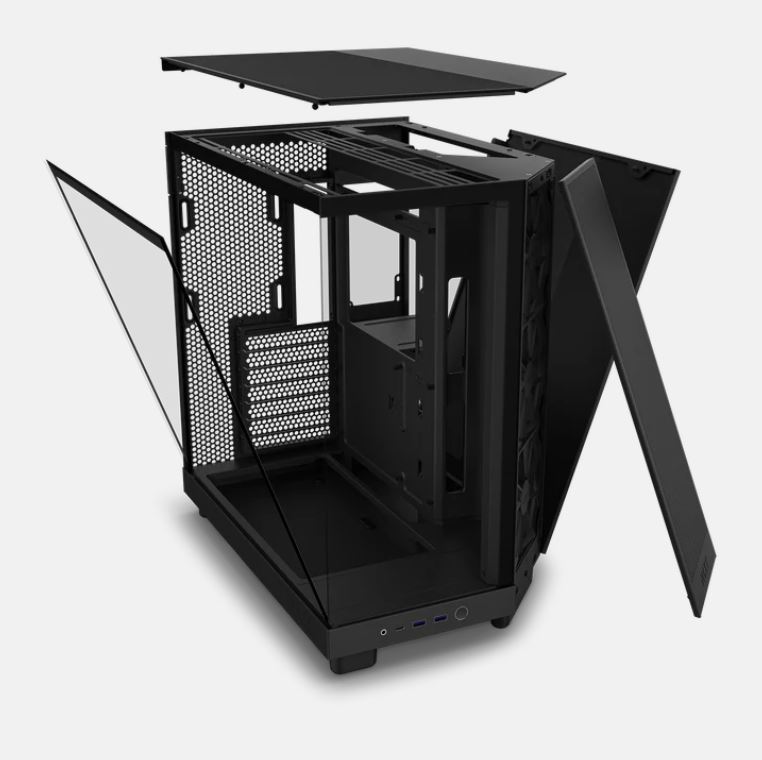

- Tool-free access to the top and side panels makes upgrading quick and convenient.
- Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance
| Product Specifications – NZXT H6 Flow Mid Tower Case Black | |
|---|---|
| Product Name | NZXT H6 Flow Mid Tower Case Black (ATX/M-ATX/M-ITX) |
| Web Address | nzxt.com |
| Model Number | CC-H61FB-01 |
| EAN | 5056547204055 |
| UPC | 810074844147 |
| Package Type | Retail |
| Warranty | 2 Years |
| Chassis | |
| Case Type | Mid Tower |
| Colour | Black |
| Material (Chassis) | SGCC Steel |
| Side Panel | Tempered Glass |
| Front I/O | |
| USB 3.2 Gen 1 Type‑A | 2 |
| USB 3.2 Gen 2×2 Type‑C | 1 |
| Headphone Jack | 1 |
| Compatibility & Expansion | |
| Expansion Slots | 7 |
| Motherboard Support | Mini‑ITX / Micro‑ATX / ATX |
| Drive Bays (Internal 3.5″) | 1 |
| Drive Bays (Internal 2.5″) | 2 |
| Cooling – Pre‑installed Fans | |
| Front | 3 × F120Q Fan (Front‑Right) |
| Cooling – Radiator Support | |
| Top | Up to 360 mm |
| Rear | Up to 120 mm |
| Cooling – Fan Support | |
| Front‑Right | 3 × 120 mm |
| Top | 3 × 120 mm / 2 × 140 mm |
| Bottom | 2 × 140 mm |
| Rear | 1 × 120 mm |
| Clearances | |
| CPU Cooler Height | 163 mm |
| GPU Length | 365 mm |
| PSU Length | 200 mm |
| Cable Management | 91 mm |
| Top Radiator | 30 mm |
| Dust Filters | |
| Type | High‑Performance Mesh |
| Dimensions & Weight | |
| Product Width | 287 mm |
| Product Length | 415 mm |
| Product Height | 435 mm |
| Product Weight | 9,400 g |
| Package Width | 50 cm |
| Package Length | 51 cm |
| Package Height | 35.5 cm |
| Gross Weight | 11.90 kg |
| Special Features | |
| Highlights | Wraparound glass panels with a seamless edge provide an unobstructed view to highlight key components. Compact dual‑chamber design improves thermal performance and creates a clean, uncrowded aesthetic. Includes three pre‑installed 120 mm fans (Case Version) positioned at an ideal angle for superb out‑of‑the‑box cooling. Top and side panels feature airflow‑optimized perforations to enhance performance and filter dust. Intuitive cable management with wide channels and straps simplifies the build process. Tool‑free access to top and side panels for quick upgrades. Top panel supports radiators up to 360 mm; up to 365 mm GPU and 200 mm PSU clearance. |
| Package Contents | |
| In the Box | H6 Flow, 3 × F120Q Airflow (Case Version), Installation Accessories, User Guide |
| Keywords | |
| Tags | Case, Tower, ATX, Micro‑ATX, Mini‑ITX |
Additional information
| Weight | 12 kg |
|---|
