Full gigabit ports — lightning-fast connections for wired devices, including game consoles, STBs, smart TVs and more
Share with up to 60 devices — internet access for multiple streaming simultaneously
4 high gain external antennas — powerful wireless coverage throughout your house

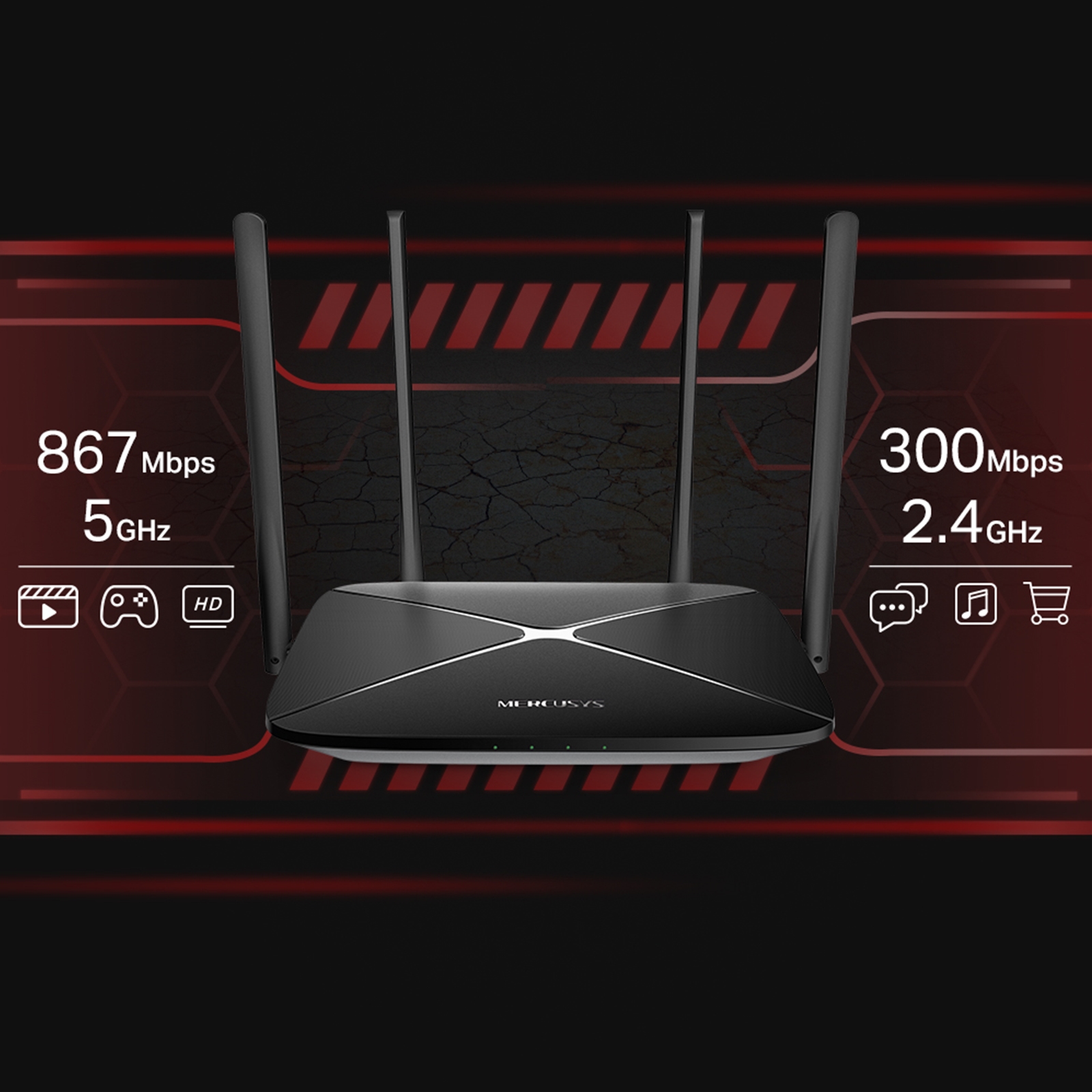

Easy installation — intuitive webpage guides you through the setup process in minutes1200 Mbps Wi-Fi for endless home entertainment
Internet entertainments arrive at a warp speed with the powerful AC1200 dual band Wi-Fi. For multiple streaming simultaneous, 300 Mbps over the 2.4 GHz band is great for streaming music and shopping online, while 867 Mbps over the 5 GHz band covers bandwidth-intensive tasks like HD streaming and gaming.

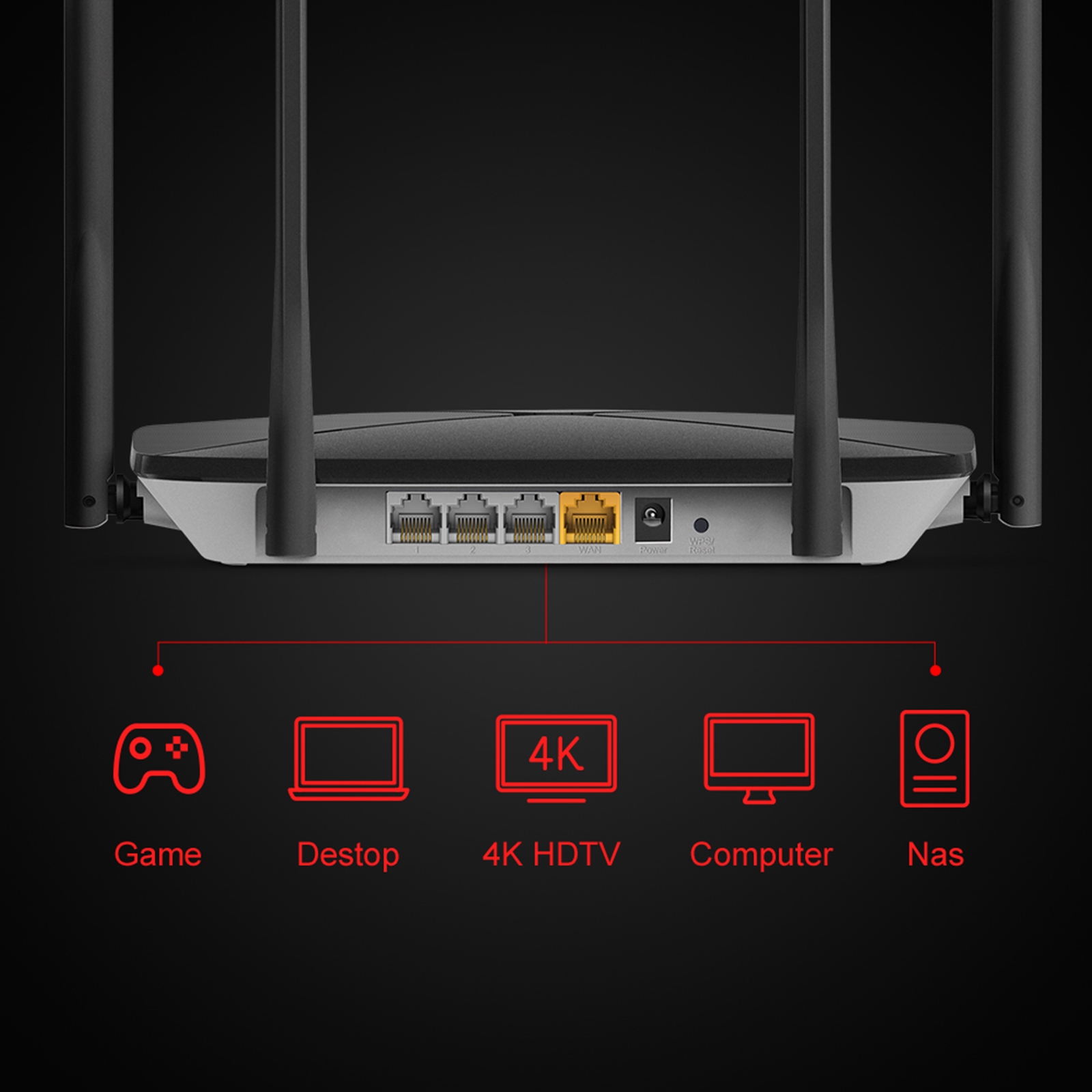

Gigabit Speed for Lightning-Fast Surfing
Lightning-fast wired connections are delivered by four built-in gigabit Ethernet ports. Enjoy lag-free gaming, smooth HD video streaming, and high-speed file downloading
Reliably Connect up to 60 Devices, Simultaneously
Easily share reliable wireless connection with up to 60 wireless devices, such as phones, tablets, and smart home devices, at the same time. Perfectly cover all network needs whether there is a party in the house or a barbecue in the yard.
Strong Signal,Great Coverage
Four external 5 dBi antennas provide users with broader wireless coverage and wireless signal intensity capable of extending throughout your large home or office. Make weak, dropped connections a thing of the past.
Ready for Smooth IPTV
IGMP Proxy/Snooping, Bridge, and Tag VLAN technology allow streaming to transfer through certain gigabit LAN ports, optimizing Hi-Resolution video.
Easy Three-Step Installation
Simply follow the step-by-step instructions on the intuitive webpage to set up your AC12G in minutes—no need for complicated configuration.
Advanced Security
WPA/WPA2 encryption creates an active defense against security threats and intruders
2×2 MIMO
Increases wireless transmission efficiency between multiple devices
Guest Network
Keep your main network secure with a separate network for guests
Specifications
Antenna Type
4 Fixed Omni-Directional Antennas
Frequency
2.4 – 2.5GHz, 5.15 – 5.35GHz
Reception Sensitivity
5 GHz
11a 6M: -92 dBm
11a 54M: -75 dBm
11ac 20M MCS8: -70 dBm
11ac 40M MCS9: -64 dBm
11ac 80M MCS9: -60 dBm
2.4 GHz
11g 6M: -95 dBm
11g 54M: -77 dBm
11n 20M MCS7: -74 dBm
11n 40M MCS7: -71 dBm
Dimensions (W X D X H)
222 x 140 x 32 mm
External Power Supply
9V/0.85A
Signal Rate
300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Button
WPS/Reset Button
Wireless Standards
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Interfaces
1 Gigabit WAN Port
3 Gigabit LAN Ports
Package Contents
AC1200 Wireless Dual Band Gigabit Router (AC12G)
Power Adapter
Ethernet Cable
Quick Installation Guide
Transmission Power
<20dBm (EIRP)
Wireless Security
WPA-PSK / WPA2-PSK
Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management
Access Control
Local Management
Remote Management
DHCP
Server
Port Forwarding
Virtual Server, UPnP, DMZ
Firewall Security
IP and MAC Address Binding
Guest Network
2.4GHz Guest Network, 5GHz Guest Network
Protocols
IPv4, IPv6
Dynamic DNS
NO-IP, DynDNS
Certifications
CE/ROHS
