Description

The new NVIDIA GeForce RTX 30 Series GPUs, the 2nd generation of RTX, features new RT Cores, Tensor Cores and streaming multiprocessors, bringing stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications. Powered by the NVIDIA Ampere architecture, which delivers increases of up to 1.9X performance-per-watt over the previous generation, the RTX 30 Series effortlessly powers graphics experiences at all resolutions, even up to 8K at the top end. The GeForce RTX 3090, 3080 and 3070 represents the greatest GPU generational leap in the history of NVIDIA.

PLEASE NOTE THIS IS AN LHR CARD – NOT SUITABLE FOR MINING!

GPU Engine
CUDA Cores
4864
Boost Clock (MHz)
1725

Memory Specs
Memory Clock
14Gbps
Standard Memory Config
8GB
Memory Interface
GDDR6
Memory Interface Width
256-bit
Memory Bandwidth (GB/sec)
448

Feature Support
2nd Gen Ray Tracing
Yes
3rd Gen Tensor Cores
Yes
PCI-Express Gen 4
Yes
Microsoft DirectX 12 Ultimate
Yes
GDDR6 Memory
Yes
NVIDIA DLSS
Yes
NVIDIA GeForce Experience
Yes
NVIDIA G-SYNC
Yes
NVIDIA GPU Boost
Yes
Game Ready Drivers
Yes
Vulkan RT API, OpenGL 4.6
Yes
DisplayPort 1.4a, HDMI 2.1
Yes
7th Gen NVIDIA Encoder
Yes
HDCP 2.3
Yes
VR Ready
Yes
Bus Support
PCI-E 4.0 X16
OS Certification
Windows 10, Linux, FreeBSDx86
LED
Red LED Pattern (No RGB Control)
LHR
This GeForce RTX 3060 Ti graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).

Display Support
Multi Monitor
Yes
Maximum Digital Resolution
7680 x 4320
HDCP
2.3

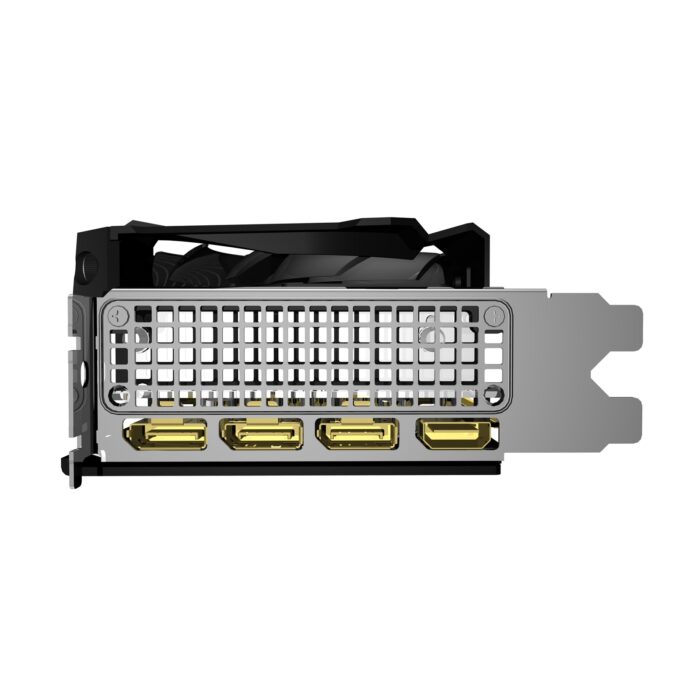

Standard Display Connectors
1x HDMI 2.1, 3x DisplayPort 1.4a
Internal Audio Input for HDMI
Internal

Standard Graphics Card Dimensions
Length
300mm
Height
135mm
Width
3-slot

Thermal and Power Spec
Minimum System Power Requirement (W)
650
Supplementary Power Connectors
8-pin

Accessories
Installation Guide
Yes
Power Guide
Yes
