Gigabyte Z590 D Intel Socket 1200 Motherboard
£139.00
- Socket LGA 1200
- Intel 11th Generation
- DDR4 Support
- ATX Form Factor
Out of stock
Description

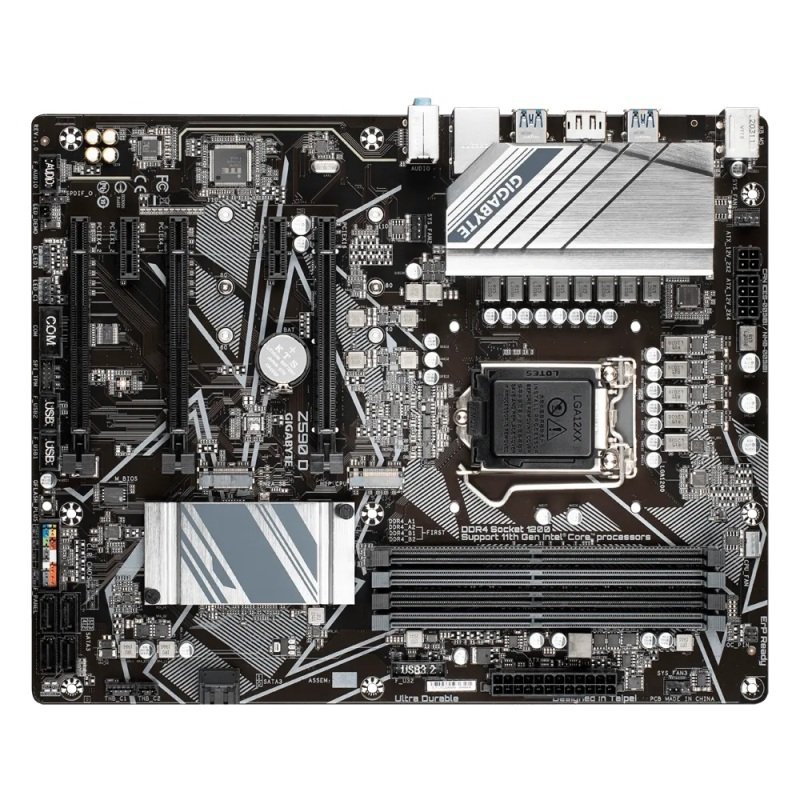

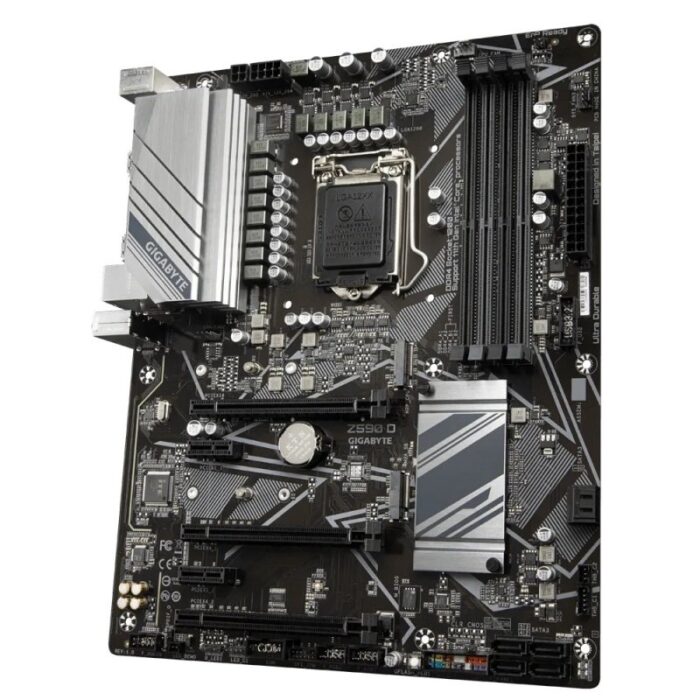

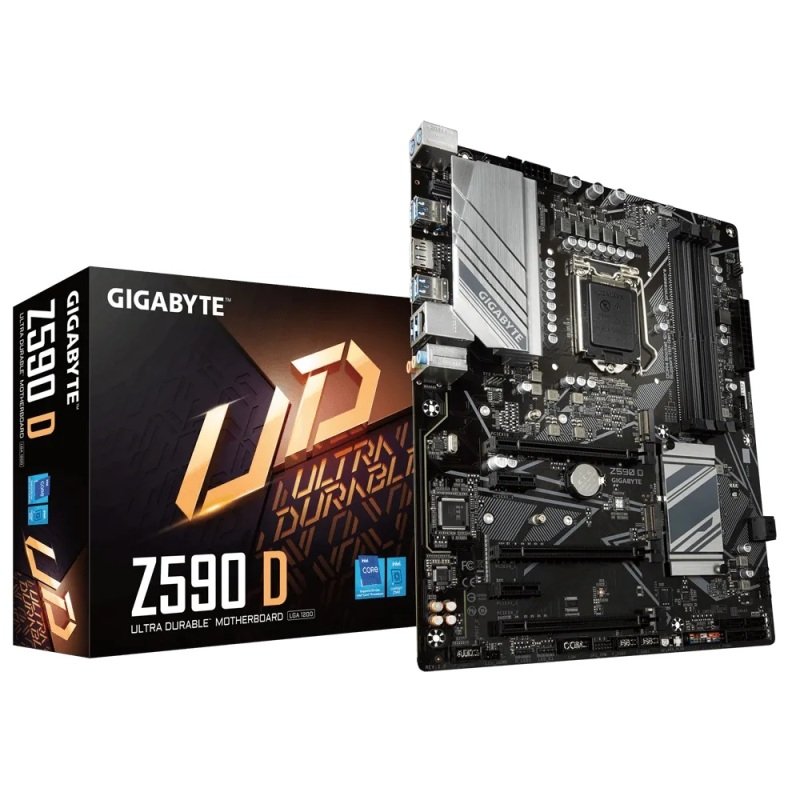

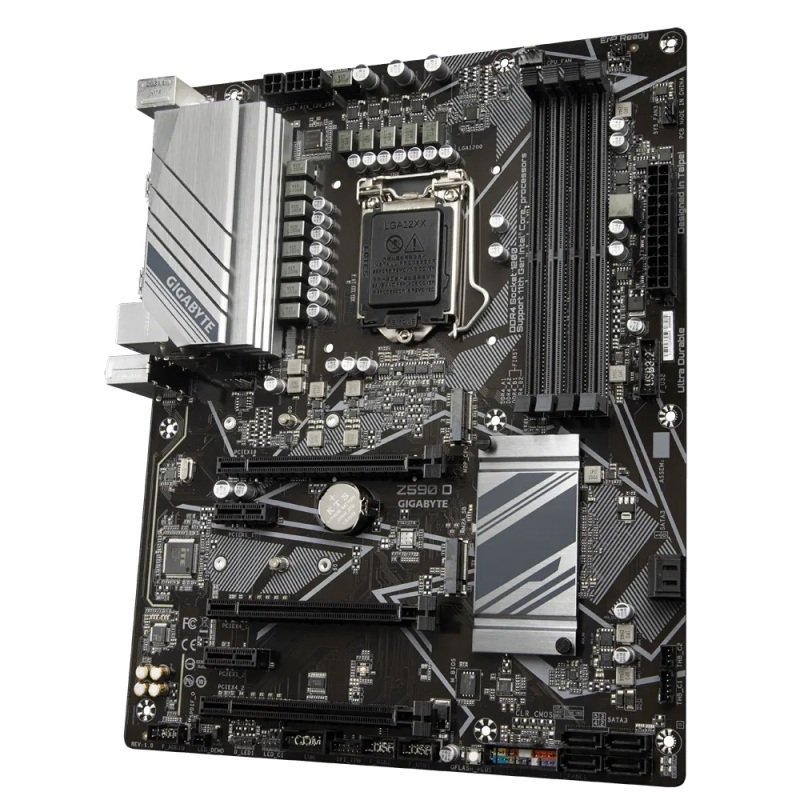

Gigabyte Z590 D ATX Motherboard
General |
|
|---|---|
| Product Type | Motherboard – ATX |
| Chipset Type | Intel Z590 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron) |
Supported RAM |
|
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz, 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.), 5333 MHz (O.C.), 5133 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
Audio |
|
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
LAN |
|
| Network Interfaces | Gigabit Ethernet |
Expansion / Connectivity |
|
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

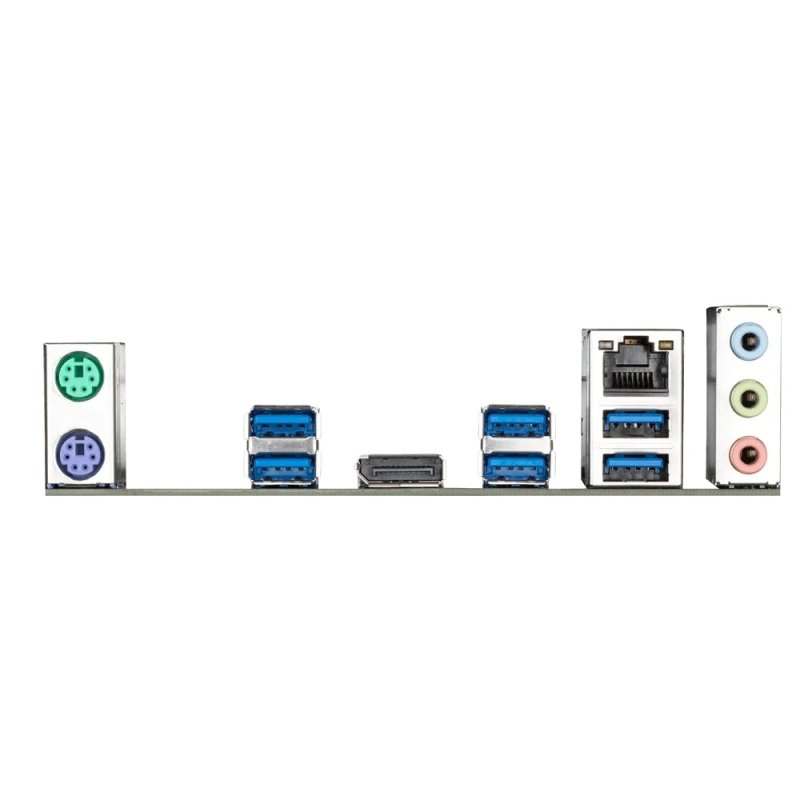

| Interfaces | 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 6 x USB 3.2 Gen 1 ¦ 1 x audio line-in – mini-jack ¦ 1 x audio line-out – mini-jack ¦ 1 x microphone – mini-jack ¦ 1 x PS/2 mouse ¦ 1 x PS/2 keyboard |
| Internal Interfaces | 4 x USB 2.0 – header ¦ 2 x USB 3.2 Gen 1 – header ¦ 1 x audio – header ¦ 1 x SPDIF out – header ¦ 2 x Thunderbolt – header ¦ 1 x serial – header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
Features |
|
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, fan fail warning |
| Hardware Features | Q-Flash, On/Off Charge, Ultra Durable, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, Q-Flash Plus, Game Boost, Anti-Sulfur Design, Intel Optane Memory Ready, Solid Pin Power Connectors, 12+1 Phase Power Design, RGB FUSION 2.0, GIGABYTE Smart Fan 6 |
Miscellaneous |
|
| Software Included | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, cFosSpeed, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Additional information
| Weight | 1 kg |
|---|
