The GameMax Diamond Mid-Tower gaming case is available in black or white, designed to make building easier, this case is finished with a premium design and considered air flow vents for those gamers wanting to go to the next level without breaking the bank.

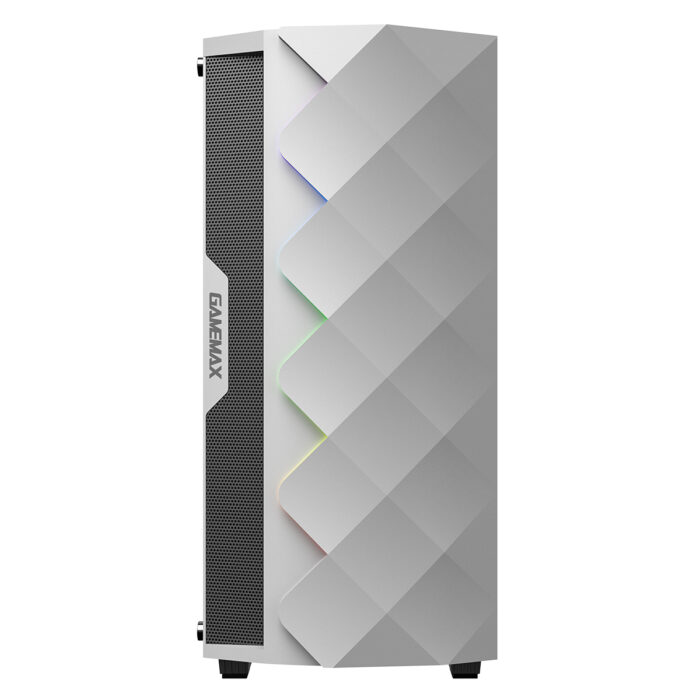

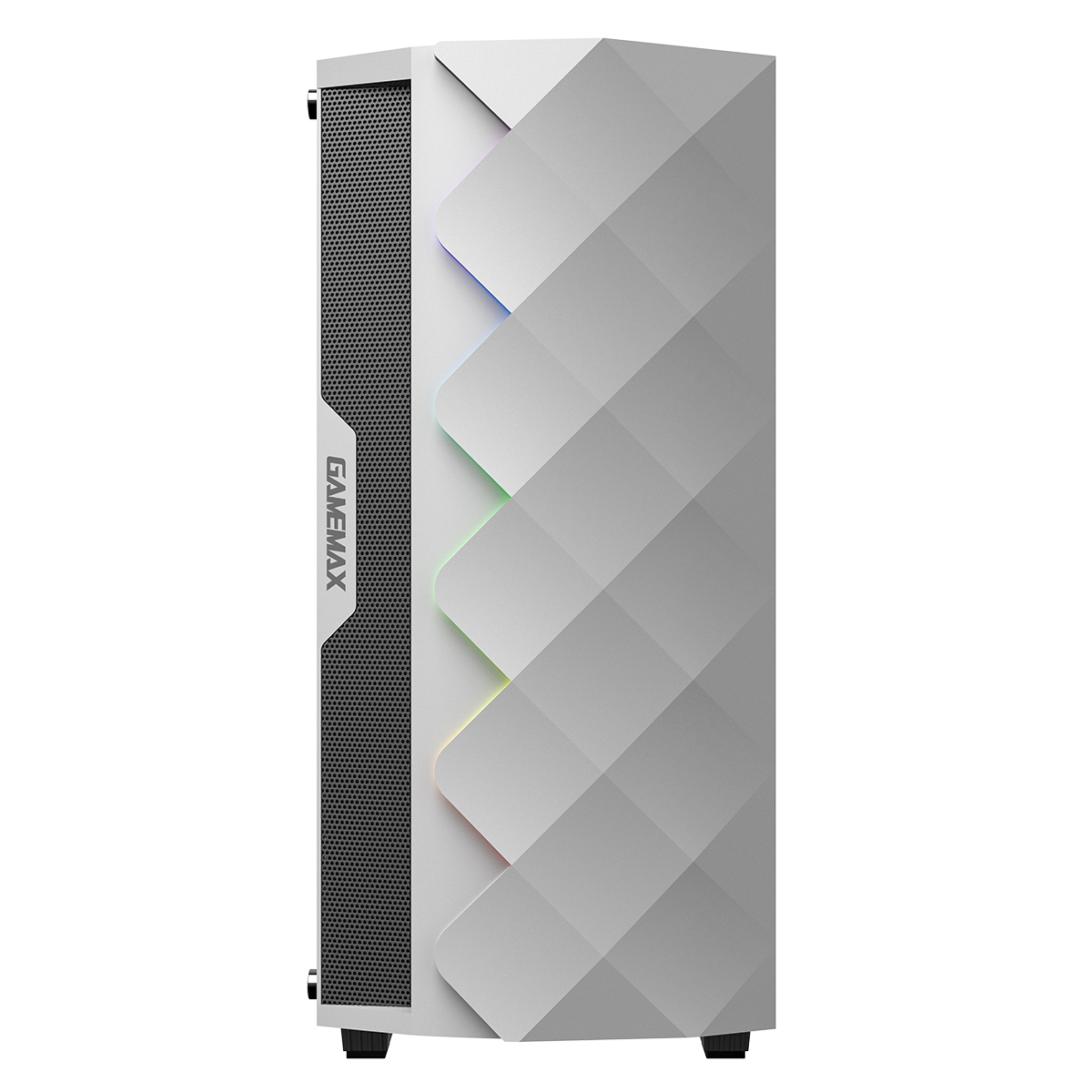

The Diamond’s striking front panel offers fantastic air flow and stunning lighting effects with the built in ARGB strips and angled pattern to cast game changing shadows. Structured to improve your systems cooling capabilities, a mesh grill runs down the left side of the front panel and allows your fans to take in as much air as it needed.
Synchronise your fan and RGB LED strip using the 3 Pin AURA male and female connectors, once connected you can easily change the colour mode by using the LED button.

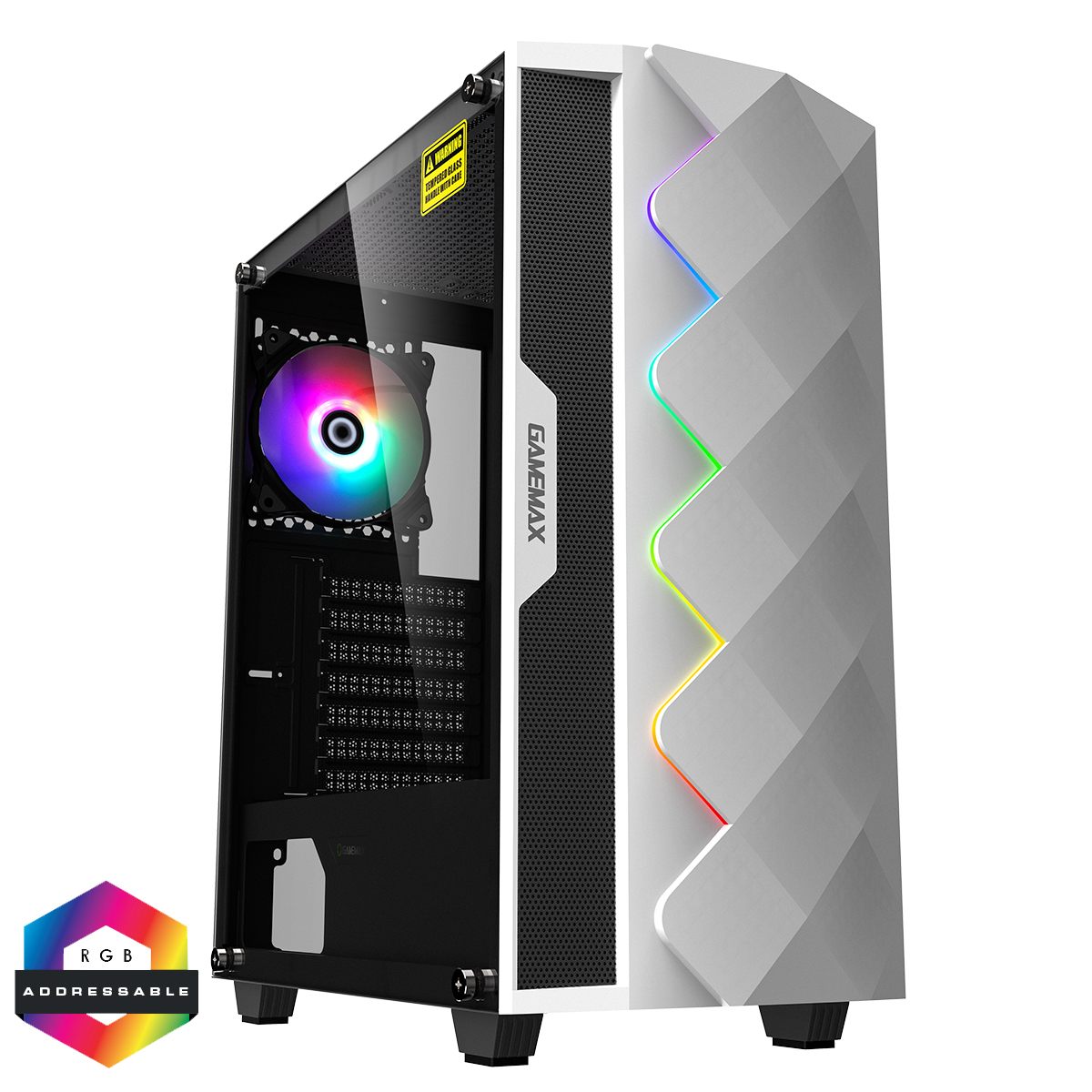

The left side panel is made of 3mm, edge to edge, tempered glass allowing you to show off your build and intelligent lighting.

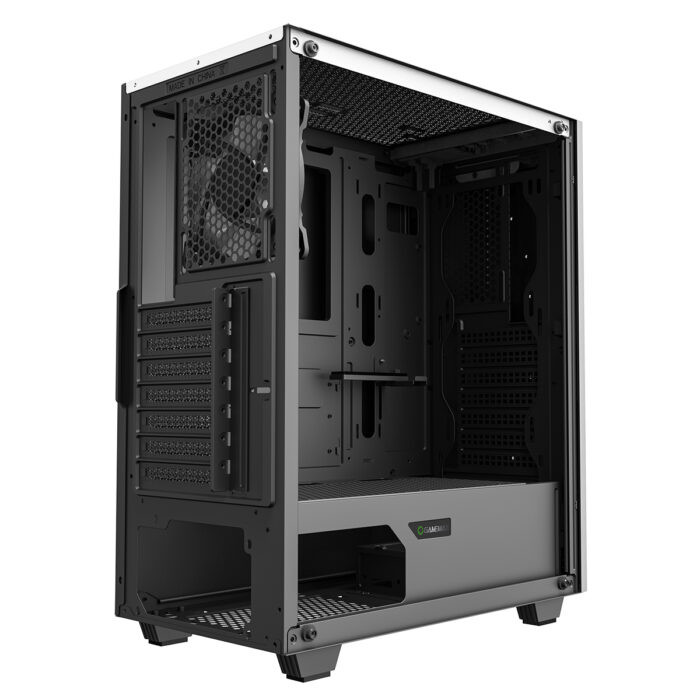

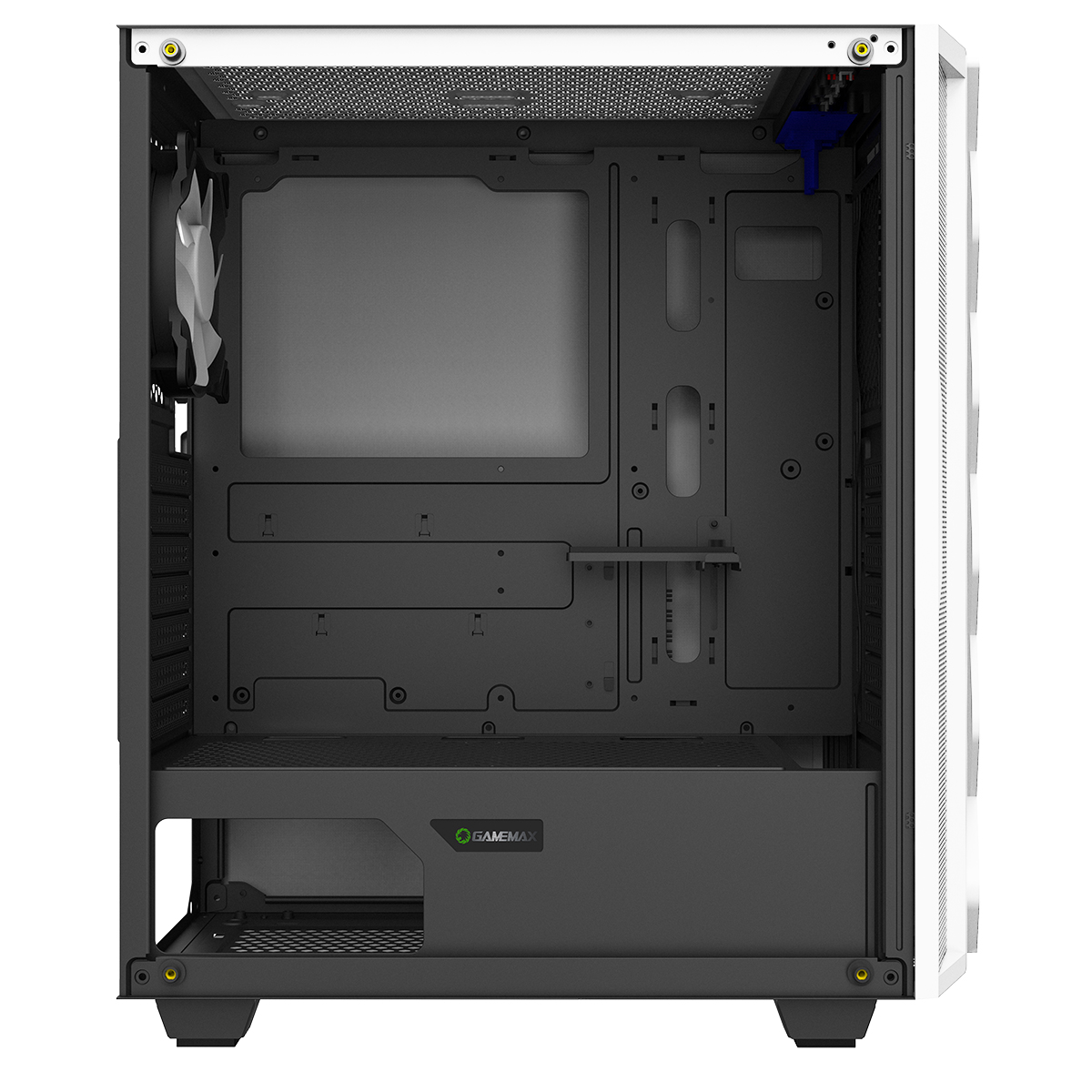

The Diamond has a full-length PSU shroud, separated HDD bays and plenty of cut out holes enabling exceptional cable management, you can now create a clean build that’s easy to manage.
In line with the GameMax ethos this case offers style, performance and the ultimate experience.
Specifications
| Chassis Dimensions (Excluding Fascia / Panels): | (W) 207 x (H) 465 x (D) 370mm |
| PSU max. Length (mm): | 210mm |
| Additional Fan Support: | |
| PSU Shroud: | Space For 2 x 120mm Fans |
| Fan Information: | |
| Rear Fan Powered Via: | 3 Pin Fan Connector |
| Rear Fan LEDs Powered Via: | 3 Pin ARGB |
| Packaging Type: | EPE Foam |
| Packaging Thickness: | 26.30mm |
Case Specifications
| Form Factor: | Midi Tower |
| Motherboard Support: | ATX, Micro ATX, Mini ITX |
| PSU Support: | Standard ATX |
| PSU Location: | Bottom |
| Gaming Case: | Yes |
| Water Cooling: | Water Cooling Ready! Supported Radiator Size: 240mm Supported Radiator Positions: Front, Top |
| Body Material: | 0.5mm SPCC |
| Front Bezel Material: | ABS |
| Side Panel: | Tempered Glass |
| Internal Cable Management Depth: | 23mm |
| External Bays: | |

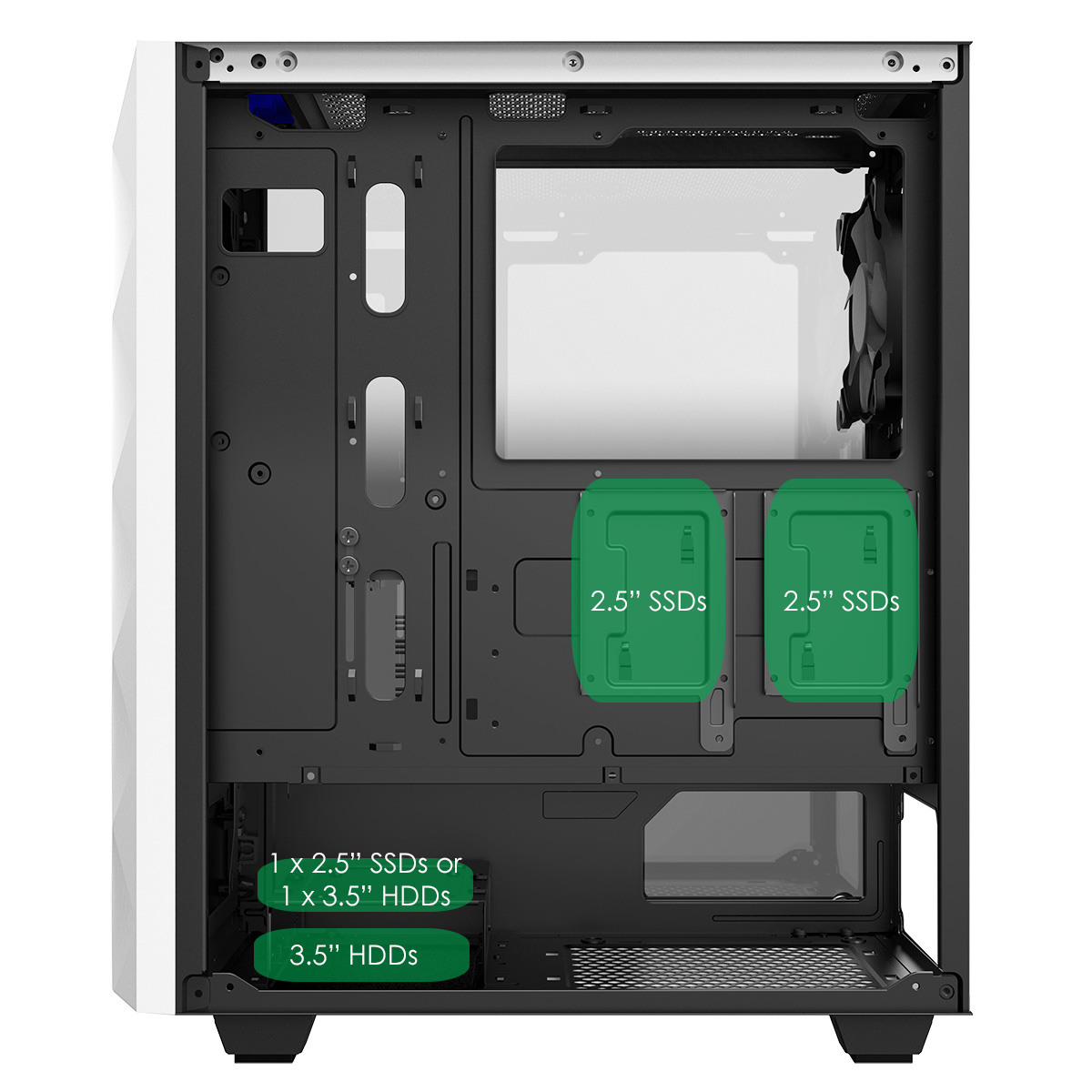

| Internal Bays: | 2 x 3.5” Internal 3 x 2.5” Internal |
| Drive Bay Notes: | 1 x 2.5″ & 3.5″ Shared |
| Expansion Slots: | 7 x Full Size |
| Cooling Front: | Space For 3 x 120mm or 2 x 140mm Fans |
| Cooling Top: | Space For 2 x 120mm or 2 x 140mm Fans |
| Cooling Rear: | Space For 1 x 120mm Fan (1 x 120mm ARGB Fan Included) |
| Cooling Side: | None |
| Cooling Bottom: | Space For 2 x 120mm Fans |

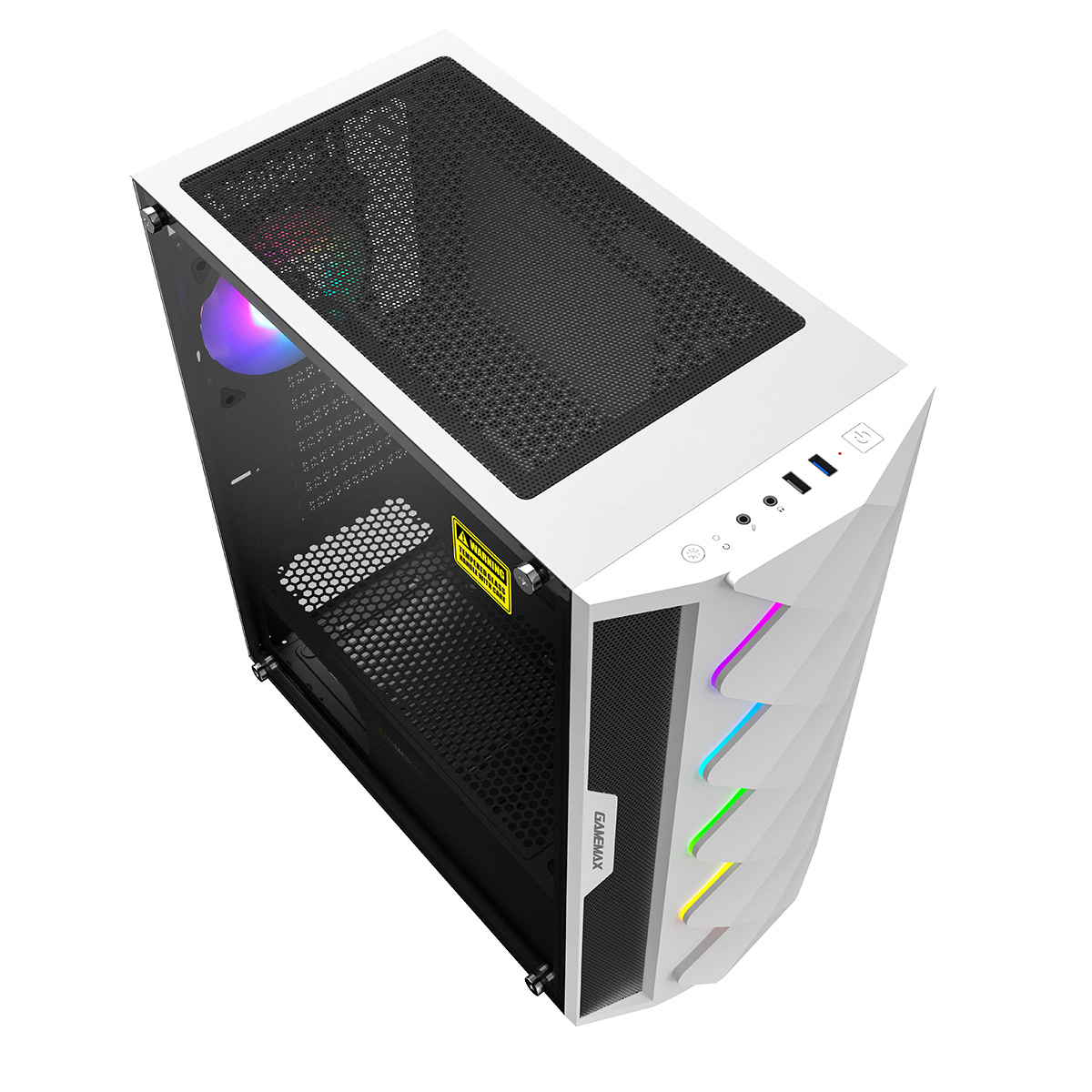

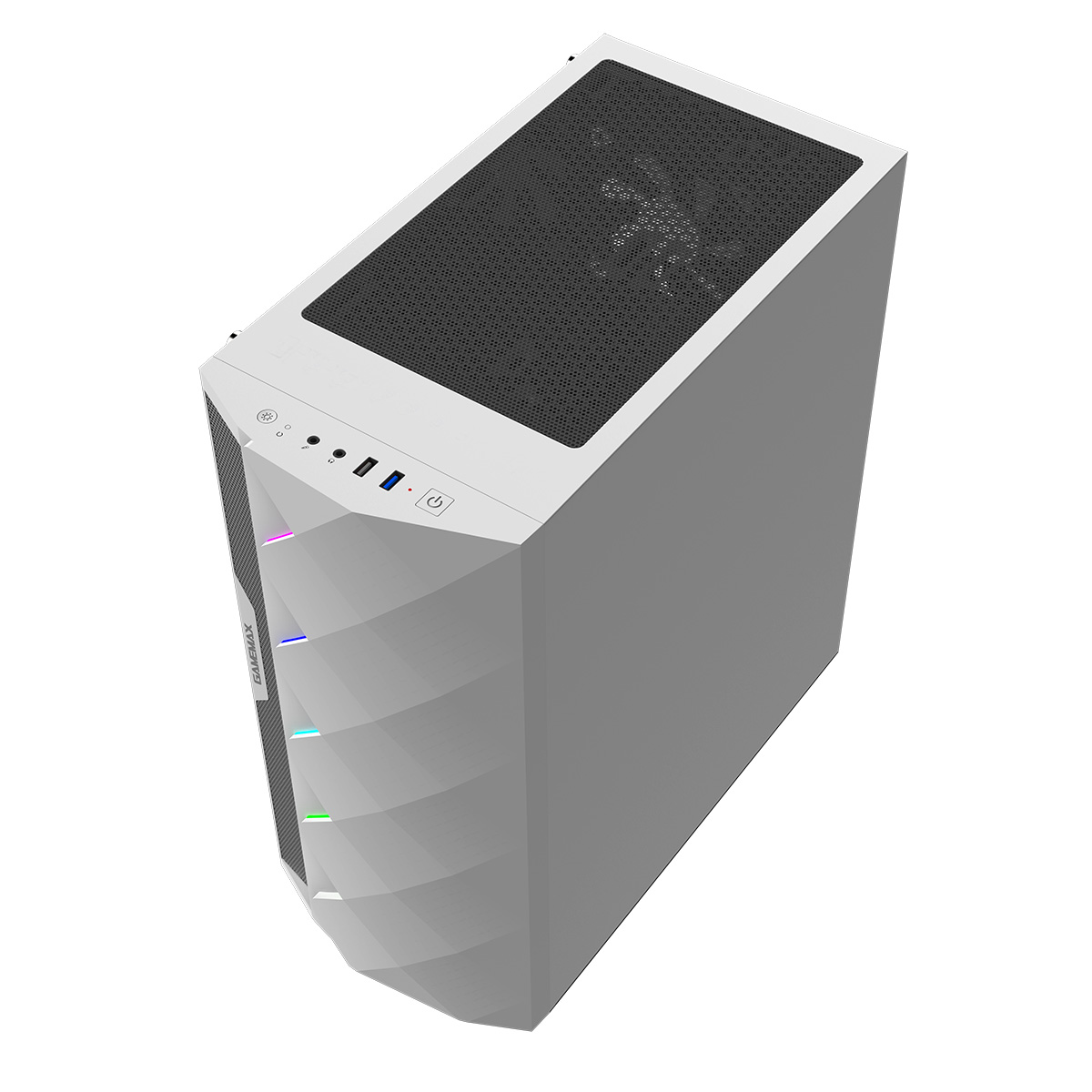

| IO Ports: | 1 x USB 3.0 1 x USB 2.0 1 x HD Audio 1 x Microphone |
| GPU Max Length: | 340mm |
| CPU Cooler Maximum Height: | 165mm |
| Front Bezel Colour: | White |
| Body Colour: | White |
| System Cabinet Features: | |
| PSU Included: | No |
General Specifications
| Manufacturer Part Number: | GMX-WHITEDIAMOND |
| EAN Number: | 6931858773027 |
| Has Mains Plug: | No |
| Colour: | White |
| What’s In The Box: | Case Manual Accessories Pack |
| Unit (Product) Dimensions (mm): | 210mm x 465mm x 416mm (W x H x D) |
| Packaging Dimensions (mm): | 266mm x 468mm x 504mm (W x H x D) |
| Net Weight (KGs): | 4.7 KGs |
| Gross Weight (KGs): | 5.7 KGs |
