Description

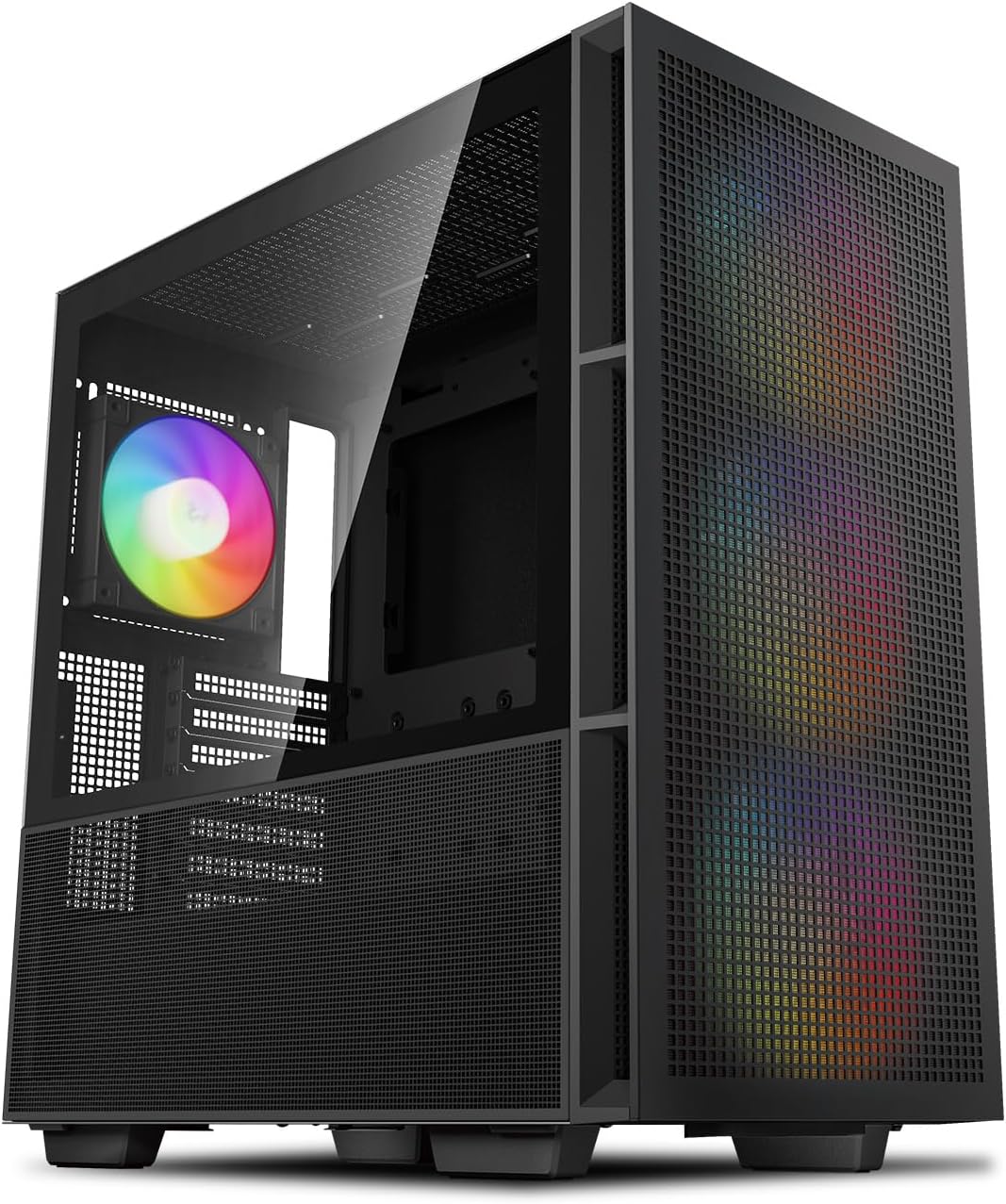

- DeepCool CH560 ATX PC case has brought in the new generation of airflow cases with 140mm ARGB fans and hybrid mesh/tempered glass side panel to maximize the cooling capacity and provide functional chassis that meets the high-end systems needs of modern computer hardware.

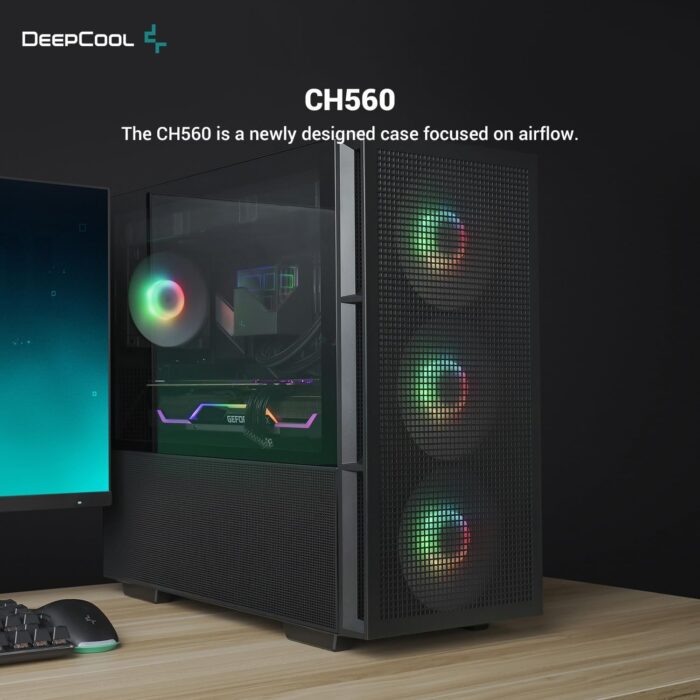

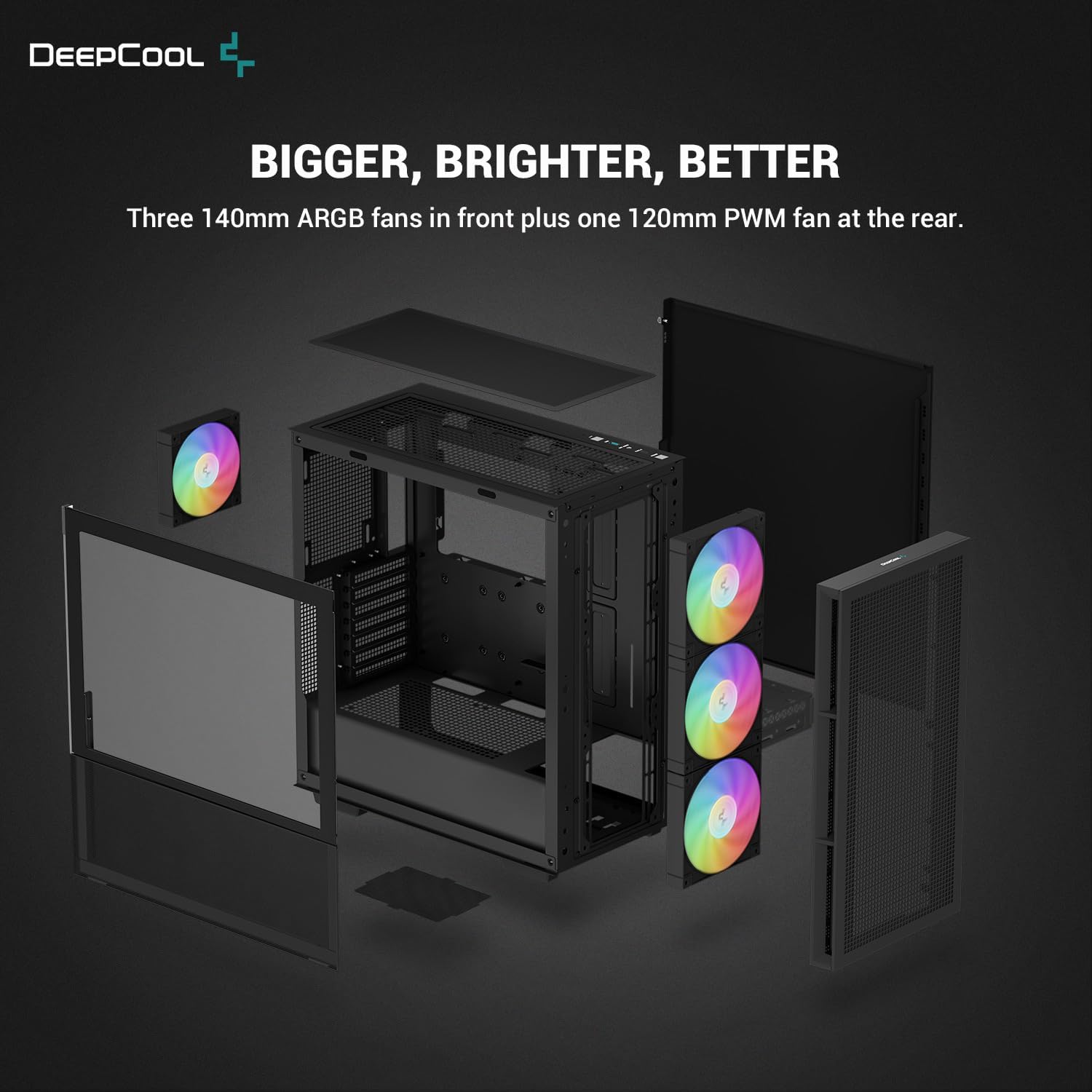

- CH560 ATX PC case is a newly designed mid-tower case with a concentrated focus on optimized airflow channel. Three pre-installed 140mm PWM enabled ARGB fans are mounted in front of the main compartment to build an efficient cooling system combining with the pre-installed 120mm PWM enabled ARGB exhaust fan, meanwhile, the rear cooling fan bay is compatible with 140mm fan as well.

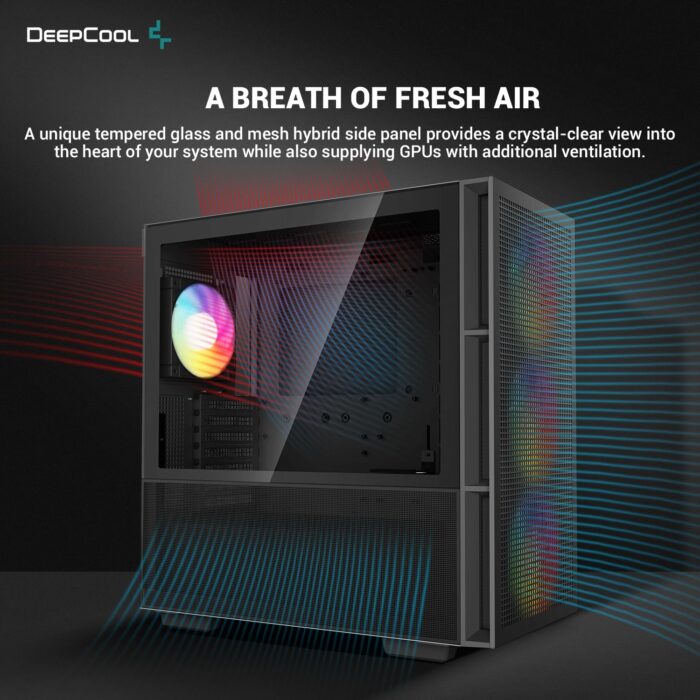

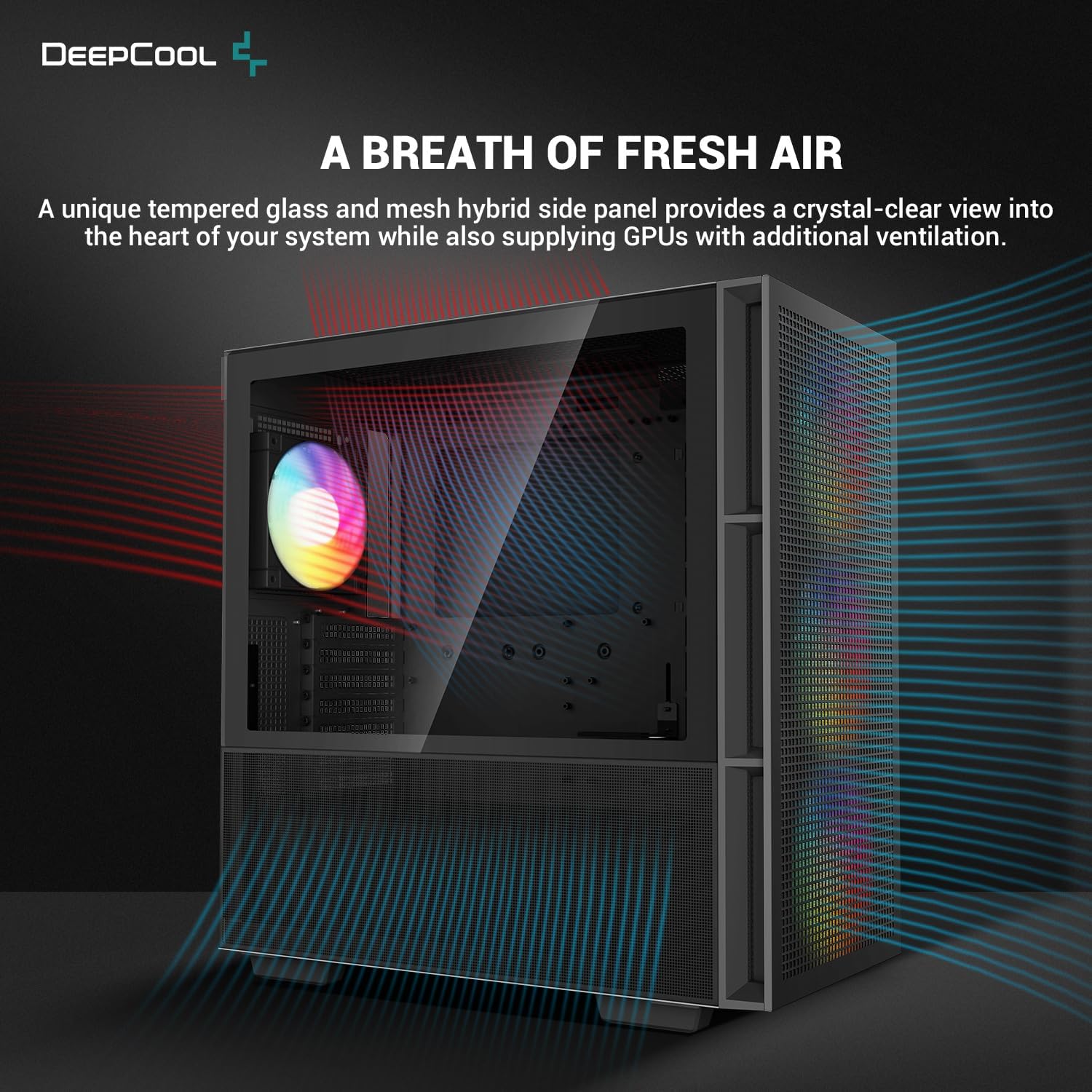

- DeepCool CH560 PC case features a special hybrid mesh/tempered side panel design to improve exceptional airflow from all sides of the case throughout the entire chassis for better cooling performance and shows off the inner ARGB structure.

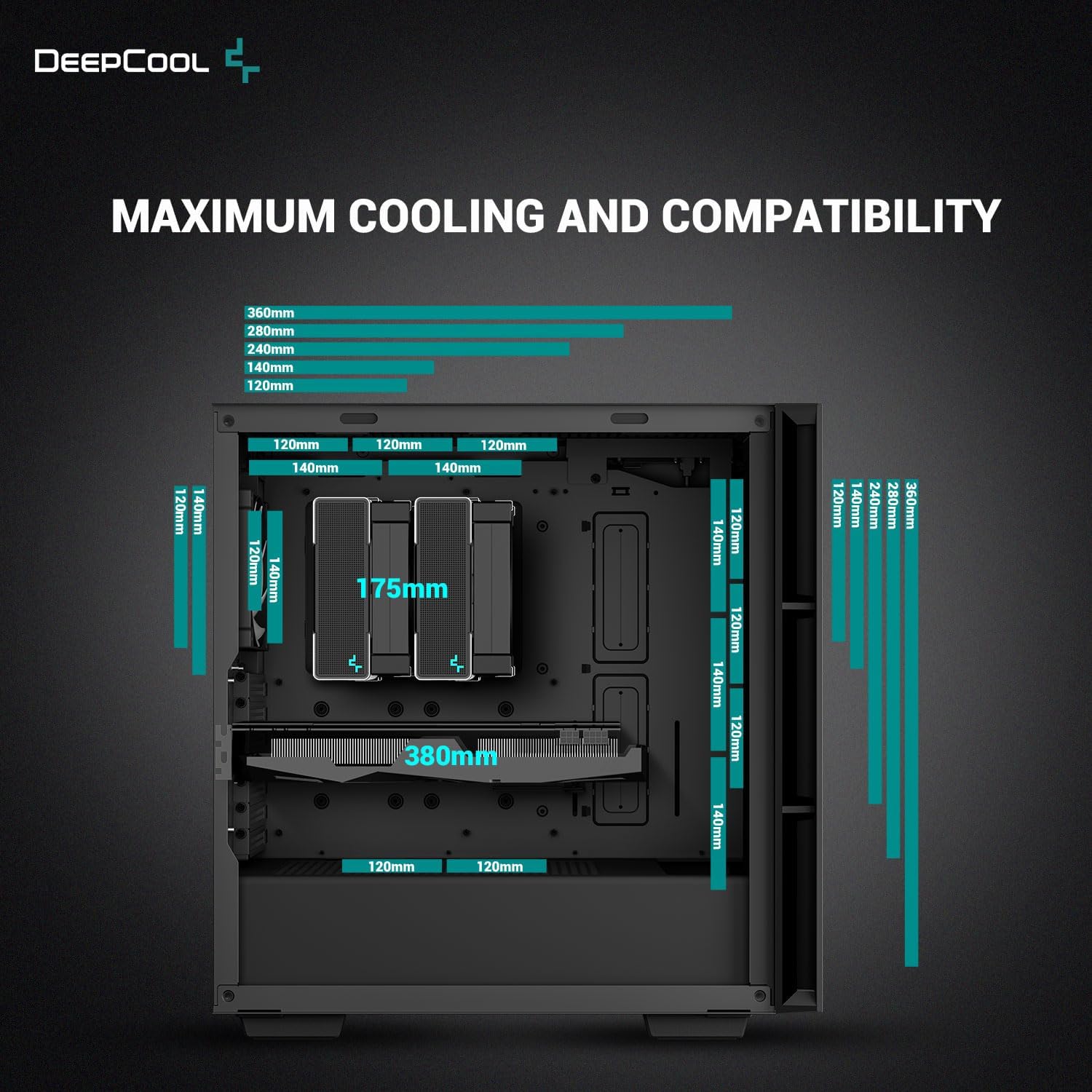

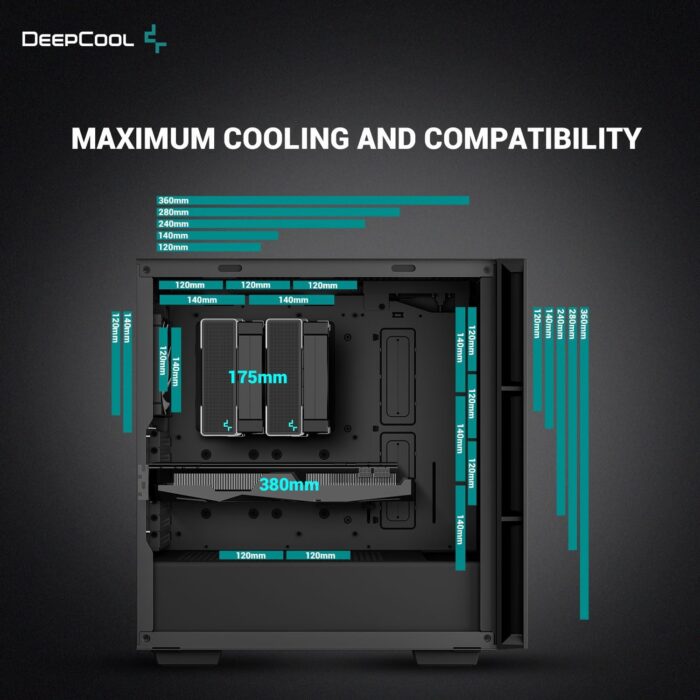

- DeepCool CH560 ATX PC case features great compatibility to meet modern computer hardware, the chassis supports up to E-ATX motherboards; 175mm tall CPU coolers and 360mm radiator on top/front; 380mm GPUs(Compatible with 4090 GPUs), and 170mm PSUs, meanwhile, the detachable PSU shroud supports up to two 120mm fans to build a stonger airflow channel for the case.

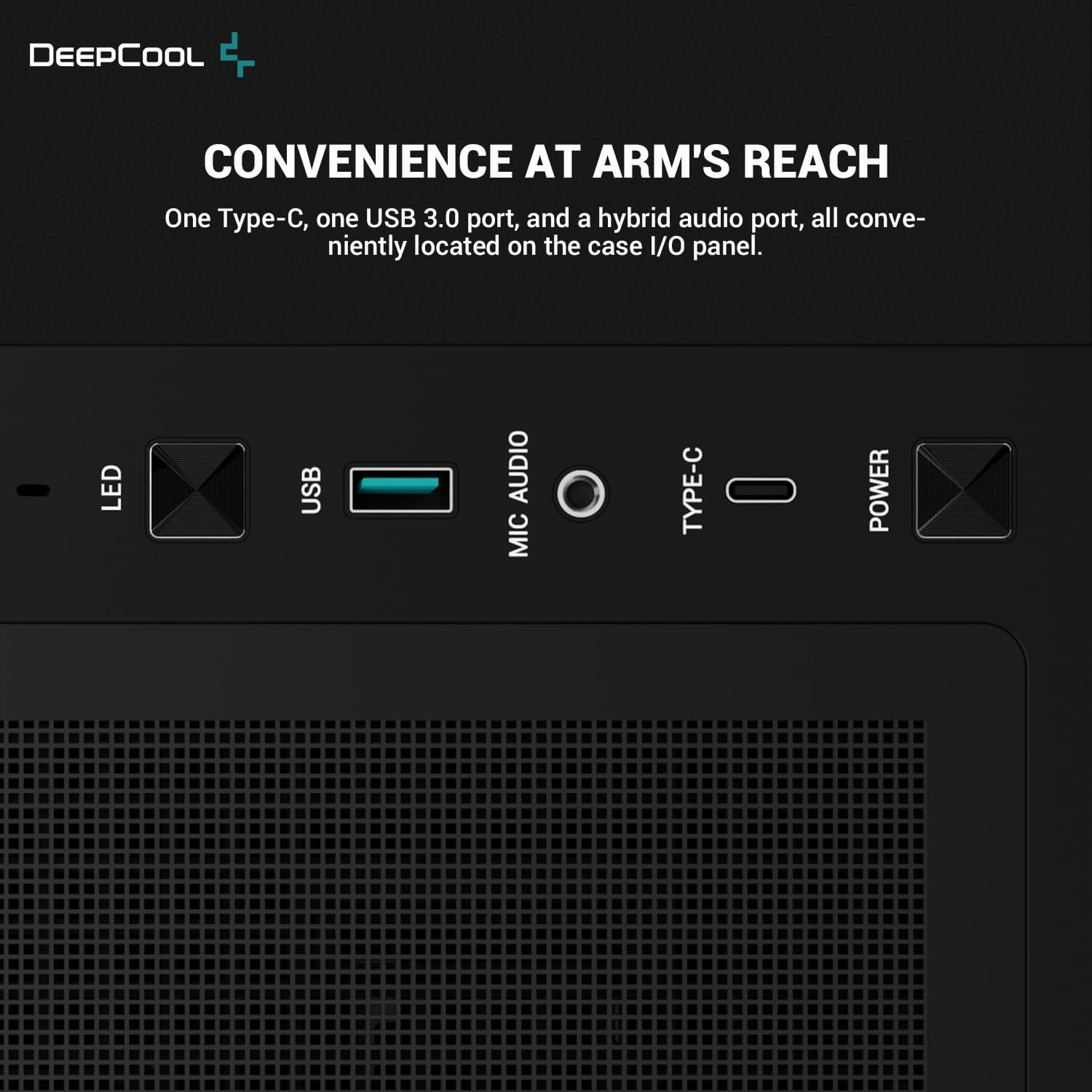

- Get connectivity for your modern devices needing with CH560 I/O ports, a USB 3.0, a TYPE-C, an audio port and LED button are available for user; Two 3.5″ HDD drive cages and two slots for 2.5″ SSD drives are provided in DeepCool CH560 ATX case, the HDD drive cage is also usable for SSD drive if it is needed.
- CH560 ATX PC case provides an optional security lock for side panel, easy-cleaning magnetic dust filter, integrated GPU support arm, 26mm cable space behind the motherboard tray and fixed rubber grommets which make cable management easier.
Technical Spec
Product Dimensions | 458×230×471mm(L×W×H) |
Net Weight | 7.5Kg |
Materials | ABS+SPCC+Tempered Glass |
Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX |
Front I/O Ports | USB3.0×1、Audio×1、TYPE-C×1 |
3.5″ Drive Bays | 2 |
2.5″ Drive Bays | 2+1 |
Expansion Slots | 7 Slots |
Pre-Installed Fans | Front: 3×140mm ARGB Rear: 1×120mm ARGB |
Fan Support | Front: 3×120 / 3×140mm Top: 3×120 / 2×140mm Rear: 1×120 / 1×140mm PSU Shrouded: 2×120mm |
Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240/280/360mm Rear: 120/140mm |
CPU Cooler Height Limit | 175mm |
GPU Length Limit | 380mm |
Power Supply Type | ATX PS2 (maximum length: 170mm) |
