MIND-BLOWING DESIGN

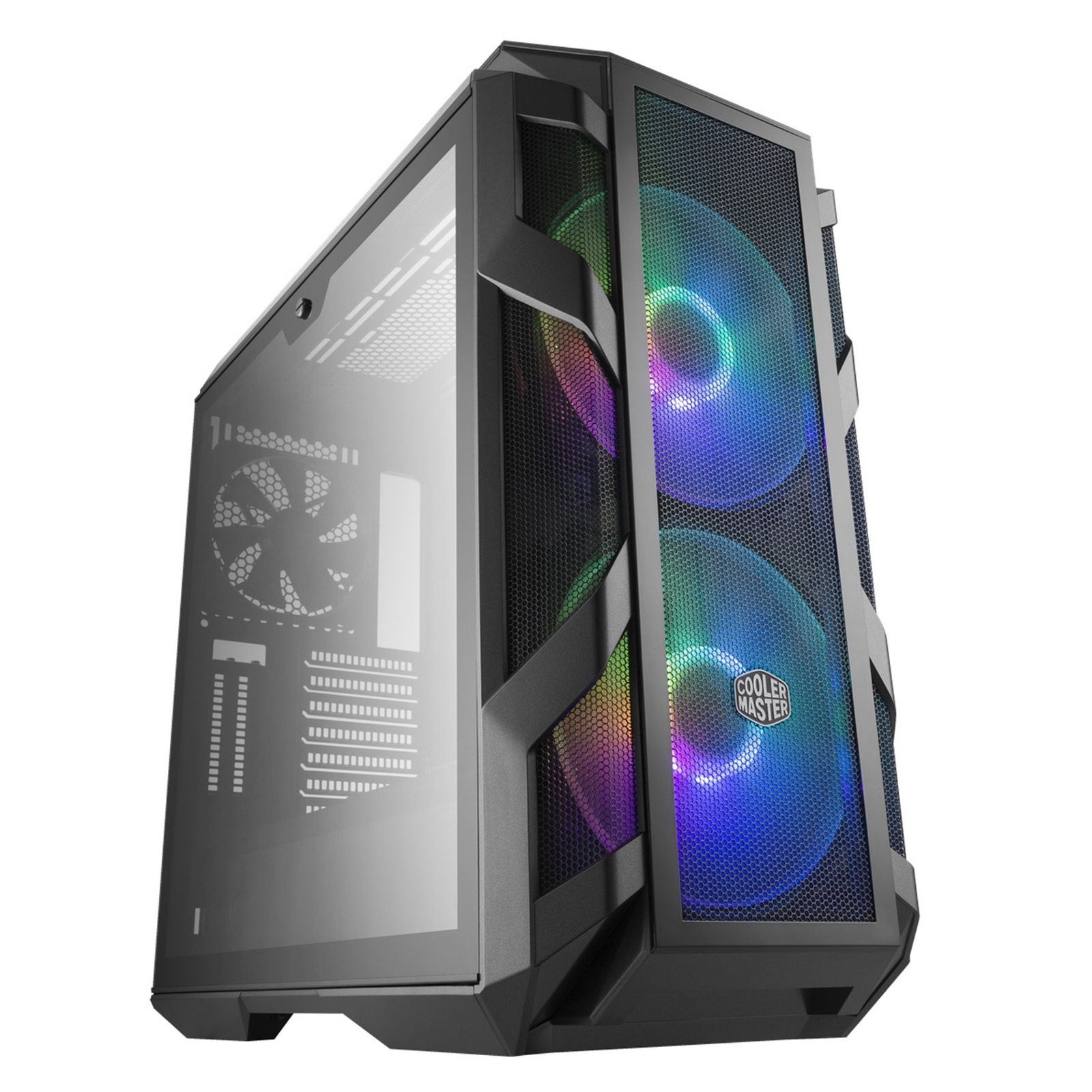

MasterCase H500M
– Interchangeable Front Panels
– Addressable RGB Fans & Controller
– Four Tempered Glass Panels
– Adjustable Graphics Card Support Arm
– Watercooling Support
– Covers for Clean Building
– Rich Connectivity

INTERCHANGEABLE FRONT PANELS
Choose between the mesh front panel for optimized airflow or the glass option for a balance of aesthetics and performance with the included accessory.

ADDRESSABLE RGB FANS
Move air stylishly and quietly with two 200mm Addressable RGB fans controlled by an included Addressable RGB controller.

FOUR TEMPERED GLASS PANELS
Edge-to-edge glass side panels on both sides, a glass top panel, and a glass front panel offer a clear and comprehensive system view.

GRAPHICS CARD SUPPORT ARM
Relieve the stress of weight and reinforce larger, longer graphics cards with an included adjustable graphics card support arm.

WATERCOOLING SUPPORT
The front panel is compatible with up to 360mm radiators, including support for 200mm sized radiators.

The top bracket supports up to 360mm radiators along with 200mm fans.

A dedicated water pump bracket offers mounting options directly atop the PSU shroud.

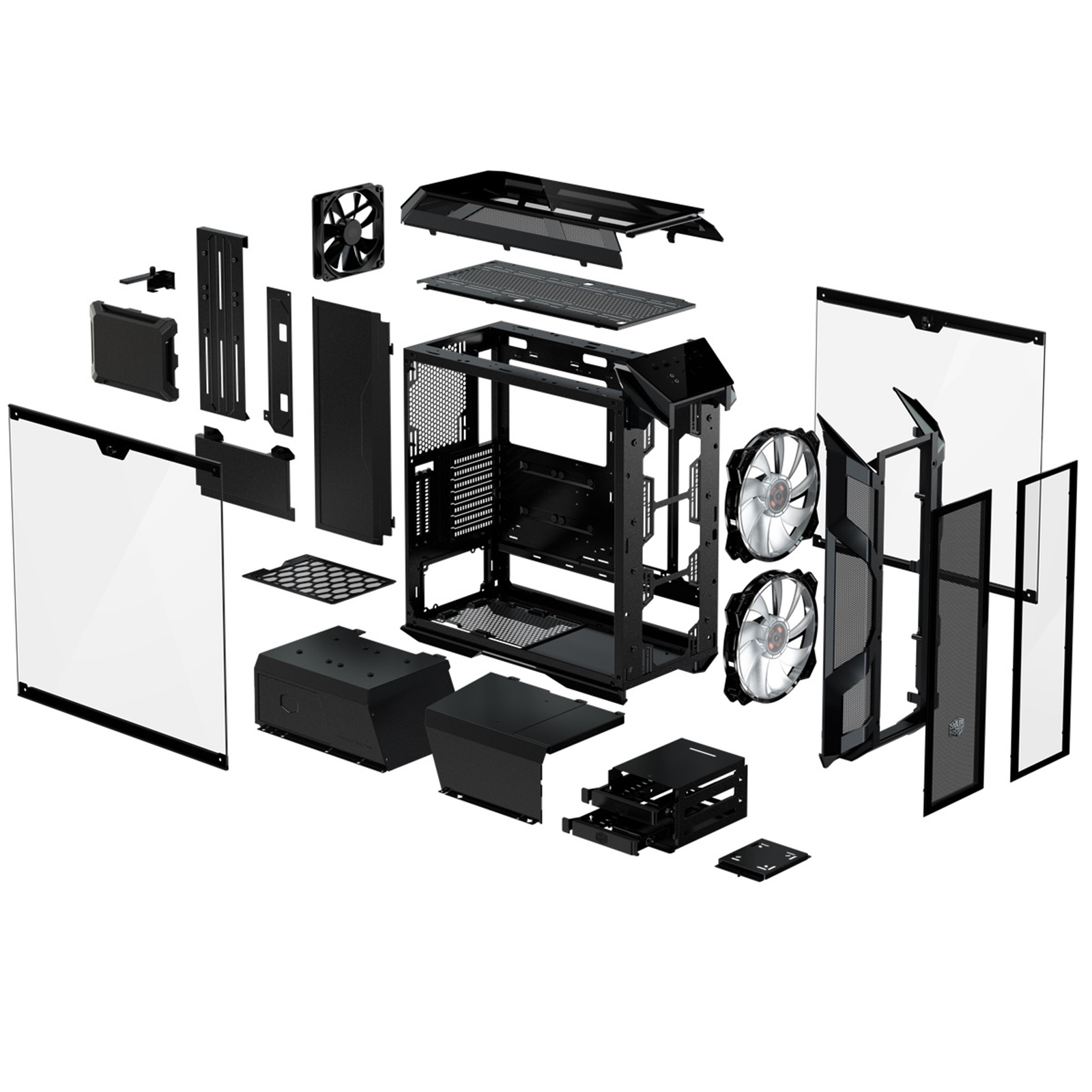

COVERS FOR CLEAN BUILDING
A total of 9 covers take clean building to the next level with a PSU cut out cover that provides the option of showing off your PSU or leaving it out of sight.
– Cable Management Cover
– CPU Cut Out Cover
– PSU Cable Cover
– PSU Cut Out Cover
– PSU Shroud with SSD Mounting Support
– PSU Shroud with Waterpump Bracket
– Cable Cover with SSD- and Reservoir Mounting Support
– Clearance Cover for 200mm Radiator Support
– Radiator Lid to Accommodate Thicker & Longer Radiators

RICH CONNECTIVITY
The I/O panel comes with a USB 3.1 (Gen 2) Type-C port, and four additional USB 3.0 ports. Audio-in and out with support for HD Audio.

The included addressable RGB controller manages the lighting of the system and can be connected to the reset switch.
– USB 3.0 Port
– USB 3.1 (Gen 2) Type-C Port
– Audio In & Out
– Reset Switch & Optional Addressable RGB Controller

Model
MasterCase H500M

Model Number
MCM-H500M-IHNN-S00

Colour
Iron Grey

Materials
Outlook: Steel Mesh / Glass
Body: Steel
Side Panel: Tempered Glass

Motherboard Support
E-ATX (support up to 12″ x 10.7″)
ATX
Micro ATX
Mini-ITX

Expansion
Slots: 7 + 2 (Support vertical graphics card installation)

Drive Bays
5.25″ Bays: 0
2.5″/3.5″ Bays: 2
2.5″ SSD Bays: 6

I/O Port
1 x USB 3.1 Type-C
4 x USB 3.0 Type-A
Audio In & Out (supports HD Audio)

Cooling
Pre-Installed Fans:
Front: 2 x 200mm ARGB Fan (Speed: 800RPM / Connector: 3Pin + ARGB 3Pin)
Rear: 1 x 140mm Fan (Speed: 1200RPM / Connector: 3Pin)

Fan Support:
Top: 3 x 120mm Fan or 2 x 140mm/200mm Fan
Front: 3 x 120/140mm Fan or 2 x 200mm Fan
Rear: 1 x 120/140mm Fan

Liquid Cooling Support
Top: 120mm / 140mm / 240mm / 280mm / 360mm (maximum thickness clearance 43mm)
Front: 120mm / 140mm / 200mm / 240mm / 280mm / 360mm (70mm clearance with radiator lid & M.port removed)
Rear: 120mm / 140mm

Clearance
CPU Cooler: 190mm
Graphics Card: 412mm
Power Supply: 200mm

Power Supply Support
Bottom Mount
ATX PS2

Dimensions ( L x W x H )
544 x 248 x 546mm
