A LOOK THROUGH THE DARKMIRROR
Showing off your rig through a smoked front panel is something you didn’t know you needed. The DarkMirror front panel enriches the contrast from hardware lighting, creating a picturesque display of the internal components. To cool gaming systems built inside, mesh ventilation is found on the entire length of the front panel’s sides, ensuring that the three included ARGB fans are fed with a considerable amount of air.

If you’re thinking about thermal upgrades, the MasterBox MB520 ARGB supports up to seven fans and front and rear liquid cooling for high-demand builds. Paired with a tempered glass side panel and additional top ventilation, your build can look, and play, exactly as you dreamed it would.

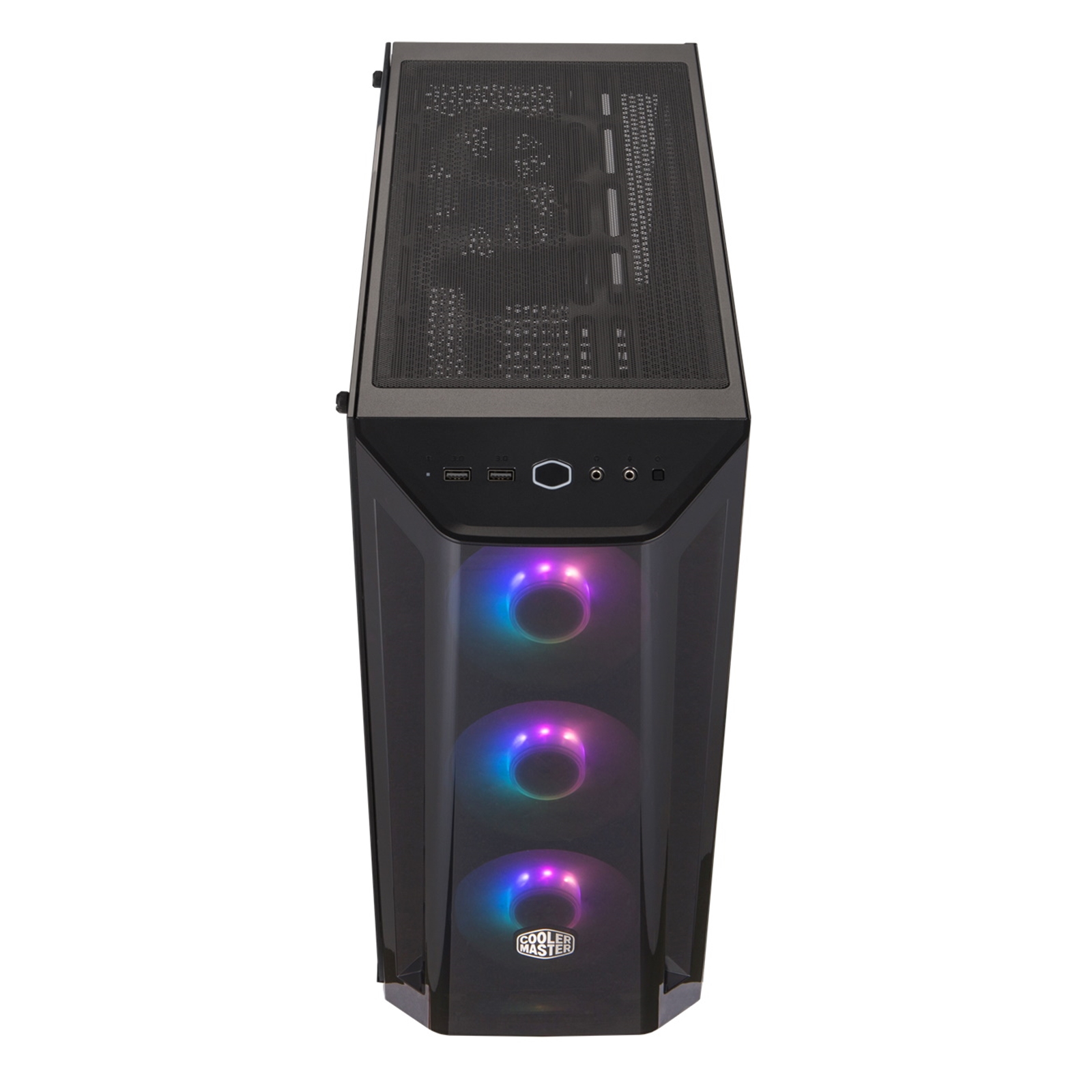

DARKMIRROR FRONT PANEL
Shade light through the DarkMirror front panel for a sharper contrast of the ARGB fans.

MESH INTAKES
Large, mesh intakes on each side of the front panel provide considerable airflow to system.

ARGB LIGHTING SYSTEM
Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.
– ASRock Polychrome Sync
– Asus Aura Sync
– RGB Fusion 2.0
– MSI Mystic Light Sync

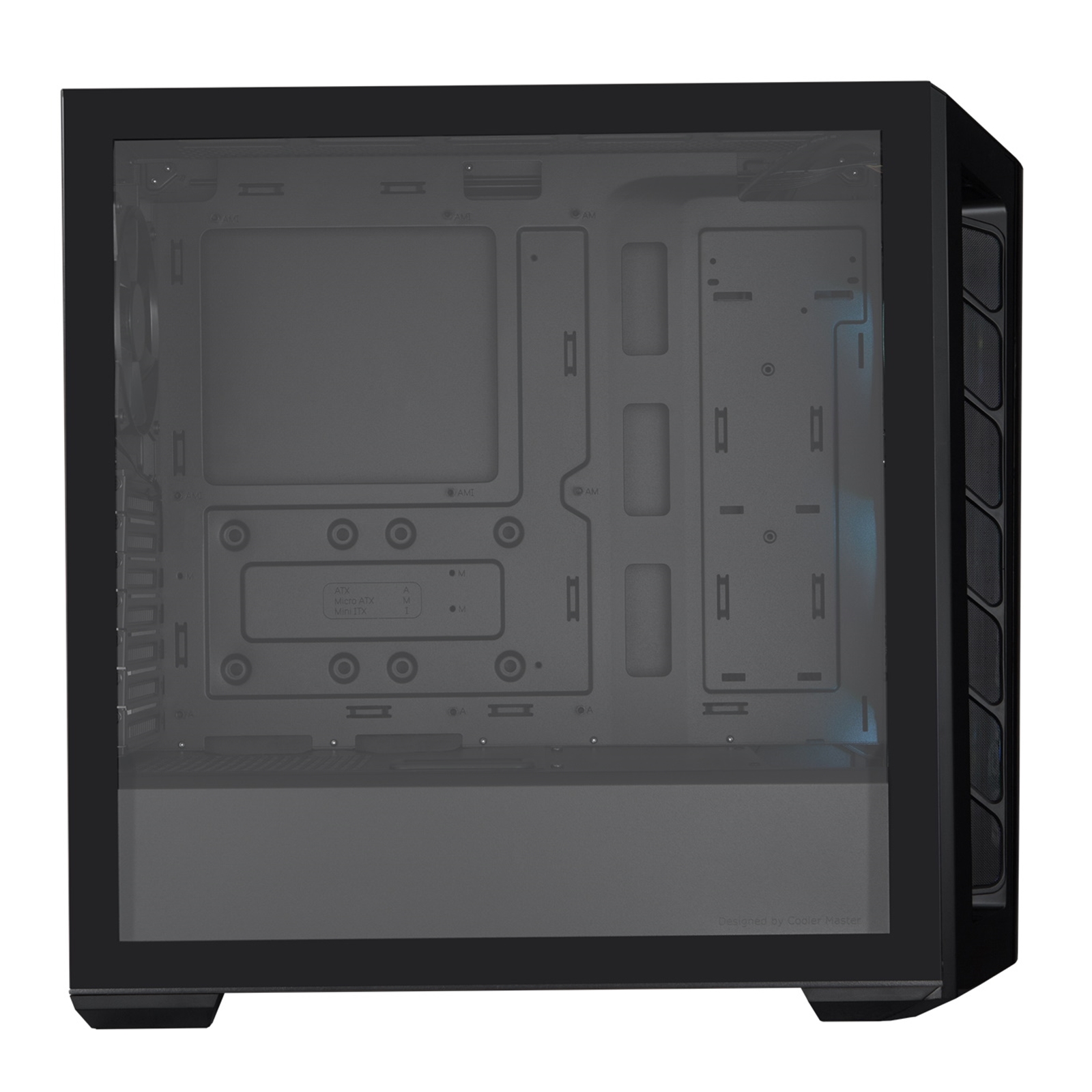

TEMPERED GLASS SIDE PANEL
Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.

VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.

Model Number
MCB-B520-KGNN-RGA

Series
MasterBox Series

Form Factor
Mid Tower

Colour
Black

Materials
Steel
Plastic
Tempered Glass

Dimensions ( L x W x H )
496 x 217 x 469 mm

Weight
6.59 kg

Motherboard Support
E-ATX*
SSI CEB*
ATX
Micro ATX
Mini-ITX
(*support for up to 12″ x 10.7″, will limit cable management features)

Expansion
Slots: 7

Drive Bays
5.25″: No
2.5″/3.5″ (Combo): 2 (Max.2)
2.5″: 4 (Max.6)

I/O Panel
2 x USB 3.2 Gen 1 (formerly USB 3.0)
1 x 3.5mm Audio Jack
1 x 3.5mm Mic Jack
1 x ARGB Controller
1 x ARGB 2-to-3 splitter

Pre-Installed Cooling
Front: 3 x 120mm ARGB Fans
Rear: 1 x 120mm Black Fan

Cooling Support
Top: 3 x 120mm / 2 x 140mm
Front: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm

Radiator Support
Top: 120mm / 240mm / 360mm / (44mm max motherboard component height)
Front: 120mm / 140mm / 240mm / 280mm / 360mm (75mm clearance)
Rear: 120mm

Clearance
CPU Cooler: 165mm
PSU: 180mm
GFX: 410mm
Cable Routing: 19-27mm

Dust Filters
Top
Front
Bottom

Power Supply Support
Bottom mount
ATX
