Description

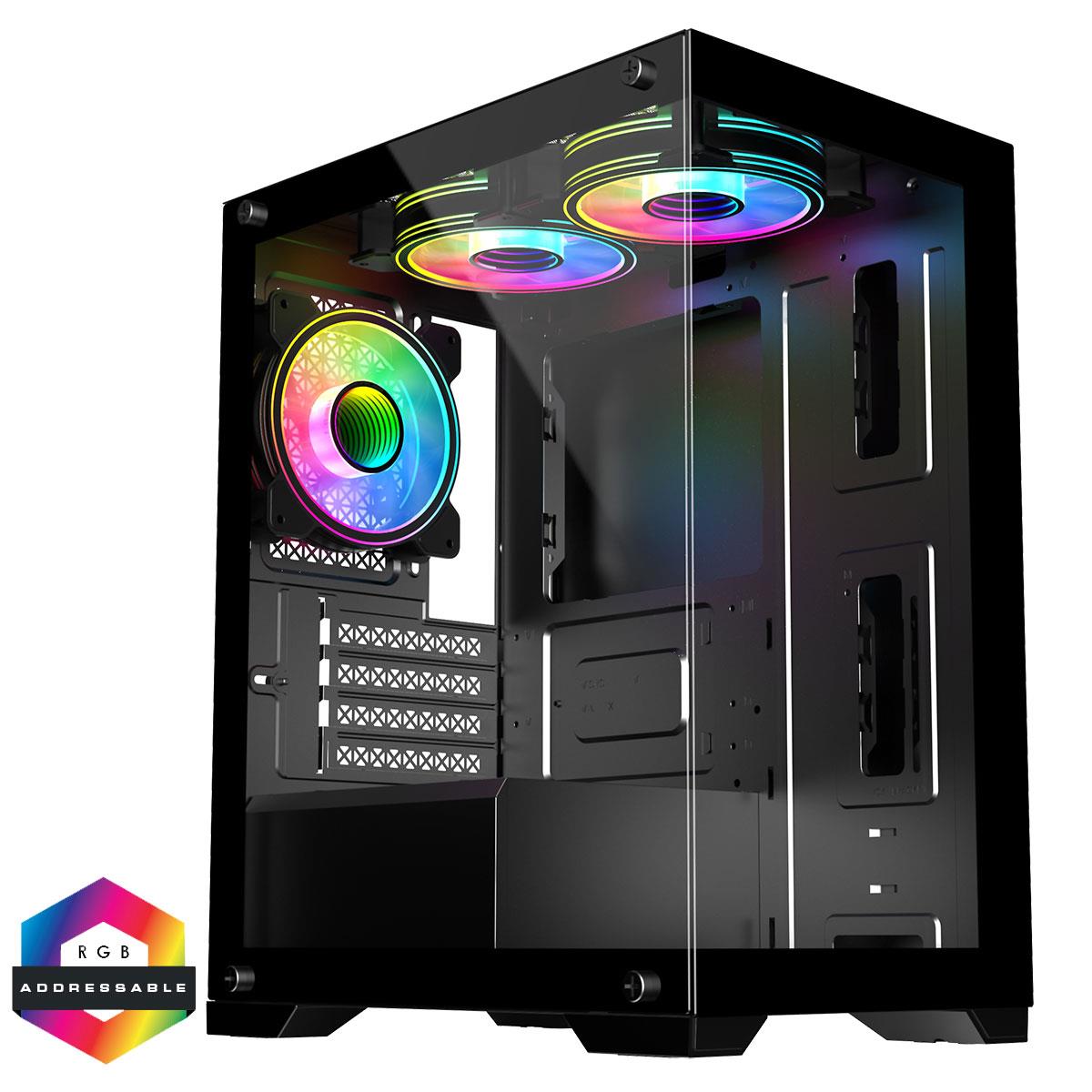

Showcase your gaming PC spectacle with the CiT Range Micro-ATX PC case. Manufactured from steel and sporting near seamless tempered glass panelling this unique MATX chassis is a high-performance product with a sleek design and exceptional functionality. Utilising two full tempered glass panels to provide a perfectly clear view of your interior, show off your gaming hardware.

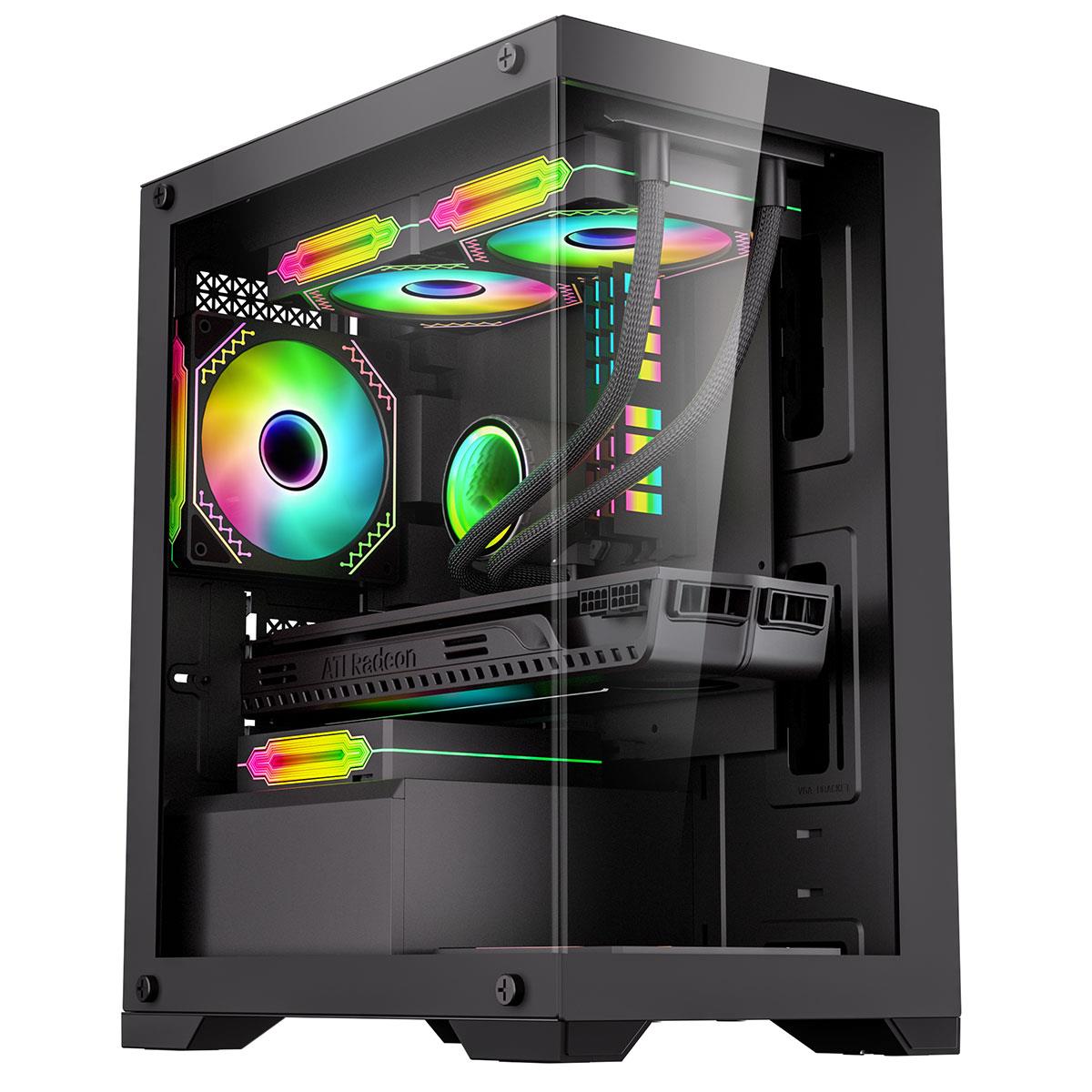

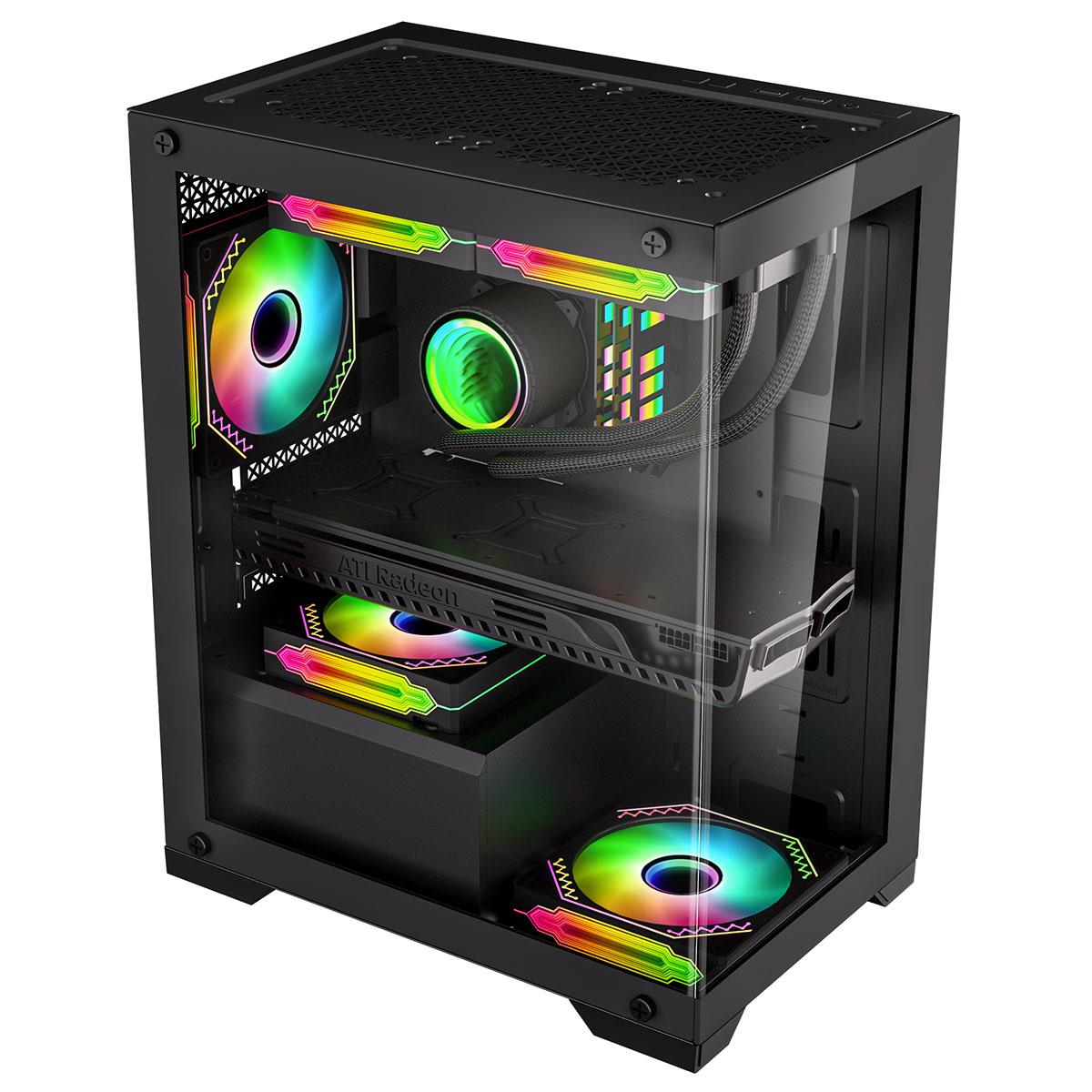

Designed to focus on elegant and stylish aesthetics, customisable RGB lighting, extremely efficient cooling and easy cable management. Creating a perfect picture frame for your Motherboard and GPU and surround them from all angles with high-performance fans. Install up to four 120mm and two 140mm fans, together with up to two water cooling locations.
Moving onto the top of the case the I/O panel provides USB3.0 and USB2.0 connections and inside the Range we have included a PWM ARGB fan hub with controls for your LED lighting and have access to approximately 365 LED modes or have access to 16.8 million colours using a compatible addressable RGB Motherboard.

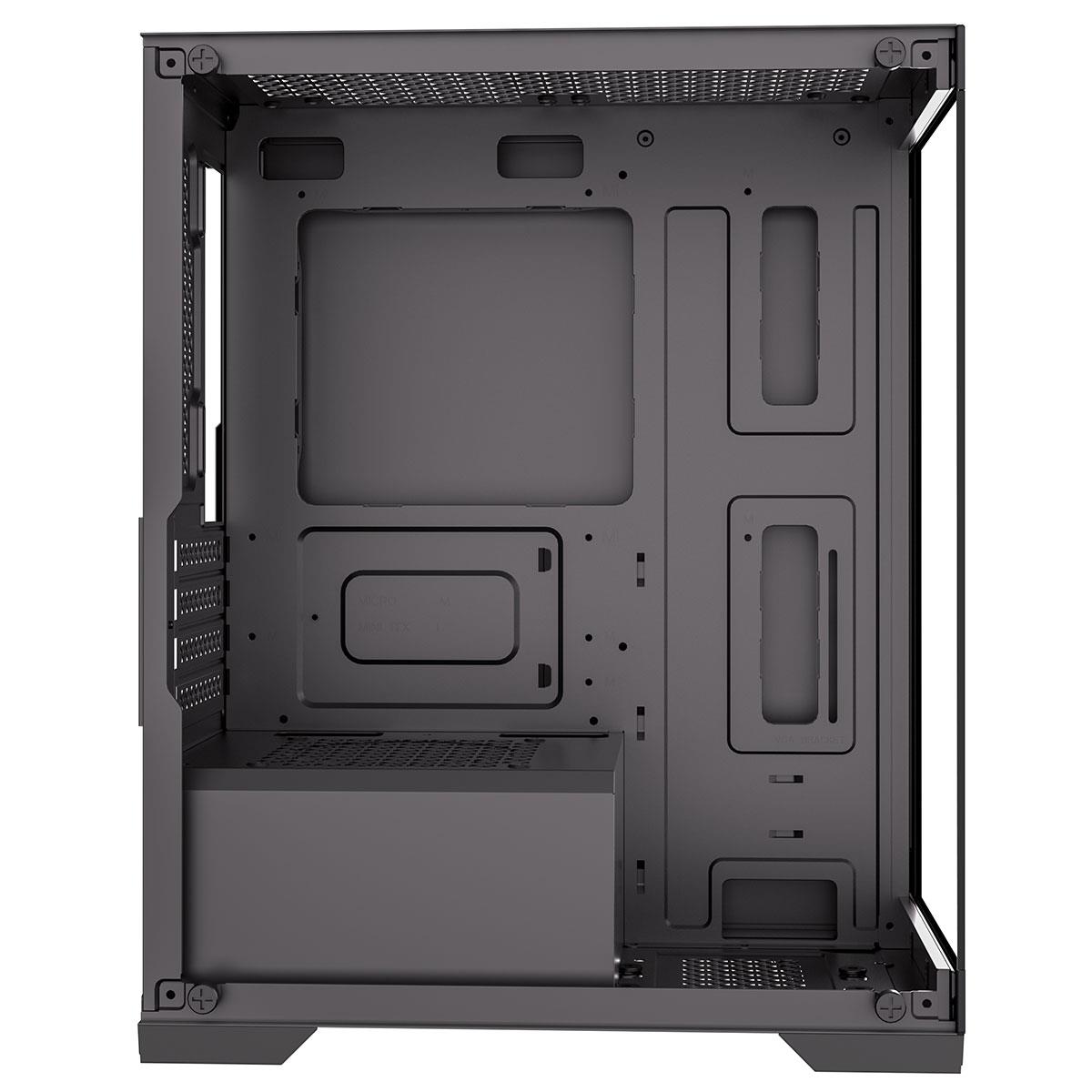

This completely black interior has cleaver build potential with a spacious interior and plenty of cable management to build a powerful dynamic gaming PC. It can fit a graphics card up to 31 centimetres in length, CPU Cooler up to 16.5 centimetres in height and can hold 1 x 2,5 and 1 x 3,5 drives. An ATX power supply unit measuring up to 160mm will fit inside.
Build a stunning gaming chassis with personality and take your gaming set up to the next level. With the Range create a flawless gamers case with its elegant design this chassis is a perfect choice for gamers seeking both style and functionality.
Specifications
| Chassis Dimensions (Excluding Fascia / Panels): | (W) 210 x (H) 387 x (D) 316mm |
| Water Cooling Support: | |
| Top Supported Radiator(s): | 120mm and 240mm |
| Rear Supported Radiator(s): | 120mm |
| Cooling Fan Support: | |
| PSU Shroud: | Space For 1 x 120mm Fan |
| Fan Controller Support: | |
| Fan Controller Included: | Yes |
| Fan Controller Power Via: | SATA Connector |
| LED Controller: | Yes |
| Fan Power Connector: | 4pin Fan Connector |
| LED Power Connector: | 3pin Aura |
| Fan Control Via: | LED Button / MB Sync |
| Supported Qty Of Fans (Max.): | 6 |
| Supported Qty Of LEDs (Max.): | 6 |
| Additional Chassis Specifications: | |
| Audio Support: | HD (Combo) |
| PSU Max. Length: | 160mm |
| CiT Celsius ARGB Dual-Ring Infinity Fan Specification: | |
| Dimensions: | 120 x 120 x 25mm |
| Fan Frame Colour: | Black |
| Fan Blades / Colour : | 9 / Semi-Transparent White |
| LED Qty / Type: | 21 / ARGB |
| Bearing Type: | Hydraulic Bearing |
| Fan Speed: | PWM 800 – 1500 RPM |
| Max. Airflow: | 30.46 CFM |
| Max. Static Air Pressure: | 0.99mm-H2O |
| Noise Level (Max.): | 15.98 dBA |
| Cable Length: | 550mm |
| Accessories: | Screws |
| Connectors: | SATA, 4pin Male Fan connector, 4pin female fan connector (passthrough), 3pin male AURA 3pin female AURA (passthrough) |
| Rated Voltage: | 12V |
| Rated Current (Max.): | 0.1A |
| Rated Input Power: | 1.2W |
| Test Voltage: | 12V |
| Start Voltage: | 3.5V |
| M.T.B.F: | 30,000 Hours |
Case Specifications
| Form Factor: | Micro ATX |
| Motherboard Support: | Micro ATX, Mini ITX |
| PSU Support: | Standard ATX |
| PSU Location: | Bottom |
| Gaming Case: | Yes |
| Water Cooling: | Water Cooling Ready! Supported Radiator Size: 240mm Supported Radiator Positions: Top |
| Body Material: | 0.66mmSPCC |
| Front Bezel Material: | Tempered Glass |
| Side Panel: | Tempered Glass |
| Internal Cable Management Depth: | 20mm |
| External Bays: | |
| Internal Bays: | 1 x 3.5” Internal 1 x 2.5” Internal |
| Drive Bay Notes: | |
| Expansion Slots: | 4 x Full Size |
| Cooling Front: | None |
| Cooling Top: | Space For 2 x 120mm or 2 x 140mm Fans (Bundled To Fit) |
| Cooling Rear: | Space For 1 x 120mm Fan (Bundled To Fit) |
| Cooling Side: | None |
| Cooling Bottom: | Space For 1 x 120mm Fan |
| Fan Controllers: | 1 Fan Controllers, controlling up to 6 fans in total |
| IO Ports: | 1 x USB 3.0 1 x USB 2.0 1 x HD Audio 1 x Microphone |
| GPU Max Length: | 310mm |
| CPU Cooler Maximum Height: | 165mm |
| Front Bezel Colour: | Black / Glass |
| Body Colour: | Black |
| System Cabinet Features: | |
| PSU Included: | No |
General Specifications
| Manufacturer Part Number: | CIT-RANGE-B |
| EAN Number: | 5055492414359 |
| Has Mains Plug: | No |
| Colour: | Black |
| What’s In The Box: | Case Accessories 3 x CiT Celsius Infinity 120mm ARGB Dual-Ring Black Fans |
| Unit (Product) Dimensions (mm): | 210mm x 402mm x 318mm (W x H x D) |
| Packaging Dimensions (mm): | 270mm x 455mm x 380mm (W x H x D) |
| Net Weight (KGs): | 4.1 KGs |
| Gross Weight (KGs): | 4.9 KGs |
