Description

Description

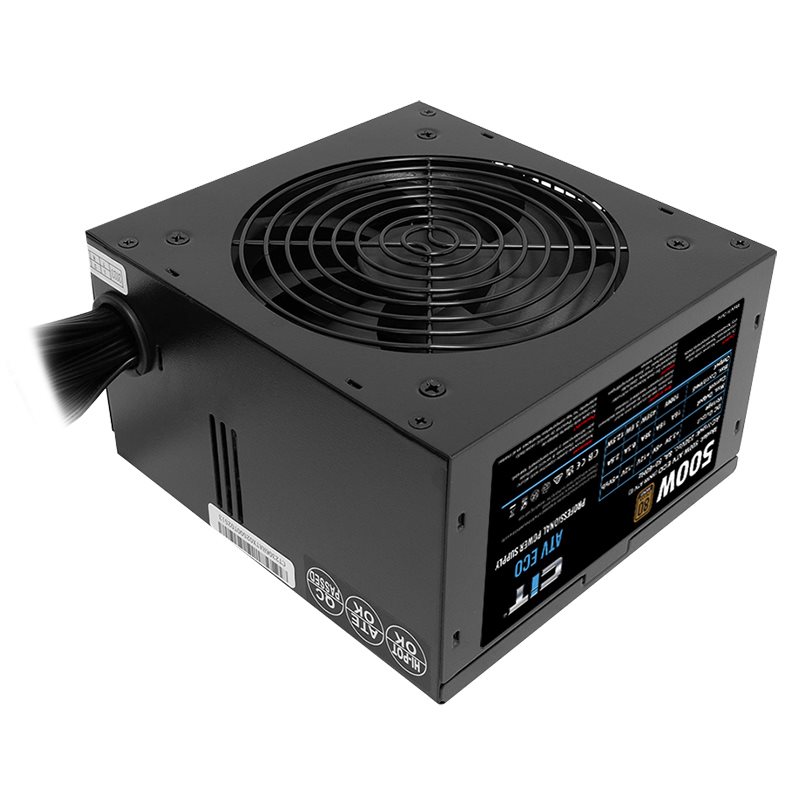

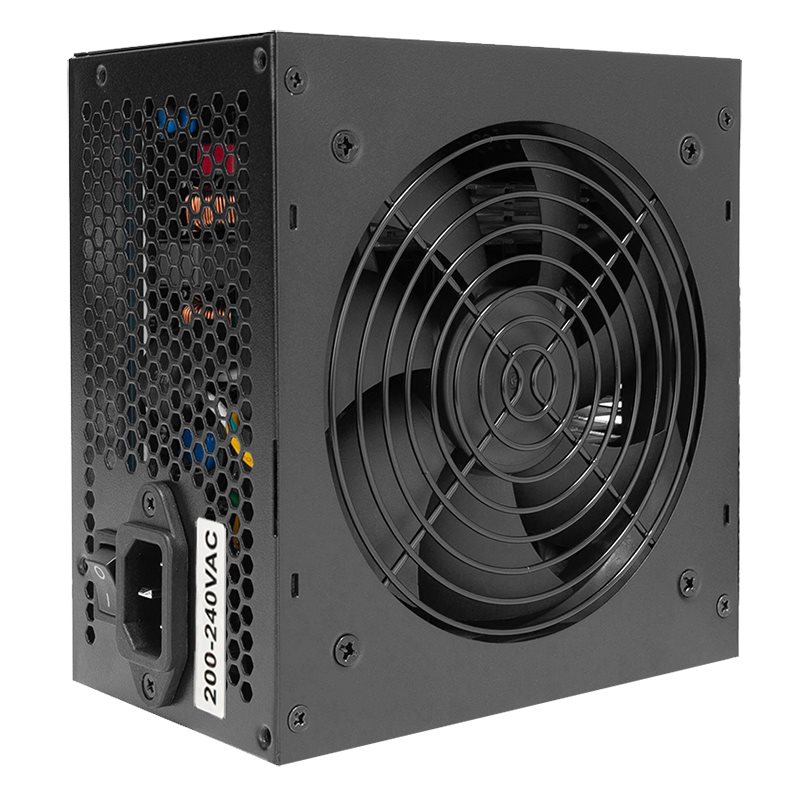

The CiT 500W ATV Eco power supply is perfect for powering a home or office computer and with an 80 PLUS Bronze efficiency rating which guarantees to seamlessly deliver full wattage to your PC system. The ATV Eco power supply housing a 120mm black fan offers both cooling and low noise.

Offering a straightforward and reliable way to power your system, we want the ATV Eco to be that simple with a single +12v rail, active PFC and top tier circuit protections, this PSU is built for purpose and can handle all your main computing needs, just plug it in and get to work.

The smooth elegant all-black casing and all black cable configuration allows the PSU to fit seamlessly into your PCs theme and supported by a two-year warranty. The CiT ATV Eco is the power supply to deliver reliable and affordable power.

Key Features

• 80 Plus Certification – Efficiency rating measures the ratio of output power to input power, the CiT ATV Eco is 80 PLUS Bronze certified delivering up to 85 percent for high efficiency.

• All Black – The all-black PSU casing and cable configuration the ATV Eco effortlessly fits and blends into the rest of your system to add a sleek and stealth finish.

• Wired Power Supply – Flat black cables make it easy to connect everything together and easily manage and save the space inside the chassis.

• Single 12V Rail Output – The ATV Eco lines/rails are reliable and consistent to ensure your systems overall performance is high, that is why only one +12V rail is used, this way all the components are using the same power from the same source guarantees consistency between all connections.

• Active PFC – CiT have used an active PFC ensures small and light components with great flexibility and control allowing you to operate in universal input range for an excellent performance.

• Low Noise – The ATV Eco is made with a 12cm black fan to achieve the perfect balance of keeping your components cool without having to hear the fan in motion. The ATV Eco runs smooth and safely whilst using the least amount of noise.

• Hardware Protection – Top tier circuit protections keeps your build running strong and your hardware safe – OVP (Over Voltage Protection), OPP (Over Power Protection) & SCP (Short Circuit Protection).

• Warranty – The CiT ATV Eco comes with 2 Years Warranty.

PSU Specifications

Connectors

	20+4 Pin Main Connectors: 1
	4+4 Pin 12V Connectors: 1
	SATA Connectors: 6
	4-Pin Molex Connectors: 2
	6+2 Pin PCI-e Connectors: 2

Detailed Specifications

General Specifications
