Description
Description

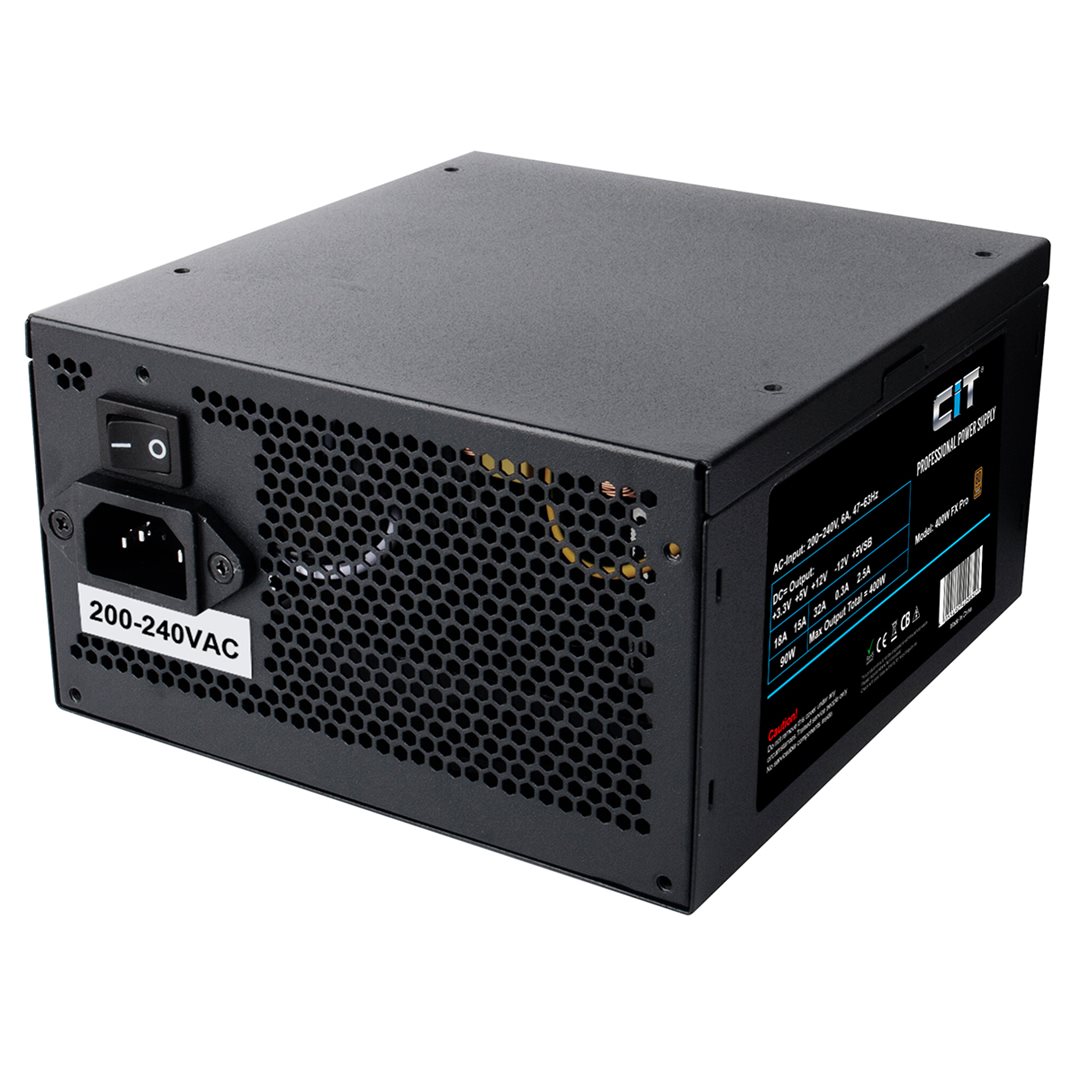

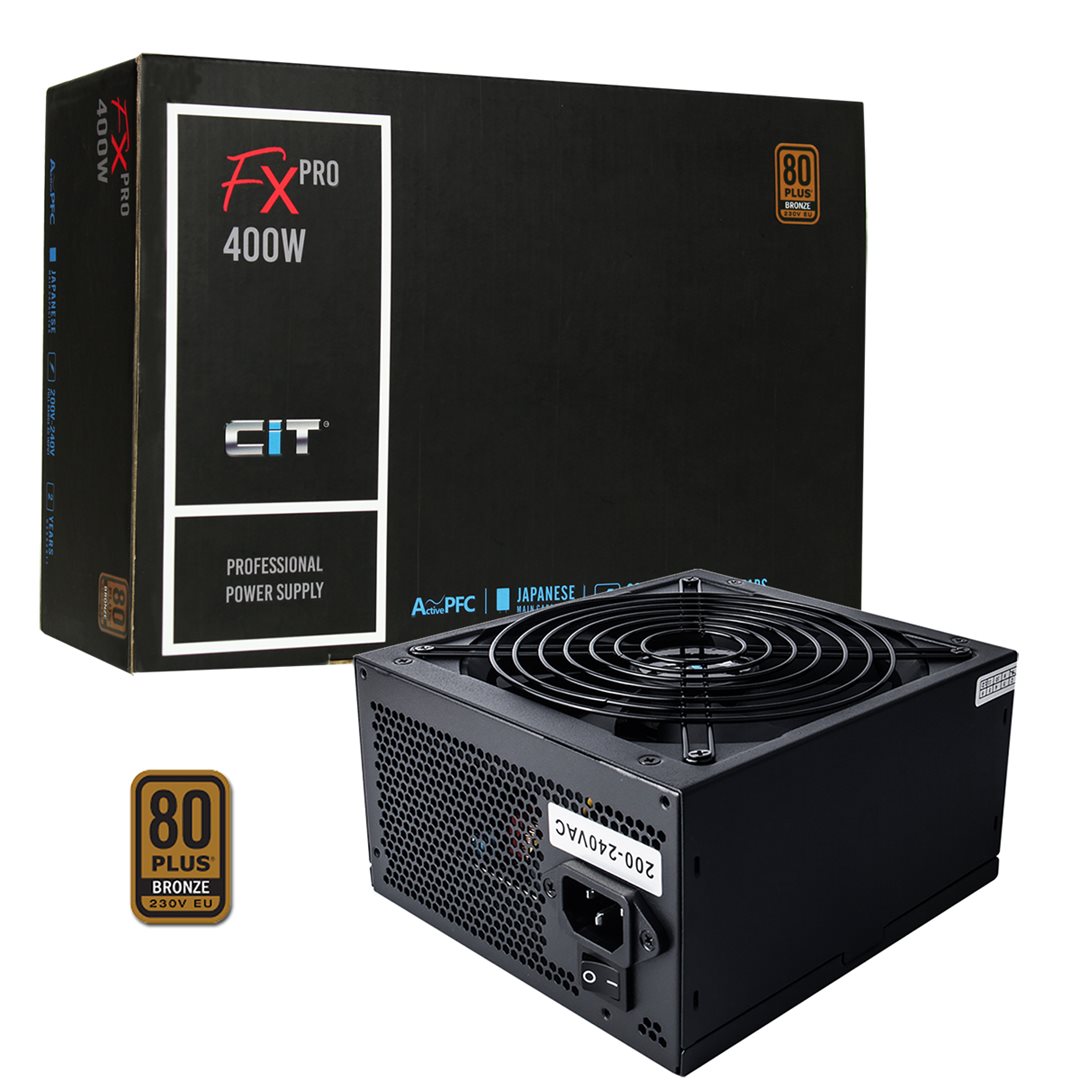

The FX Pro series is the latest PSU series launched by CiT. The FX Pro range are a non-modular power supply that we offer in four power configurations, 400W, 600W, 700W and 800W all are 80 Plus Bronze certified. Not only is this power supply impressive in performance but the components used in this power supply are components normally used by top tier brands. This Power supply is perfect for enthusiastic gamers who are pursuing the ultimate gaming experience. Realise a more powerful performance.
PSU Specifications

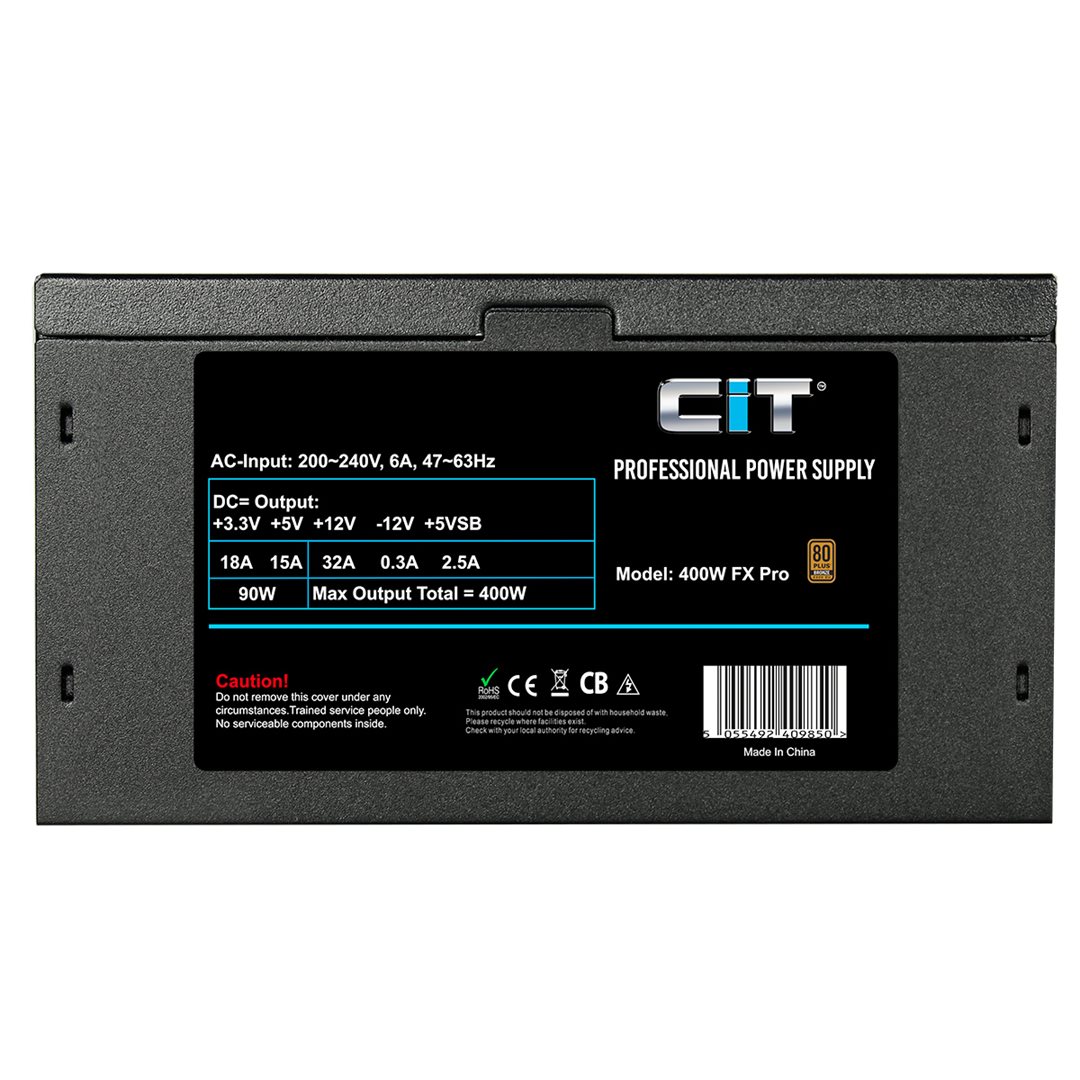

| AC INPUT: 200-240VAC 6A 47-63HZ | |||||
| DC Output Max |
+3.3V | +5V | +12V1 | -12V | +5VSB |
| 18A | 15A | 32A | 0.3A | 2.5A | |
| 400W | |||||

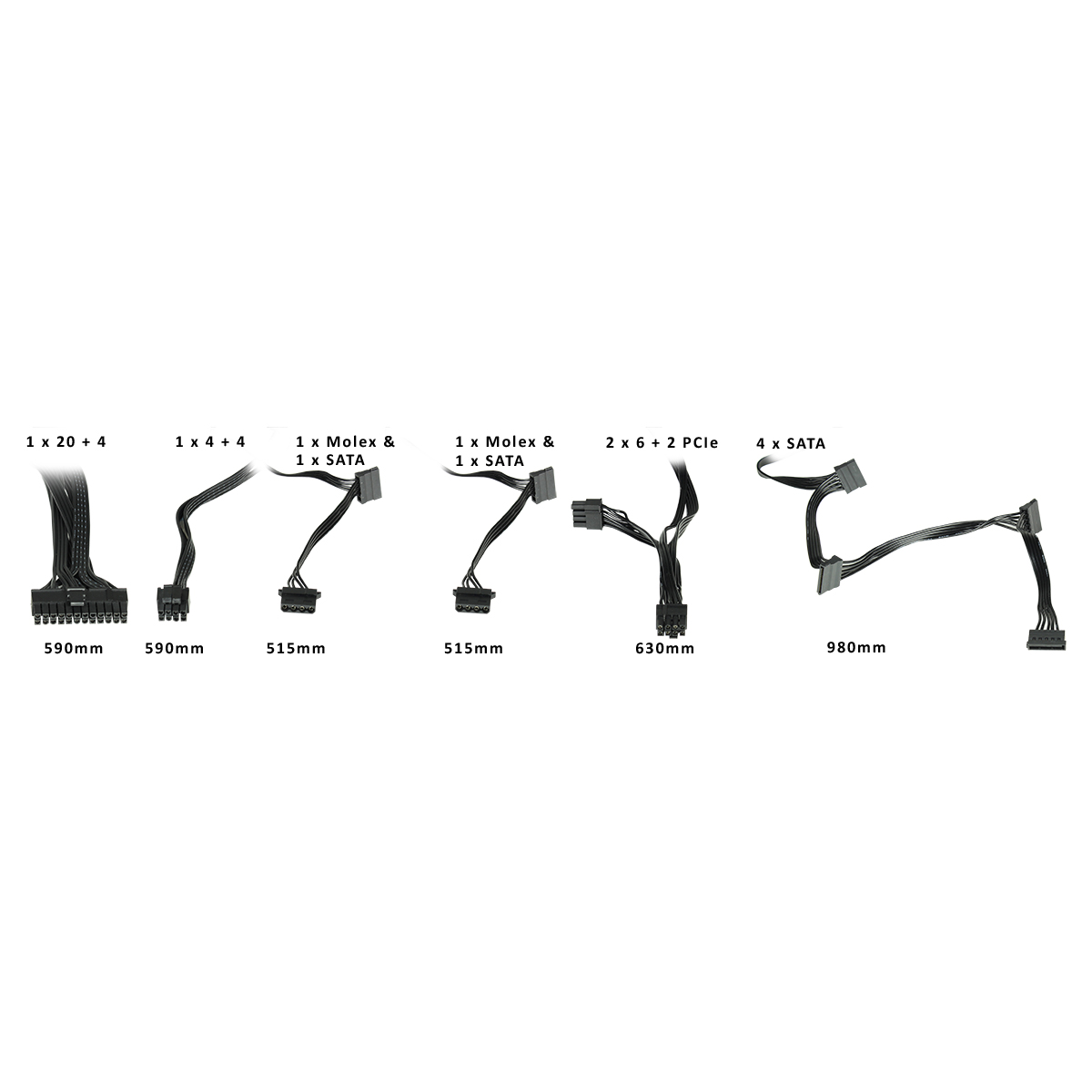

Connectors
 |
20+4 Pin Main Connectors:
1 |
 |
4+4 Pin 12V Connectors:
1 |
 |
SATA Connectors:
6 |
 |
4-Pin Molex Connectors:
2 |
 |
6+2 Pin PCI-e Connectors:
2 |
Detailed Specifications
| Dimensions: | 150mm x 85mm x 140mm (W x H x D) |
| Input Voltage: | 200-240VAC |
| Input Current: | 6A |
| Input Frequency Range: | 47-63HZ |
| PFC: | Active PFC |
| Power Good Signal: | Approx. 300ms |
| Hold Up Time: | 10ms |
| Efficiency: | 85% |
| MTBF: | 30,000 Hours |
| Protection: | OVP / UVP / OLP / OPP / SCP |
| Power: | 400W |
| Operation Temperature: | 0-40°C |
| Safety: | CE / CCC |

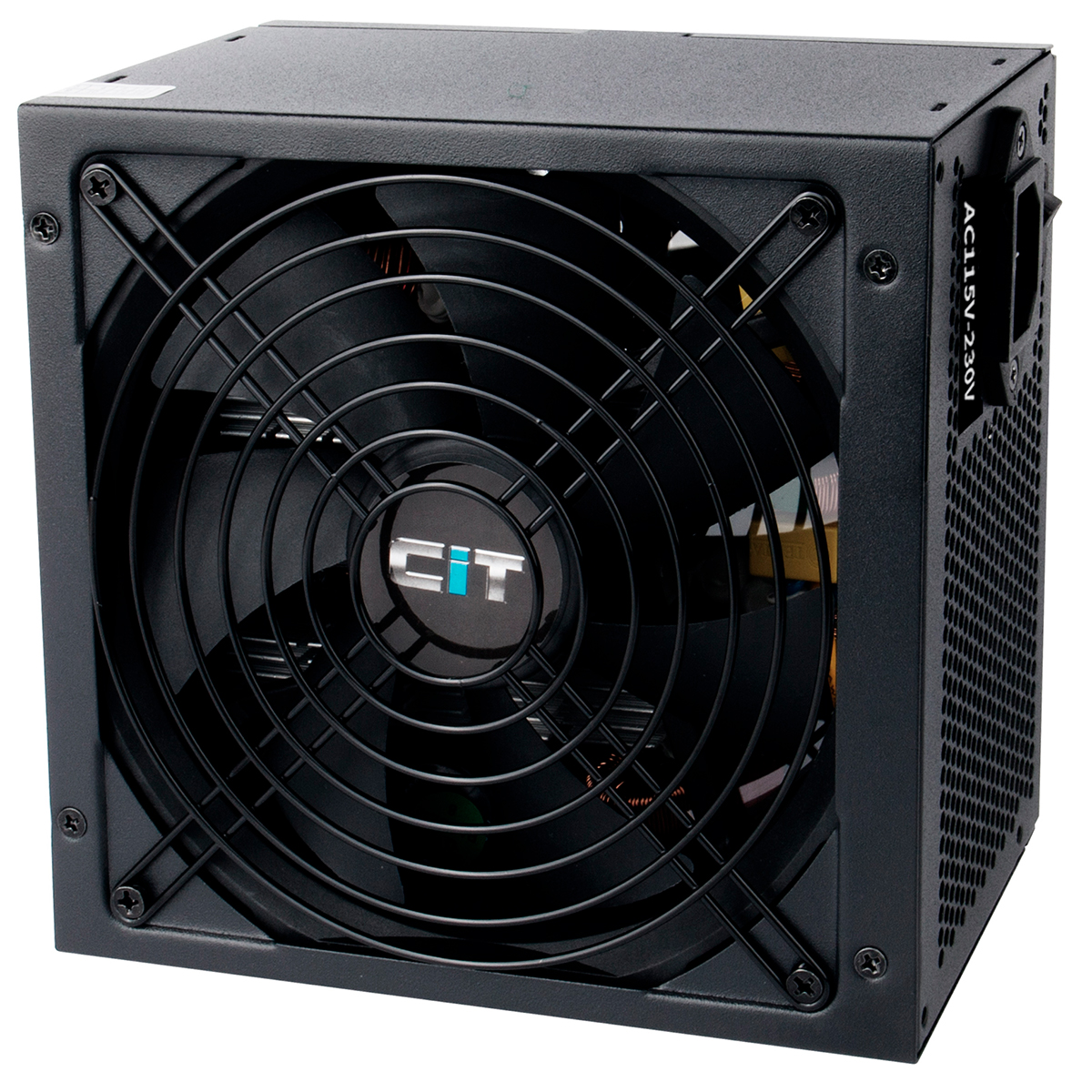

| Cooling: | 14cm Cooling Fan |
| Noise: | 40dBA |
| 80 Plus Certified: | Yes – 80 Plus Bronze |
General Specifications
| Manufacturer Part Number: | FX Pro 400W |
| EAN Number: | 5055492409850 |
| Has Mains Plug: | No |
| Colour: | Black |
| What’s In The Box: | PSU Manual Cable Ties Screws |
| Unit (Product) Dimensions (mm): | 150mm x 85mm x 140mm (W x H x D) |
| Packaging Dimensions (mm): | 255mm x 182mm x 102mm (W x H x D) |
| Net Weight (KGs): | 1.45 KGs |
| Gross Weight (KGs): | 1.65 KGs |
