Description
General data
| Model | Dark Rock Pro 5 |
| TDP (W) | 270 |
| Color option | Black |

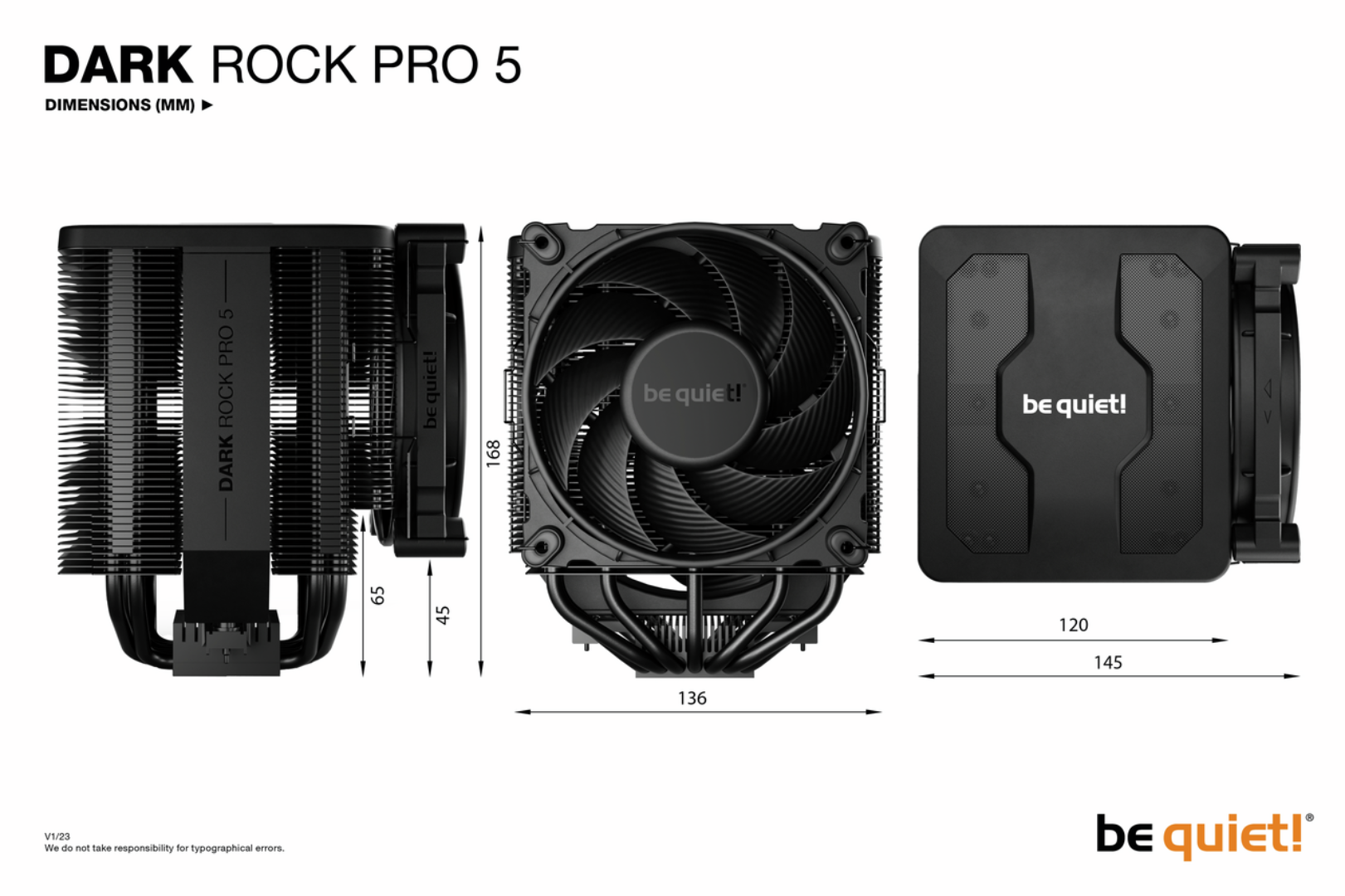

| Overall dimensions without mounting material (L x W x H), (mm) | 145 x 136 x 168 |
| Total weight (kg) | 1.29 |
| Socket compatibility Intel | 1700 / 1200 / 1150 / 1151 / 1155 |
| Socket compatibility AMD | AM5 / AM4 |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 8.9 / 16.3 / 23.3 |
| Number of fans | 2 |
| Lighting connector | – |
Heatsink specifications
| Dimensions (L x W x H), (mm) | 119.5 x 136 x 168 |
| Fin material | Aluminum |
| Surface treatment | Ceramic coating |
| Base material | Copper |
| CPU contact surface | CNC machined |
| Heatpipe number / Diameter (mm) | 7 / 6 |
| Decoupled fan mounting | – |
Fan specifications
| Fan model | Silent Wings 4 / Silent Wings |
| Fan dimensions (mm) | 120 x 120 x 25 / 135 x 135 x 25 |
| Speed @ 100%Â PWMÂ (rpm) | Q: 1500; 1300 / P: 2000; 1700 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 52.5 / 89.1 | 68.7 / 116.6 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.48 / 1.82 |
| Bearing technology | Fluid Dynamic Bearing |
| Motor technology | 6-pole fan motor |
| Rated Voltage (V) | 12 |
| Input current (A) | 0.20 / 0.28 |
| Input power (W) | 2.4 / 3.4 |
| Connector | 4-pin PWM |
| Lighting connector | – |
| Cable length (mm) | 80 / 120 |
| Lifespan (h / 25°C) | 300,000 |
| Y-Cable | ✓ |

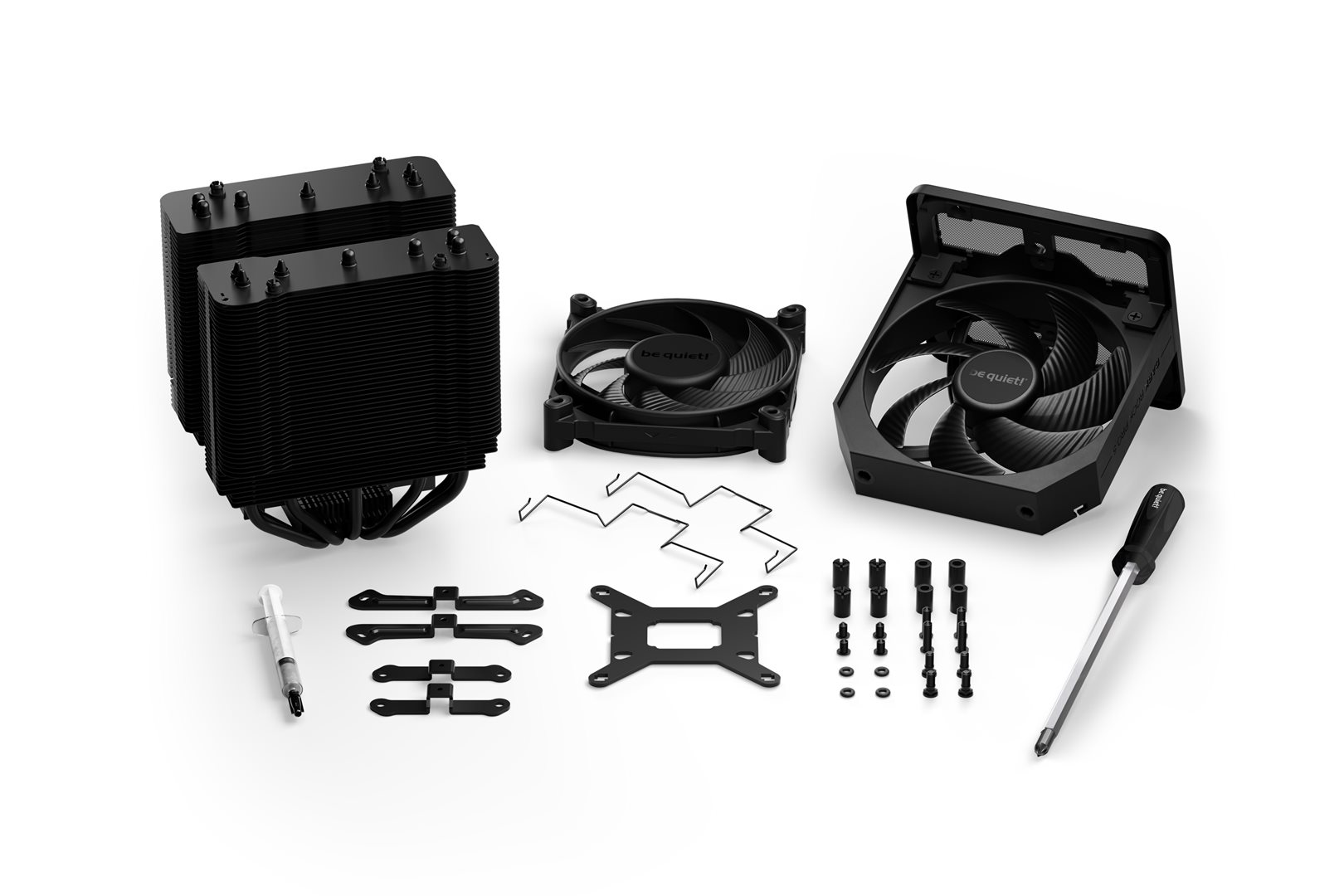

Accessories
| Thermal grease (Type) | Included |
| Mounting set | Intel & AMD |
| Screwdriver | ✓ |
| Y-Cable | – |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
