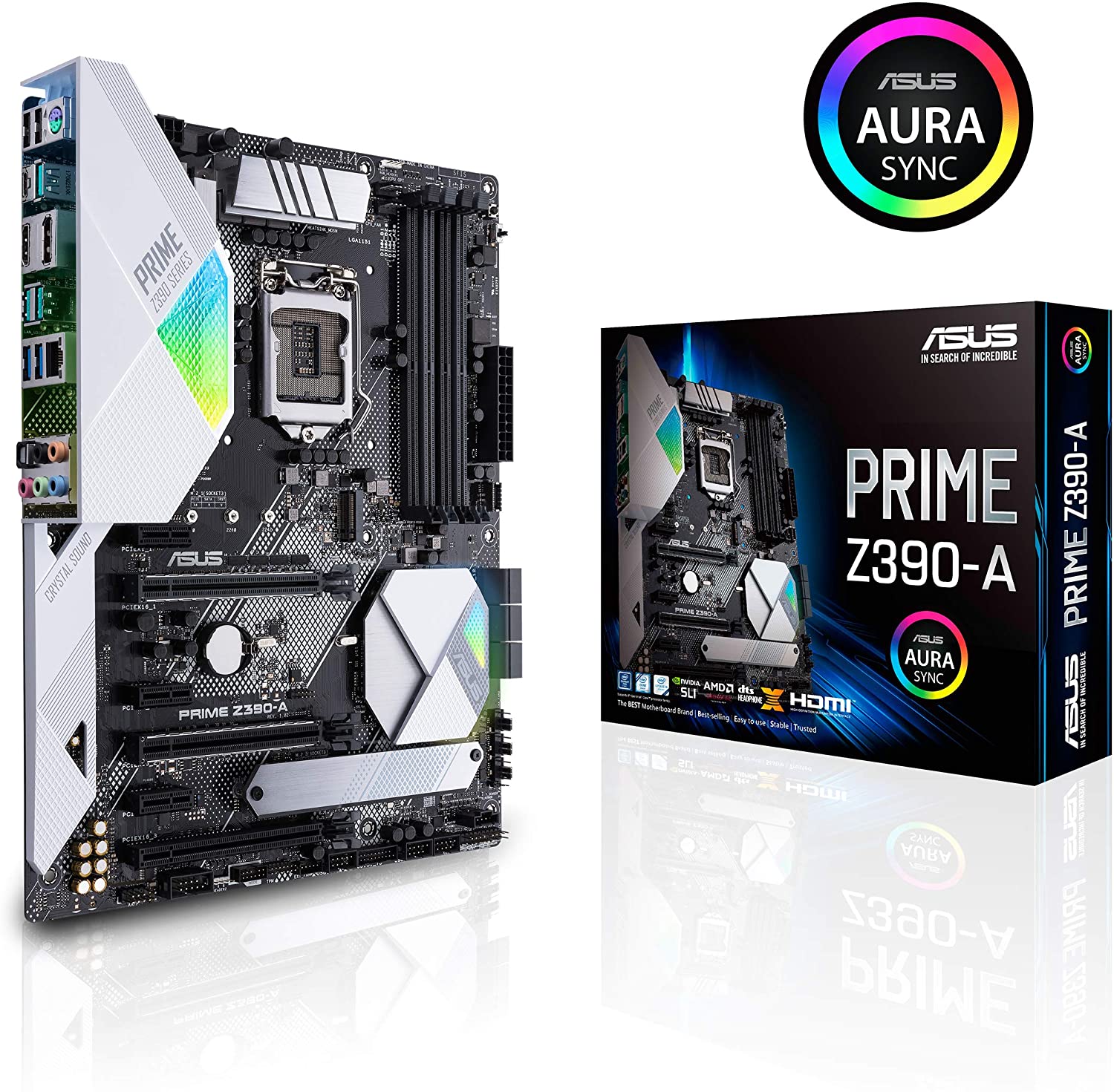

ASUS Prime Z390-A LGA1151 (Intel 8th and 9th Gen) ATX DDR4 DP HDMI M.2 USB 3.1 Gen2 Gigabit LAN Motherboard

£199.00

Out of stock

Categories: ,
Description
Core Specifications
Edition PRIME Z390-A
Form Factor ATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 – 2133
  • DDR4 – 2400
  • DDR4 – 2666
  • DDR4 – 2800(OC)
  • DDR4 – 3000(OC)
  • DDR4 – 3200(OC)
  • DDR4 – 3300(OC)
  • DDR4 – 3333(OC)
  • DDR4 – 3400(OC)
  • DDR4 – 3466(OC)
  • DDR4 – 3600(OC)
  • DDR4 – 3733(OC)
  • DDR4 – 3866(OC)
  • DDR4 – 4000(OC)
  • DDR4 – 4133+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1220A 7.1 HD Audio + Crystal Sound 3
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)

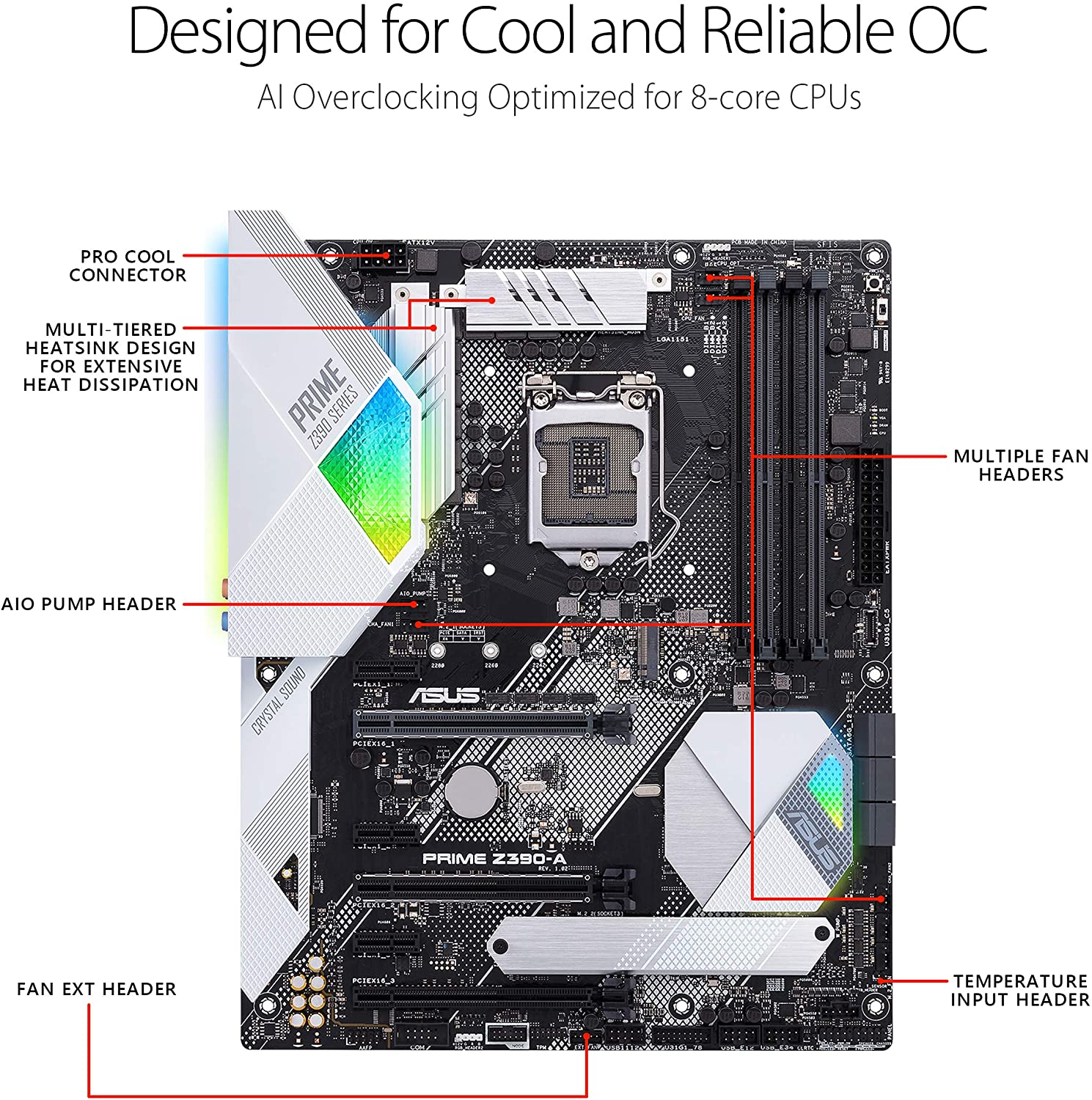

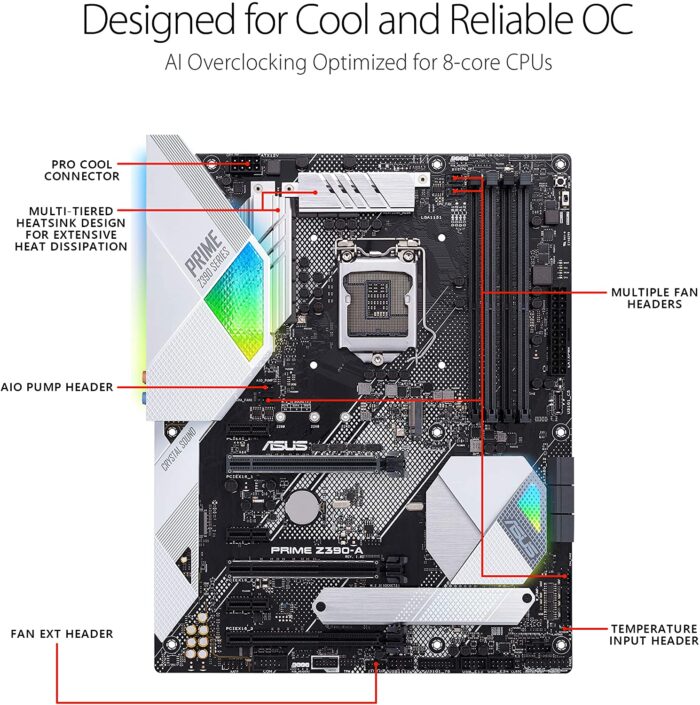

Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x CPU_OV
  • 1 x EXT_FAN
  • 1 x Front Panel Audio Header
  • 1 x M.2 Fan Header
  • 1 x MemOK!-II switch
  • 1 x NODE connector
  • 1 x Power button
  • 6 x SATA III – 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel(s) (Q-Connector)
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM Header
  • 3 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen1 Type-C Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)

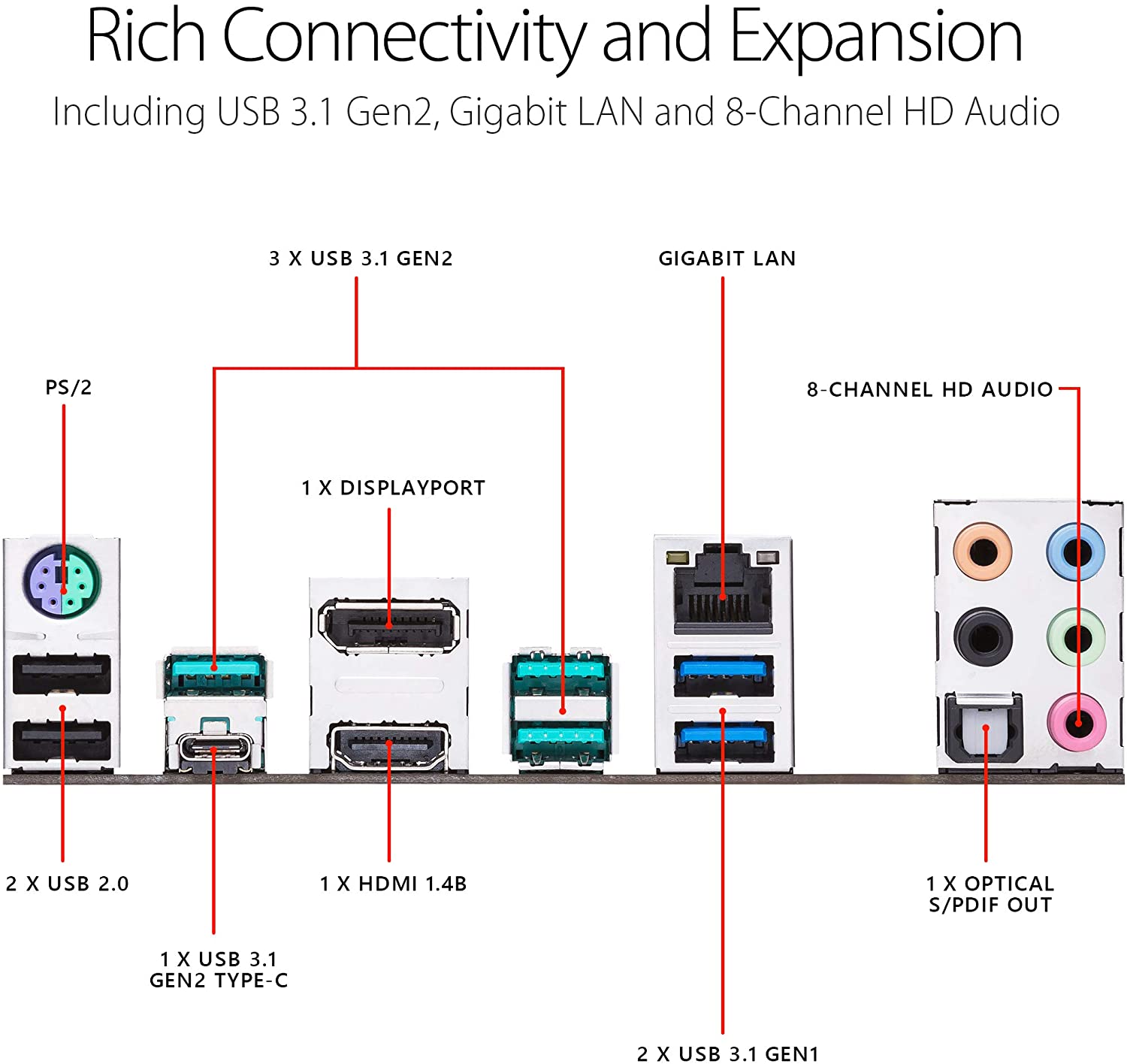

Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen1 Type-A
  • 3 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional information
Weight 2 kg
