Description
Clock: GPU / Memory
Boost Clock: Up to 2340 MHz / 16 Gbps
Game Clock: 2105 MHz / 16 Gbps
Base Clock: 1925 MHz / 16 Gbps
Key Specifications
7nm AMD Radeon RX 6900 XT Graphics
16GB 256-bit GDDR6
AMD RDNA 2 Architecture
Hardware Raytracing
PCI Express 4.0 Support
3 x 8-pin Power Connectors

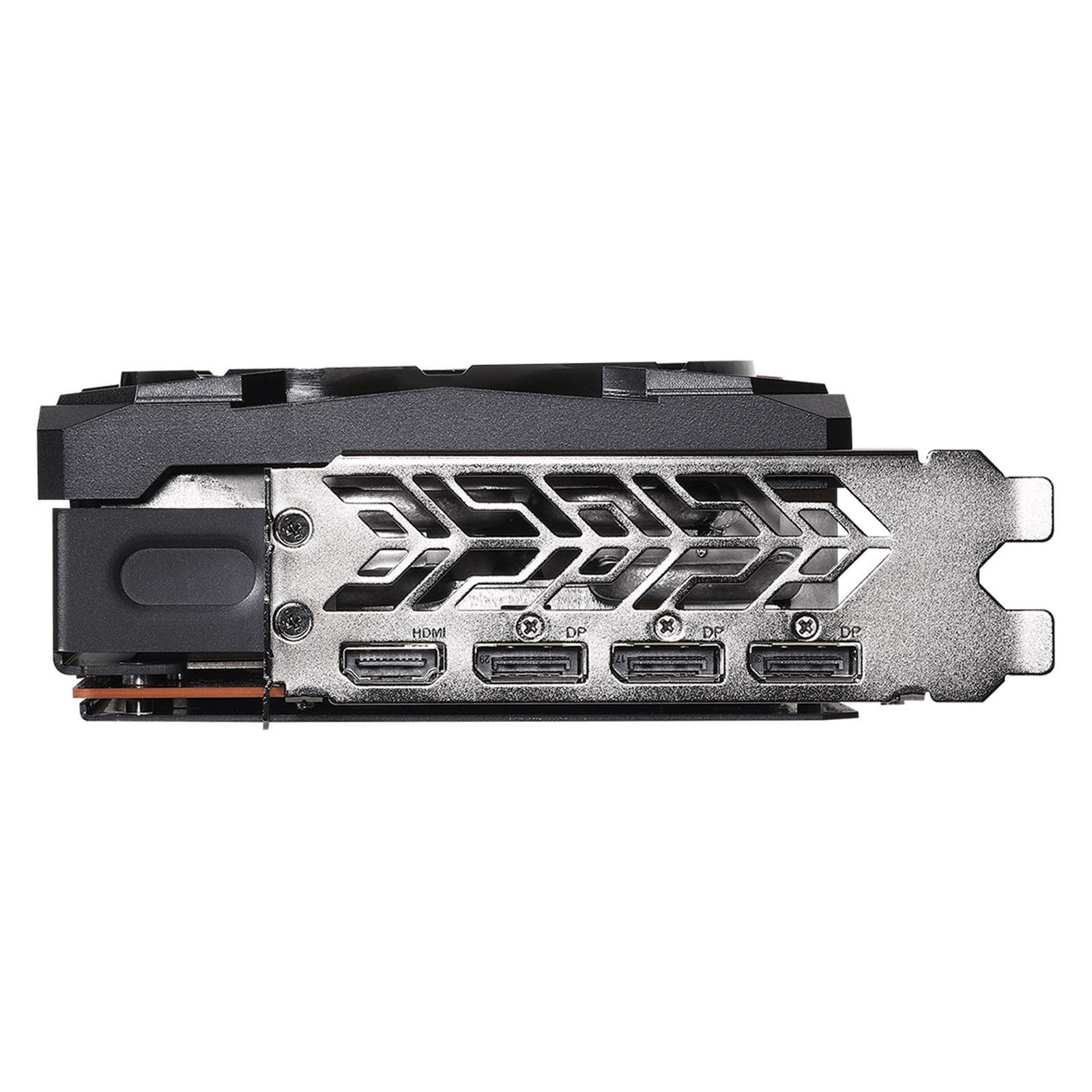

3 x DisplayPort 1.4 with DSC / 1 x HDMI 2.1 VRR
Key Features
Polychrome SYNC
Phantom Gaming 3X Cooling System
Striped Axial Fan
Reinforced Metal Frame

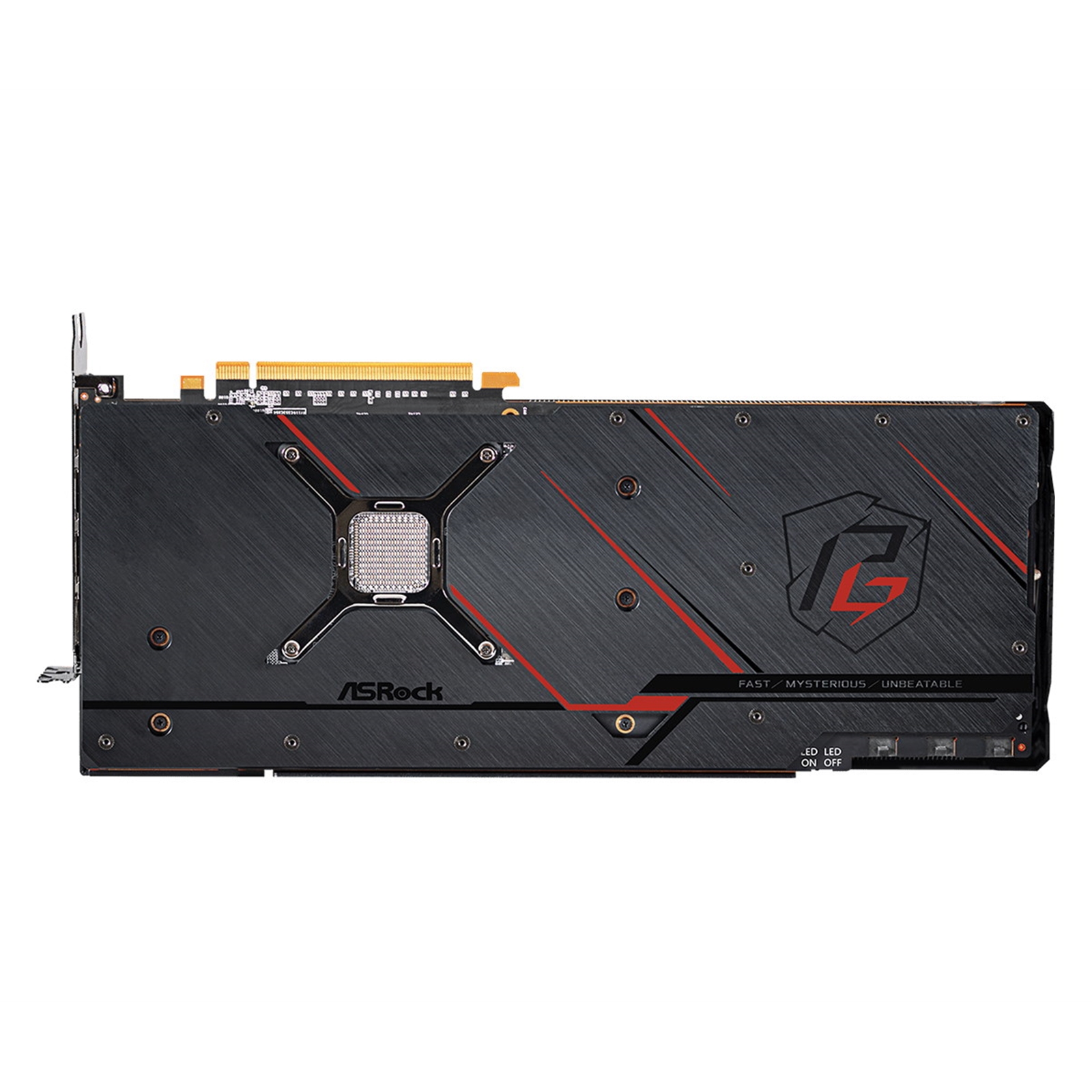

Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card
Phantom Gaming 3X Cooling System
For Cool and Silent.
Crafted for the best balance between the thermal efficiency and silence by all the details
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Polychrome SYNC
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED On/Off Switch
On or Off? Switch as You Want.
You can switch not only the build-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.
ARGB Pin-header
More ARGB, More Fancy.
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.
Specifications
Graphics Engine
AMD Radeon RX 6900 XT Graphics
Bus Standard
PCI Express 4.0 x16
DirectX
12 Ultimate
OpenGL
4.6
Memory
GDDR6 16GB
Engine Clock
Boost Clock: Up to 2340 MHz
Game Clock: 2105 MHz
Base Clock: 1925 MHz
Stream Processors
5120
Compute Units
72
Memory Clock
16 Gbps
Memory Bus
256-bit
Resolution
Digital Max Resolution: 7680 x 4320
Interface
1 x HDMI 2.1 VRR
3 x DisplayPort 1.4 with DSC
HDCP
Yes
Multi-View
4
Recommended PSU
900W
Power Connector
3 x 8-pin
Accessories
1 x Quick Installation Guide
Dimensions
330 x 140 x 56 mm, 2.8-slot
Net Weight
1784 g
