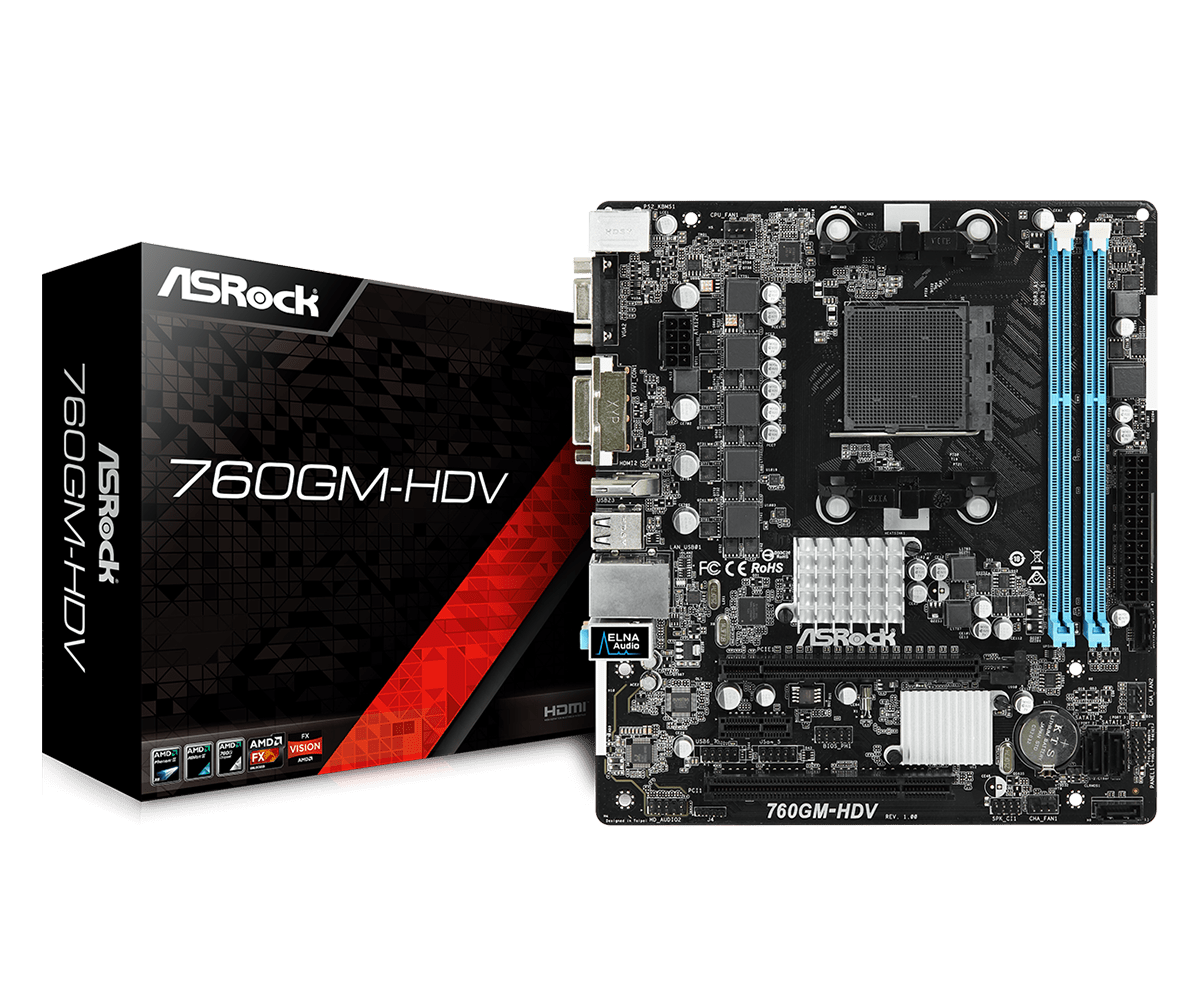

Description

AM3+ 8-Core Processor Support

This board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo.

Solid Capacitor Design

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

CPU

Supports Socket AM3+ processors
Supports Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
Supports 8-Core CPU
Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration)
4 + 1 Power Phase design
Supports CPU up to 125W
AMD LIVE!™ Ready
Supports AMD’s Cool ‘n’ Quiet Technology
FSB 2600 MHz (5.2 GT/s)
Supports Untied Overclocking Technology
Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset

Northbridge: AMD 760G
Southbridge: AMD SB710

Memory

Dual Channel DDR3 Memory Technology
2 x DDR3 DIMM Slots
Supports DDR3 1800(OC) / 1600(OC) / 1333/1066 non-ECC, un-buffered memory
Max. capacity of system memory: 32GB

BIOS

8Mb AMI Legal BIOS
Supports “Plug and Play”
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support
CPU, VCCM, NB Voltage Multi-adjustment

Onboard Graphics

Integrated AMD Radeon 3000 Graphics
DX10 class iGPU, Pixel Shader 4.0
Max. shared memory 1024MB
Three graphics output options: D-Sub, DVI-D and HDMI
Supports HDMI with max. resolution up to 1920×1080 @ 60Hz
Supports DVI-D with max. resolution up to 1920×1080 @ 60Hz
Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
Supports HDCP with DVI-D and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D Port

Audio

7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Supports Surge Protection
ELNA Audio Caps

LAN

PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Expansion Slots

1 x PCI Express 2.0 x16 Slot (PCIE1: x16 mode)
1 x PCI Express 2.0 x1 Slot
1 x PCI Slot

Storage Interface

4 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug

Internal I/O Connectors

1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
2 x Chassis Fan Connectors (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

Rear I/O Connectors

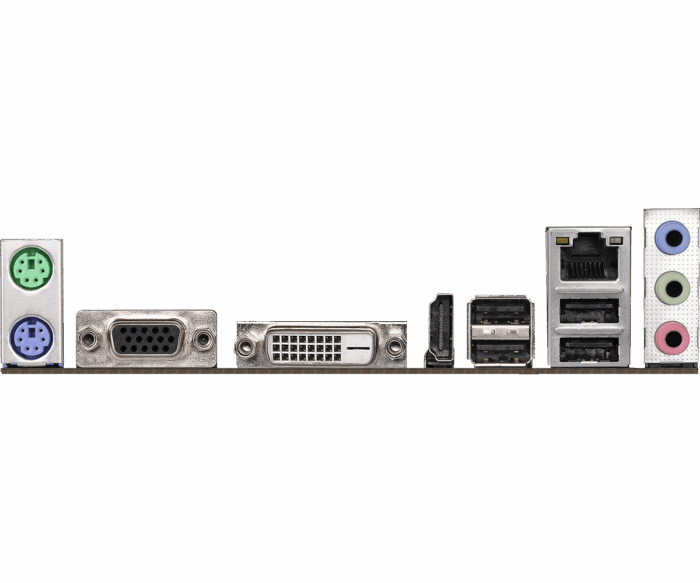

1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
4 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Accessories

Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables

Hardware Monitor

CPU/Chassis temperature sensing
CPU/Chassis Fan Tachometer
CPU/Chassis Quiet Fan
CPU/Chassis Fan multi-speed control
CASE OPEN detection
Voltage monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

Micro ATX Form Factor: 8.6-in x 7.6-in, 21.8 cm x 19.3 cm
Solid Capacitor design

OS

Microsoft® Windows® 10 64-bit / 7 32-bit / 7 64-bit

Regulations/Certifications/Remarks

FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
