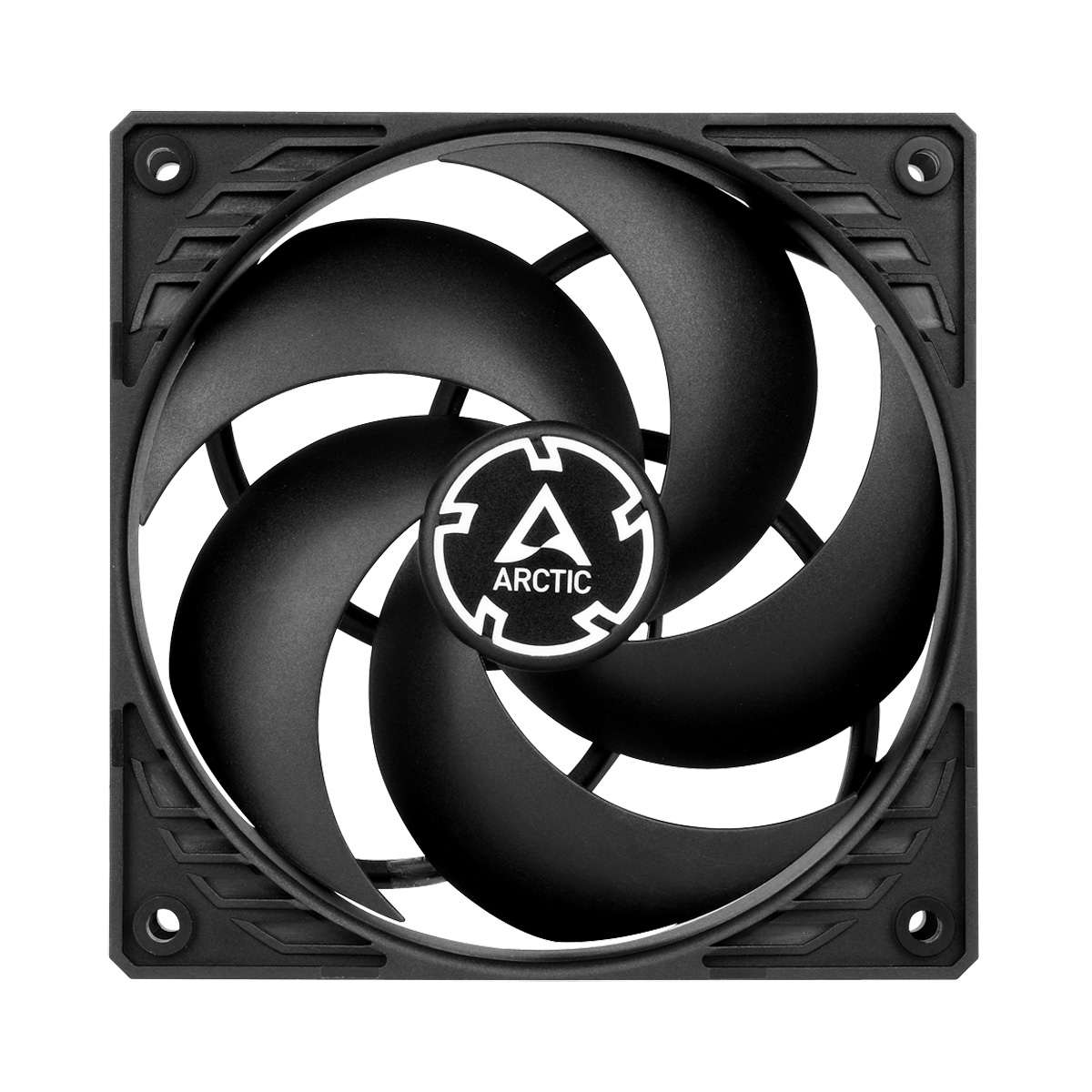

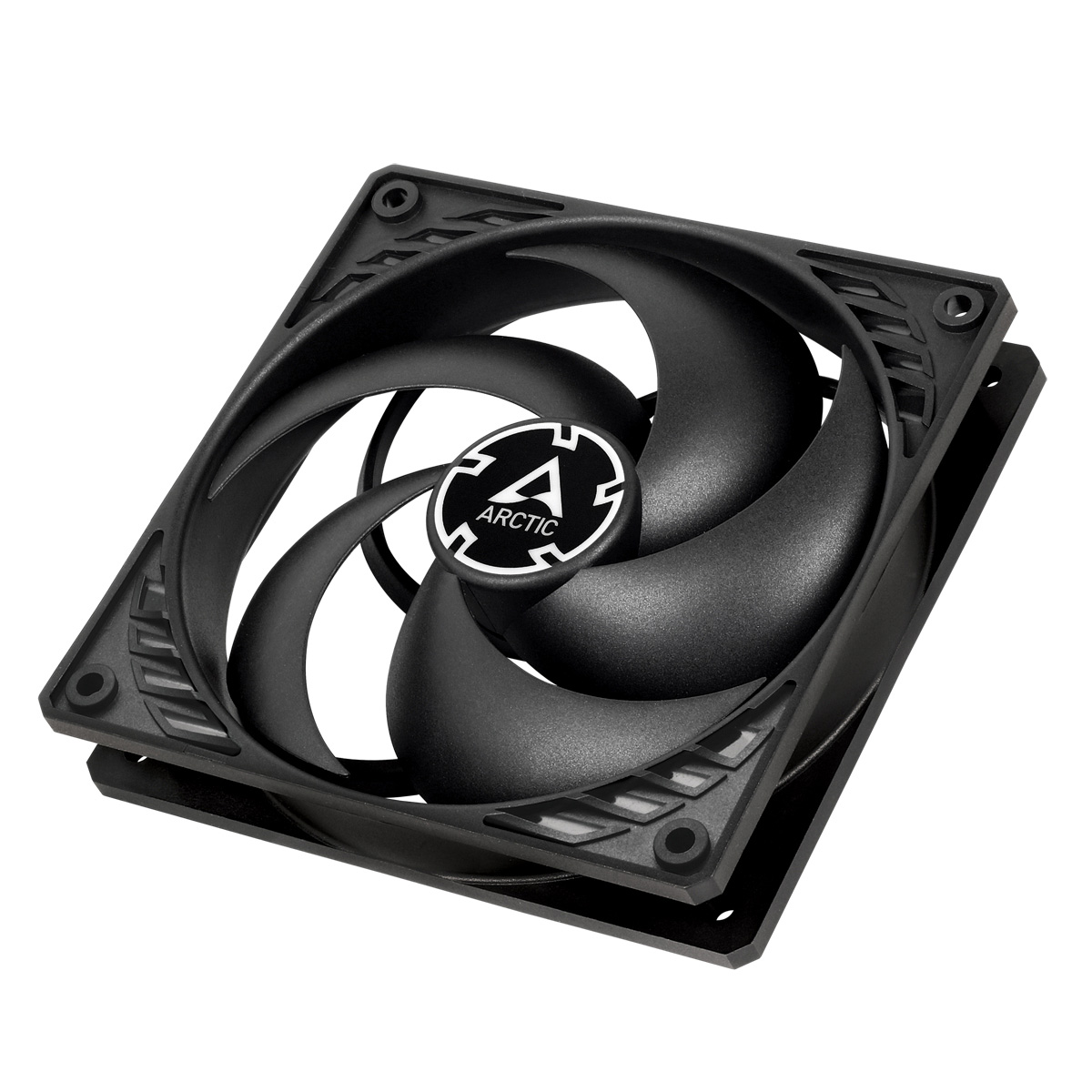

Arctic P12 TC Pressure-Optimised 12cm Case Fan w/ Temperature Control, Fluid Dynamic, 350-1800 RPM

£10.00

Out of stock

Location: FAN GRID SKU: 4895213702454 Categories: ,
Description
P-Series-Pressure-Optimised

Optimised for Static Pressure

During the development of the new P12 TC, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 TC is particularly suitable for use on heatsinks and radiators.

Maximum-Quietness_EN

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Fluid-Dynamic-Bearing_New_EN

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

P12-TC-Silent-Temperature-Control-EN

Ideal Temperature Control

The temperature sensor is on a 40 cm cable and can be placed in the warm areas of your computer. This assures temperatures no higher than 38 °C anywhere in the case and supports the cooling of your CPU or graphics card. On the other side this fan keeps the noise level absolutely minimal and only increases the speed if necessary.

P-Series-Intake-Exhaust-in-Case

Individual Installation

Warm air is drawn out of the enclosure

Cold air is drawn into the enclosure from the outside

General Data
Performance
Fan Speed: 350—1800 rpm
Airflow: 56.3 cfm | 95.7 m³/h
Static Pressure: 2.20 mmH2O
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Control Type: Temperature Control
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0—40 °C
Warranty: 6 Years
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 3.9 V
Current | Voltage: 0.08 A | 12 V DC
Cable Length: 400 mm
Size & Weight
Length:120 mm
Width: 120 mm
Height: 25 mm
Weight: 139 g
Additional information
Weight0.2 kg
