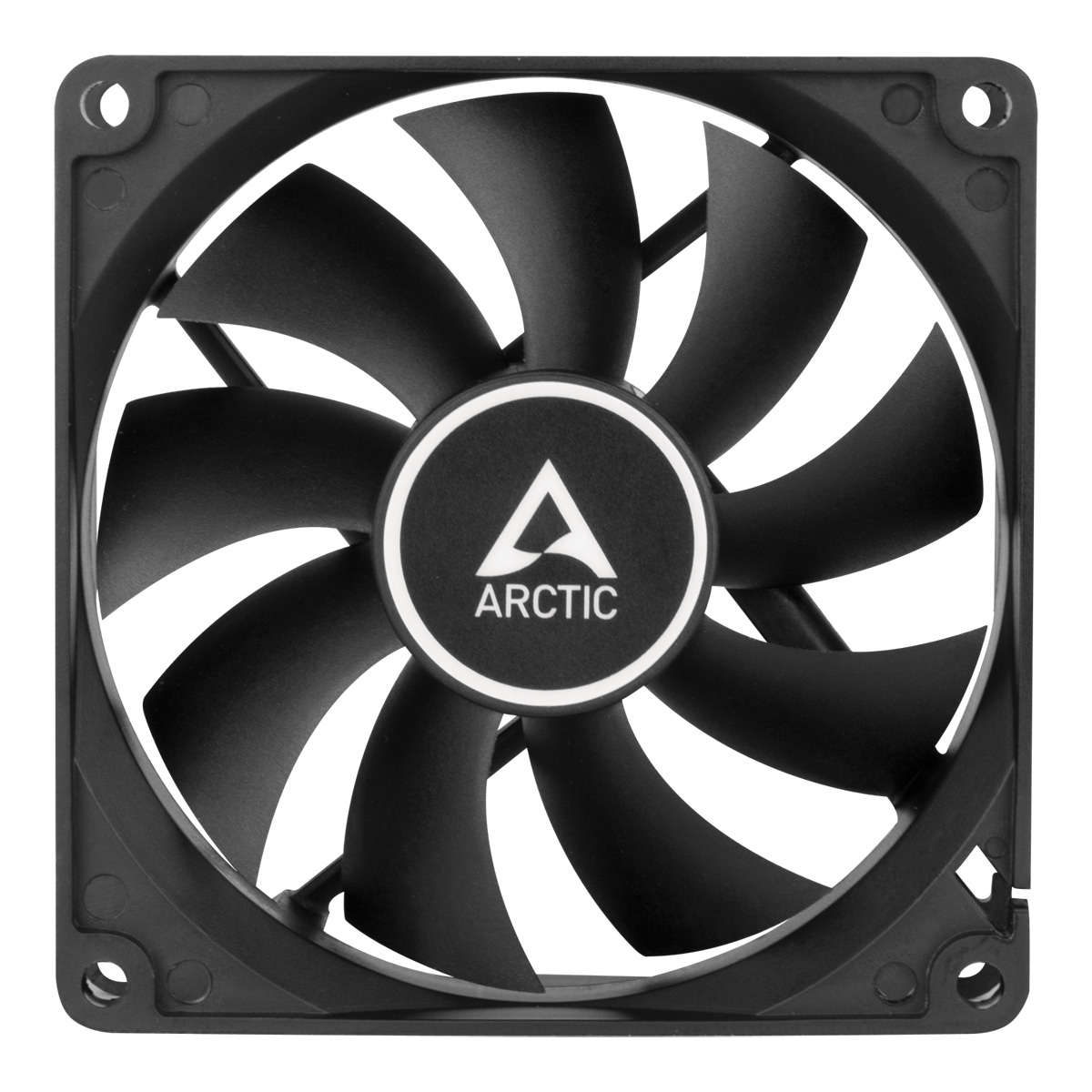

Arctic F9 9.2cm PWM PST Case Fan, Black, 9 Blades, Fluid Dynamic

£8.00

In stock

SKU: 4895213702904 Categories: ,
Description
Maximum-Quietness_EN

Maximum Quietness, Minimum Vibration

Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter.

black_0dB_EN

Perfect Case Fan Regulation with PWM

The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.

CHANGE PWM-SETTINGS

PWM-PST-Cable-black

PWM Sharing Technology (PST) Lowers Noise

If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes ten fans to double the noise level). But what does it help if they don’t work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler’s PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.

Black_Optimised_Fan_Design_New

Innovative Design Enables Quiet and Efficient Ventilation

The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

Fluid-Dynamic-Bearing_New_EN

Long Service Life

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.

F9_PWM_PST_black_intake-exhaust-in-case

Two Way Installation

Blow warm air out of the case

Draw cool air into your case

General Data
Performance
Fan Speed: 150—1800 rpm
Airflow:43 cfm | 73.1 m³/h
Static Pressure: 1.35 mmH2O
Noise Level: 0.4 Sone
Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin Connector + 4-Pin Socket
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0—40 °C
Warranty: 6 Years
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 8.5 V
Current | Voltage: 0.15 A | 12 V DC
Cable Length: 400 mm

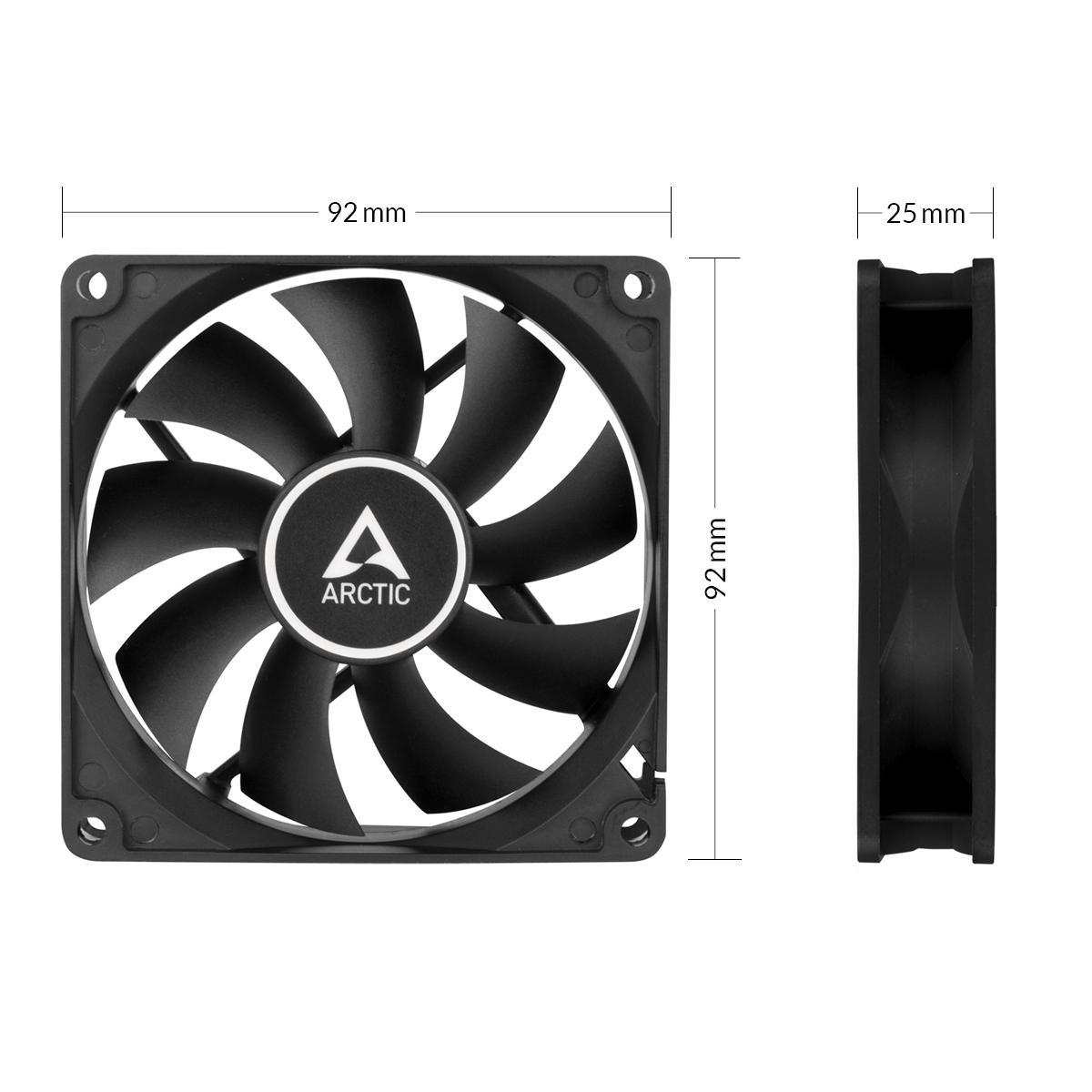

Size & Weight
Length: 92 mm
Width: 92 mm
Height: 25 mm
Weight: 85 g
Additional information
Weight 0.2 kg
