Description
Description

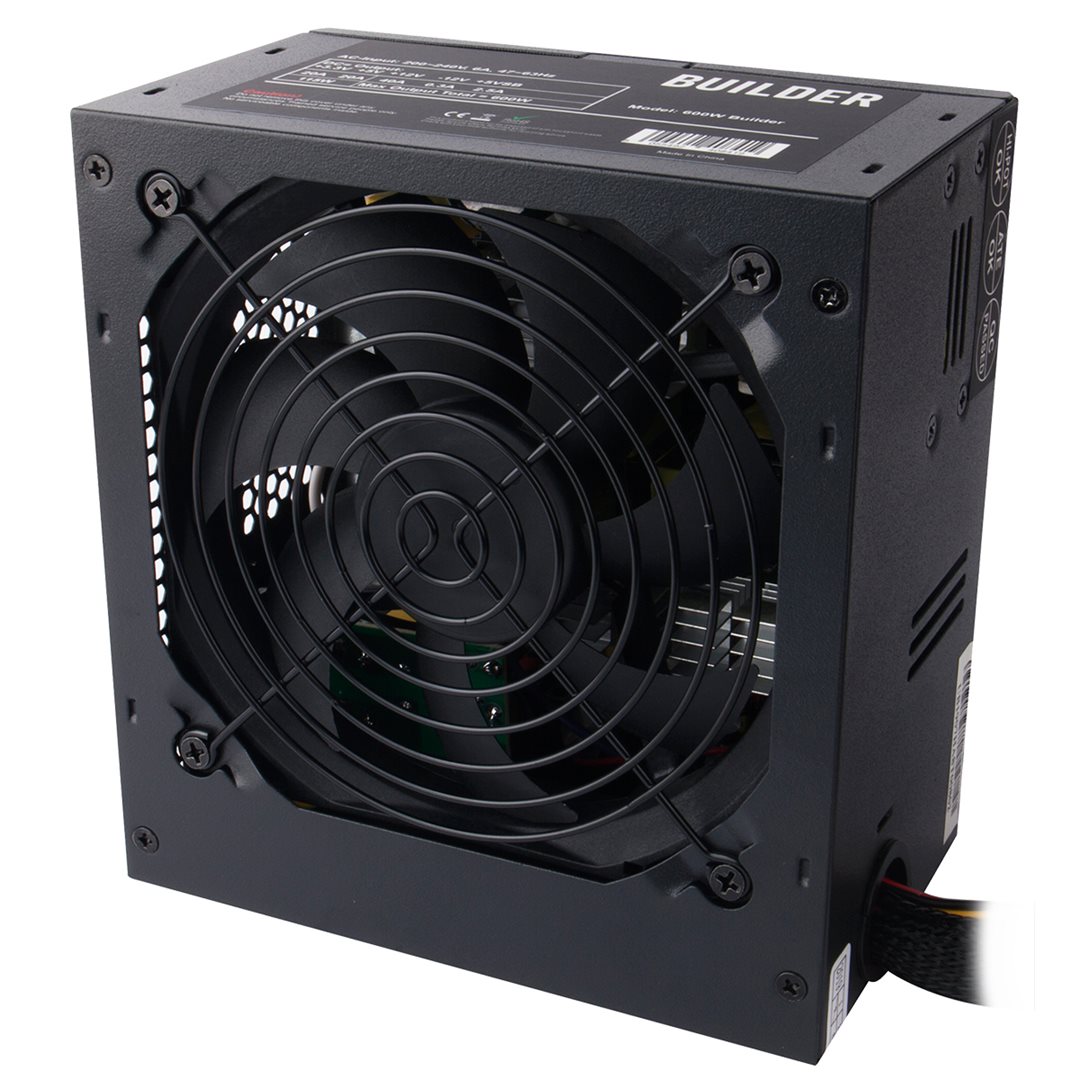

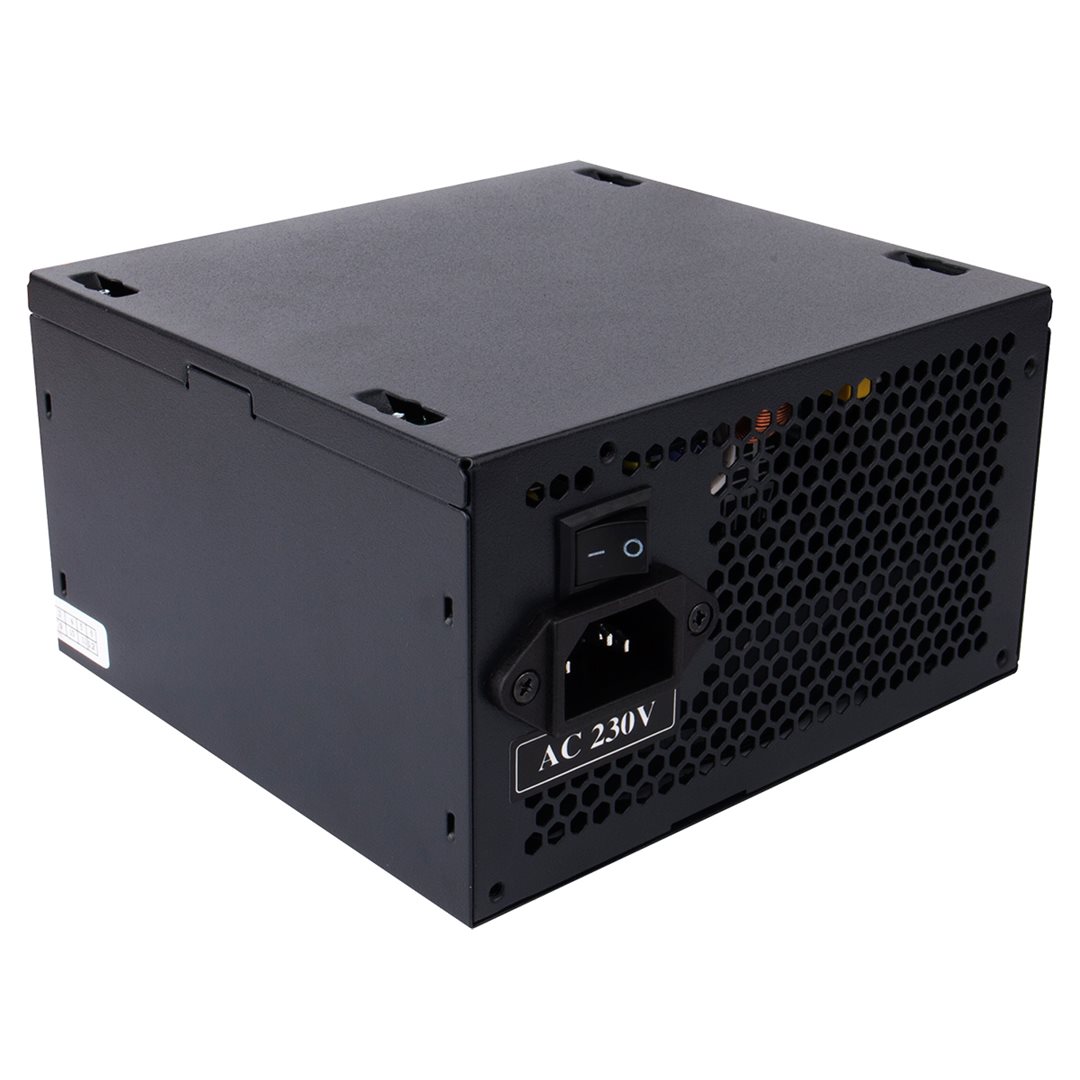

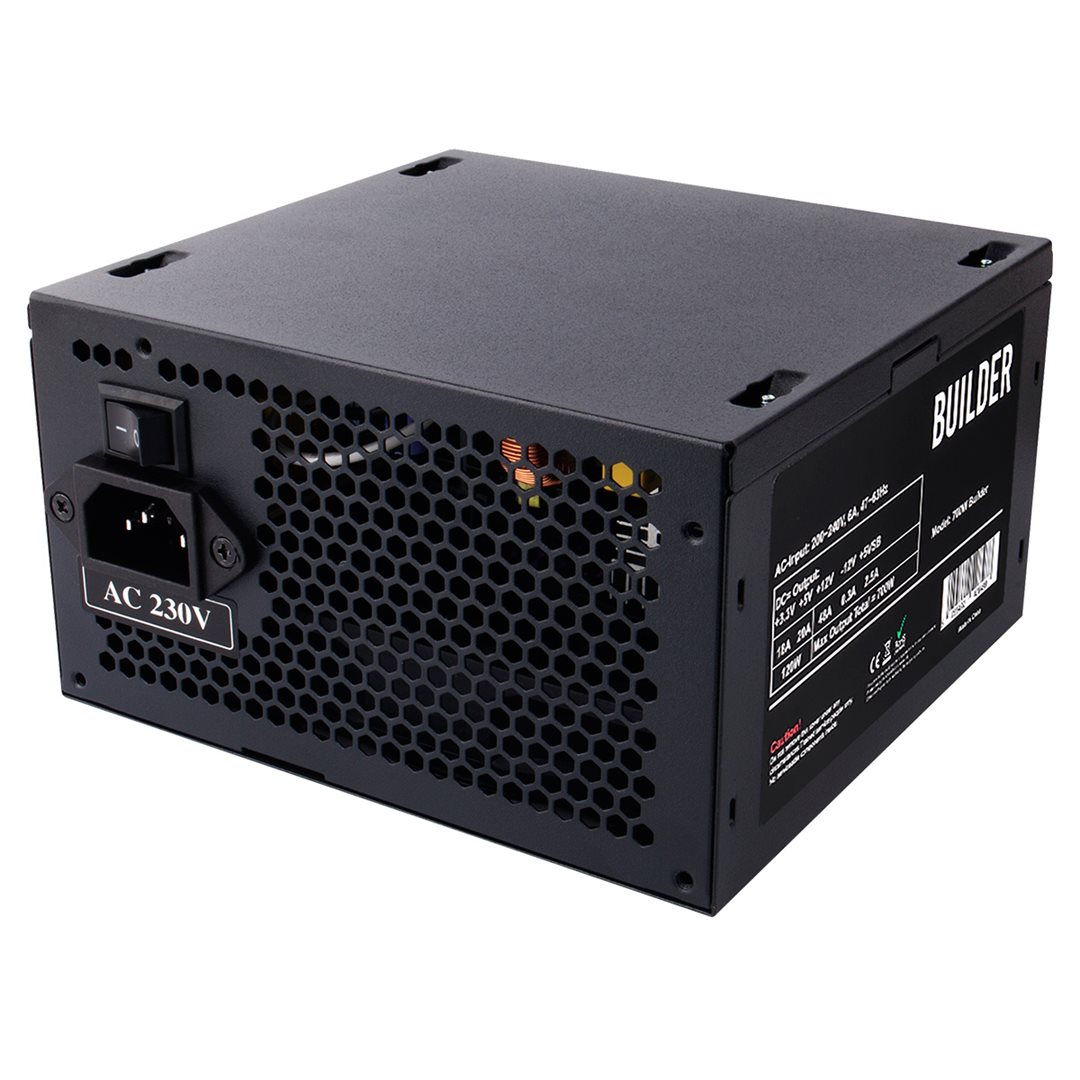

The new Builder range, are non-modular ATX power supplies which are an excellent entry level power supply for system integrators who are looking to build basic systems or first time builders looking for a power supply that brings quality and value. This new range comes in two power configurations, a 600W and 700W version.
PSU Specifications

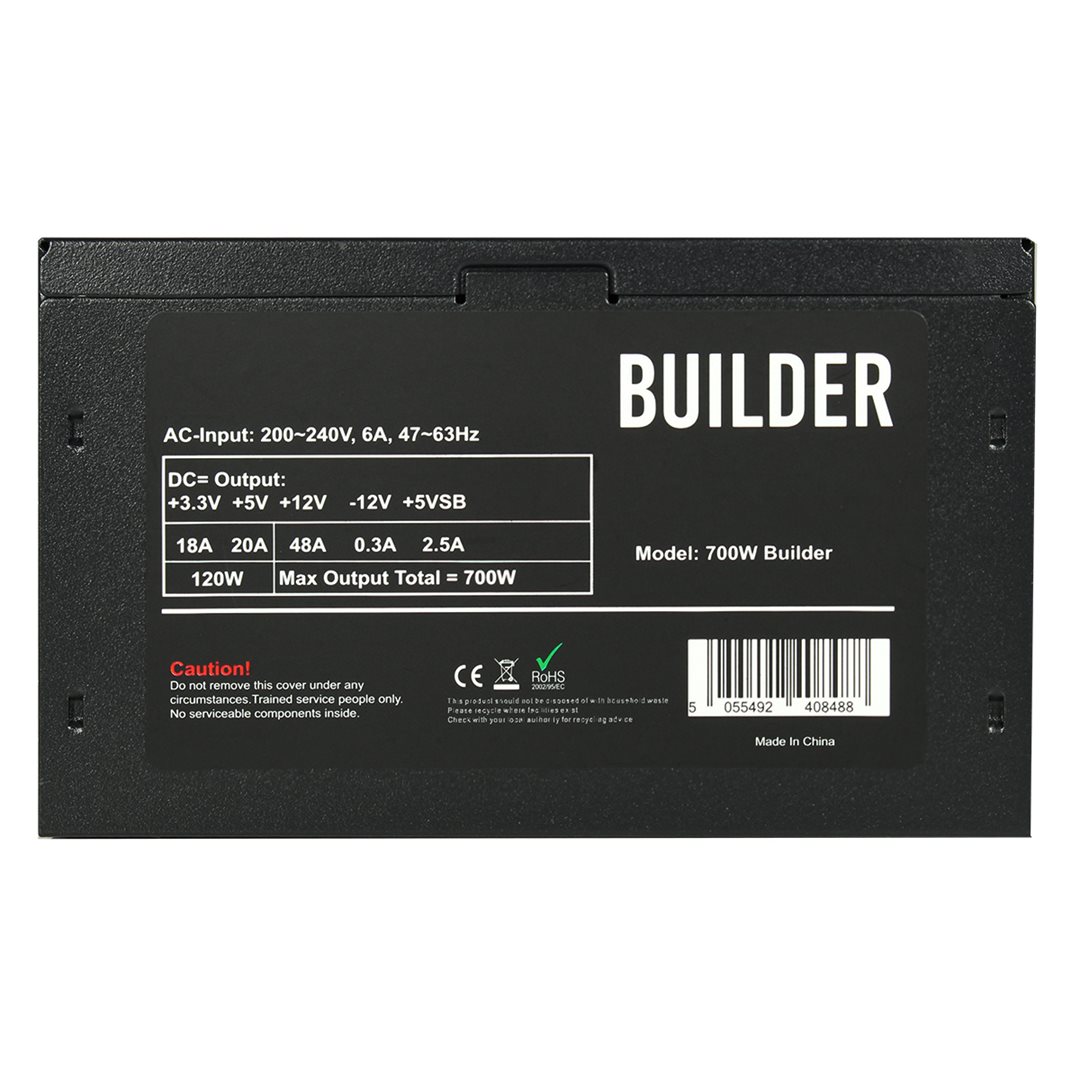

| AC INPUT: 200-240VAC 6A 47-63HZ | |||||
| DC Output Max |
+3.3V | +5V | +12V1 | -12V | +5VSB |
| 18A | 20A | 48A | 0.3A | 2.5A | |
| 700W | |||||

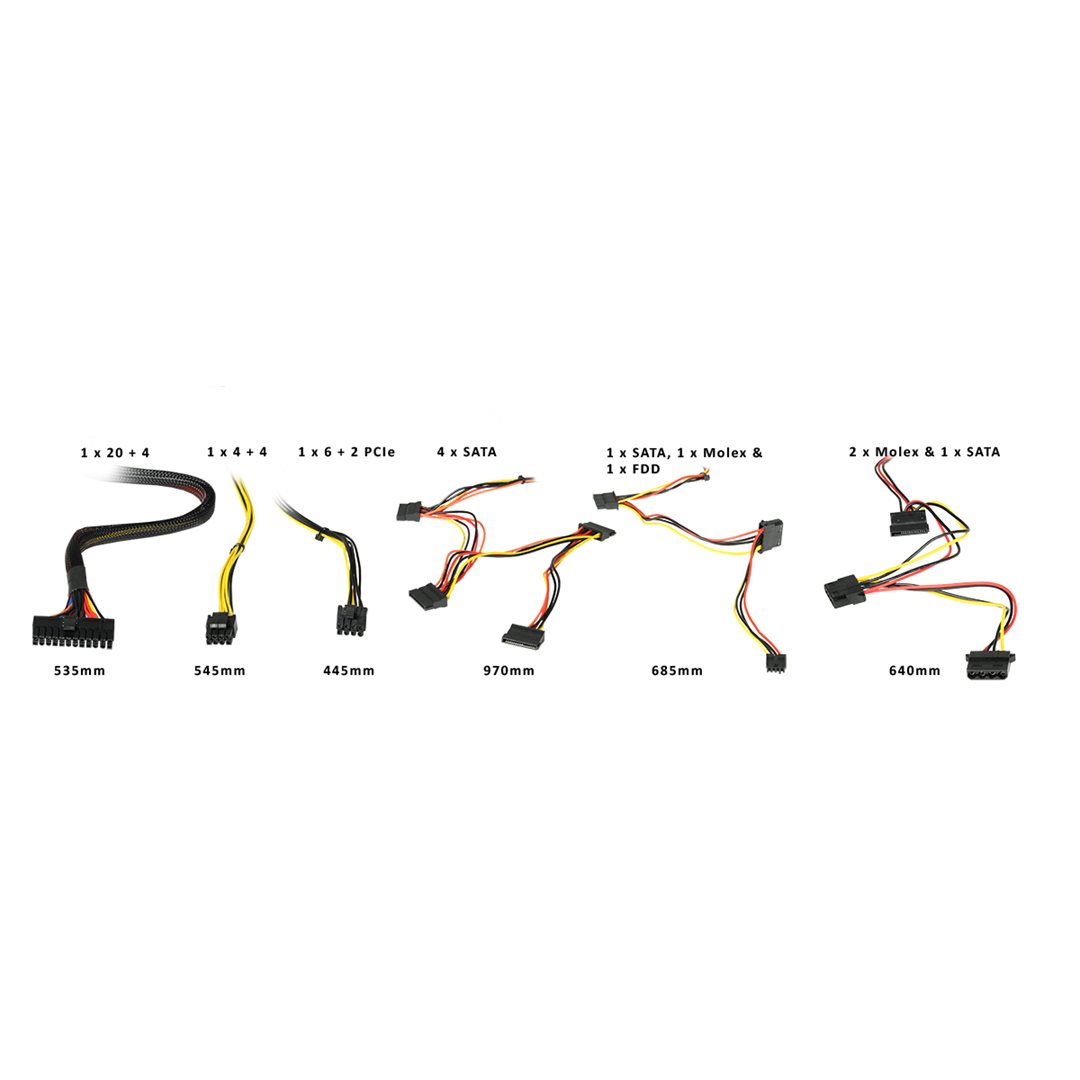

Connectors
 |
20+4 Pin Main Connectors:
1 |
 |
4+4 Pin 12V Connectors:
1 |
 |
SATA Connectors:
6 |
 |
4-Pin Molex Connectors:
3 |
 |
6+2 Pin PCI-e Connectors:
1 |
 |
Floppy Drive Connectors:
1 |
Detailed Specifications
| Dimensions: | 150mm x 85mm x 140mm (W x H x D) |
| Input Voltage: | 200-240VAC |
| Input Current: | 6A |
| Input Frequency Range: | 47-63HZ |
| PFC: | PPFC |
| Power Good Signal: | 306ms |
| Hold Up Time: | 8ms |
| Efficiency: | 70% |
| MTBF: | 50,000 Hours |
| Protection: | OVP / UVP / OLP / OPP / SCP |
| Power: | 700W |
| Operation Temperature: | 0-40°C |
| Safety: | CE / CCC |
| Cooling: | 120mm Cooling Fan |
| Noise: | 40dBA |
General Specifications
| Manufacturer Part Number: | 700W BUILDER |
| EAN Number: | 5055492408488 |
| Has Mains Plug: | No |
| Colour: | Black |
| What’s In The Box: | PSU Cable Ties Screws |
| Unit (Product) Dimensions (mm): | 150mm x 85mm x 140mm (W x H x D) |
| Packaging Dimensions (mm): | 231mm x 170mm x 96mm (W x H x D) |
| Net Weight (KGs): | 1.28 KGs |
| Gross Weight (KGs): | 1.39 KGs |
