Description

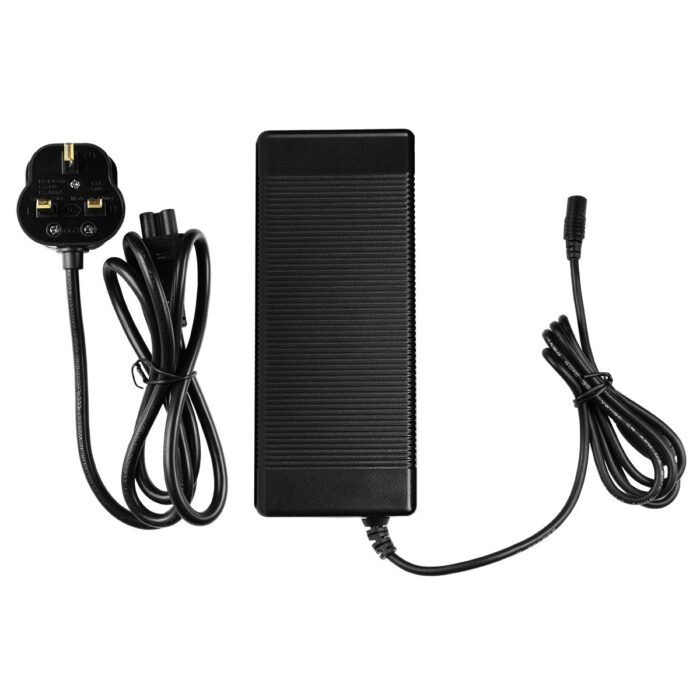

120W 19.5V 6.15A Universal AC Adapter with 8 tips, used for many brands of business and gaming Laptops, Ultrabooks and Mini laptops.
Compatible with Thin Mini-ITX Motherboards.

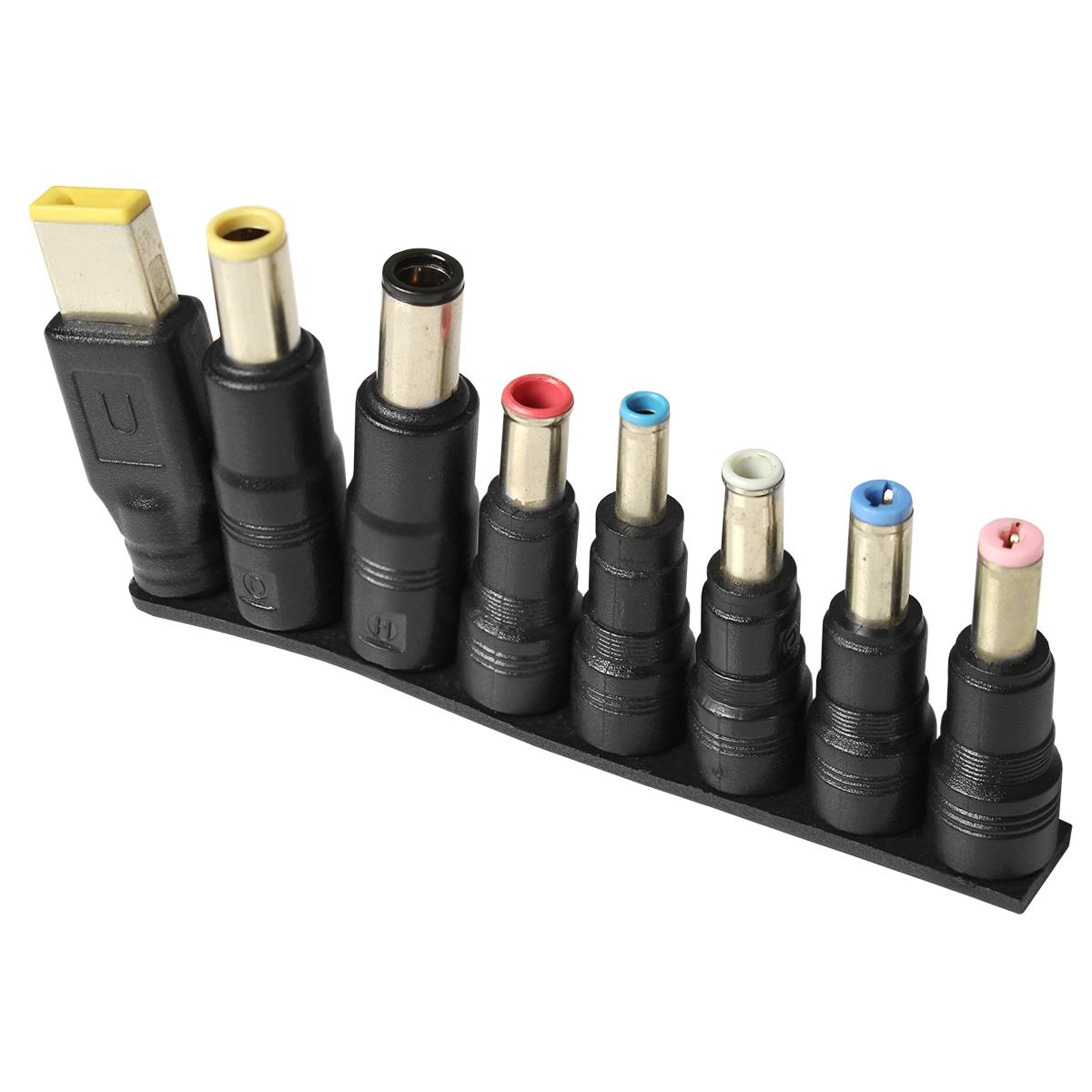

Plug B (Pink)
DC Plug Outer – 5.5mm, Diameter Inner – 1.7mm
Compatible with Acer, Packard Bell, eMachines & Gateway Laptops
Compatible with Acer Ultrabooks
Compatible with Acer, Dell & Packard Bell Netbooks
Plug D (White)
DC Plug Outer – 5.5mm, Diameter Inner – 3.0mm
Compatible with Samsung Laptops
Compatible with Samsung Netbooks
Plug F (Blue)
DC Plug Outer 4.5mm, Diameter Inner 3.0mm
Compatible with Asus Laptops
Plug H (Black)
DC Plug Outer – 7.4mm, Diameter Inner – 5.0mm
Compatible with HP, Compaq Laptops
Compatible with HP Ultrabooks
Plug L (Blue)
DC Plug Outer – 5.5mm, Diameter Inner – 2.5mm
Compatible with Acer, HP, Compaq, Asus, MSI, Toshiba, IBM, Lenovo, LG, Fujitsu BenQ Laptops
Compatible with Toshiba, Fujitsu, MSI & Lenovo Ultrabooks
Compatible with Toshiba, Lenovo, MSI, Advent BenQ &LG Netbooks
Plug M (Red)
DC Plug Outer 6.5mm, Diameter Inner 4.5mm
Compatible with Sony Laptops
Plug Q (Yellow)
DC Plug Outer 7.4mm, Diameter Inner 5.0mm
Compatible with Dell Laptops
Plug U (Yellow)
DC Plug Outer/Diameter Inner – Square
Compatible with Lenovo IdeaPad, Thinkpad Laptops
Compatible with Lenovo IdeaPad, Thinkpad Ultrabooks
Specifications
| Input Voltage: | 100-240V AC 50/60Hz. |
| Input Current: | 2.0A |
| Output Voltage: | 19.5 DC |
| Output Power: | Up to 120W |
| No Load Output: | Less Than Or Equal To 0.21W |
| DC Cable: | 1.0m Length |
| AC Cable: | 3pin UK plug, 1.2m length |
General Specifications

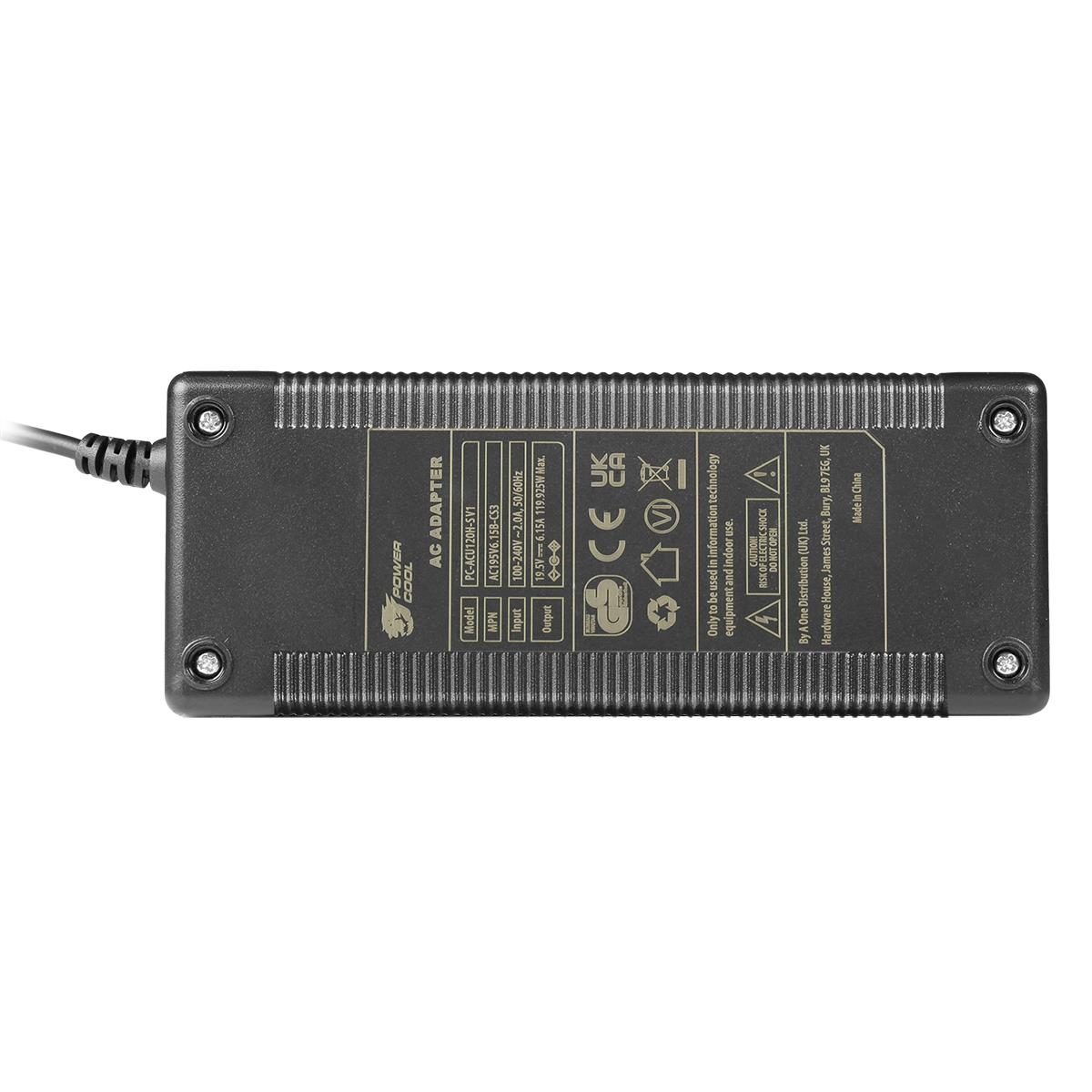

| Manufacturer Part Number: | PC-ACU120H-S V1 |
| EAN Number: | 5055492412966 |
| Has Mains Plug: | Yes |
| Colour: | Black |
| What’s In The Box: | 120W Laptop Adapter 3pin UK AC Power Cord 8 x DC Tips Manual |
| Unit (Product) Dimensions (mm): | 67mm x 41mm x 168mm (W x H x D) |
| Packaging Dimensions (mm): | 142mm x 237mm x 51mm (W x H x D) |
| Net Weight (KGs): | 0.59 KGs |
| Gross Weight (KGs): | 0.83 KGs |
