Description

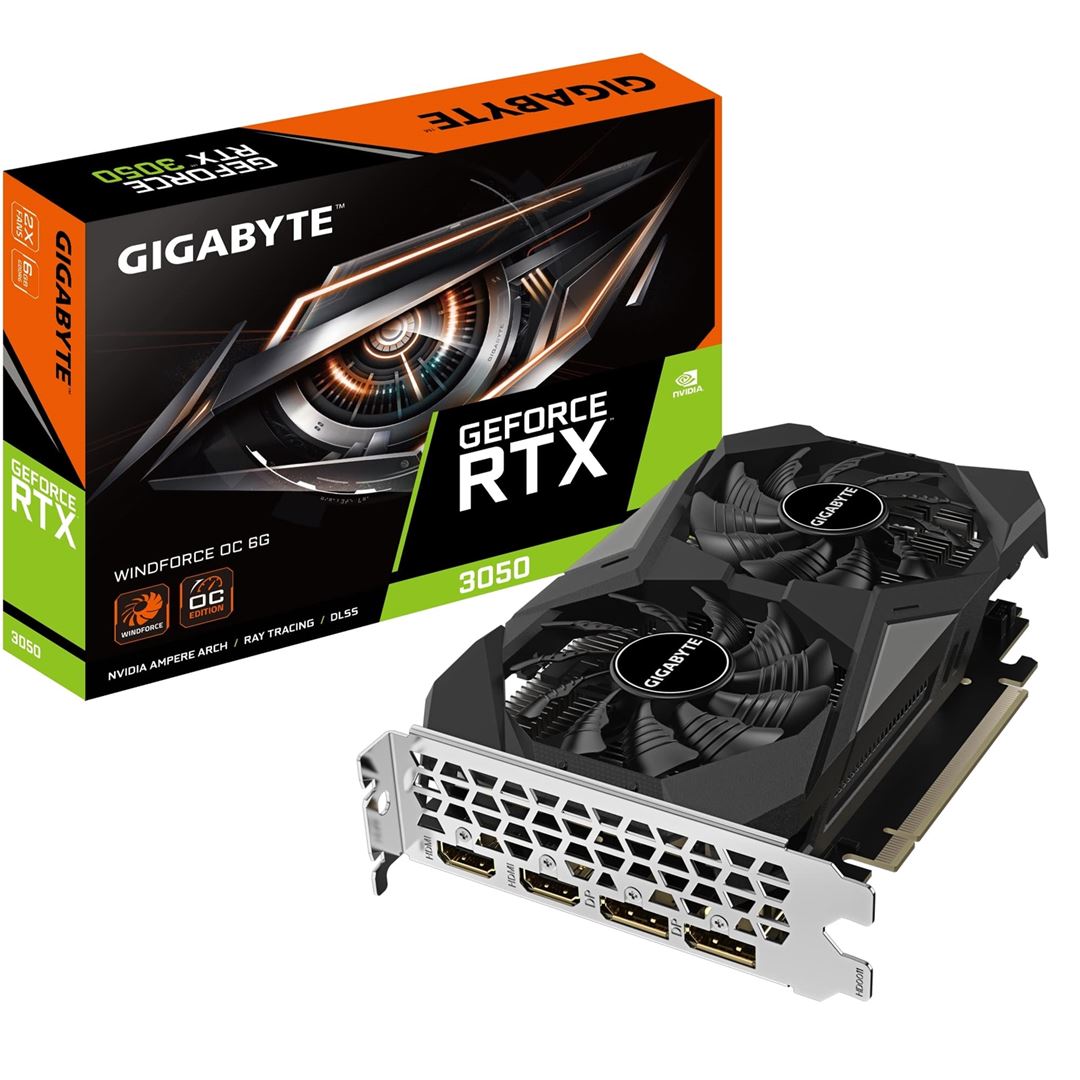

GeForce RTX 3050 WINDFORCE OC 6G

Key Features
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX 3050
Integrated with 6GB GDDR6 96-bit memory interface

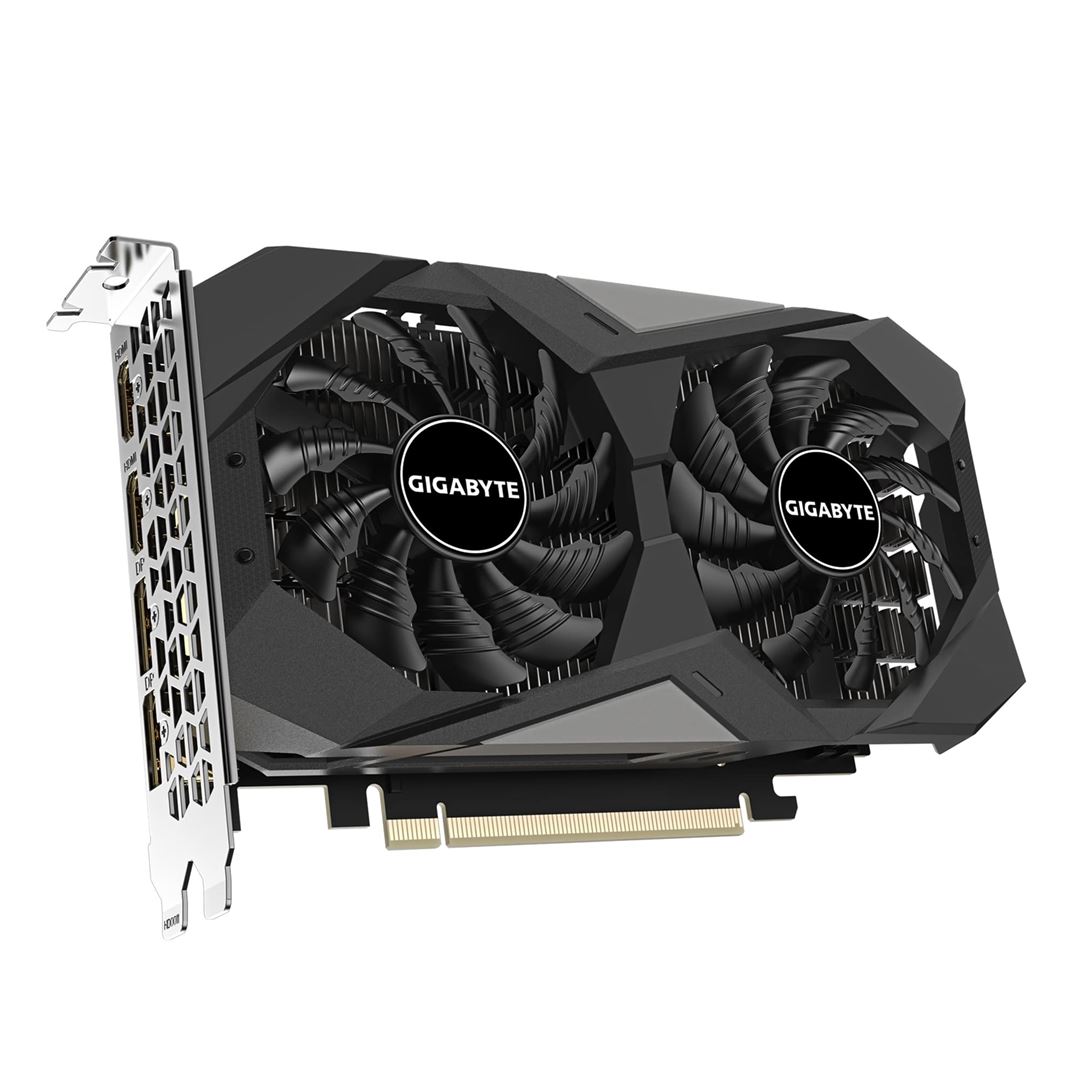

WINDFORCE cooling system

CORE CLOCK
1477 MHz (Reference Card: 1470 MHz)

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two unique blade fans, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Specification

Graphics Processing
GeForce RTX 3050

Core Clock
1477 MHz (Reference Card: 1470 MHz)

CUDA Cores
2304

Memory Clock
14000 MHz

Memory Size
6 GB

Memory Type
GDDR6

Memory Bus
96 bit

Card Bus
PCI-E 4.0

Digital Max Resolution
7680×4320

Multi-View
4

Card Size
L=191 W=111 H=36 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
300W

Power Connectors
N/A

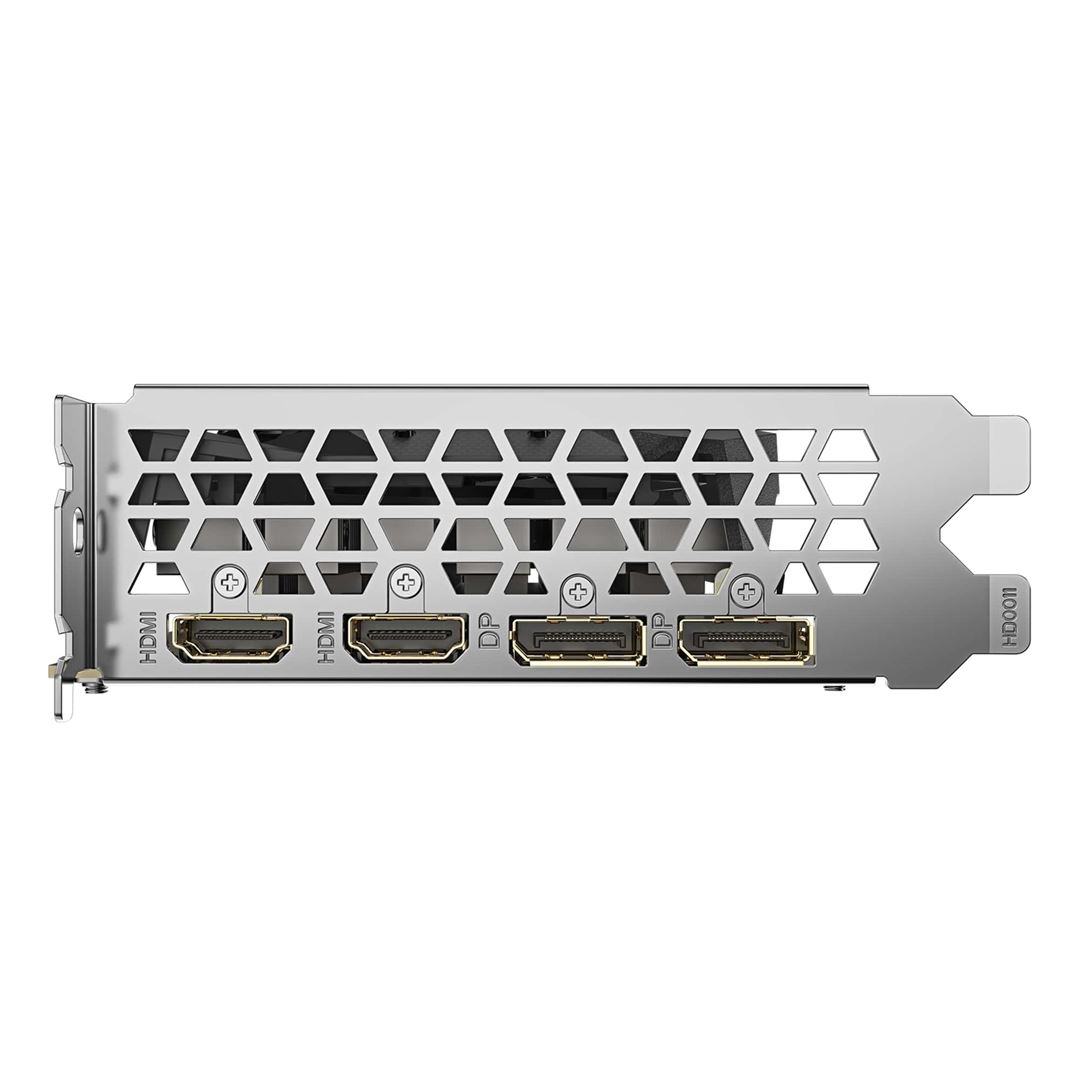

Output
DP1.4a x 2
HDMI 2.1 x 2
