Description

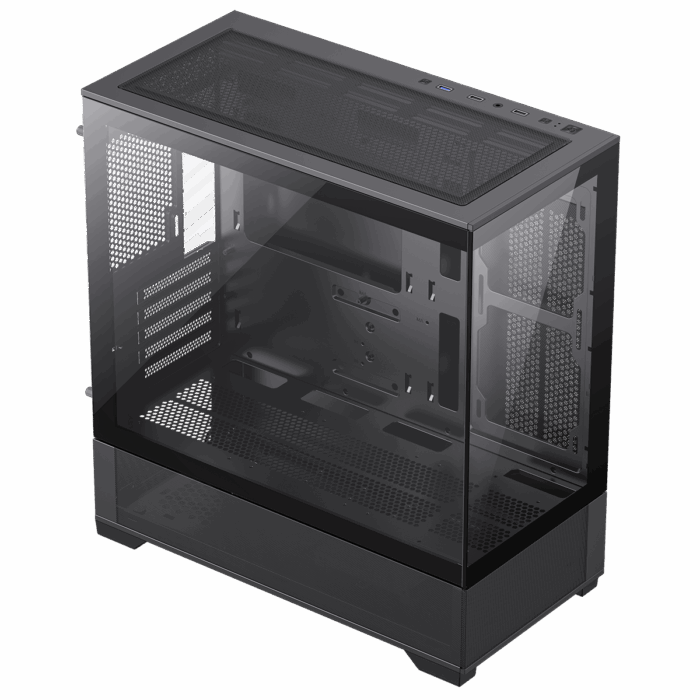

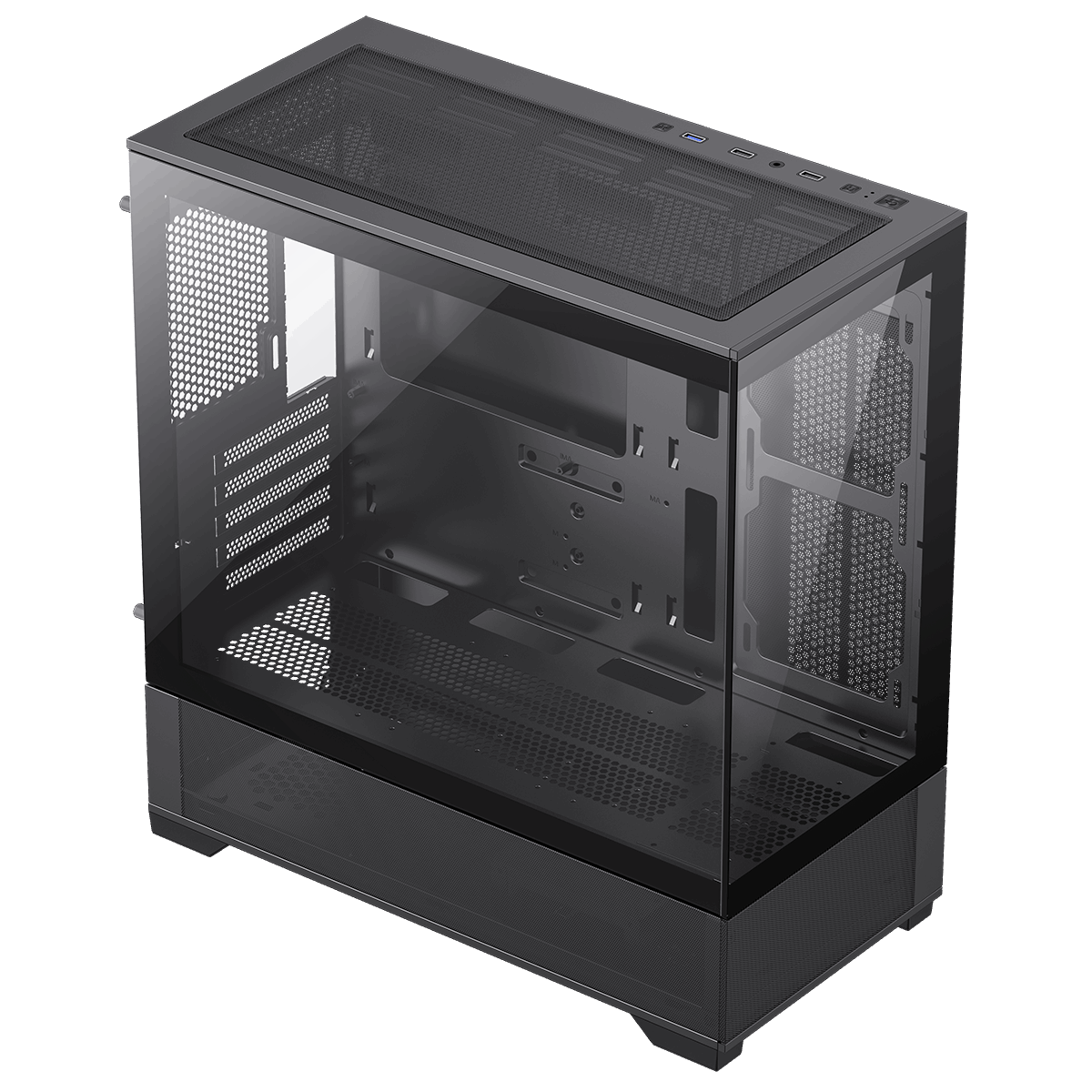

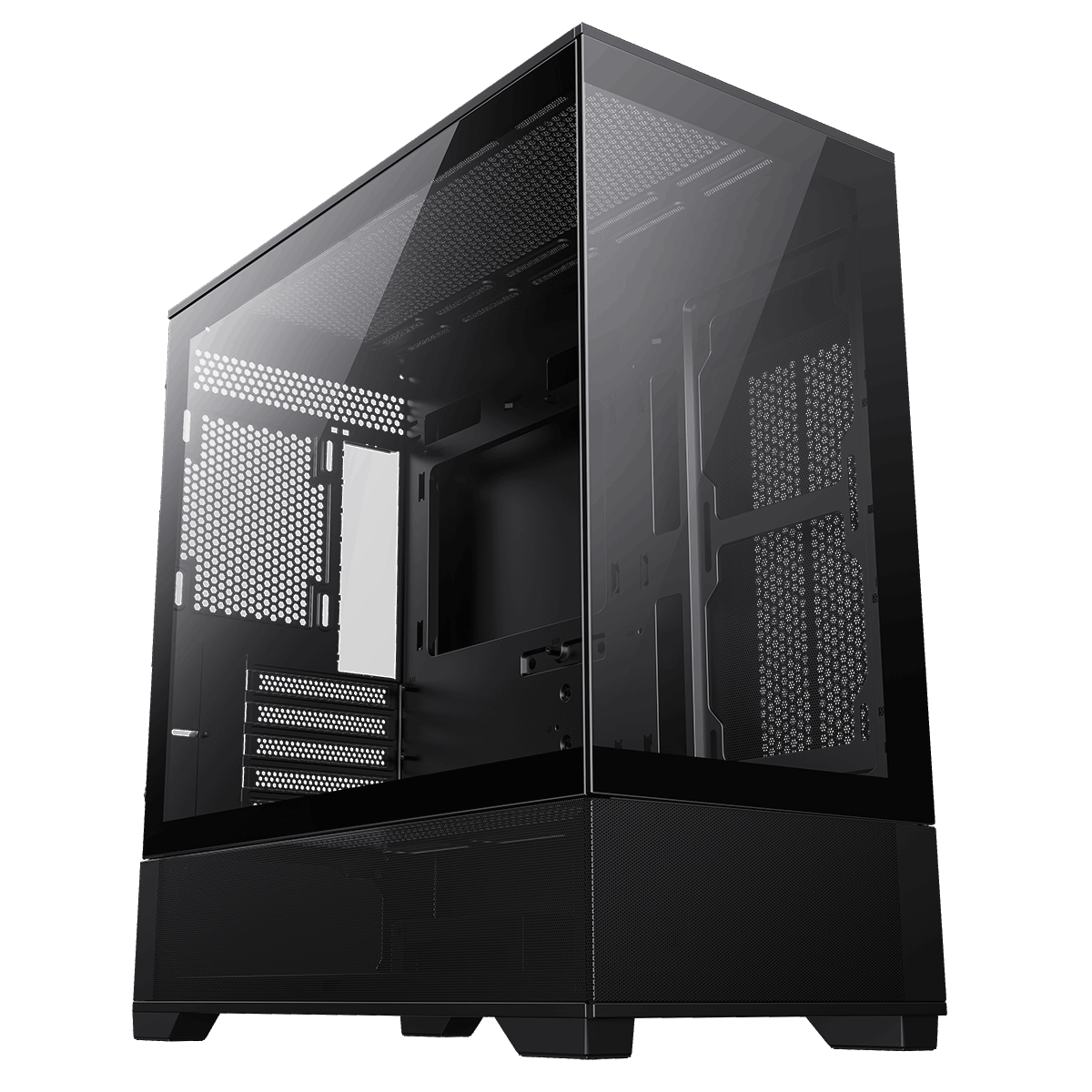

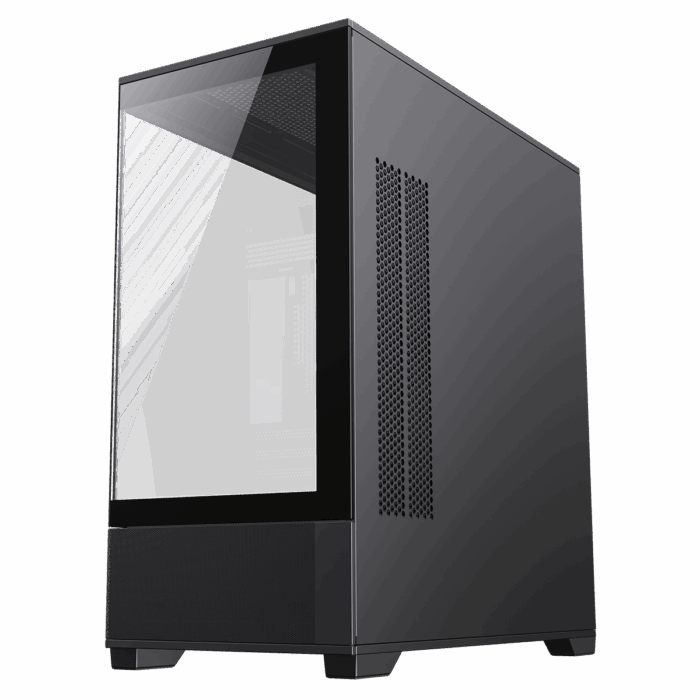

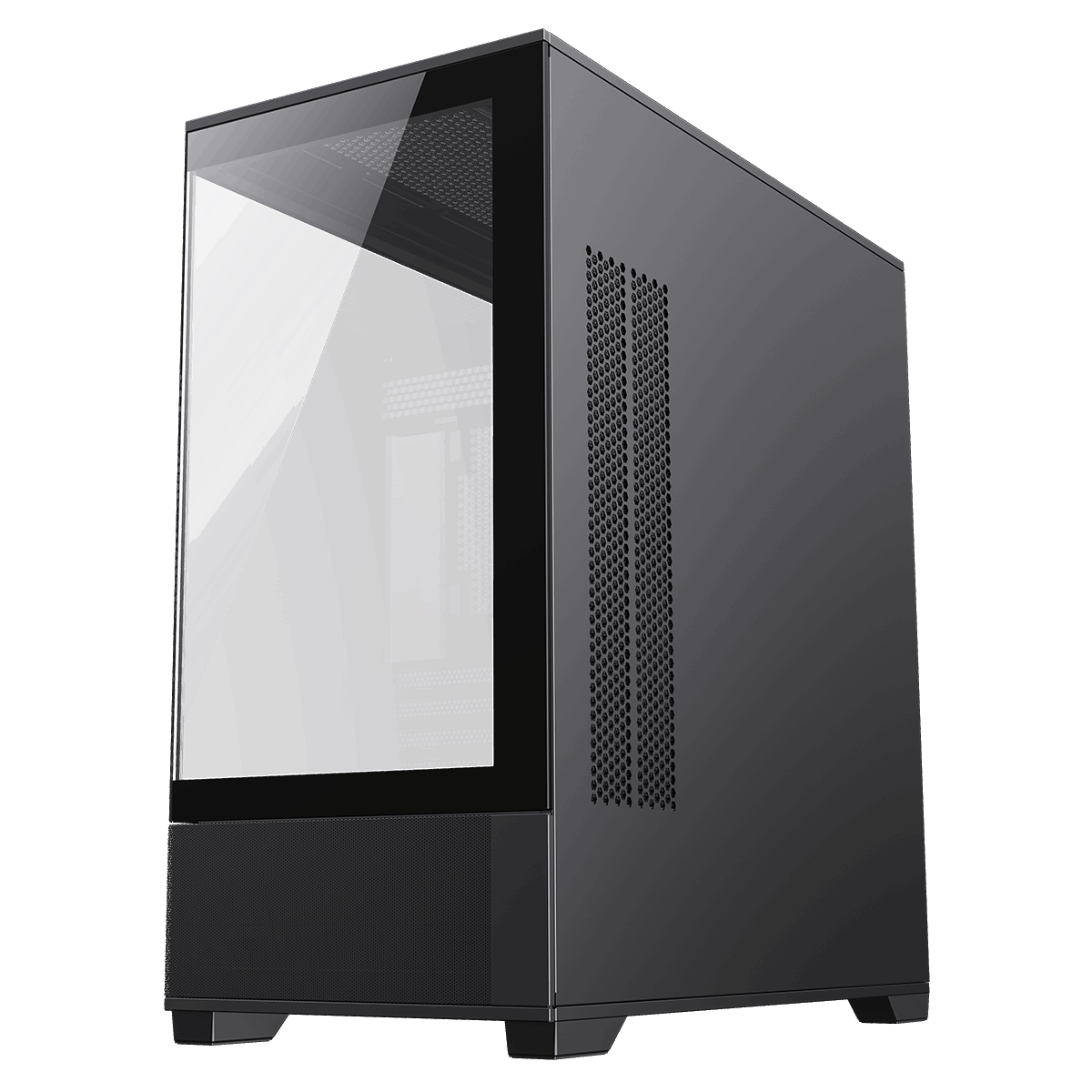

The GameMax Vista Series is the next evolution in PC cases, the latest innovation from GameMax is available in a Micro-ATX and ATX form factor. Leave nothing to the creative power on the Vista with its front and side tempered glass panels alongside the strategic placement of your all-important components your PC building skills will be on full display.

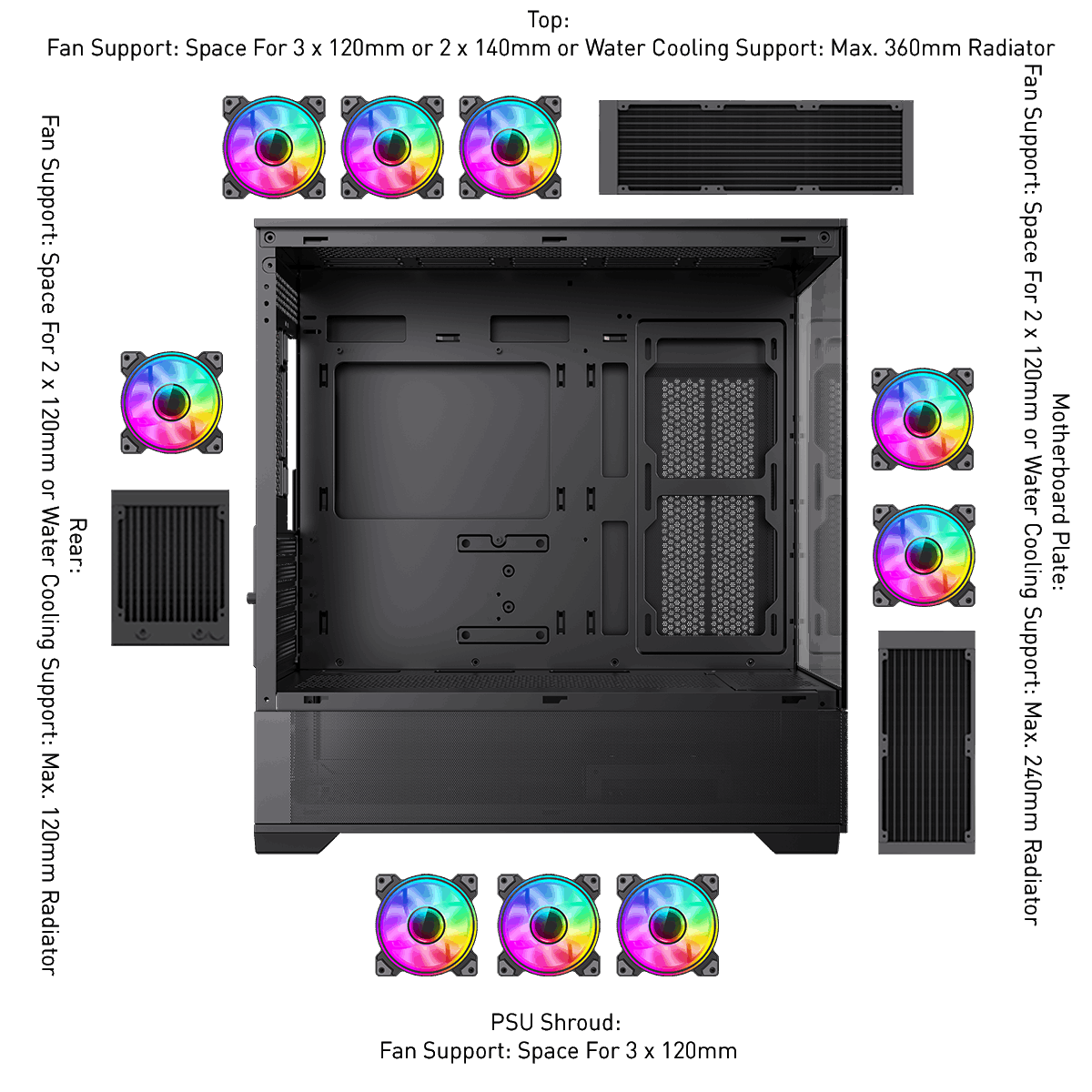

The Vista chassis creates a perfect picture frame for your Motherboard and GPU and surround them from all angles with high-performance fans. Install up to a huge nine 120mm fans, together with up to three radiators. Whats more with the entire bottom of the chassis made from ultra fine mesh, the Vista will have plenty of fresh air running through it. This case features ample cable management options and with a separate power supply compartment it is ideal for tucking cables and keeping your power supply hidden away.

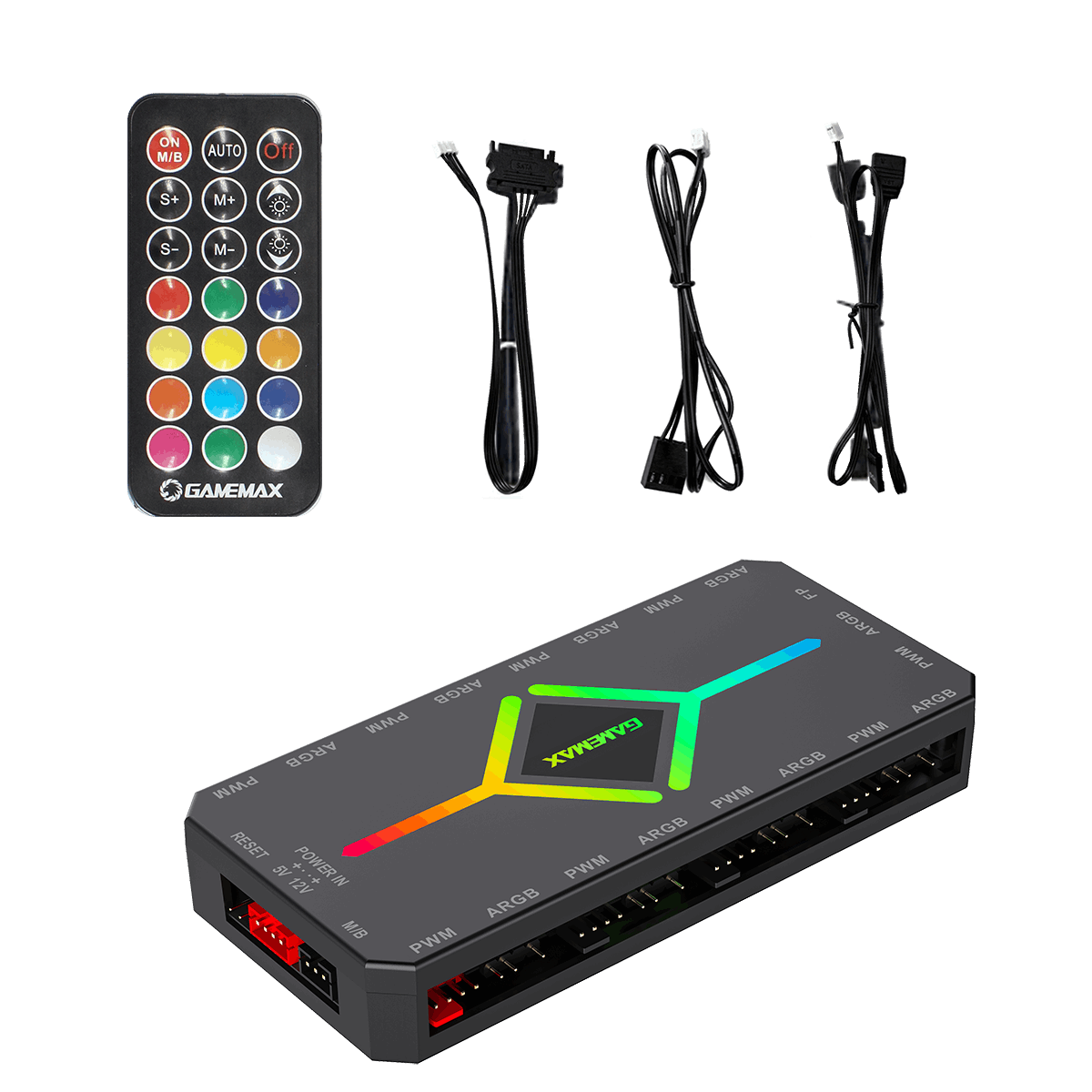

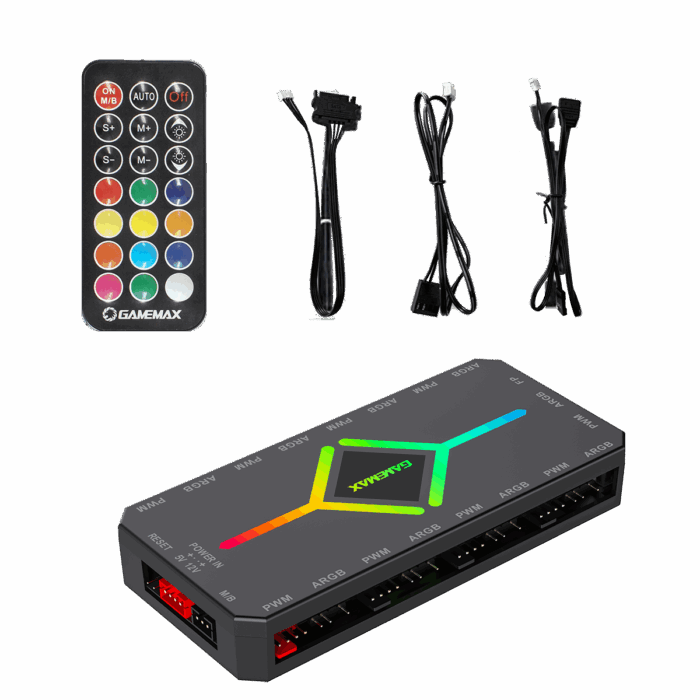

Moving onto the top of the case the I/O panel provides USB3.0 and USB2.0 connections and inside the Vista we have included the GameMax Version 4.0 PWM ARGB hub with controls for your LED lighting and have access to approximately 368 LED modes or have access to 16.8 million colours using a compatible addressable RGB Motherboard.

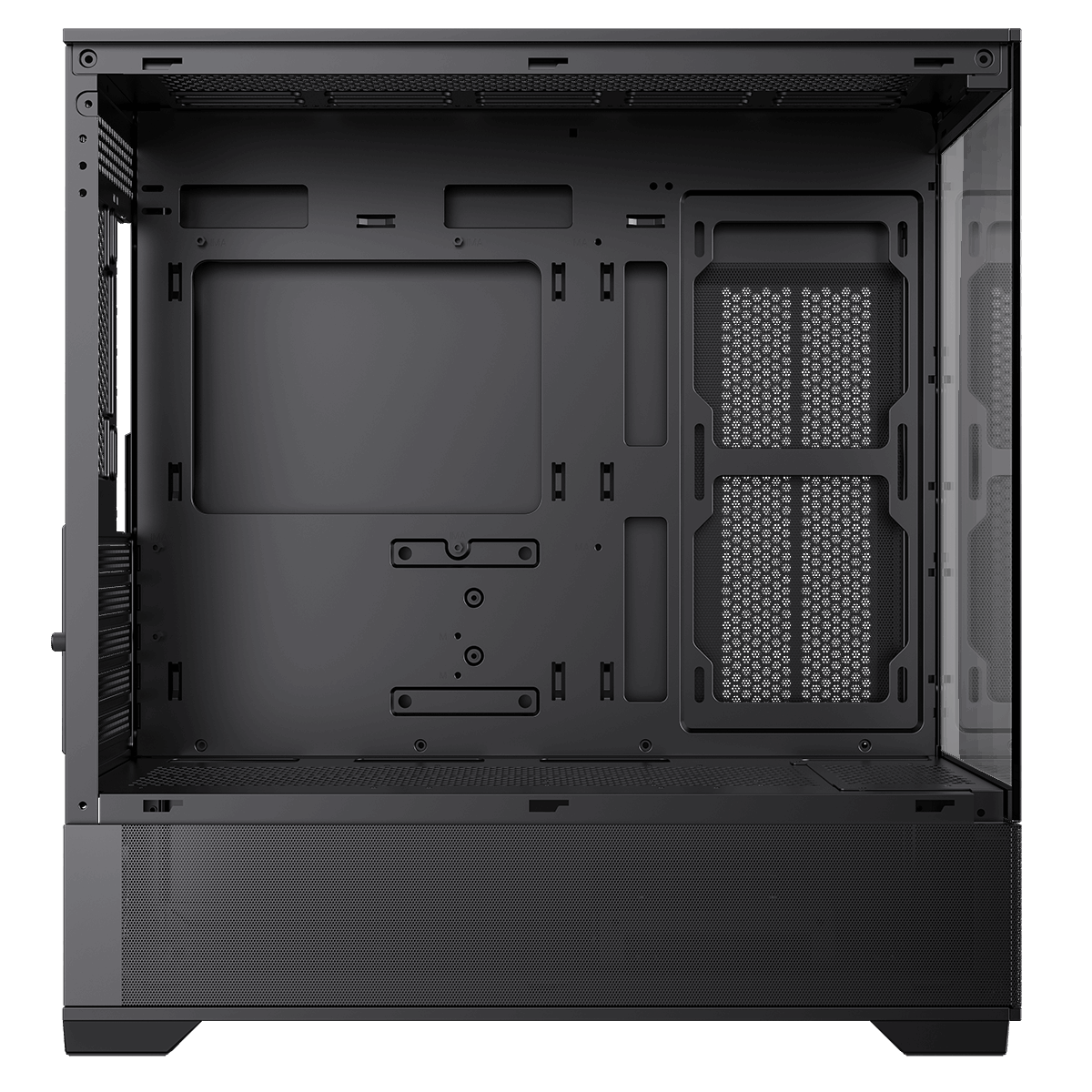

This completely black interior has massive build potential with a spacious open interior and large capacity to build a high-powered dynamic gaming pc. It can fit a graphics card up to 41 centimetres in length, CPU Cooler up to 16.5 centimetres in height and can hold 2 x 2,5 and 2 x 3,5 drives. An ATX power supply unit measuring up to 250mm will fit inside.
Boost your aesthetic with the Vista and with its advanced design create a special gamers case with its striking design this chassis is both stylish and boasts a high-performance, it is in a different class.
Specifications
| Chassis Dimensions (Excluding Fascia / Panels): | (W) 210 x (H) 435 x (D) 421mm |
| Water Cooling Support: | |
| Top Supported Radiator(s): | 120mm, 240mm, 280mm and 360mm |
| Rear Supported Radiator(s): | 120mm |
| Other Supported Radiator(s): | 120mm and 240mm (Motherboard Plate) |
| Fan Controller Support: | |
| Fan Controller Included: | Yes |
| Fan Controller Power Via: | SATA Connector |
| LED Controller: | Yes |
| Fan Power Connector: | 4pin PWM or 3pin |
| LED Power Connector: | 3pin AURA |
| Fan Control Via: | RF Remote / Reset Button (If Connected) |
| ARGB Device Supported Qty: | 9 |
| CPU Cooler Connector Qty: | 1 |
| Fan Connectors Qty: | 8 |
| Additional Chassis Specifications: | |
| Audio Support: | HD (Combo Port) |
| PSU Max. Length: | 250mm |
| Packaging Type: | EPE Foam |
| Packaging Thickness: | 35.10mm |
Case Specifications
| Form Factor: | Micro ATX |
| Motherboard Support: | Micro ATX, Mini ITX |
| PSU Support: | Standard ATX |
| PSU Location: | Bottom |
| Gaming Case: | Yes |
| Water Cooling: | Water Cooling Ready! Supported Radiator Size: 360mm Supported Radiator Positions: Top |
| Body Material: | SPCC0.75mm |
| Front Bezel Material: | Tempered Glass & Mesh |
| Side Panel: | Tempered Glass & Mesh |
| Internal Cable Management Depth: | 20mm |
| External Bays: | |

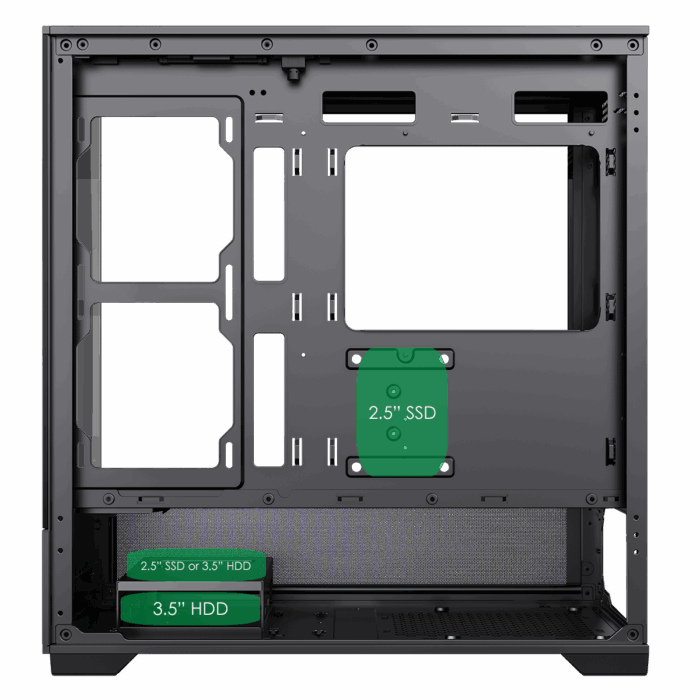

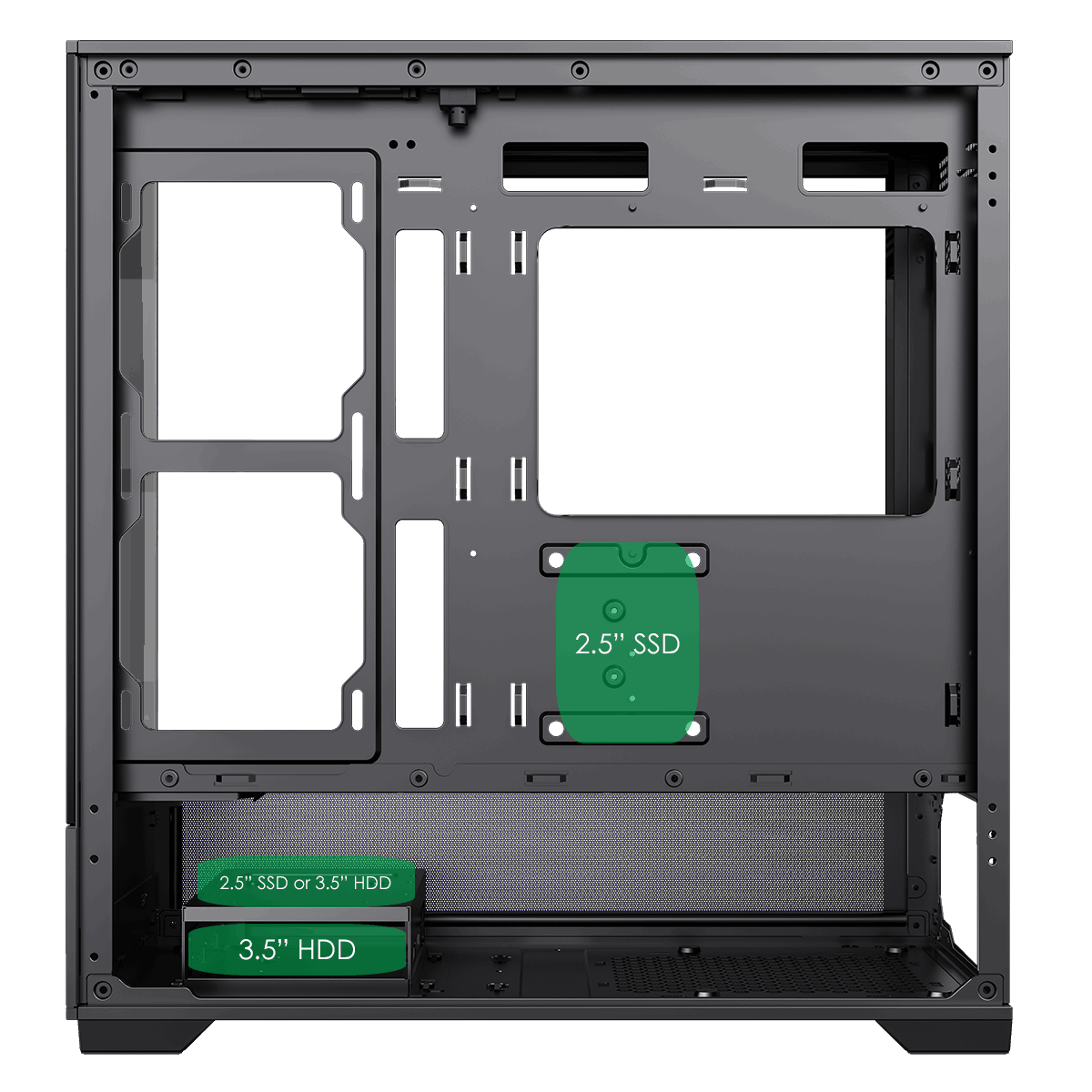

| Internal Bays: | 2 x 3.5” Internal 2 x 2.5” Internal |
| Drive Bay Notes: | 1 x 2.5″ shared with 1 x 3.5″ |

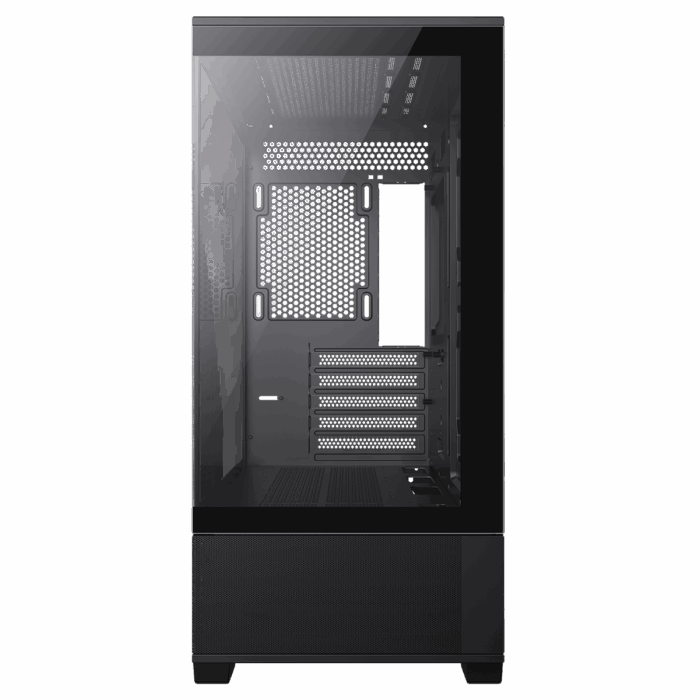

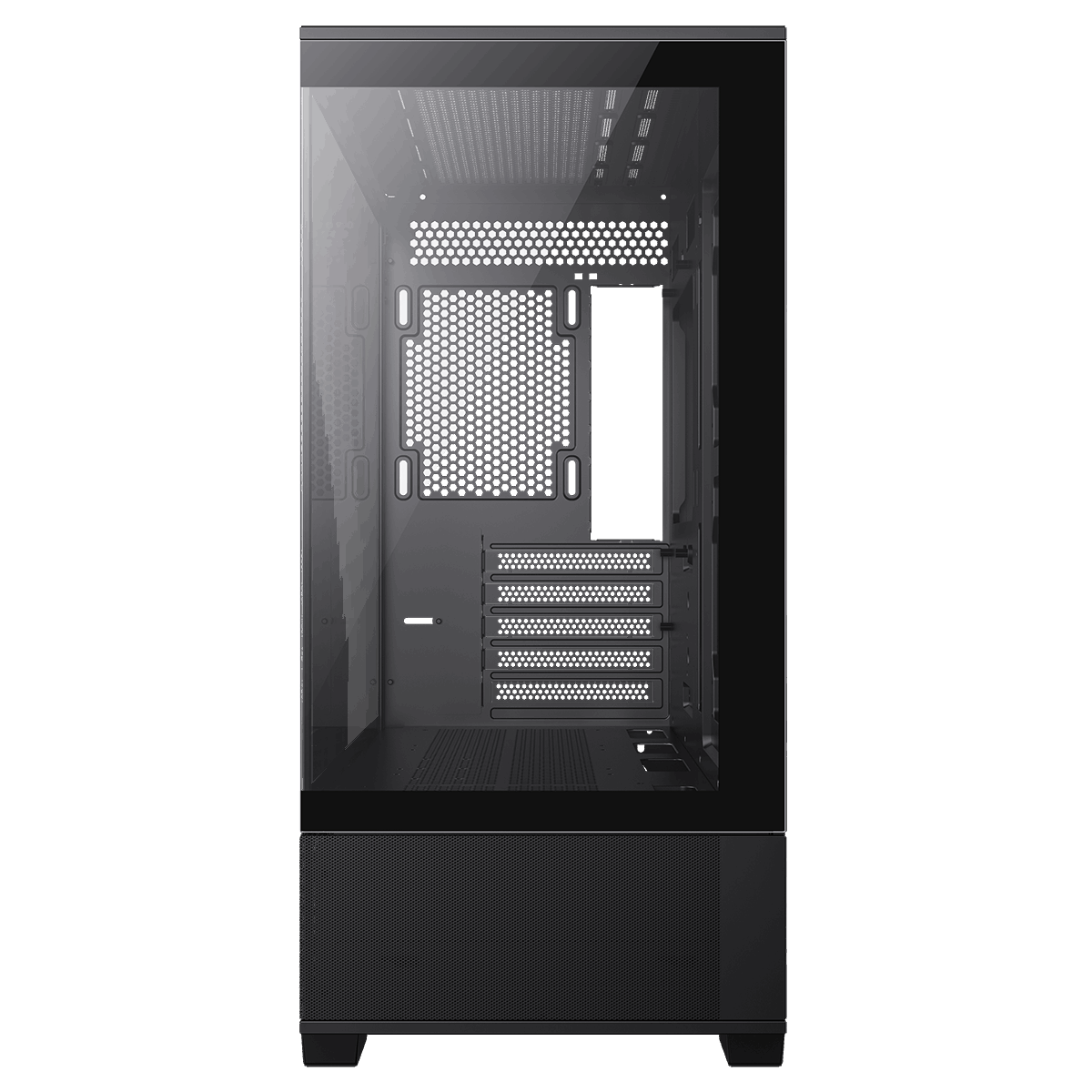

| Expansion Slots: | 5 x Full Size |
| Cooling Front: | None |

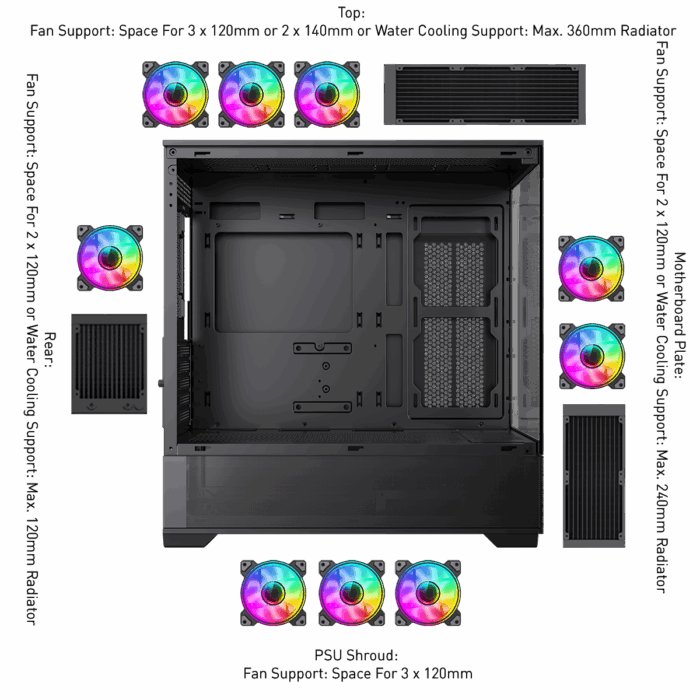

| Cooling Top: | Space For 3 x 120mm or 2 x 140mm Fans |
| Cooling Rear: | Space For 1 x 120mm Fan |
| Cooling Side: | Space For 2 x 120mm Fans (On Motherboard Plate) |
| Cooling Bottom: | Space For 3 x 120mm Fans |
| Fan Controllers: | 1 Fan Controllers, controlling up to 8 fans in total |
| IO Ports: | 1 x USB 3.0 2 x USB 2.0 1 x HD Audio 1 x Microphone |
| GPU Max Length: | 410mm |
| CPU Cooler Maximum Height: | 165mm |
| Front Bezel Colour: | Black / Glass |
| Body Colour: | Black |
| System Cabinet Features: | |
| PSU Included: | No |
General Specifications
| Manufacturer Part Number: | GMX-VISTA-MB |
| EAN Number: | 6931858778121 |
| Has Mains Plug: | No |
| Colour: | Black |
| What’s In The Box: | Case V4.0 ARGB PWM Fan Hub Manual Screws |
| Unit (Product) Dimensions (mm): | 210mm x 450mm x 421mm (W x H x D) |
| Packaging Dimensions (mm): | 285mm x 500mm x 513mm (W x H x D) |
| Net Weight (KGs): | 5.8 KGs |
| Gross Weight (KGs): | 7.3 KGs |
