Description

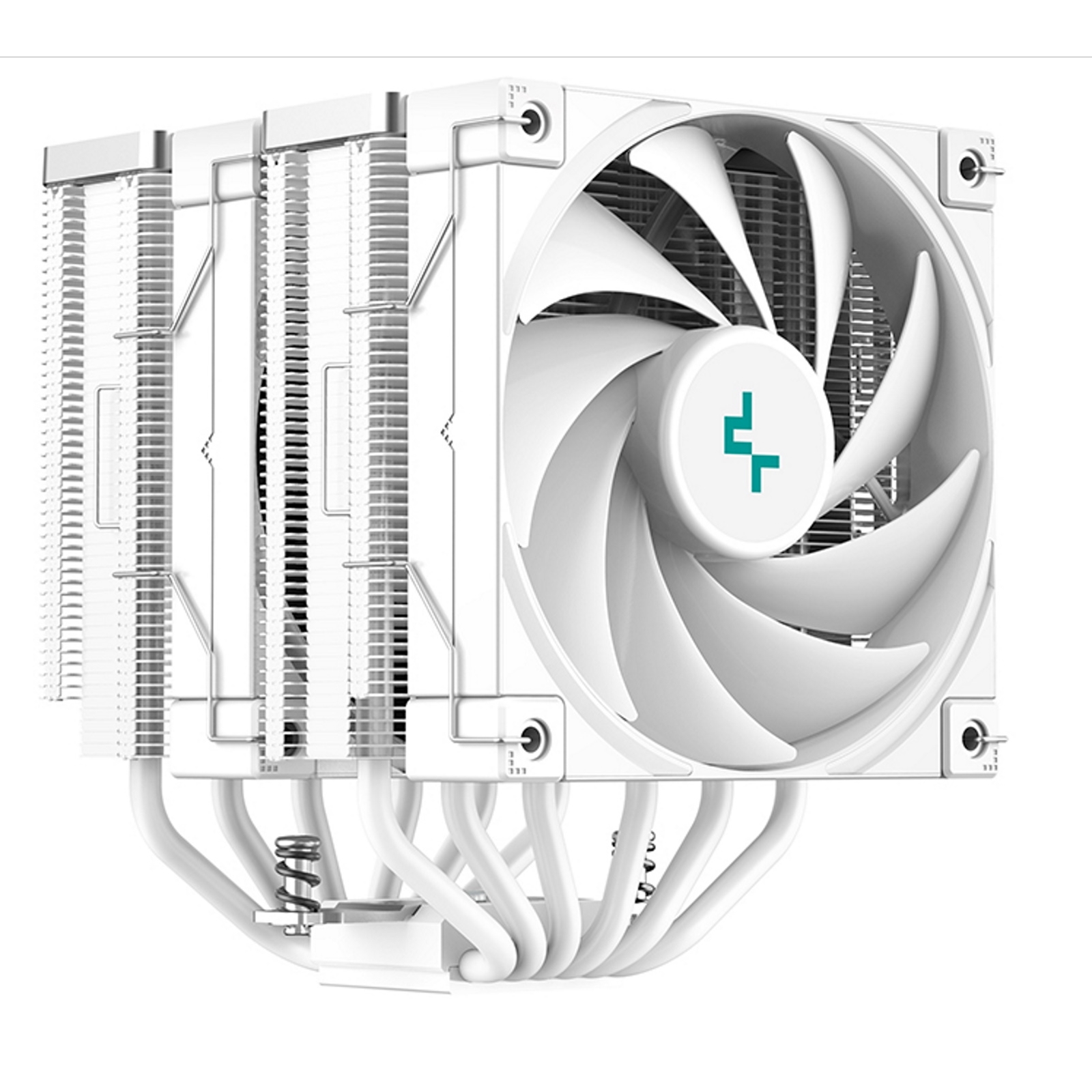

AK620 WH
High Performance Dual Tower CPU Cooler
Achieve dominant cooling and silent efficiency with the DeepCool AK620 WH High Performance CPU Cooler equipped with six copper heat pipes stacked with a dense dual-tower fin array and two 120 FDB fans.

UNLOCKED POTENTIAL
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 WH features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.

COOL, QUIET, AND POWERFUL

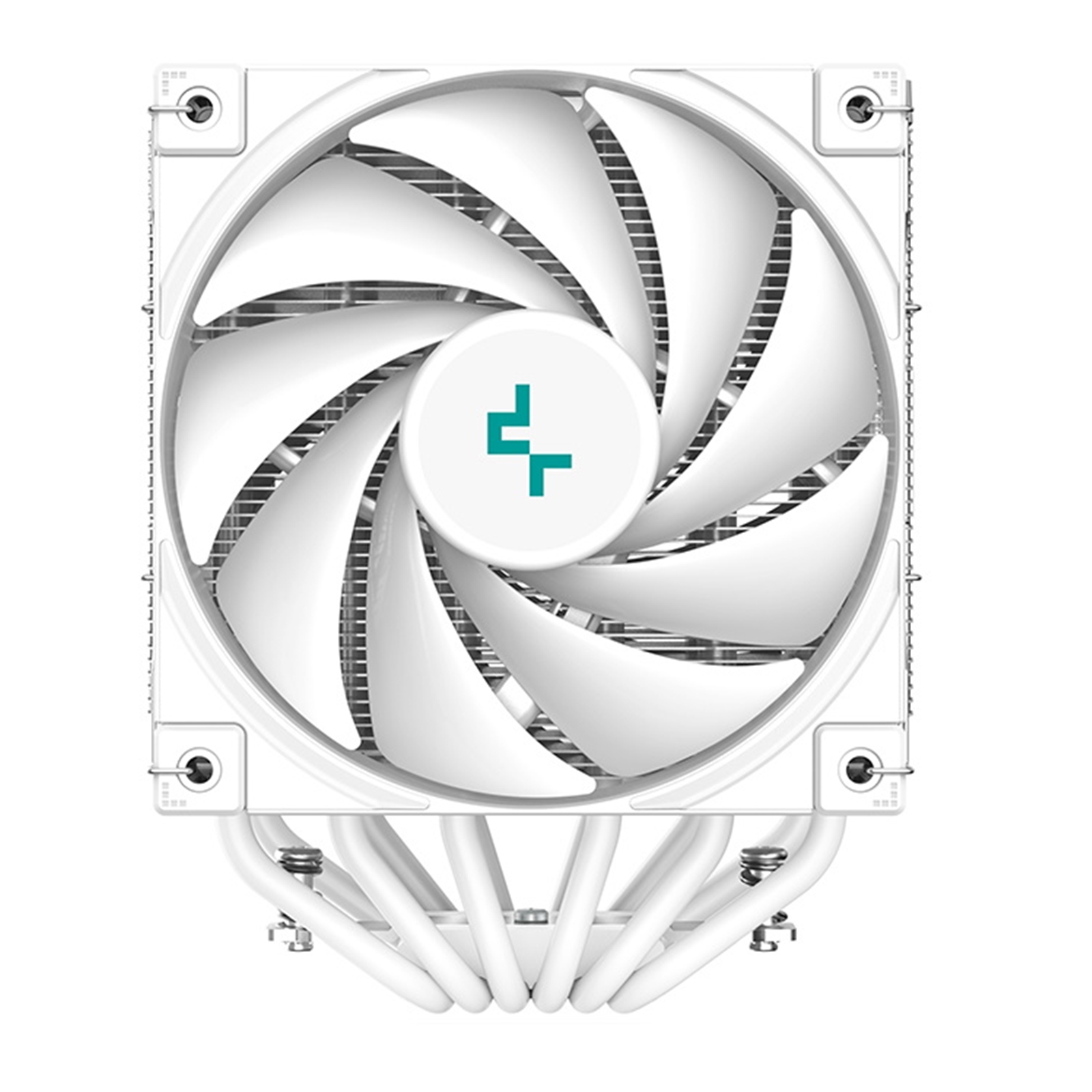

Two 120 PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.
– 28 dBA: Full load noise
– 500-1850 RPM: Dynamic PWM Range
– 50,000 hours: Long operational lifespan

EXCEPTIONAL COOLING BY DESIGN

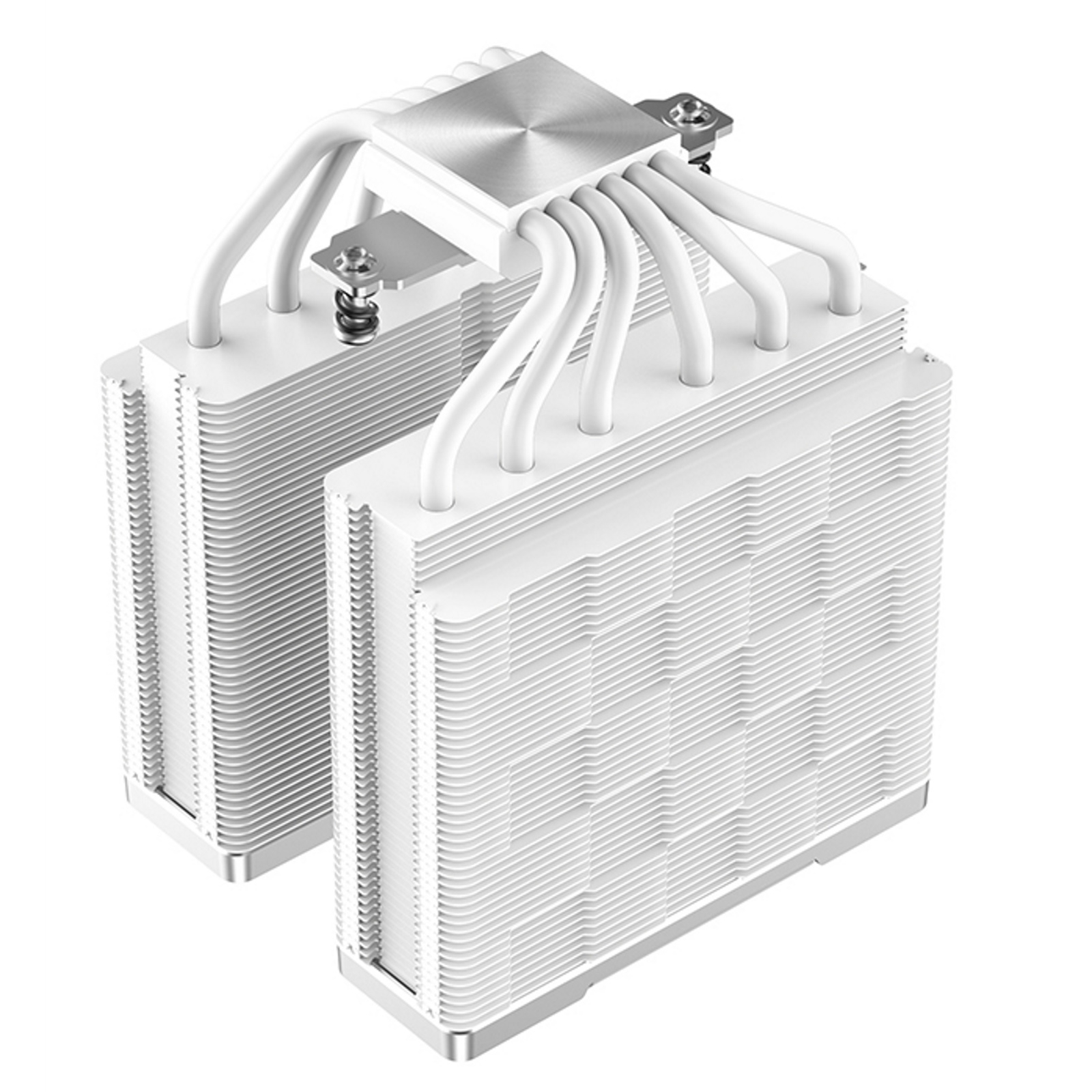

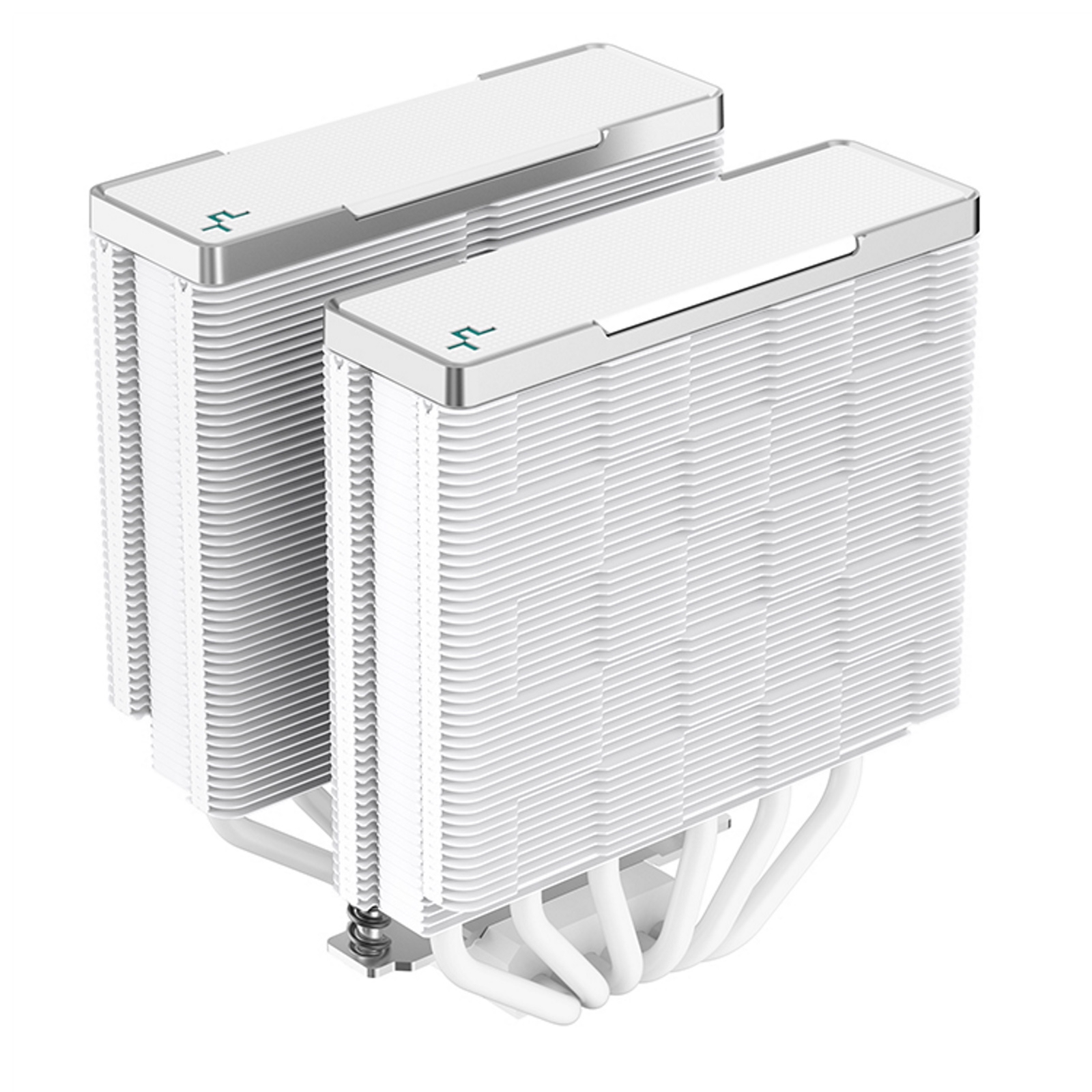

The AK620 WH features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.
– 160mm cooler height compatibility
– 43mm RAM height clearance (59mm in single fan configurations)

MULTI-PLATFORM SIMPLICITY

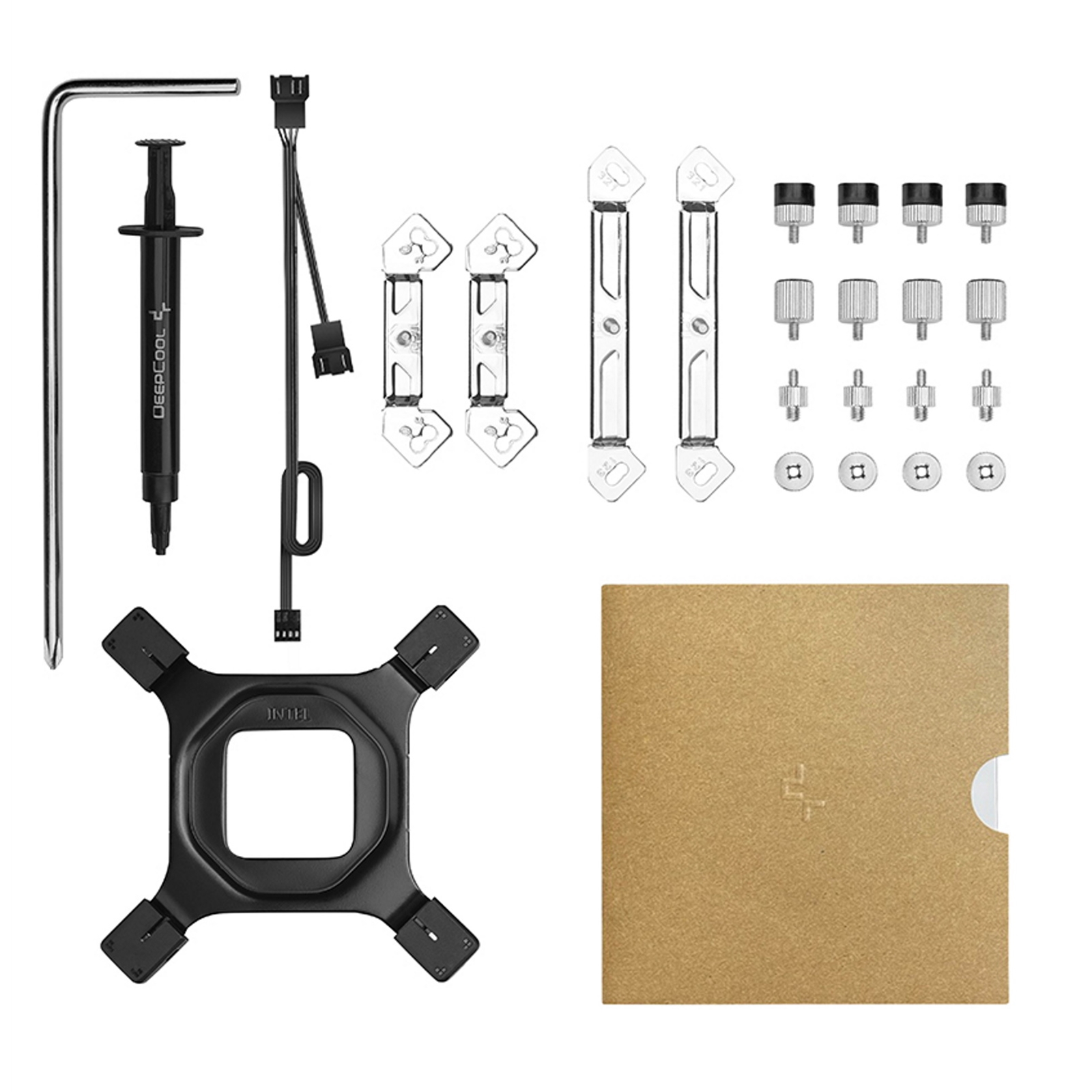

The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.

Application For
Intel: LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155
AMD: AM5 / AM4

Product Dimensions
129 x 138 x 160 mm

Heatsink Dimensions
127 x 110 x 157 mm

Net Weight
1456g

Heatpipe
6 mm x 6 pcs

Fan Dimensions
120 x 120 x 25 mm

Fan Speed
300~1850 RPM ± 10%

Fan Airflow
68.99 CFM

Fan Air Pressure
2.19 mmAq

Fan Noise
=28 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.12 A

Fan Power Consumption
1.44 W
