Description

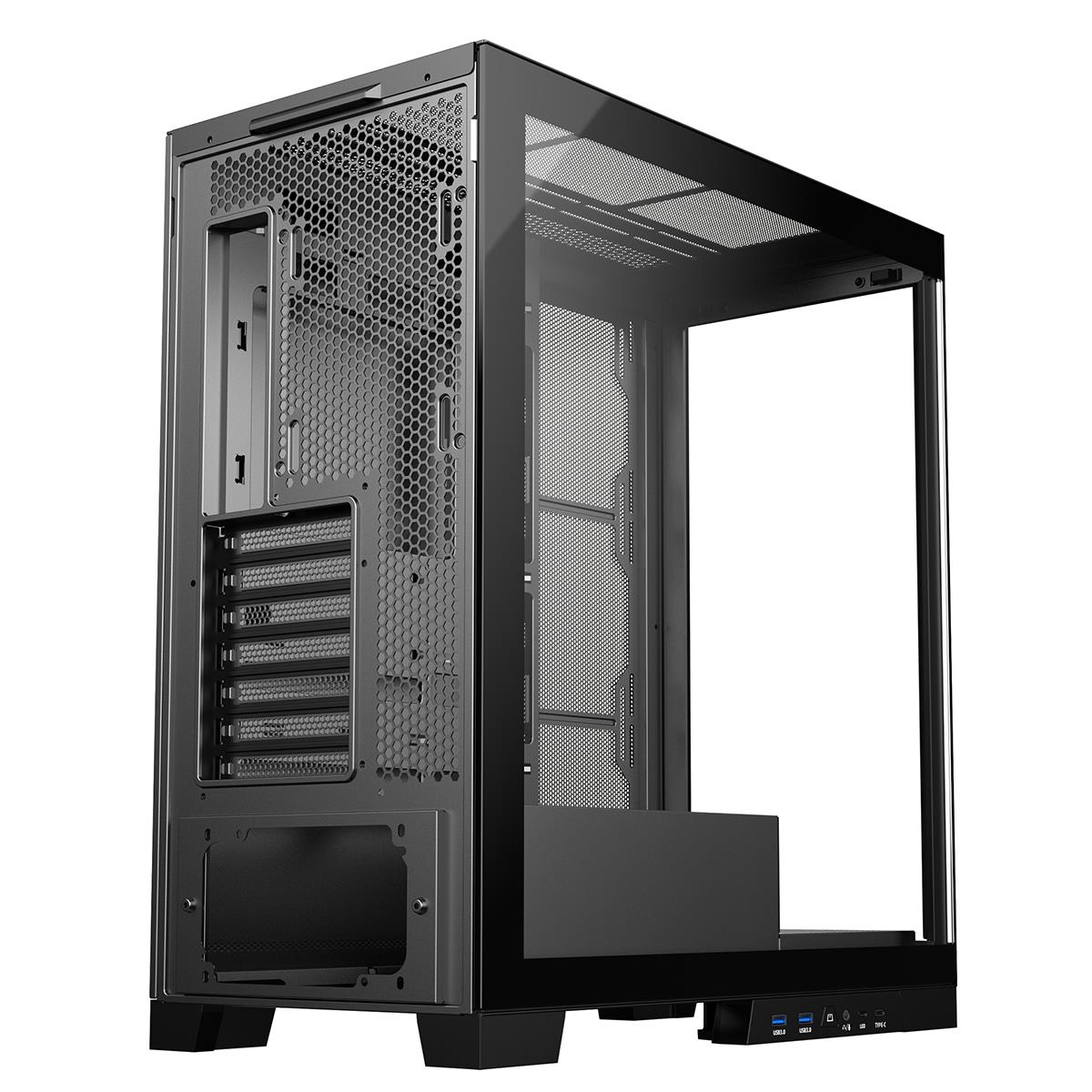

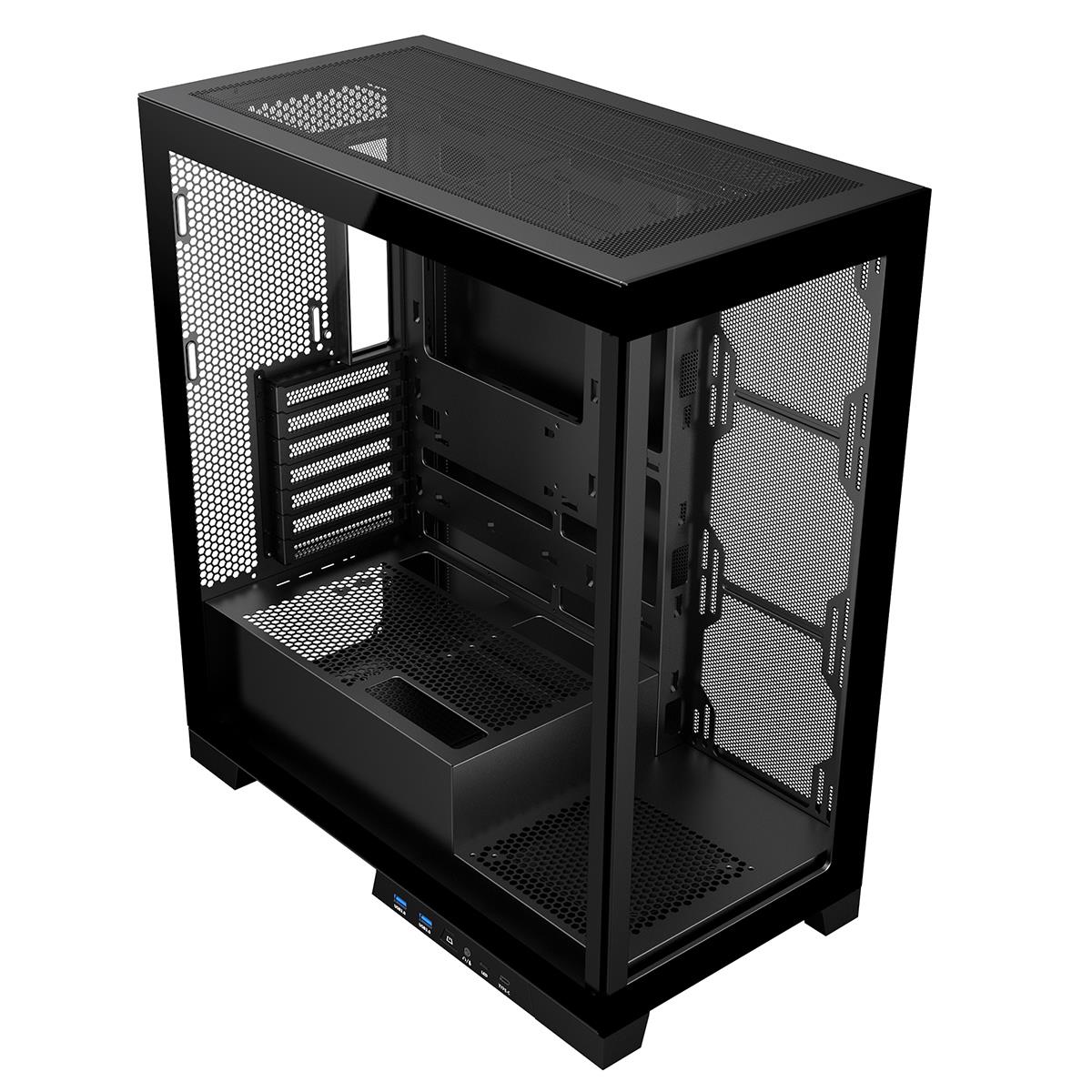

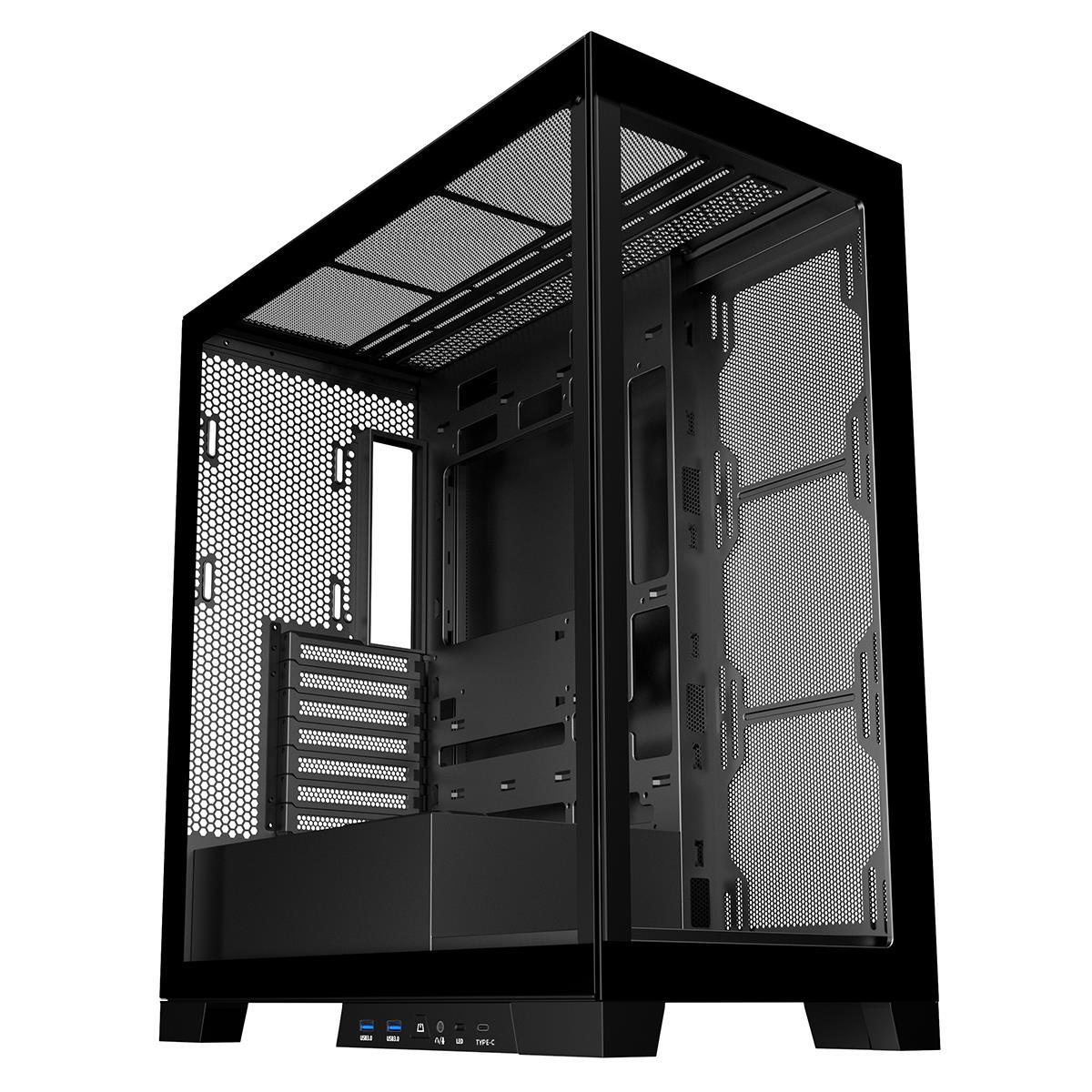

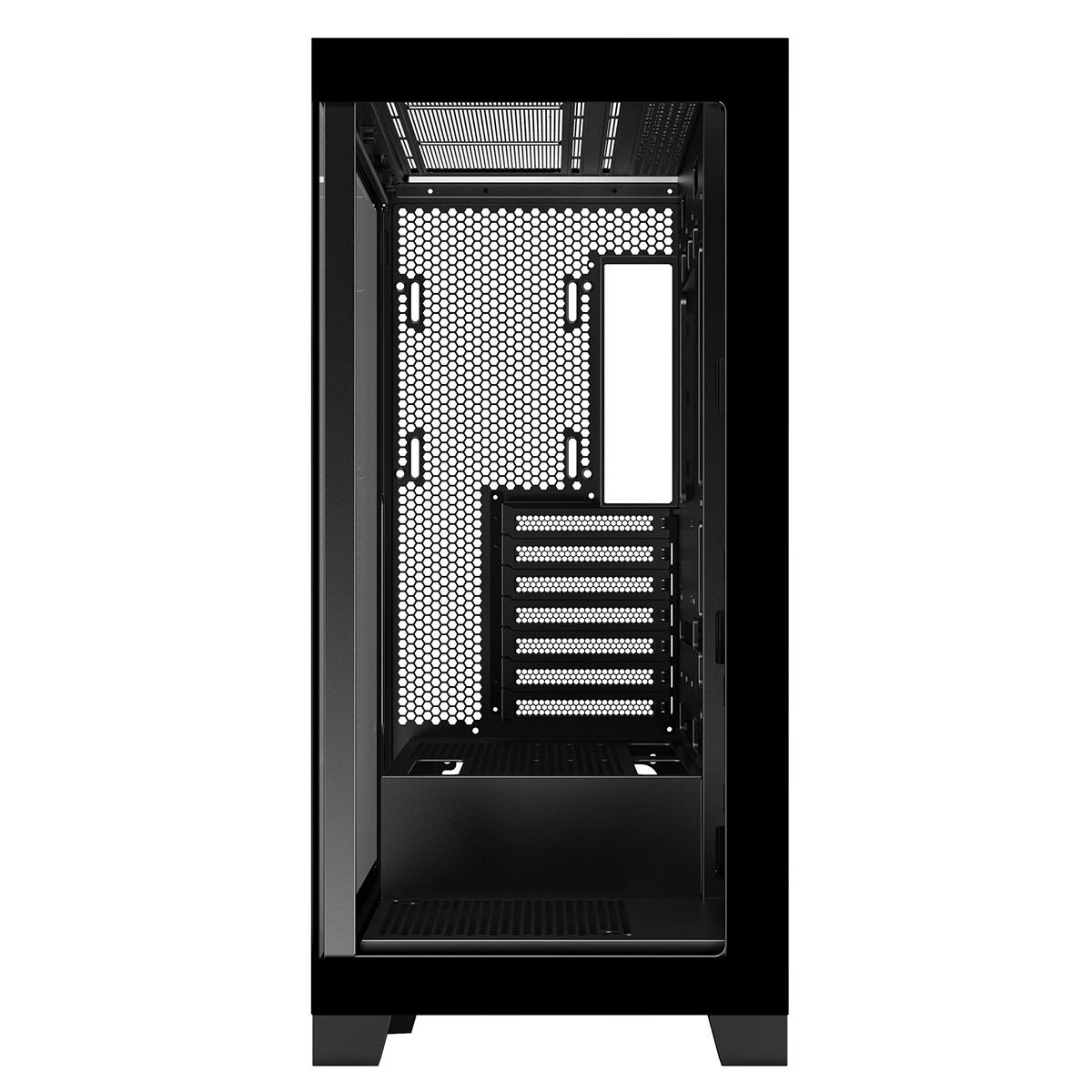

If you want a sharp-looking, cool-running decent-sized Gaming Rig then look no further than the CiT Pro Diamond XR. Combining the smart, sharp aesthetics of the Tempered Glass Front and Side Panels to showcase your build with the striking and extremely functional full-on Hex-Mesh Design, you can literally get the best of both worlds!

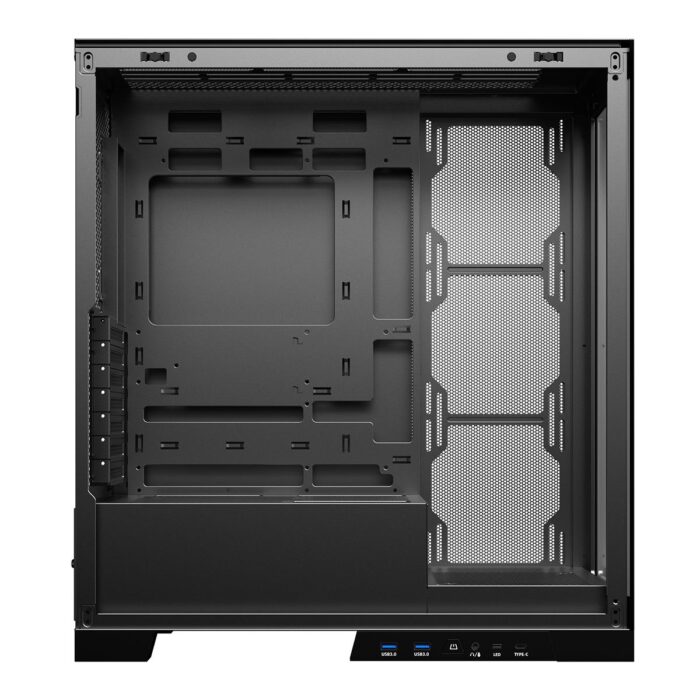

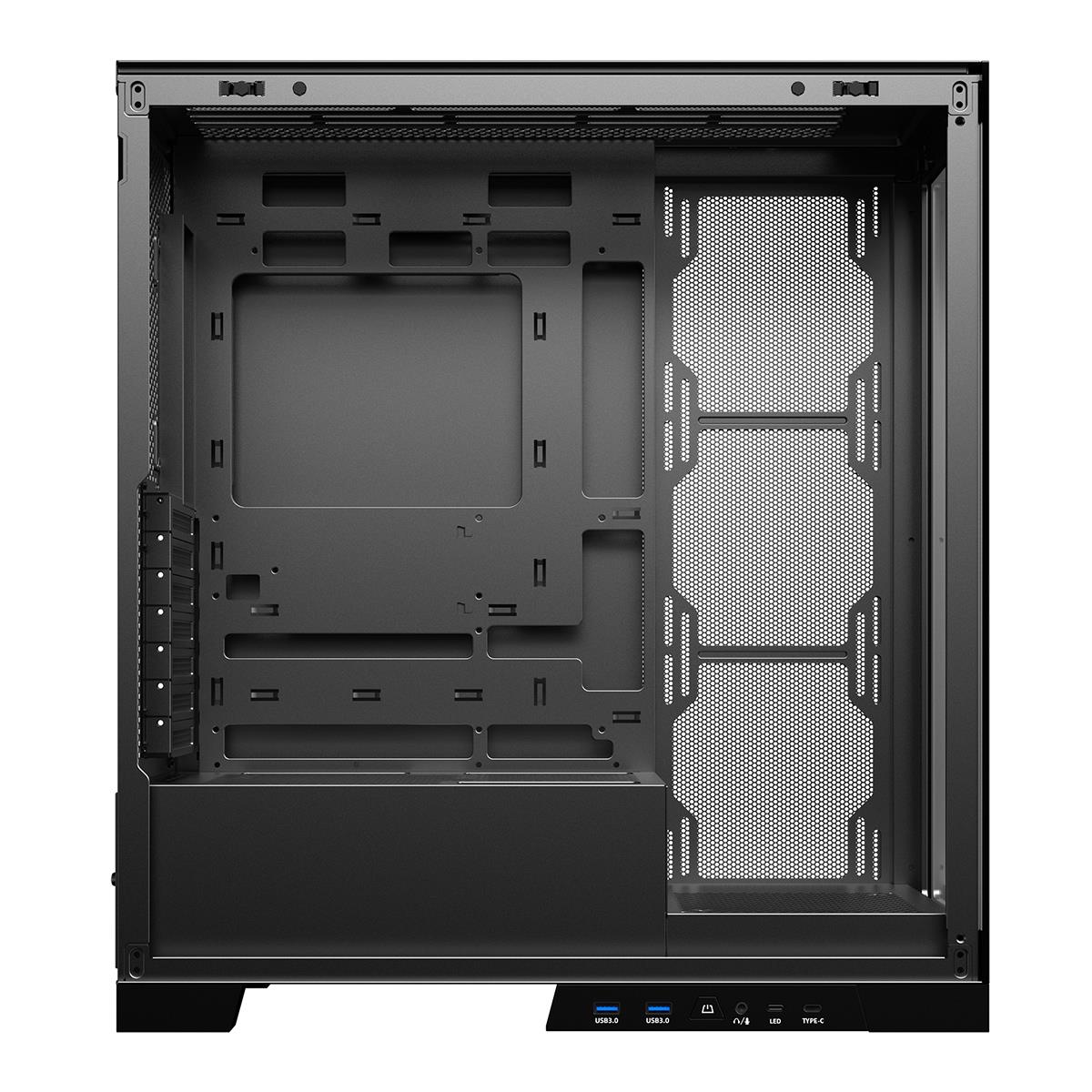

The Diamond XRs open design gives you a multitude of options to match your building desire. Motherboard-mounted, top and rear mesh give you multiple options for Water Cooling, with support for up to a 360mm Radiator on the MB or top and a 120mm Radiator on the rear, with fan mountings for 120mm or 140mm fans in all locations.
This fluid design gives the Diamond XR the ultimate cooling capability that can be tailored to your hardware. With an additional cooling option on the PSU Shroud for a 120mm or 140mm fan on top, you can confidently build the highest spec PC knowing that your temperatures are taken care of.

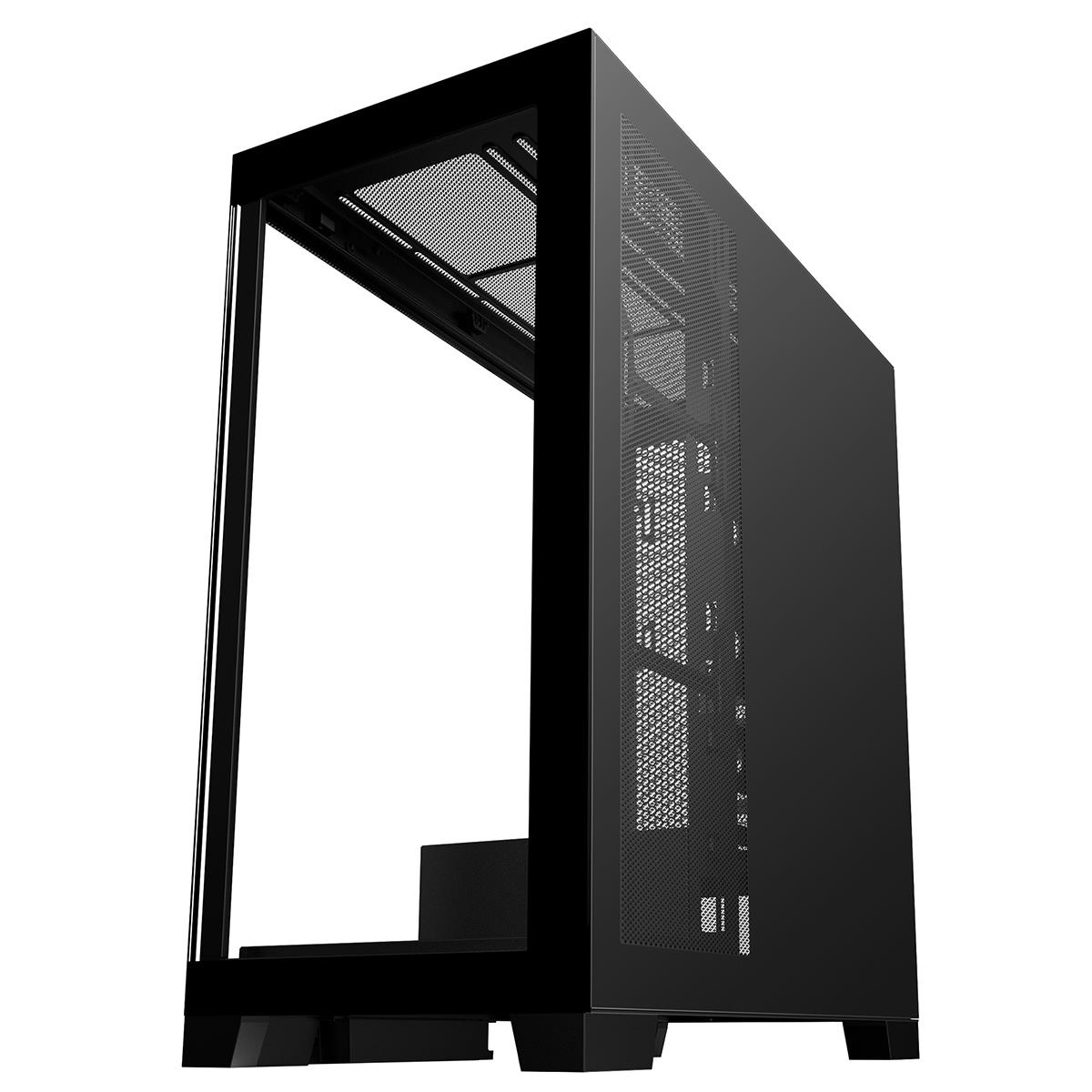

The 4mm-thick Tempered Glass Front & Side Panels allow you to fully display your pride and joy build. With 27mm of cable management depth and multiple pass-throughs, a neat finish is easy to accomplish. Graphics Card support for up to 435mm and CPU Cooler support of up to 180mm allows plenty of room for the latest cards and coolers.

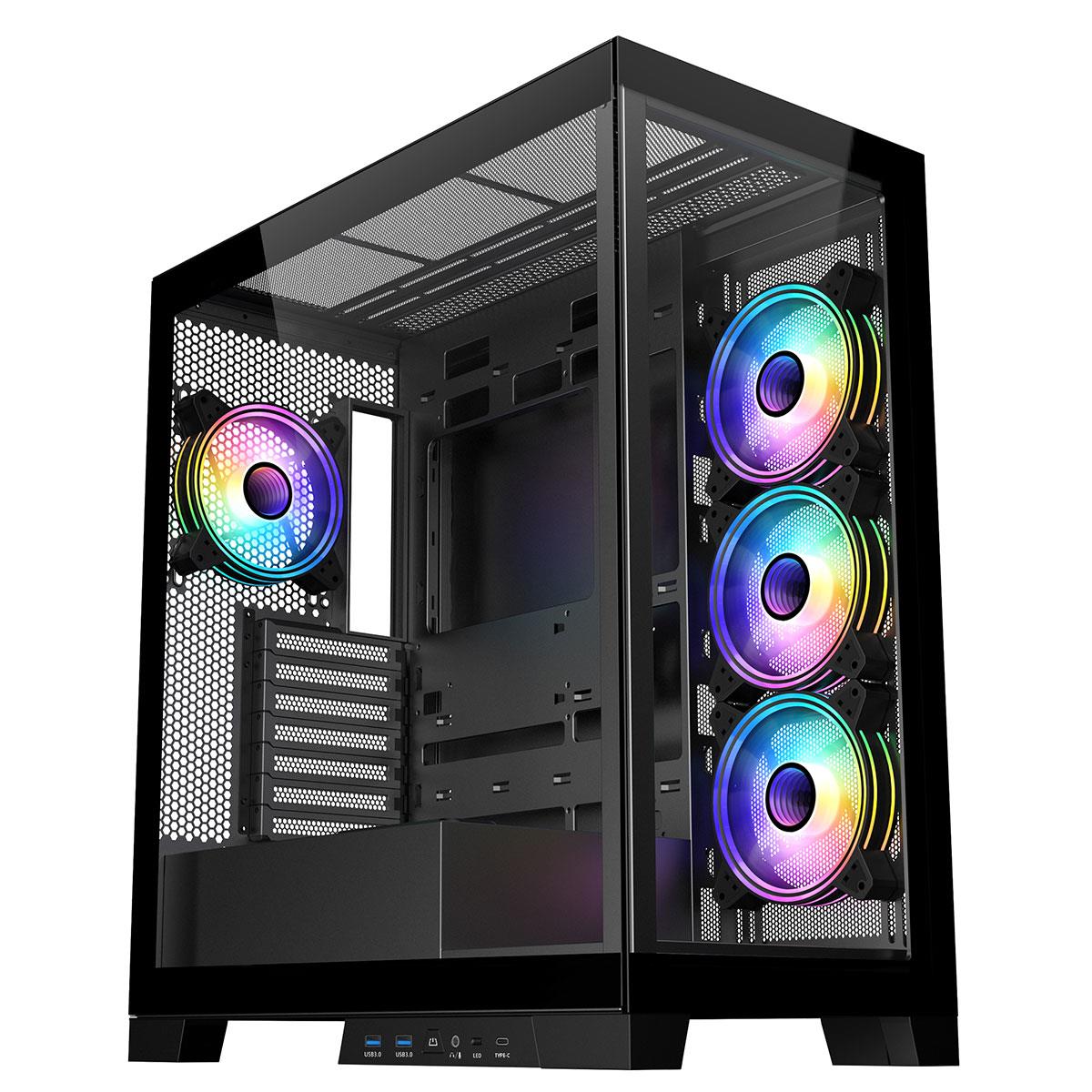

The Diamond XR comes in multiple configurations this version is the blank canvas version, leaving it open for you to fit the fans you want where you want. There are also the 4-Fan and 7-Fan Infinity Fan versions that come bundled with the CiT Pro CF120 ARGB Dual-Ring Infinity Fans.
Specifications
| Chassis Dimensions (Excluding Fascia / Panels): | (W) 234 x (H) 480 x (D) 450mm |
| Water Cooling Support: | |
| Motherboard Supported Radiator(s): | 120mm/240mm/280mm/360mm |
| Top Supported Radiator(s): | 120mm/240mm/280mm/360mm |
| Rear Supported Radiator(s): | 120mm |
| GPU Max Length: | 430mm (with no water cooler on motherboard ) / 271mm (water cooler installed on motherboard) |
| PSU Max. Length: | 270mm |
| Packaging Type: | EPE Foam and Cardboard |
| Packaging Thickness: | 25.25mm |
Case Specifications
| Form Factor: | Midi Tower |
| Motherboard Support: | ATX, Micro ATX, Mini ITX |
| PSU Support: | Standard ATX |
| PSU Location: | Bottom |
| Gaming Case: | Yes |
| Water Cooling: | Water Cooling Ready! Supported Radiator Size: 360mm Supported Radiator Positions: Front, Top |
| Body Material: | 1.02mmSPCC |
| Front Bezel Material: | 4mm Tempered Glass |
| Side Panel: | 4mm Tempered Glass |
| Internal Cable Management Depth: | 27mm |
| External Bays: | |

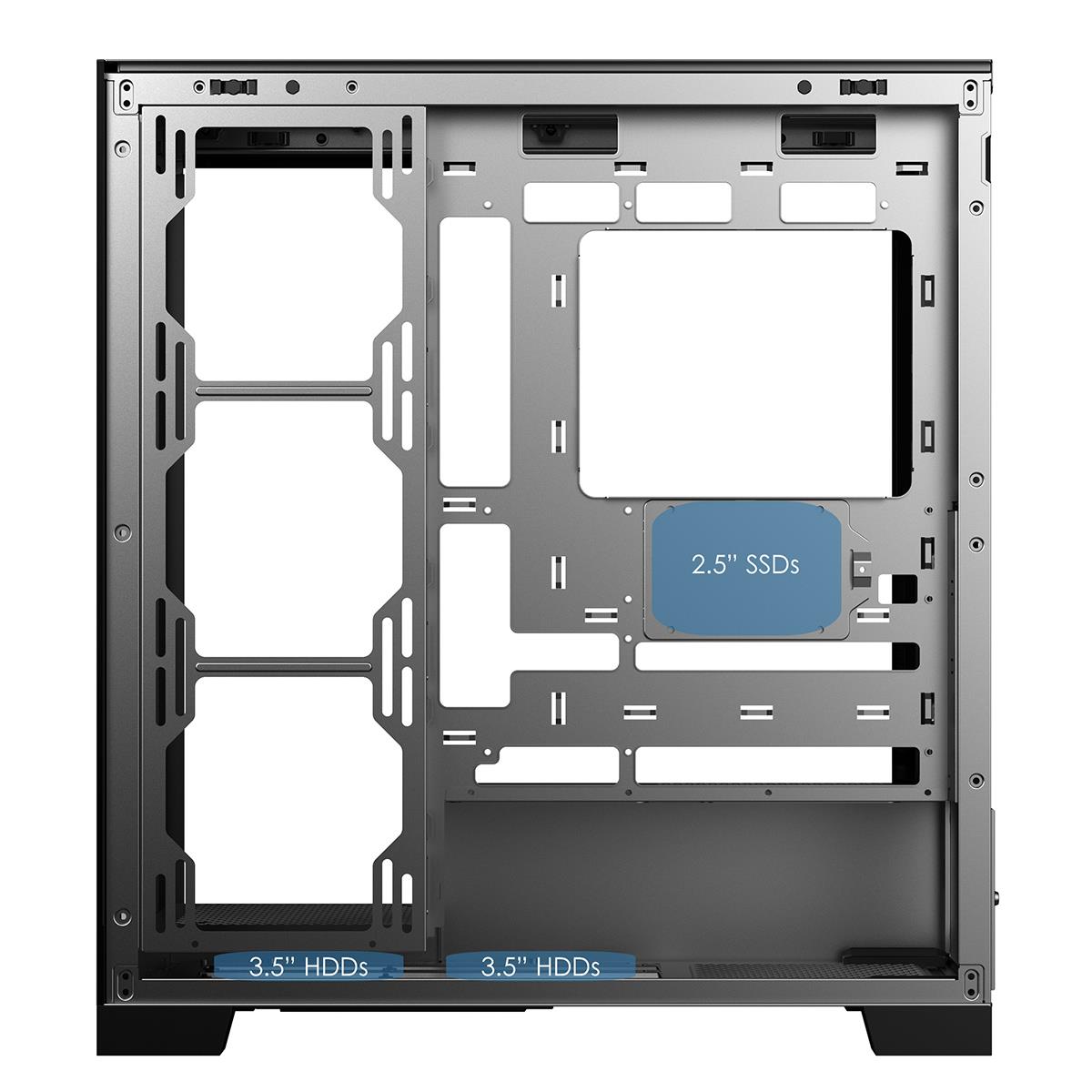

| Internal Bays: | 2 x 3.5” Internal 1 x 2.5” Internal |
| Drive Bay Notes: | |
| Expansion Slots: | 7 x Full Size |
| Cooling Front: | None |
| Cooling Top: | Space for 3 x 120mm or 2 x 140mm (Not Included) |
| Cooling Rear: | Space for 1 x 120mm or 1 x 140mm (Not Included) |
| Cooling Side: | Space for 3 x 120mm or 3 x 140mm (On M/B Cover – Not Included) |
| Cooling Bottom: | Space for 1 x 120mm or 1 x 140mm (Not Included) |
| IO Ports: | 1 x USB 3.1 Type C 2 x USB 3.0 1 x HD Audio 1 x Microphone |
| GPU Max Length: | 435mm |
| CPU Cooler Maximum Height: | 180mm |
| Front Bezel Colour: | Black |
| Body Colour: | Black |
| System Cabinet Features: | |
| PSU Included: | No |
General Specifications
| Manufacturer Part Number: | CIT-PRO-XR-DIA-B |
| EAN Number: | 5055492414045 |
| Has Mains Plug: | No |
| Colour: | Black |
| What’s In The Box: | Case Accessory Pack Manual |
| Unit (Product) Dimensions (mm): | 234mm x 504mm x 456mm (W x H x D) |
| Packaging Dimensions (mm): | 332mm x 550mm x 587mm (W x H x D) |
| Net Weight (KGs): | 9.9 KGs |
| Gross Weight (KGs): | 12.2 KGs |
