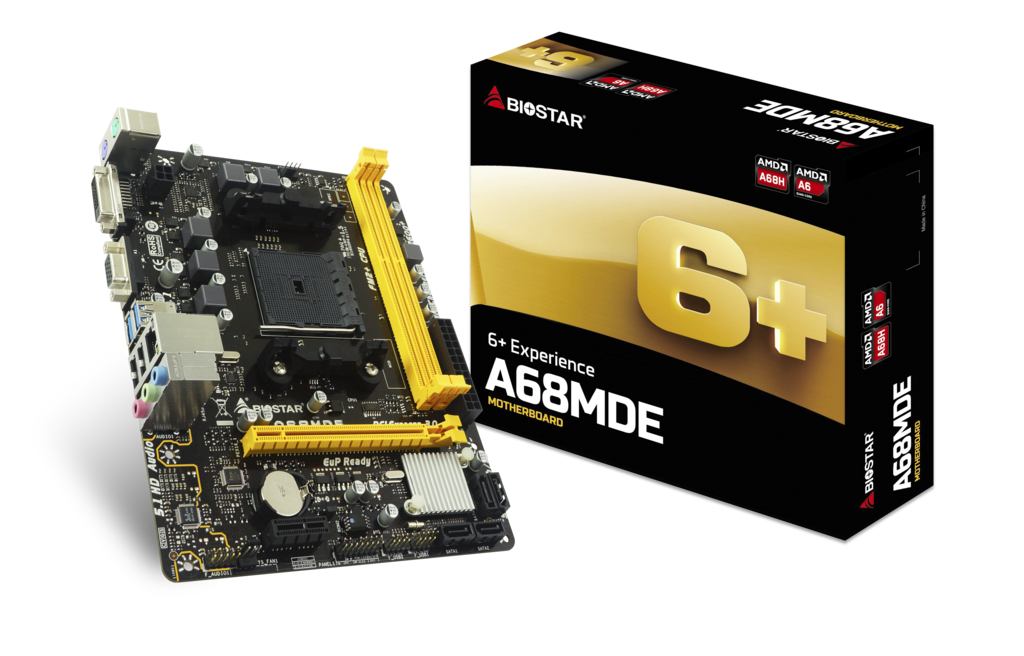

Description

– Support Socket FM2+/FM2 processors AMD A-series/ E2-series processor
– Support AMD Mutil Core(x4,x2)
– AMD A68H Chipset
– Support 2-DIMM DDR3-2600(OC)/ 2400(OC) up to 32G maximum capacity
– Support USB 3.1 Gen1
– Support DVI display port
– Support GbE LAN
– AMD Dual Graphics Technology

Specifications

Chipset
AMD A68H

CPU Support
AMD A10 Processor
AMD A8 Processor
AMD A6 Processor
AMD A4 Processor
AMD E2 Processor
AMD Athlon™ II X4 Processor
Maximum CPU TDP (Thermal Design Power) : 100Watt

Memory
Support Dual Channel DDR3 2600(OC)/2400(OC)/2133/1866/1600/1333/1066/800 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 32GB Memory

Integrated Video
By CPU model
AMD Dual Graphics Technology
Supports DX12
Supports HDCP

Storage
4 x SATA3 Connector
Support SATA RAID: 0,1,10

LAN
Realtek RTL8111G – 10/100/1000 Controller

Codec
Realtek ALC662 6-Channel HD Audio

USB
2 x USB 3.1 Port
2 x USB 2.0 Port
2 x USB 2.0 Header

Expansion Slot
1 x PCI-E 3.0 x16 Slot(supported by FM2+ CPU)
1 x PCI-E 2.0 x1 Slot

Rear I/O
1 x PS/2 Keyboard/Mouse
2 x USB 3.1 Port
1 x DVI-D Connector
1 x VGA Port
1 x LAN port
3 x Audio Jacks

Internal I/O
2 x USB 2.0 HeaderSupport 4 devices
4 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector

Hardware Monitoring
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

Dimensions
Micro ATX Form Factor Dimension: 215 x 170mm ( W x L )

OS Support
Support Windows XP / 7 / 8 / 8.1 / 10
