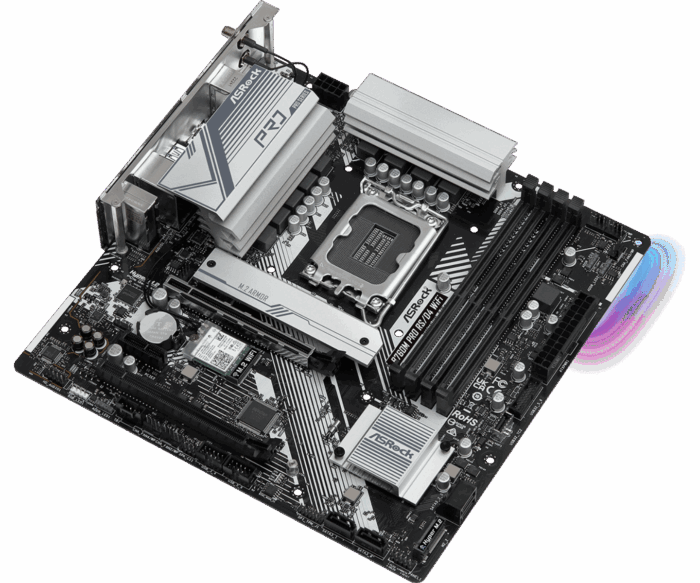

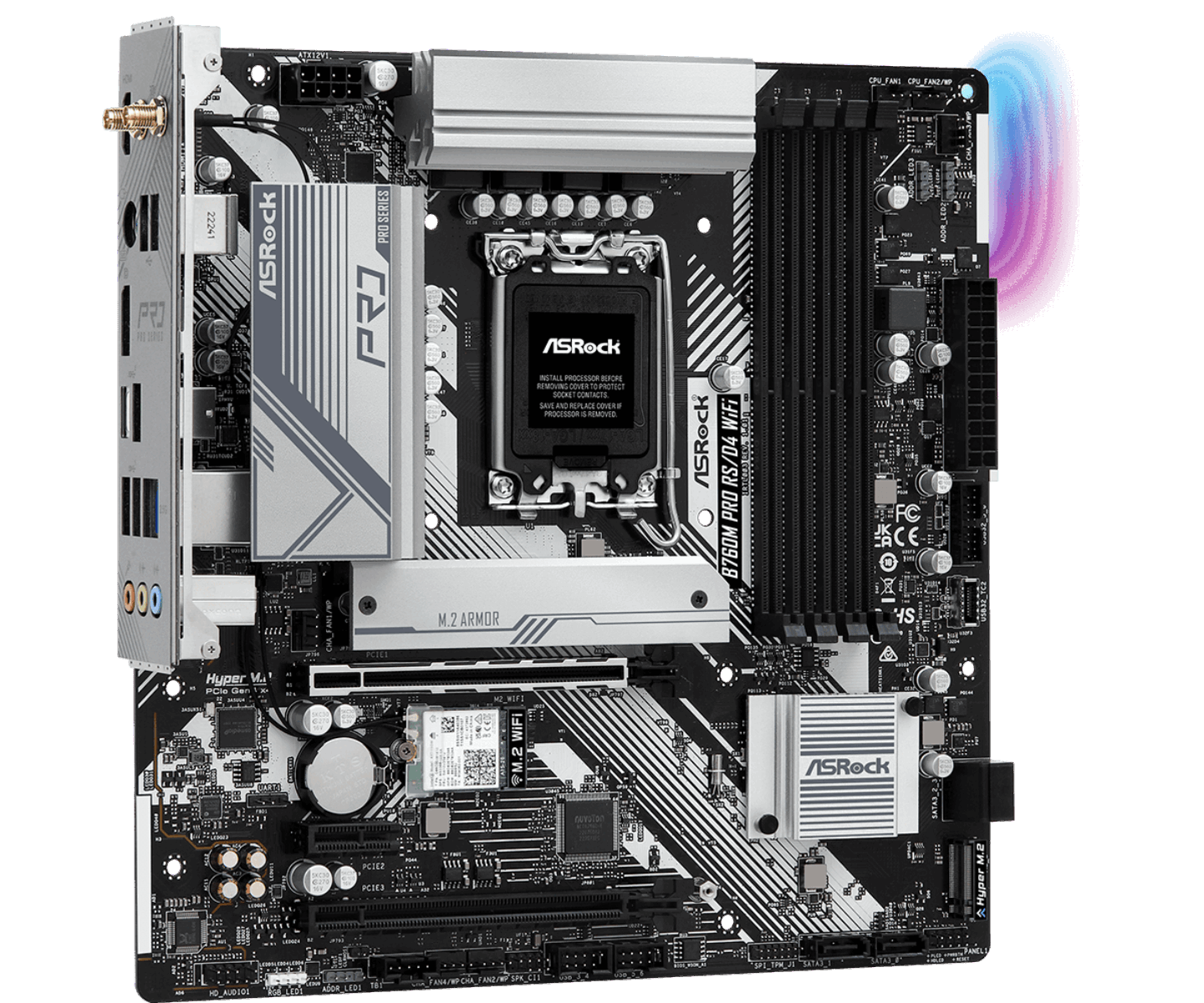

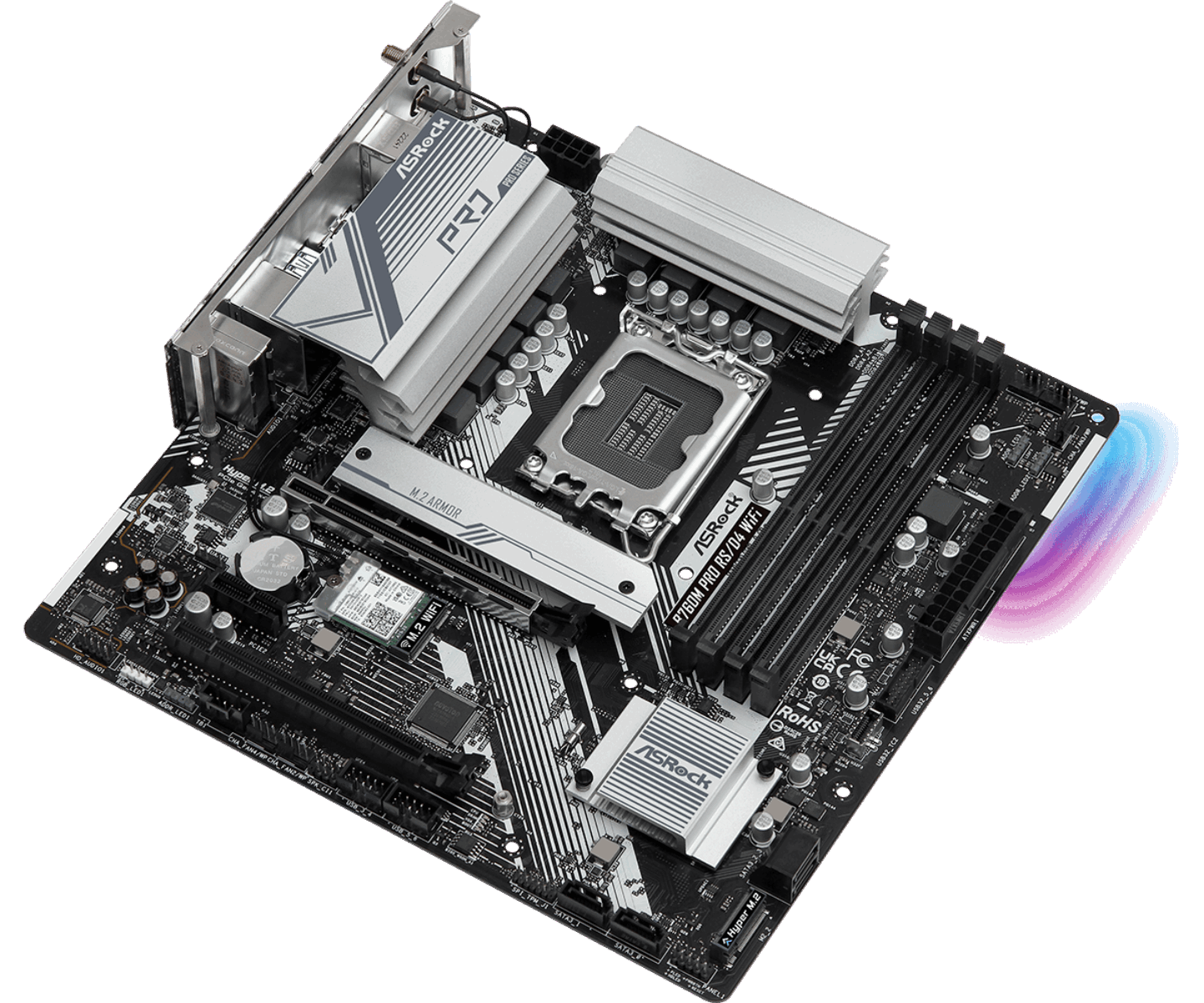

Description

• Unique Feature
  Rock-Solid Durability
  – 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
  – Pre-Installed I/O Shield
  – ASRock Intel^® 4-Layer Memory POOL (Planes on Outer Layers) Technology
  Ultrafast Connectivity
  – 2.5G LAN,
  802.11ax Wi-Fi 6EModule
  EZ Update
  – ASRock Auto Driver Installer
  EZ Troubleshooter
  – ASRock Post Status Checker
• CPU
  – Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
  – Supports Intel^® Hybrid Technology
  – Supports Intel^® Turbo Boost Max 3.0 Technology
  – Supports Intel^® Thermal Velocity Boost (TVB)
  – Supports Intel^® Adaptive Boost Technology (ABT)
• Chipset
  – Intel^® B760
• Memory
  – Dual Channel DDR4 Memory Technology
  – 4 x DDR4 DIMM Slots
  – Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
  – Supports ECC UDIMM memory modules (operate in non-ECC mode)
  – Max. capacity of system memory: 128GB
  – Supports Intel^® Extreme Memory Profile (XMP) 2.0

  *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
  1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
  2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.
  2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
• BIOS
  – 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  – Intel^® Xe Graphics Architecture (Gen 12)
  – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  – Nahimic Audio
• LAN
  – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  – Dragon RTL8125BG
  – Supports Dragon 2.5G LAN Software
  – Smart Auto Adjust Bandwidth Control
  – Visual User Friendly UI
  – Visual Network Usage Statistics
  – Optimized Default Setting for Game, Browser, and Streaming Modes
  – User Customized Priority Control
• Wireless LAN
  – 802.11ax Wi-Fi 6E Module
  – Supports IEEE 802.11a/b/g/n/ac/ax
  – Supports Dual-Band 2×2 with extended 6GHz band support*
  – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  – Supports Bluetooth 5.3 + High speed class II
  – Supports MU-MIMO

  *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows^® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available.
  A 6GHz compatible router is required for 6E functionality.
• Slots
  CPU:
  – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
  * Chipset:
  – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
  – 1 x PCIe 4.0 x1 Slot (PCIE2)*
  – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT)
  * Supports NVMe SSD as boot disks
  – Supports AMD CrossFire™

  *
• Storage
  CPU:
  – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  – 4 x SATA3 6.0 Gb/s Connectors

  *Supports Intel^® Volume Management Device (VMD)
  Supports NVMe SSD as boot disks
• RAID
  – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB
  – 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
  – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  – 6 x USB 2.0 (2 Rear, 4 Front)
  * All USB ports support ESD Protection
• Connector
  – 1 x SPI TPM Header
  – 1 x Chassis Intrusion and Speaker Header
  – 1 x RGB LED Header*
  – 3 x Addressable LED Headers**
  – 1 x CPU Fan Connector (4-pin)***
  – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  – 1 x Front Panel Audio Connector
  – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  – 1 x Front Panel Type C USB 3.2 Gen1 Header

  *Supports in total up to 12V/3A, 36W LED Strip

  **Support in total up to 5V/3A, 15W LED Strip

  ***CPU_FAN1 supports the fan power up to 1A (12W).

  ****CPU_FAN2/WP supports the fan power up to 2A (24W).

  *****CHA_FAN1~4/WP support the fan power up to 2A (24W).
  CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

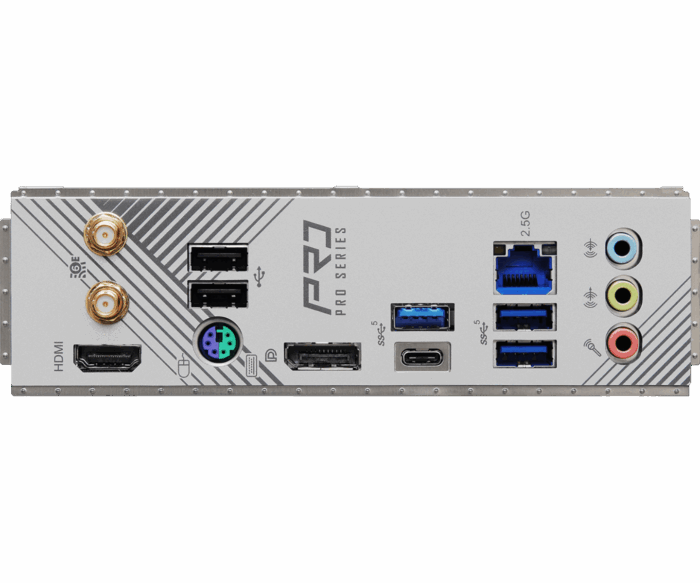

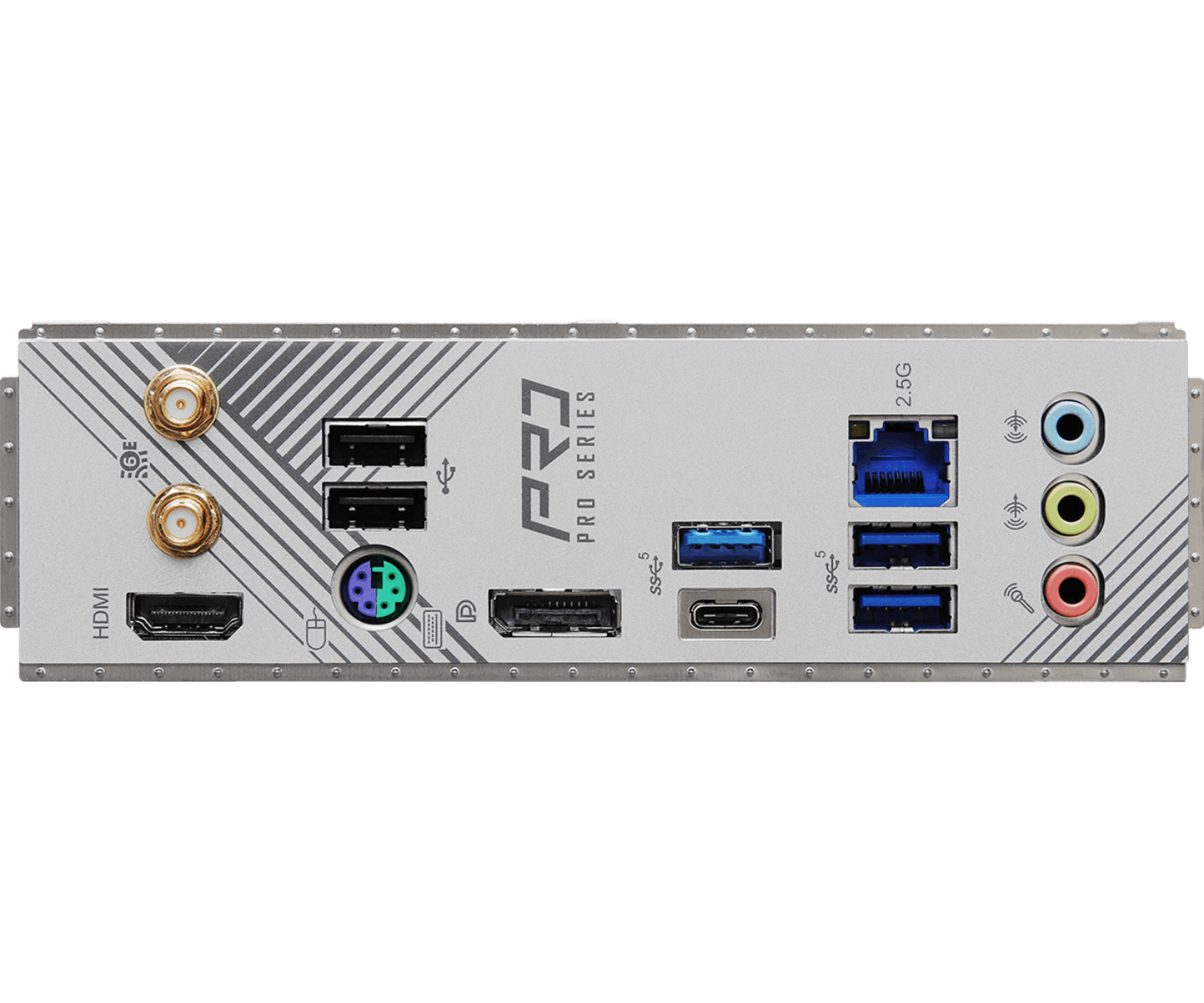

• Rear Panel I/O
  – 2 x Antenna Ports
  – 1 x PS/2 Mouse/Keyboard Port
  – 1 x HDMI Port
  – 1 x DisplayPort 1.4
  – 1 x USB 3.2 Gen1 Type-C Port
  – 3 x USB 3.2 Gen1 Type-A Ports
  – 2 x USB 2.0 Ports
  – 1 x RJ-45 LAN Port
  – HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  – ASRock Motherboard Utility (A-Tuning)
  – ASRock Dragon 2.5G LAN Software
  – ASRock Polychrome SYNC*
  UEFI
  – ASRock EZ Mode
  – ASRock Full HD UEFI
  – ASRock My Favorites in UEFI
  – ASRock Auto Driver Installer
  – ASRock Instant Flash
  – ASRock Easy RAID Installer

  *These utilities can be downloaded from ASRock Live Update & APP Shop.

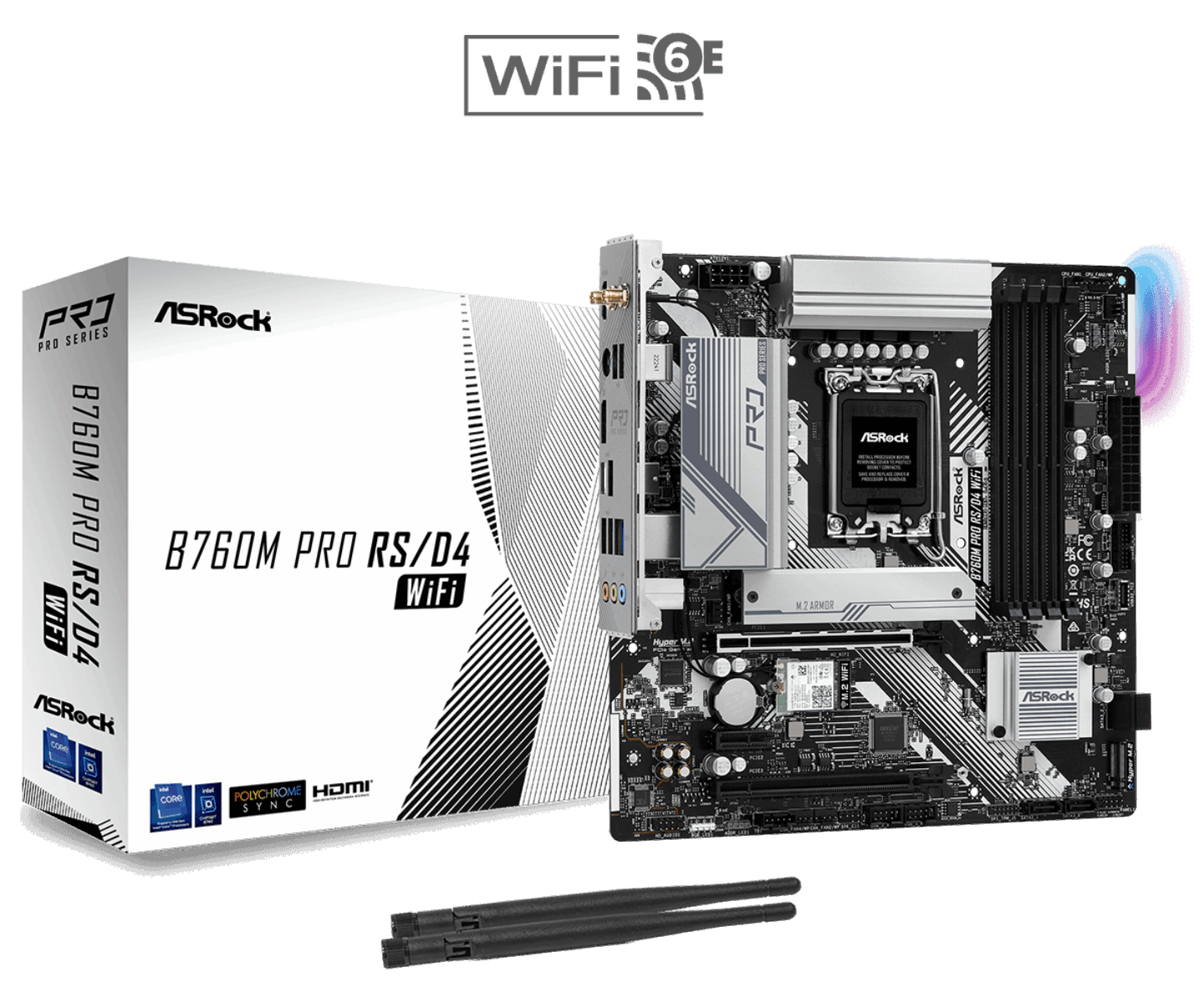

• Accessories
  – 1 x User Manual
  – 2 x SATA Data Cables
  – 2 x ASRock WiFi 2.4/5/6 GHz Antennas
  – 2 x Screws for M.2 Sockets
  – 1 x Standoff for M.2 Socket
• Form Factor
  – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• OS
  – Microsoft Windows^® 10 64-bit / 11 64-bit

  *Windows^® 10 only supports version 21H2 or later
• Certifications
  – FCC, CE
  – ErP/EuP ready (ErP/EuP ready power supply is required)
