ASRock Super Alloy
– Premium 50A Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

– Supports 10^th Gen Intel^® Core™ Processors and 11^th Gen Intel^® Core™ Processors (LGA1200)
– Digi Power design
– 6 Power Phase design
– Supports Intel^® Turbo Boost Max 3.0 Technology

– Intel^® B560

– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– 11^th Gen Intel^® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
– 10^th Gen Intel^® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)*

– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB**
– Supports Intel^® Extreme Memory Profile (XMP) 2.0

– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, GT, DRAM, VPPM, VCCIN_AUX, VCCST, VCCSA Voltage Multi-adjustment

– 11^th Gen Intel^® Core™ Processors support Intel^® Xe Graphics Architecture (Gen 12). 10^th Gen Intel^® Core™ Processors support Gen 9 Graphics
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz with 11^th Gen Intel^® Core™ Processors
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz with 10^th Gen Intel^® Core™ Processors
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11^th Gen Intel^® Core™ Processors)

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection

– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel^® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

11th Gen Intel^® Core™ Processors
– 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel^® Core™ Processors
– 1 x PCI Express 3.0 x16 Slot*

– 2 x PCI Express 3.0 x1 Slots

– 4 x SATA3 6.0 Gb/s Connectors, support Intel^® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11^th Gen Intel^® Core™ processors only)*
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

– 1 x COM Port Header
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

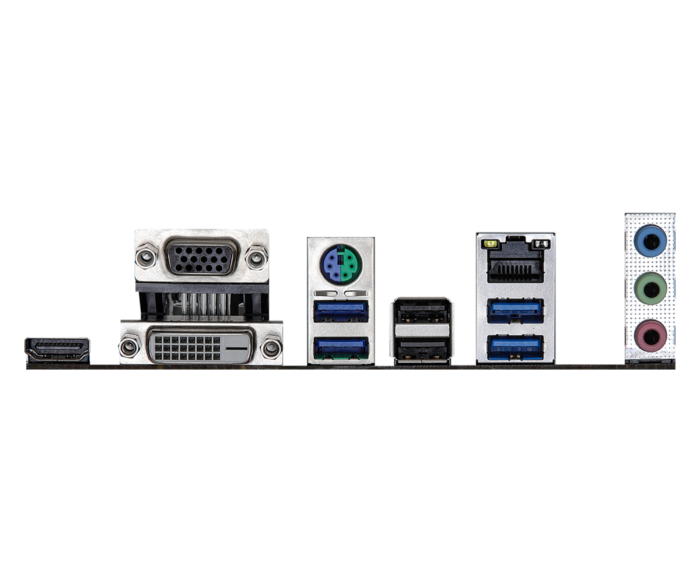

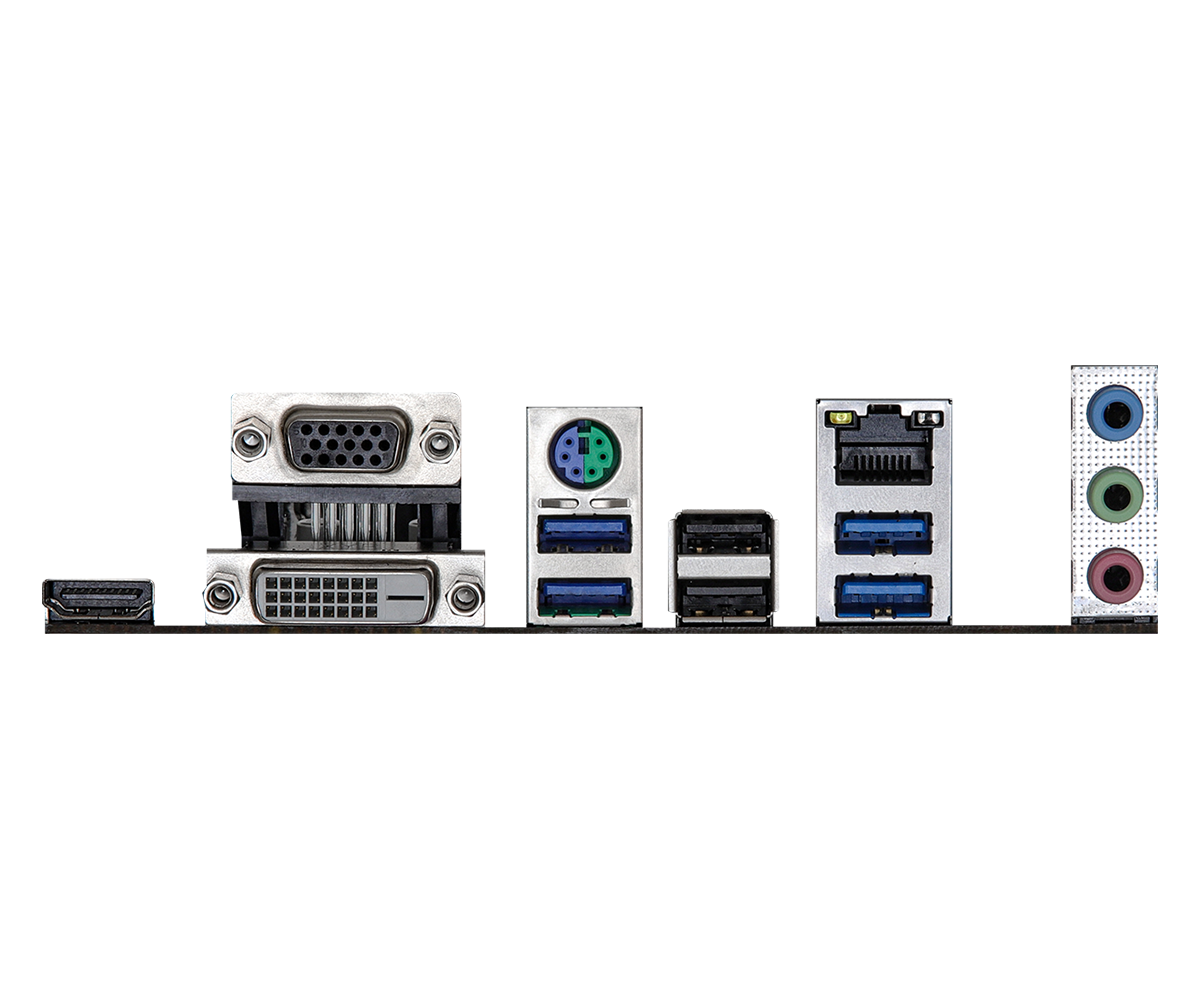

– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash

– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 2 x Screws for M.2 Sockets

– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, VCCIN_AUX, VCCSA, VCCST, ATX_5VSB

– Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
– Solid Capacitor design

– Microsoft^® Windows^® 10 64-bit / 11 64-bit

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
