Description
General Data
Compatibility
Intel Socket: 1700, 1200, 115X, 2011-3*, 2066* *Square ILM
AMD Socket: AM5, AM4
Ram Clearance: unlimited
Warranty: 6 Years
Operating Ambient Temperature: 0—40 °C

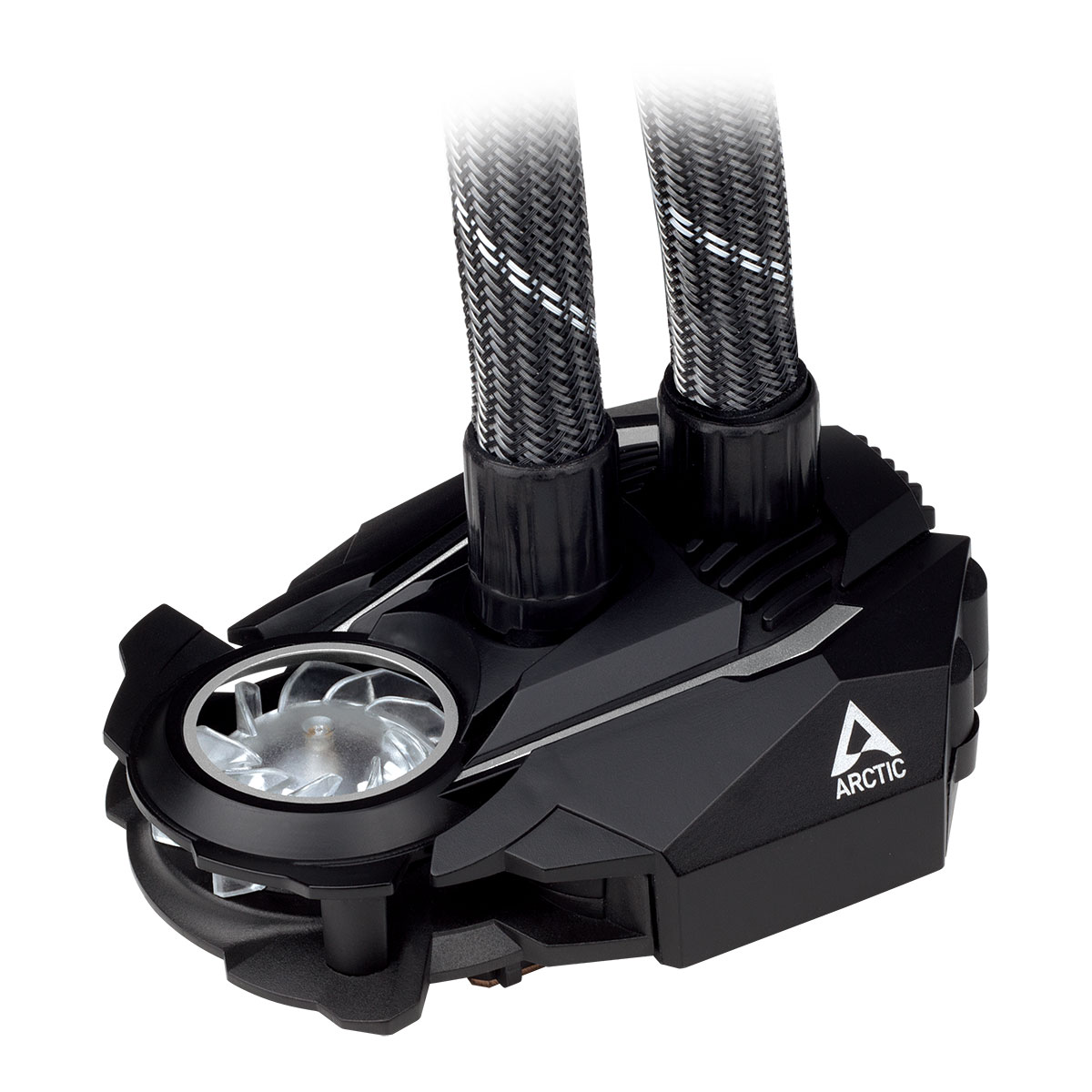

Pump/Cold Plate
VRM Fan: 40 mm, 1000—3000 rpm (PWM controlled)
Pump: 800—2000 rpm (PWM controlled)
Power Consumption: 0.5 W—2.7 W (Pump + VRM Fan)
Cold Plate: Copper, Micro-Skived-Fins
Thermal Paste: MX-4 (0.8 g)
Fan
Fan: ARCTIC P12 120 mm Fan x2
Fan Speed: 200—1800 rpm
Fan Bearing: Fluid Dynamic Bearing
Noise Level: 0.3 Sone
Current: 0.08 A | 12 V DC
Airflow: 55.6 cfm
Static Pressure: 2.2 mmH2O
Connector: 4-Pin Connector

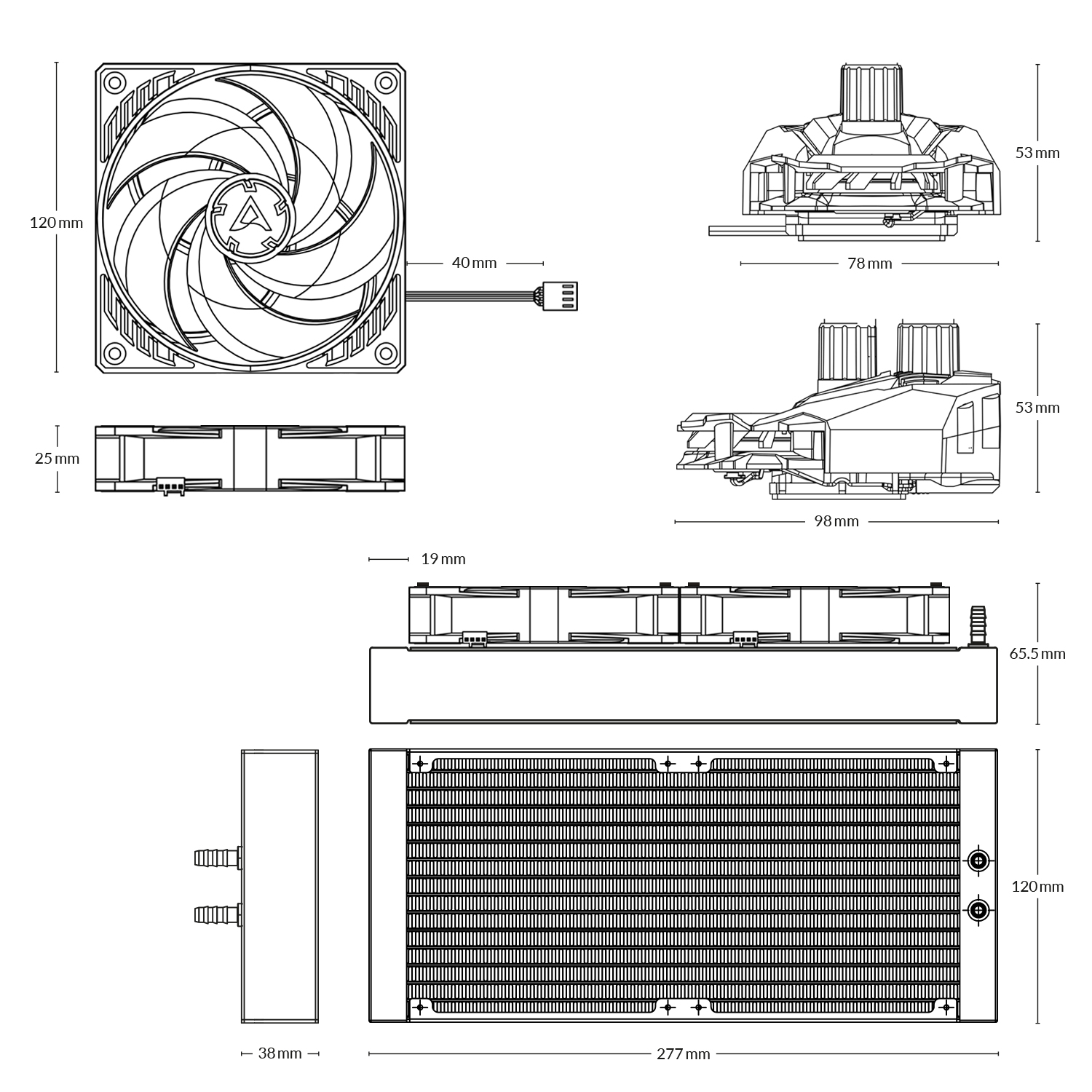

Size & Weight
Radiator: 277 (L) x 120 (W) x 38 (H) mm
Pump (w/o tubes) 98 (L) x 78 (W) x 53 (H) mm
Tube Diameter: Outer: 12.4 mm | Inner: 6.0 mm
Tube Length: 450 mm
Weight: 1191 g (Fan, Radiator, Pump, Tubes)
