HIGH CURRENT GAMER
HCG 1000 GOLD
FULLY MODULAR POWER SUPPLY
Engineered to meet the power demands of high-end systems, the Antec High Current Gamer Gold power supply series boasts unparalleled stability and 80 PLUS Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC. Advanced thermal control with the Zero RPM mode enables optimal balance between silence and cooling, and a quiet 135 mm fluid dynamic bearing fan completes the package. The CircuitShield suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable. If loads of power, high-level engineering and extreme efficiency are what you’re after, the HCG Gold series is the ideal power supply in any situation.
– 80 PLUS Gold Certified
– Energy Efficiency
– Stable Output
– DC to DC Converter Design
– 100% Japanese Heavy-Duty Caps
– Fully-Modular
– Non-Stop Industrial Class Performance at 50°C Ambient
80 PLUS Gold Certified
Delivering up to 92% efficiency, the High Current Gamer Gold series utilizes active PFC, 100% Japanese capacitors, and provides efficiency during max and low loads—living up to the performance standards that we are known for.
100% Japanese Capacitors
Using 100% high-performance Japanese capacitors, the HCG Gold series ensures the tightest DC stability and regulation, for reliability that you and your system can count on.
PhaseWave Design
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
Server-grade 50°C Temperature Rating
HCG 1000 Gold delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient.
135 mm FDB FAN
The whisper-quiet, 135mm fluid-dynamic bearing (FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.

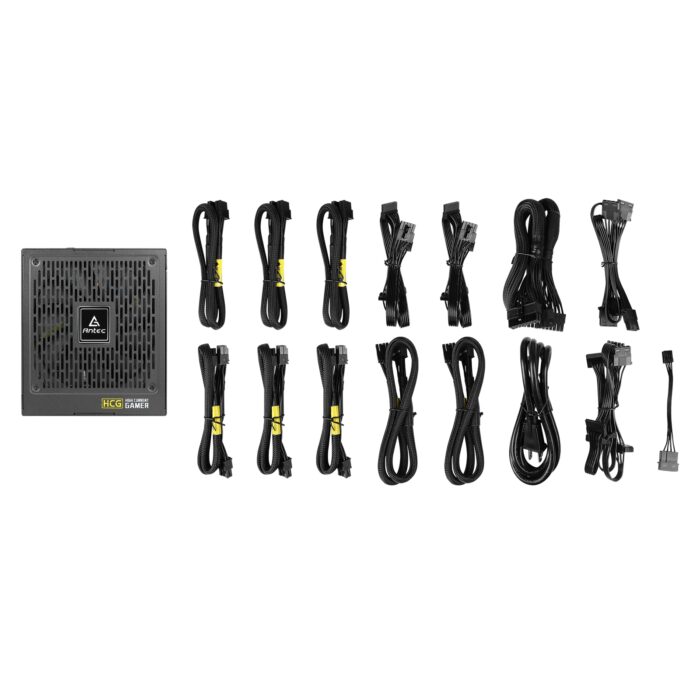

Fully modular cable management system
Allows you to use only the cables you need, which greatly simplifies installation and helps clear out space. And with a full-modular power supply, you can also improve your airflow, because excess cables can obstruct and reduce airflow.
Industry-leading 16 pin Socket
Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
PowerCache
An extra capacitor located at the ends of 12V cables store power, preventing brownouts from sudden demand spikes-providing an extra power reserve where you need it, when you need it most.
Model
HCG1000 Gold
Type
ATX 12V 2.4
Modular
Fully Modular
Input Voltage
100-240 VAC ±10%
Input Current
13A-6.5A
Input Frequency Range
50Hz-60Hz
PFC
Active PFC (>0.9 typical)
Power Good Signal
100-500ms
Efficiency
92% Typically
Protection
OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
Wattage
1000W
Operation Temperature
0~50°C
Connections
1 x 24-pin
2 x 8 (4+4) pin ATX12V / EPS12V
8 x 8 (6+2) pin PCI-E
12 x SATA
6 x Molex
1 x FDD
Regulatory
cTUVus / TUV / CB / RCM / CE / EAC / CCC / BSMI / FCC / KR / BIS / UKCA / ICES
Fan
135 mm FDB Fan
Certifications
80 PLUS Gold
Dimensions ( L x W x H )
160 x 150 x 86mm
Weight
Net: 1.88 KGs
Gross: 3.11 KGs
